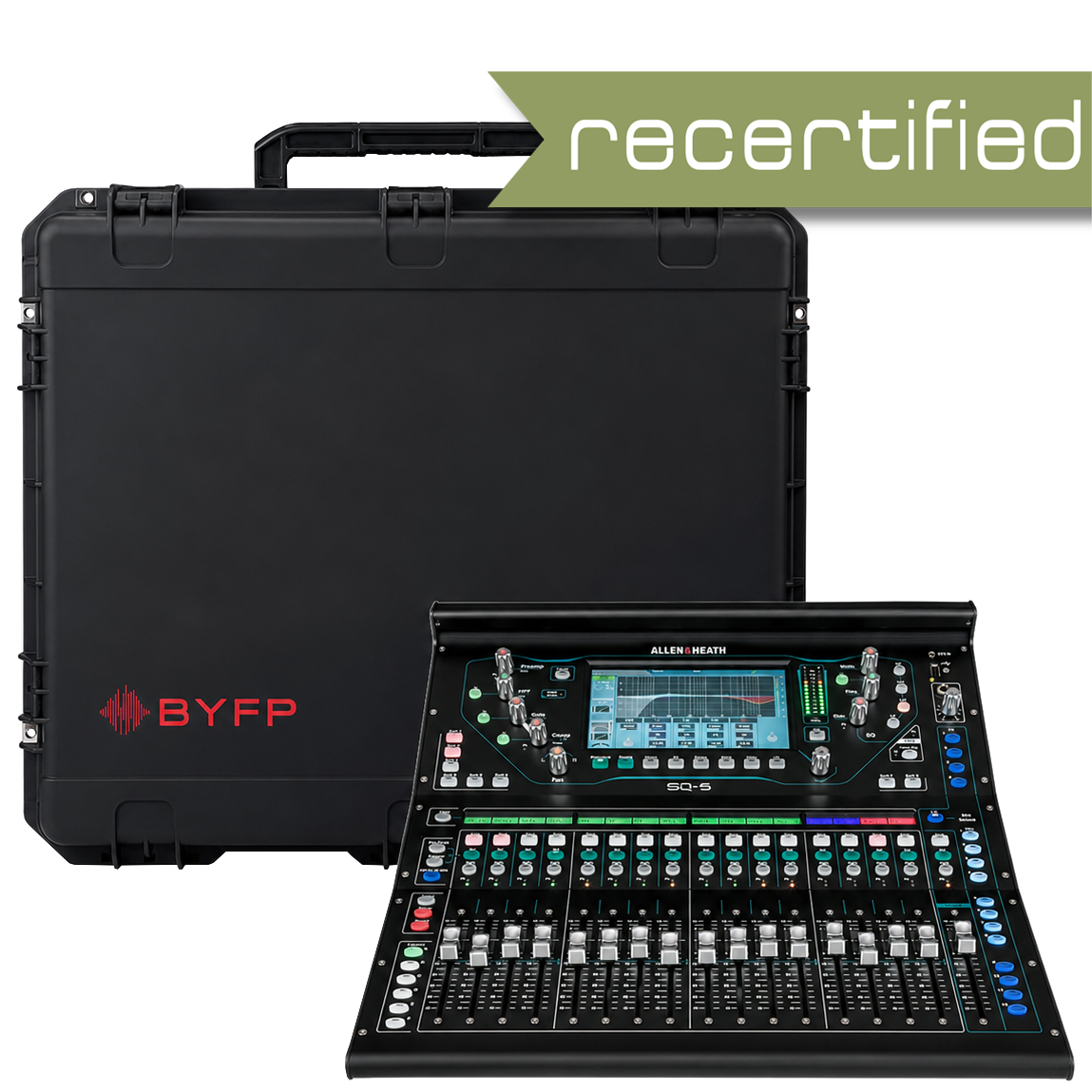

Allen & Heath SQ-5 Mixer tourPack
Allen & Heath SQ-5 Mixer tourPack
19%, only 0 left
Allen & Heath SQ-5 Mixer tourPack
Allen & Heath SQ-5 Mixer tourPack
Product SKU
    35135

Allen & Heath SQ-5 Mixer tourPack

$3,999.00

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The Allen & Heath SQ-5 tourPack combines the powerful SQ-5 digital mixer with essential accessories, providing a complete solution for live sound, touring, installed audio, and broadcast applications. Powered by Allen & Heath's renowned 96kHz XCVI core, the SQ-5 delivers exceptional audio quality with ultra-low latency, offering 48 input channels, 36 buses, motorized faders, and a responsive 7-inch touchscreen for fast, intuitive operation.

Designed for demanding professional environments, the SQ-5 features a rugged metal chassis, customizable soft keys, and a compact footprint that makes it ideal for both portable and fixed installations. The included tourPack accessories ensure your system is ready for deployment while simplifying transport, setup, and day-to-day operation.

Whether you're mixing live performances, corporate events, houses of worship, or broadcast productions, the Allen & Heath SQ-5 tourPack delivers the flexibility, reliability, and performance professionals expect.

FEATURES
    Allen & Heath SQ-5 Mixer:
    • 48 Input Channels
    • DEEP Processing ready
    • 17 Faders / 6 Layers
    • 12 Stereo mixes + LR
    • 3 Stereo Matrix
    • 8 Stereo FX Engines + dedicated returns
    • 7” capacitive touchscreen
    • SLink port for remote audio / expansion
    • 64ch I/O Port for audio networking
    • 32×32 USB audio interface
    • SQ-Drive direct recording to USB
    • AES output
    • Chromatic channel metering
    • Integrated LED illumination
    • Dedicated physical controls
    • 8 Assignable SoftKeys
    • Channel LCD displays
    • 19” rack mountable

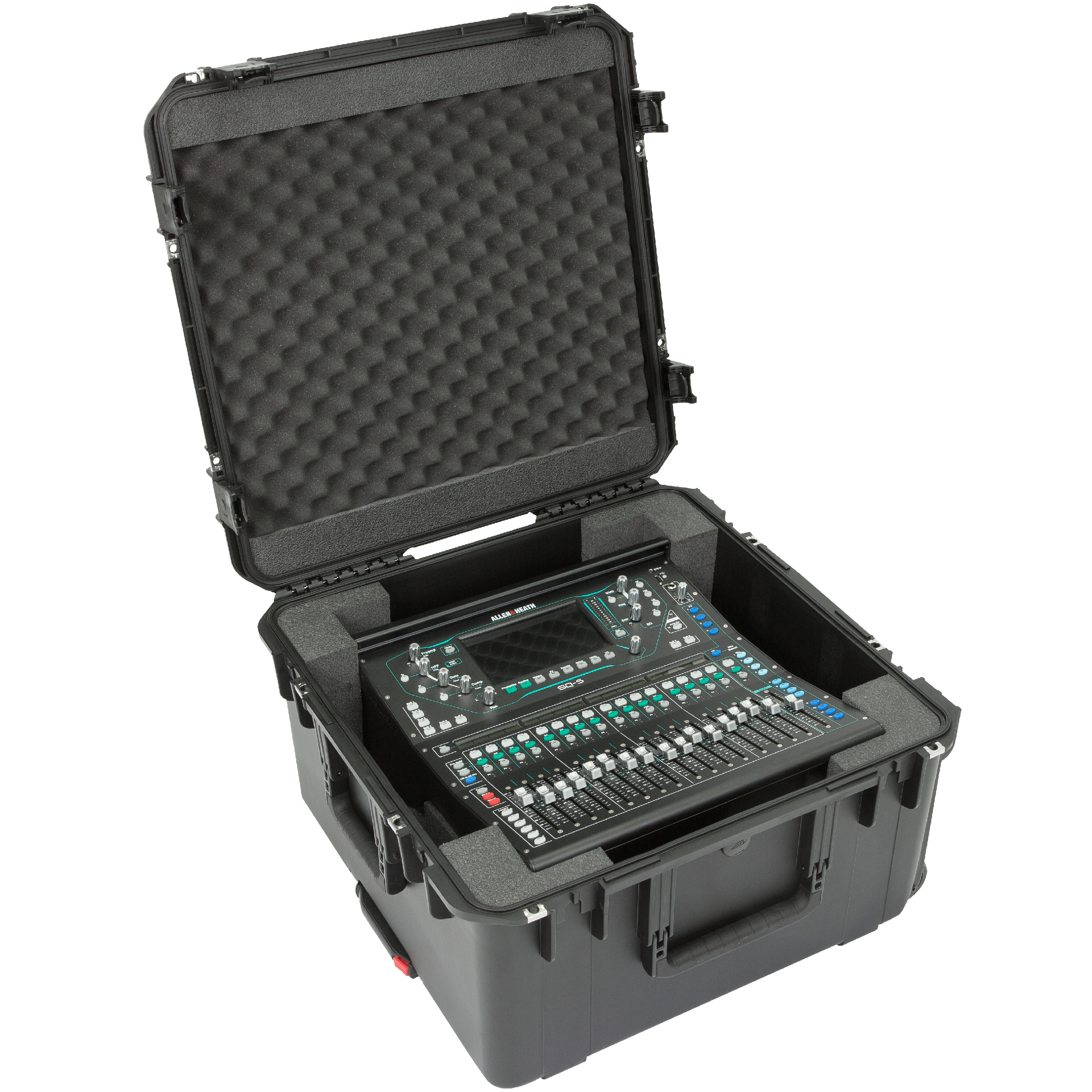

    BYFP Custom-Fit ipCase:
    • Wheels and pull handle
    • Custom cut foam interior for Allen & Heath SQ5
    • Reinforced locking loops for customer supplied locks
    • Snap-down rubber over-molded cushion grip handle
    • Waterproof and dust tight design (MIL-C-4150J / IP67)
    • Molded-in hinge for added protection
    • Trigger release latch system
    • Ambient pressure equalization valve (MIL-STD-648C)
    • Resistant to UV, solvents, corrosion, fungus (MIL-STD-810G)
    • Resistant to impact damage (MIL-STD-810G)
SPECIFICATIONS
    Allen & Heath SQ-5 Mixer:
    • Input Sensitivity: -60 to +0dBu
    • Switchable Pad: -20dB
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +30dBu
    • Input Impedance: >5k(omega)
    • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    • ST1, ST2 connectors: Balanced, 1/4" TRS jack
    • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
    • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
    • Trim: +/-24dB
    • Maximum Input Level (ST1, ST2 / ST3): +22dBu / +18dBu
    • Input Impedance: >7k(omega)
    • Outputs A and B: Balanced 1/4" TRS Jack
    • Source: Patchable
    • Output Impedance: <75(omega)
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
    • dSnake mode (48kHz devices): 64 channels assignable, compatible with AR2412, AR84, AB168, ME
    • dx mode (96kHz devices): 32 channels assignable,...
    • 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
    • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
    • Talkback: Dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
    • Signal Generator: Assignable to any mix, Sine/White/Pink/Bandpass Noise
    • RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source
    • SQ-Drive: USB A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16, 24-bit, fully patchable
    • Multitrack Record: 16 channel, WAV, 96kHz, 24-bit, track sources fully patchable
    • Multitrack Playback: 16 channel, WAV, 96kHz, 24-bit fully patchable
    • Send (upstream): 32 channel, 96kHz, 24-bit
    • Return (downstream): 32 channel, 96kHz, 24-bit
    • Desk mounted: 440 W x 514.9 D x 198 mm H (17.3" x 20.3" x 7.8")
    • Packed in shipping box: 610 W x 680 D x 360 mm H (24" x 26.8" x 14.2")
    • Unpacked weight: 10.5 kg (23.1 lbs)
    • Packed weight: 14 kg (30.9 lbs)

    BYFP Custom-Fit ipCase:
    • Exterior Depth: 24.81 in-63.02 cm
    • Exterior Width: 24.98 in-63.45 cm
    • Exterior Height: 14.15 in-35.94 cm
    • Carton Length: 25.50 in-64.77 cm
    • Carton Width: 25.50 in-64.77 cm
    • Carton Depth: 14.75 in-37.47 cm
    • Shipping Weight: 27.35 lb-12.41 kg
    • Product Weight: 24.40 lb-11.07 kg
CONTENTS
    (1) Allen & Heath SQ-5 Mixer
    (1) Power Cord
    (1) Operator's Instructions
    (1) BYFP Custom-Fit ipCase
