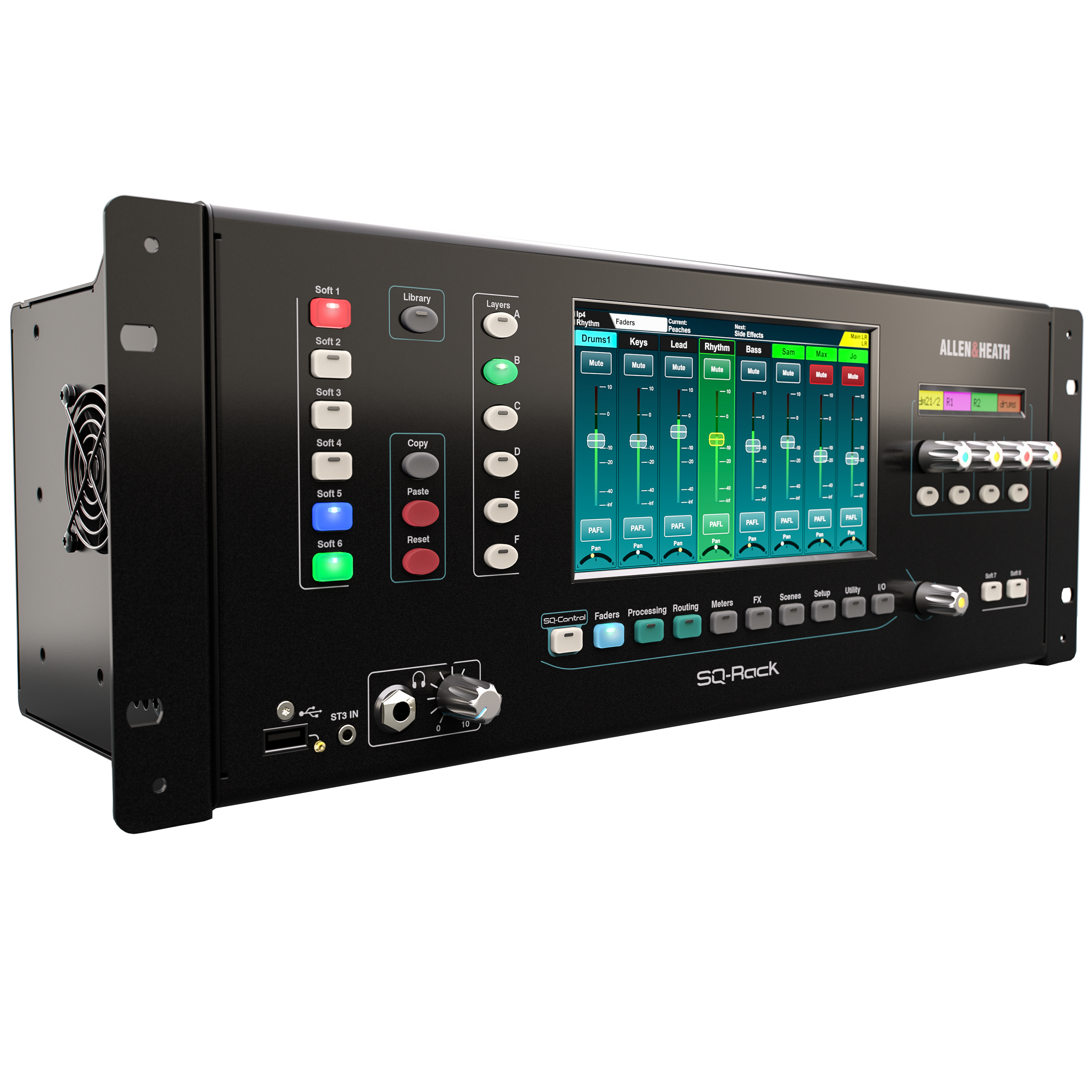

The SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments.

It combines power, flexibility, and intuitive control in one versatile solution.

With exceptional connectivity, SQ-Rack offers unparalleled I/O capability. Featuring local preamps alongside the intelligent SLink port, it integrates seamlessly with Allen & Heath’s Everything I/O ecosystem. Expand your options further with Dante, Waves, MADI, or additional SLink option cards, and enjoy multichannel USB connectivity using a computer or direct-to-drive for straightforward recording and playback.

SQ-Rack also excels when it comes to control. Designed with ease and speed of use in mind, it features plenty of hands-on control, a dedicated fader screen, and a customizable SQ-Control display. For added flexibility, remote control is a breeze with the SQ-MixPad, SQ-4You, and SQ-Control apps, giving you complete command wherever you are and at whatever your level of technical know-how.

Whether you’re equipping a venue, a touring band taking it to the next level, or building a professional in-ear monitoring system, the SQ-Rack is built for any challenge. From installations in bars to cruise ships, or integration with larger systems to bands on the move and IEM/pro touring, SQ-Rack is the perfect solution to provide premium sound every time.

FEATURES

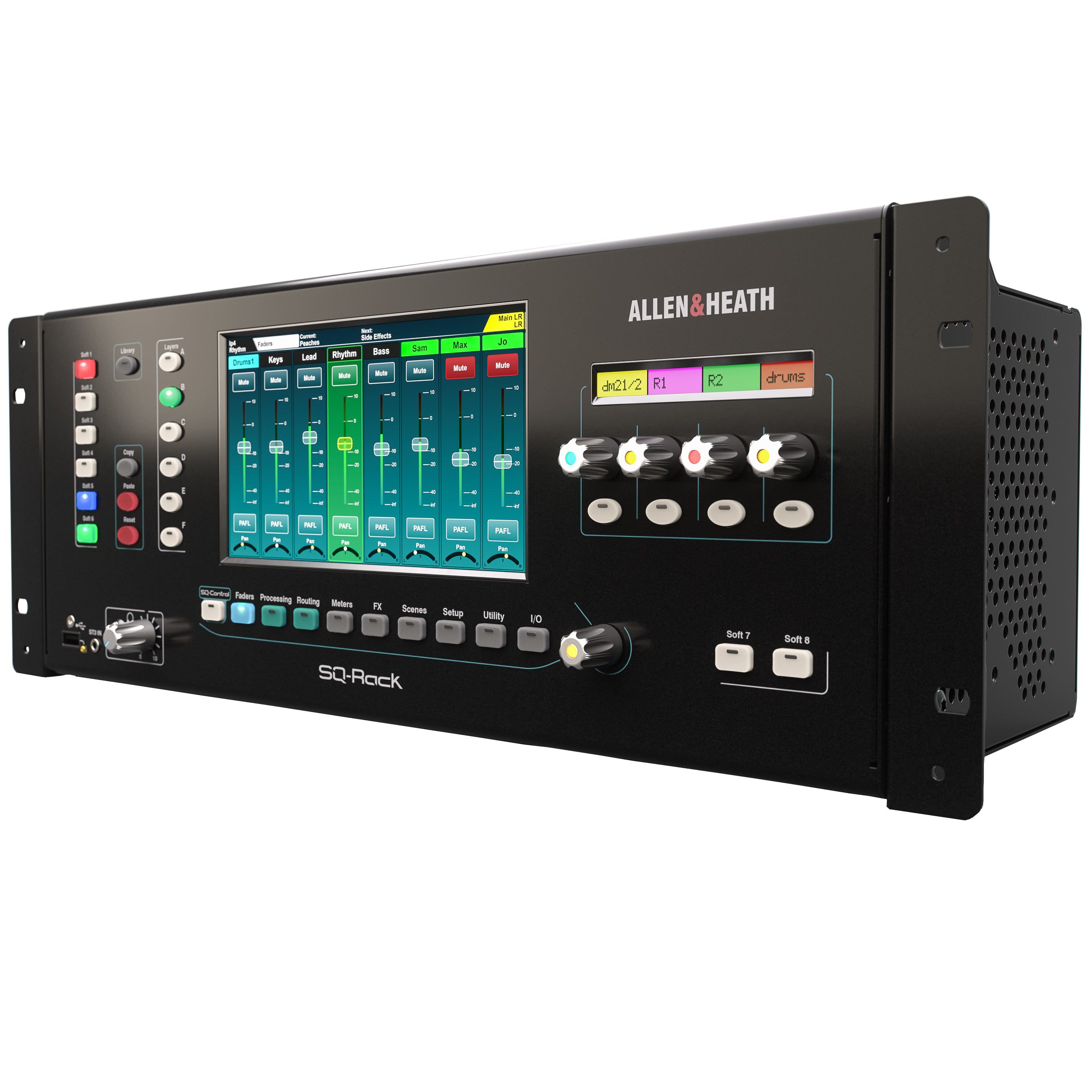

    • Rack-mountable 4U digital mixer for Live, Studio and Installation use
    • 48x Input Channels
    • 16x Local Mic/Line Inputs (XLR)
    • 2x ¼” Stereo Inputs (TRS)
    • 1x 3.5 mm Stereo Input
    • 36x Total Busses
    • 12x Stereo Mix (Aux or Group) + Main
    • PAFL Bus
    • 14x Assignable Local Analogue Outputs (12x XLR + 2x ¼” TRS)
    • AES Digital Output
    • Dedicated Talkback mic input (XLR)
    • ¼” TRS Stereo Headphone out with dedicated control
    • SLink EtherCON connection for remote audio using dSnake/ME, DX or GigaACE/GX protocol (128x128 channels)

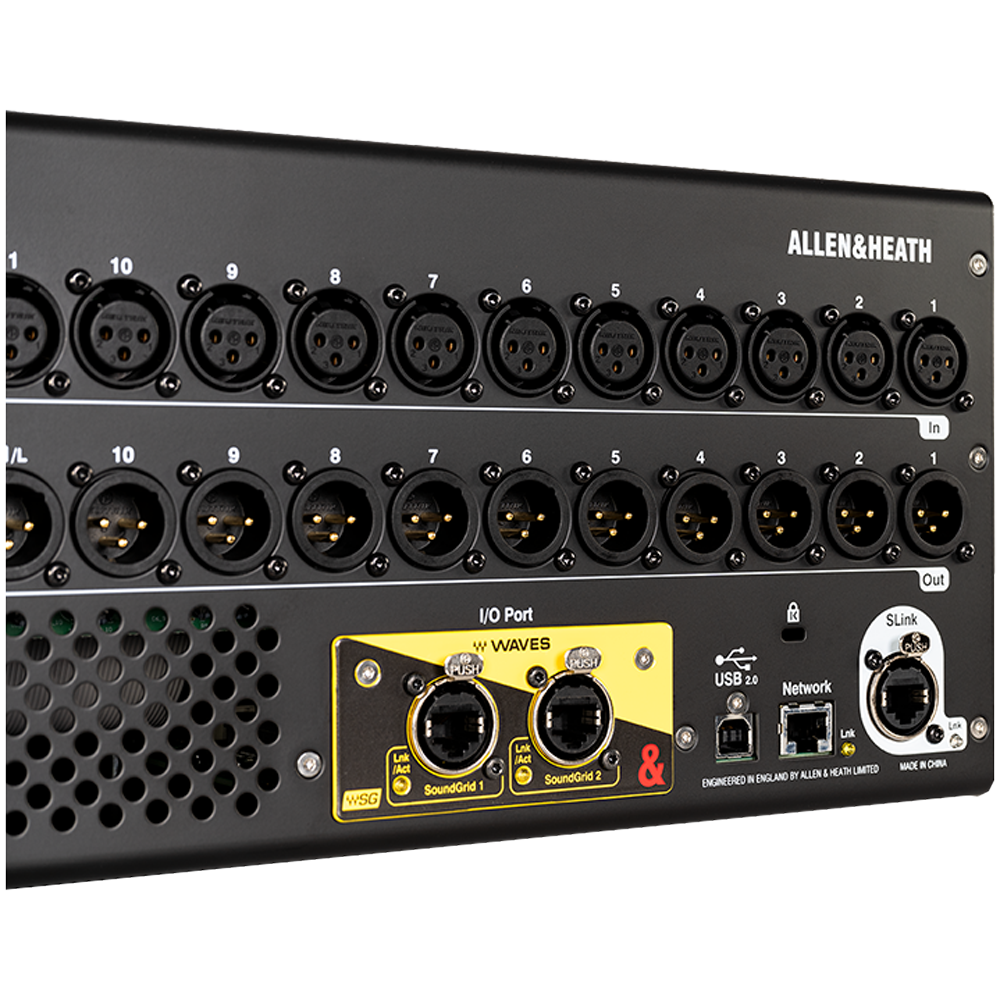

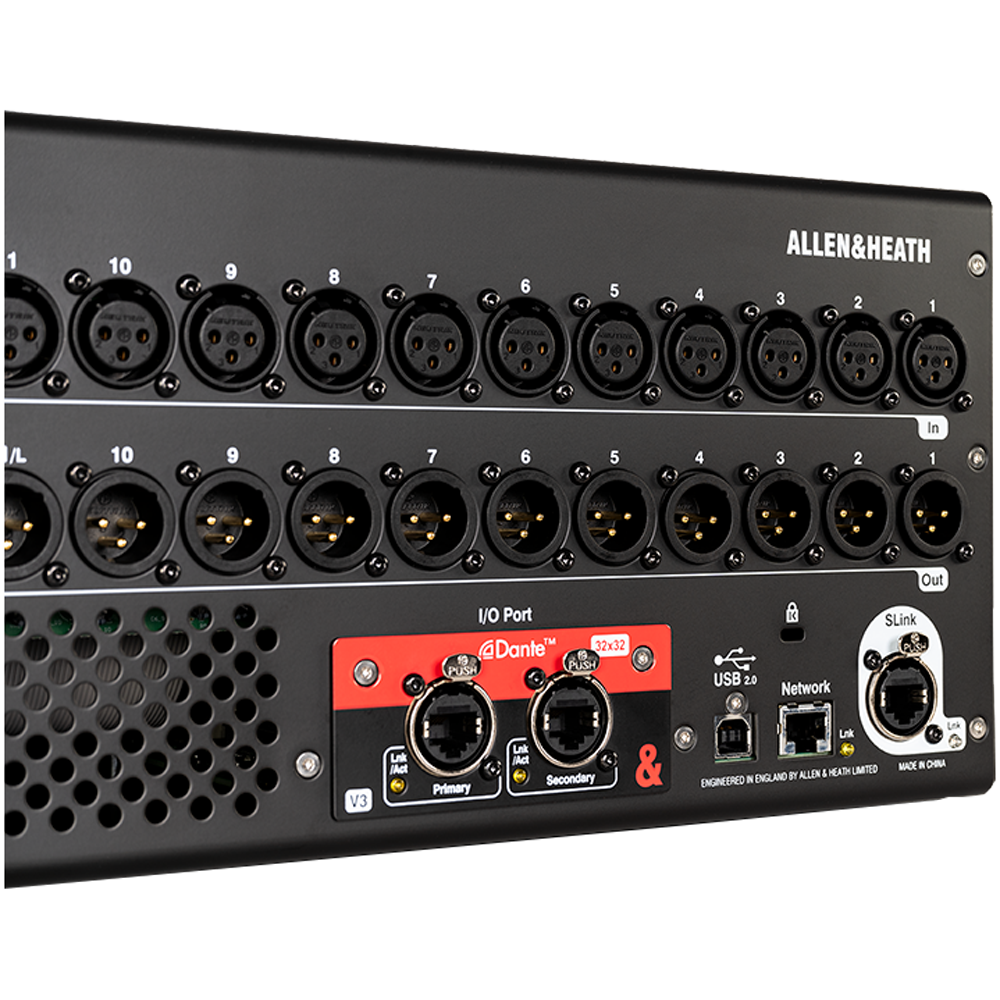

    • I/O Port for Option Card (including 3rd party protocols – Dante/Waves/MADI)
    • 8x Mute Groups
    • 8x DCA Groups
    • 8x Stereo FX with dedicated FX Returns
    • DEEP Processing Ready
    • RackExtraFX Effects suite

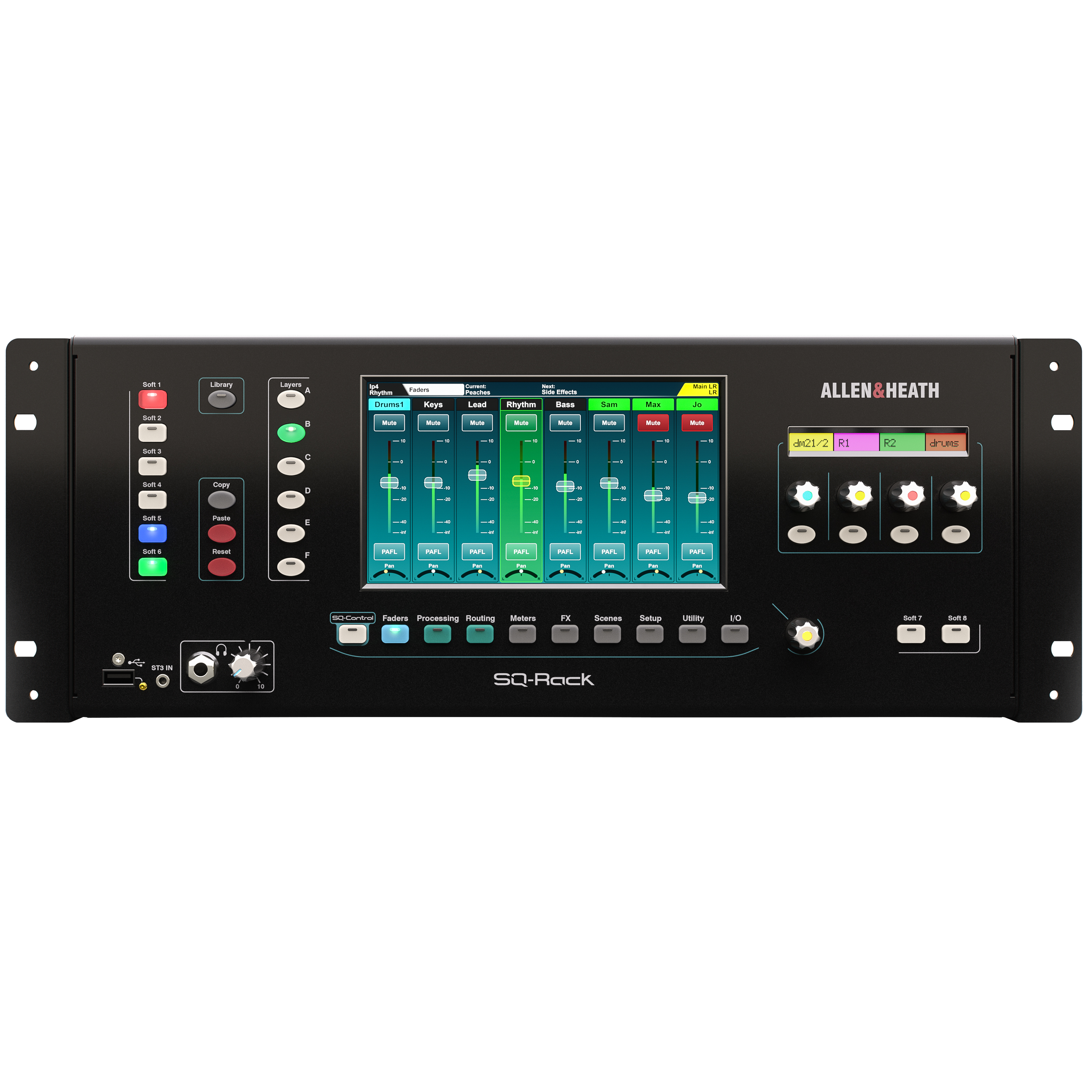

    • 7" capacitive touchscreen
    • 8x Assignable SoftKeys

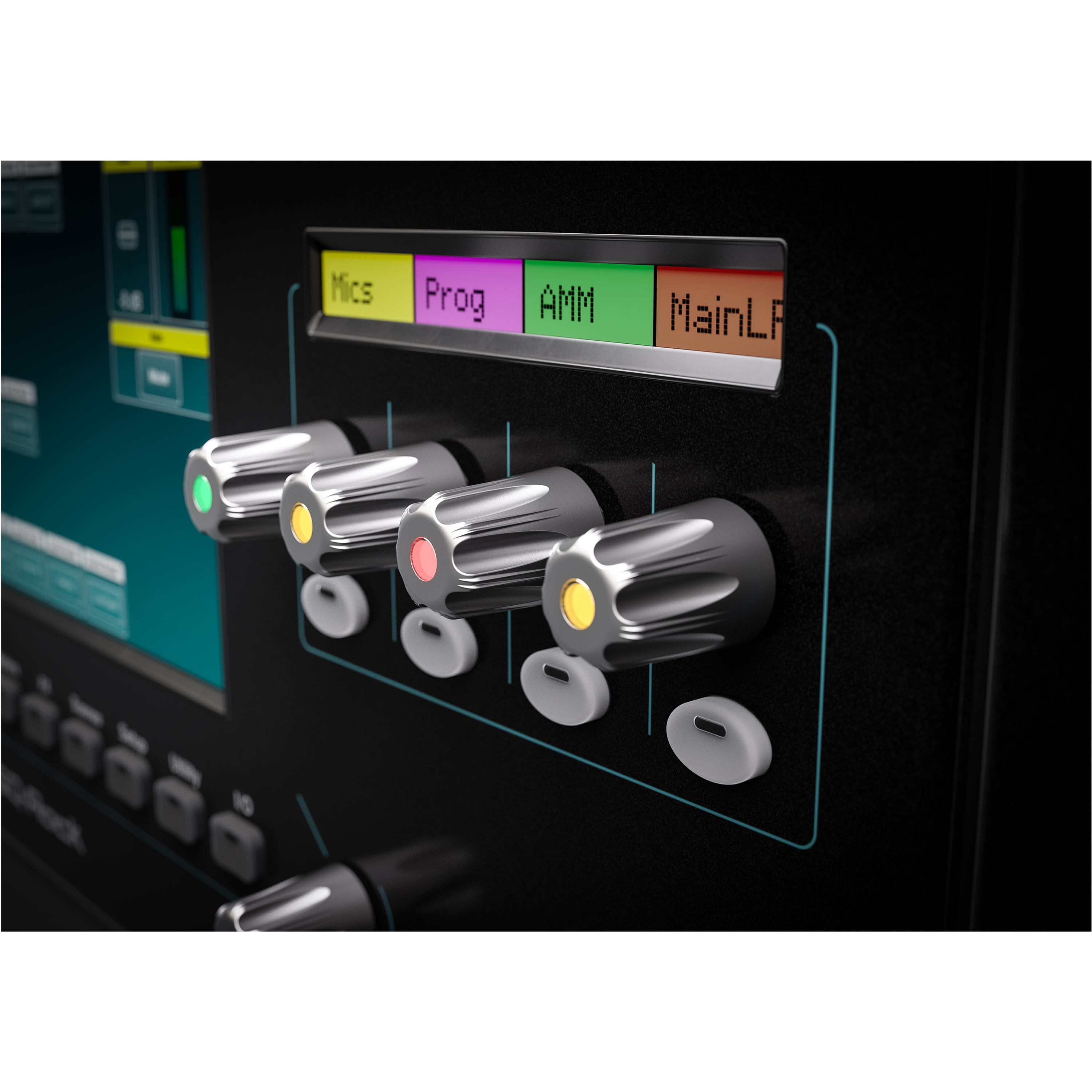

    • 4x Assignable Soft Rotaries
    • 6x Layers for 96 assignable Channel Strips across Fader, Processing and Routing screens
    • Dedicated Faders screen
    • Dedicated SQ-Control screen
    • Single/Dual Footswitch Control
    • Input channel pairs switchable mono/stereo
    • Patchable Insert points
    • Input processing – Trim, HPF, Gate, PEQ, Compressor, Delay
    • Output processing – Graphic EQ, PEQ, Compressor, Delay
    • DEEP Automatic Mic Mixing
    • 2x 31/61 Band Real Time Analysers
    • Quick copy/paste/reset for parameters
    • User Permissions to restrict operator access
    • 300x Scene memories per Show
    • Channel Safes, Global and per Scene Recall Filters
    • FX, processing and channel Libraries
    • SQ-Drive for stereo and multitrack recording/playback direct to USB drive
    • USB transfer of Scenes, Libraries, Shows
    • 32x32 channel, class compliant USB-B audio interface
    • A&H MIDI Control driver for MIDI control via USB or TCP/IP
    • Remote mixing apps for iPad, Android, Mac and PC
    • Compatible with ME personal monitoring range
SPECIFICATIONS
    Inputs:
    Mic/Line Inputs: Balanced XLR, fully recallable
    • Input Sensitivity: -60 to +0dBu
    • Switchable Pad: -20dB
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +30dBu
    • Input Impedance: >5kΩ
    • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    Stereo Line Inputs:
    • ST1, ST2 connectors: Balanced, 1/4" TRS jack
    • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
    • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
    • Trim: +/-24dB
    • Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
    • Input Impedance: >7kΩ

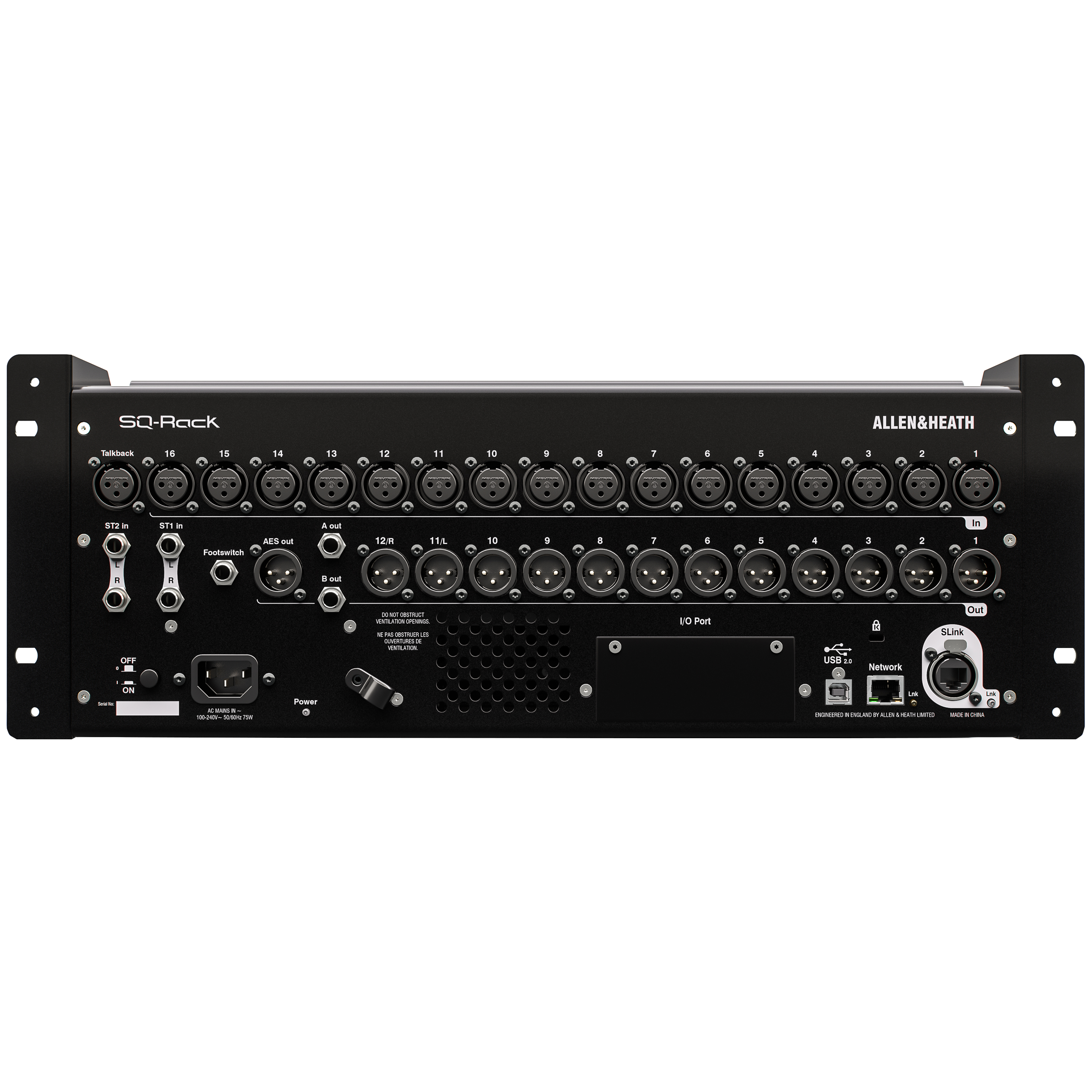

    Outputs:
    XLR Outputs: Balanced, XLR
    Outputs A and B Balanced: 1/4" TRS Jack
    • Source: Patchable
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -90dBu (muted, 20Hz - 20kHz)
    AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates,44.1kHz/ 48kHz/ 88.2kHz/ (96kHz) 2.5Vpp balanced terminated 110Ω

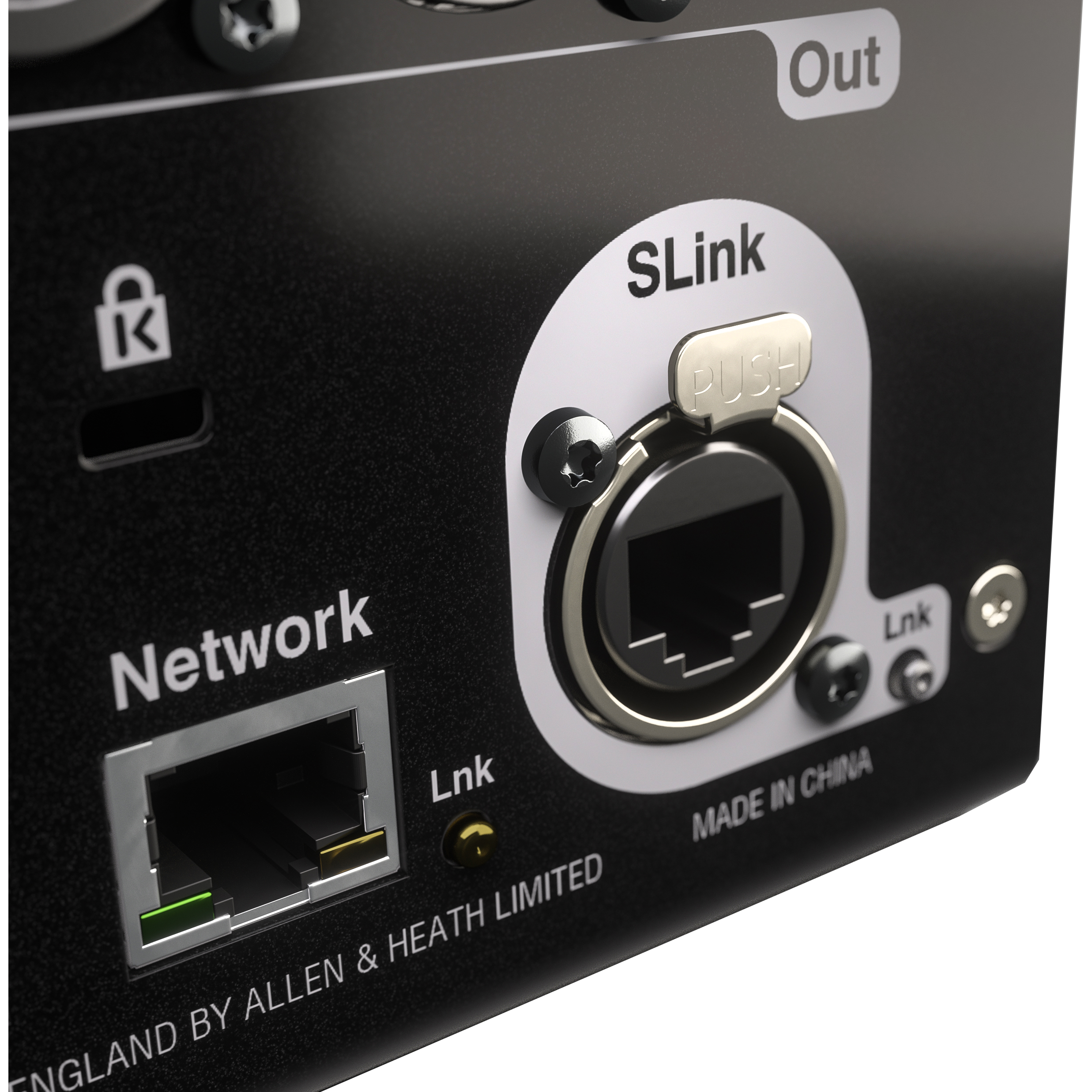

    SLink:
    • Connection: Neutrik EtherCON (RJ45)
    • dsnake mode (48kHz devices): 40 input 20+40(ME) output channels
    • DX mode (96kHz devices): 32 input 32 output channels
    • GigaACE/GX (96kHz devices): 128 input 128 output channels
    • Inputs: Fully Patchable
    • Outputs: Fully Patchable
    • Sync/SRC: Assignable as master audio sync for all modes, 48kHz<>96kHz SRC

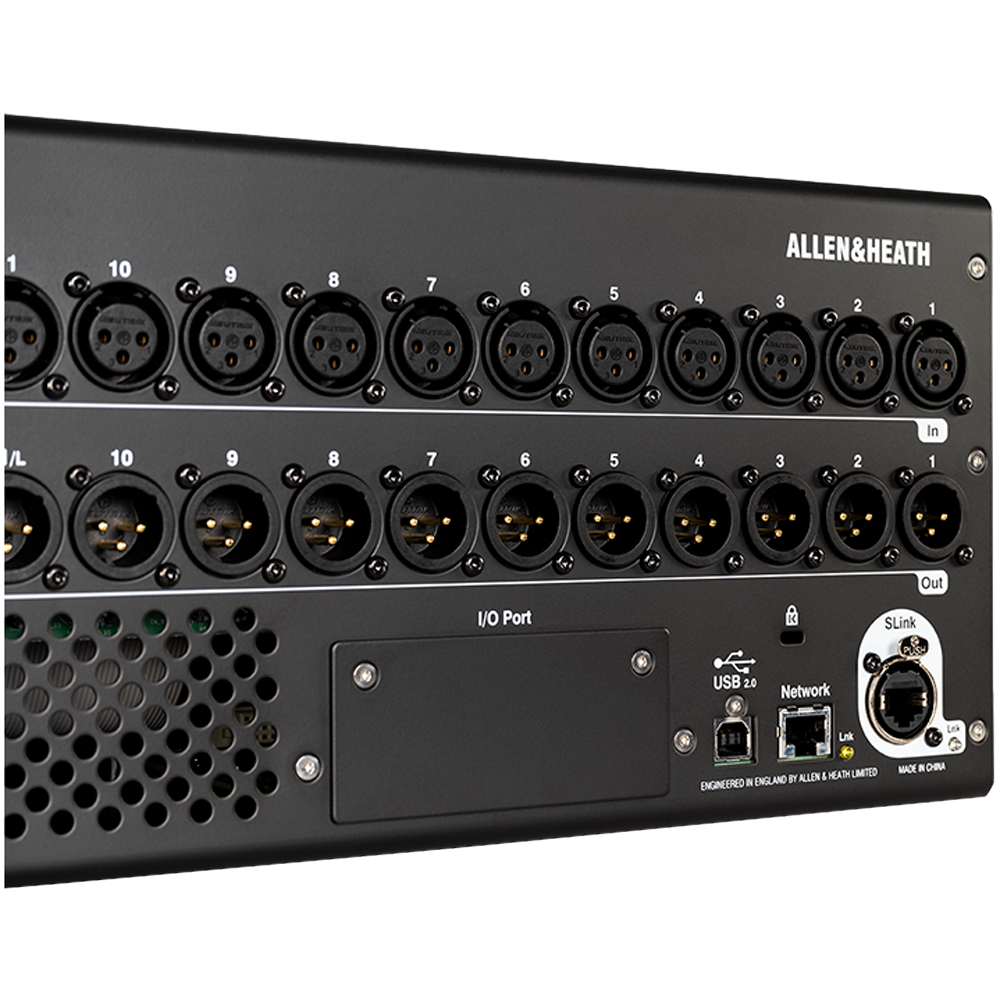

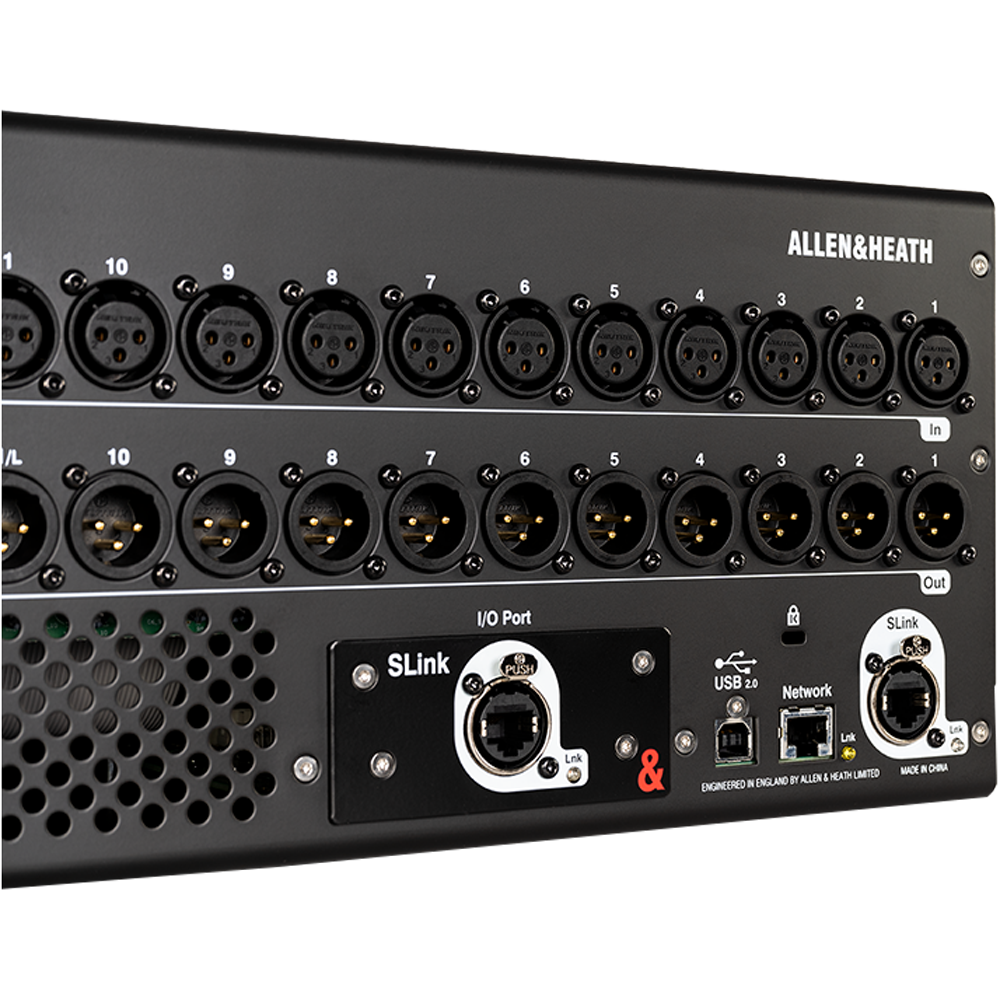

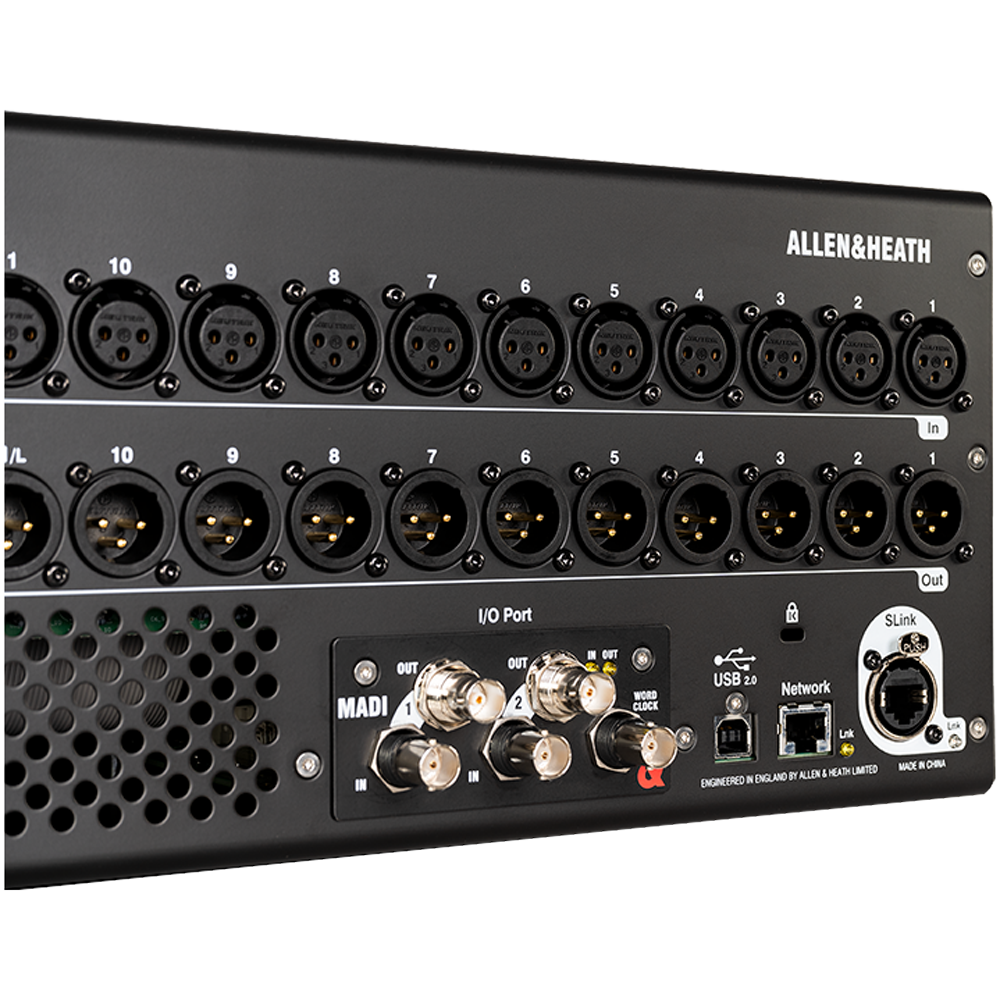

    I/O Port (Multi-channel I/O option module):
    • Inputs: Fully Patchable
    • Outputs: Fully Patchable
    • Sync/SRC: Assignable as master audio sync

    System (Measured balanced XLR in to XLR out, 0dB gain, 0dBu input):
    • Dynamic Range: 112 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • THD+N, Mic/Line routed to Main L/R Out: Unity gain faders@0dB, 0.006%, -84dBu (20 - 20kHz)
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Main Meter Type: 2 x 12 segment, fast (peak) response
    • Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness
    • Peak Indication: -3dBFS (+19dBu at XLR out), multi-point sensing
    • Sampling Rate: 96kHz
    • Bit Depth: Uses XCVI core custom bit widths in algorithms, up to 96bits
    • Latency: <0.7mS, Local Mic Input to Main L/R
    • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
    • Mains Power: 100-240V AC, 50/60Hz
    • Max Power Consumption: 75W

    Dimensions (Width x Depth x Height & Weights):
    • Unit only (rack ears not fitted): 430 x 214 x 173 mm (16.9" x 8.4" x 6.8")
    • Packed in shipping box: 545 x 350 x 265 mm (21.5" x 13.8" x 10.5")
    • Unpacked weight: 5.8 kg (12.8 lbs)
    • Packed weight: 8 kg (17.7 lbs)

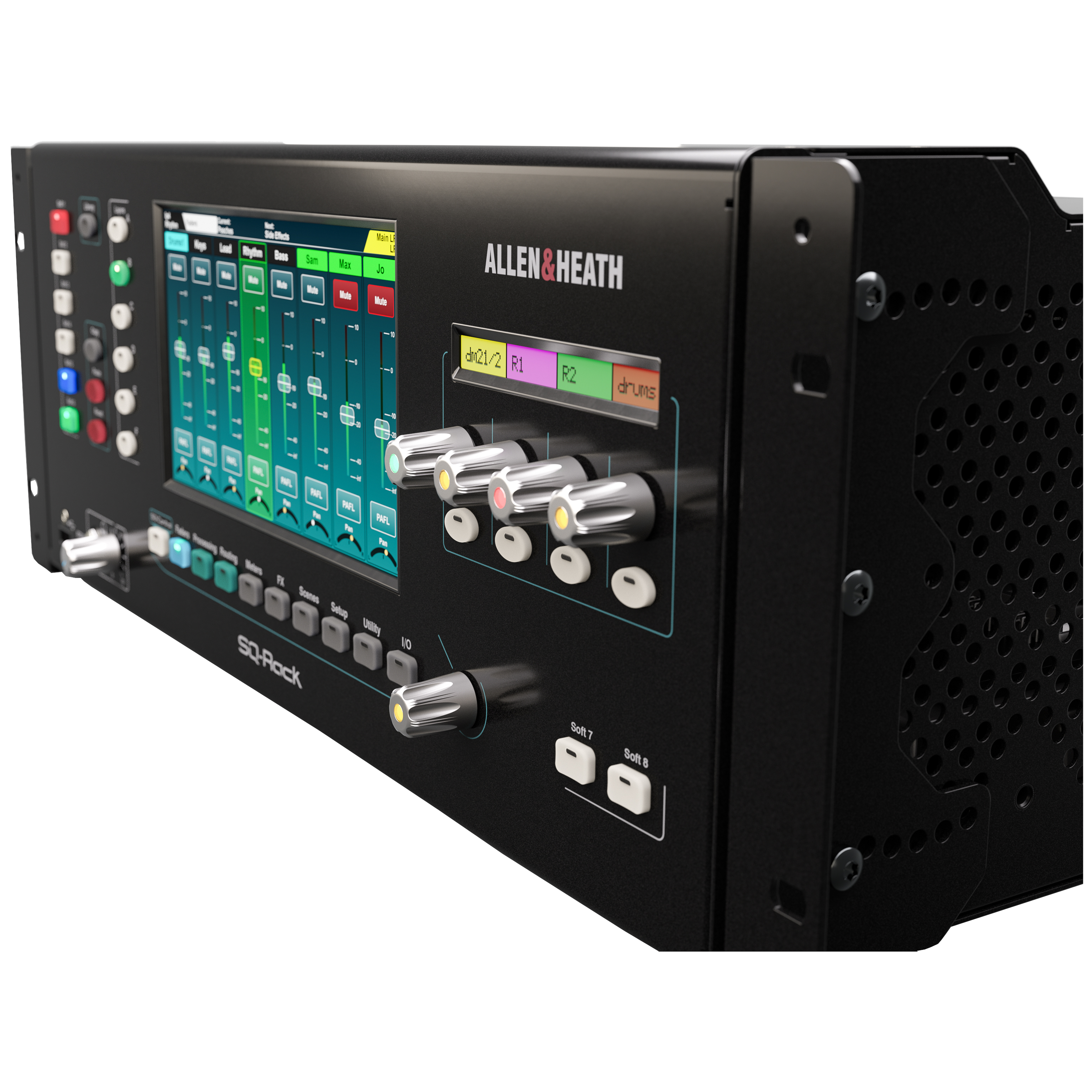

    Control:
    • Touch Screen: 7" Capacitive, 800 x 480 resolution, 24 bit RGB
    • SoftKeys: 8
    • SoftRotarys: 4
    • Mute Groups / DCA Groups: 8 / 8
    • Network: TCP/IP Ethernet for MIDI and Control
    • MIDI: TCP/IP and USB-B
    • Footswitch: Single or Dual, Momentary or Latching

    Input Processing:
    Source:
    • CH1-48: Fully patchable
    • USB Global Source: SQ-Drive or USB-Streaming (Auto Switching)
    Polarity: Normal/Invert
    Trim: -24 to +24dB
    High Pass Filter: 12/18/24dB per octave 20Hz - 2kHz
    Insert (Pre EQ/Comp): Fully Patchable
    Delay: Up to 341ms
    Gate: Patchable Sidechain
    • Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k)
    • Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
    • Attack / Hold / Release: 50µs to 300ms / 10ms to 5s / 10ms to 1s
    PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
    • Band 1, Band 4: Selectable Shelving (Baxandall), Bell, HPF/LPF 12dB/octave
    • Band 2, Band 3: Bell
    • Bell Width: Variable Q, 1.5 to 1/9th octave
    Compressor: Patchable Sidechain, DEEP options
    • Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k), Q=1
    • Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
    • Attack / Release: 30µs to 300ms / 50ms to 2s
    • Knee: Soft/Hard
    • Detector response: Peak/RMS switchable
    • Parallel Path Compression: dry/wet -infin to 0dB
    Channel Direct Out: Follow Fader, Mute, Mute Group, DCA (global all ch)
    • Source select: Post-Preamp, Post-HPF, Post Gate, Insert Return, Post-PEQ, Post-Comp, Post-Delay trim -infin to 10dB per channel

    Mix Processing:
    • Insert (Pre EQ/Comp): Fully Patchable
    • Delay: Up to 682ms
    • GEQ 28 bands: 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options
    • PEQ: As Input PEQ
    • Compressor: As Input Compressor

    FX:
    • Internal FX: 8 x RackFX engine, Send>Return or Inserted (4 dedicated FX bus)
    • Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus, Symphonic Chorus, Flanger, Phaser
    • 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ

    Audio Tools:
    • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
    • Talkback: Dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
    • Signal Generator: Assignable to any input or mix, Sine/White/Pink/Bandpass Noise
    • RTA's: 2x 31-Band 1/3 octave (Stereo) or 61-Band 1/6 octave (Mono) 20-20kHz.
    PAFL/Selected Channel or Fixed Source

    USB Audio:
    SQ-Drive: USB-A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16,24-bit, source fully patchable
    • Multitrack Record: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    • Multitrack Playback: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    USB Audio Streaming: USB-B, Core Audio compliant, ASIO/WDM for Windows
    • Send (upstream): 32 channel, 48/96kHz, 24-bit
    • Return (downstream): 32 channel, 48/96kHz, 24-bit

    AMMs:
    • Configuration: 2x 24ch or 1x 48ch, freely assignable
    • Type: Gain Sharing
    • Sidechain Filter HPF / LPF: 12dB/octave 20Hz - 5kHz / 120Hz - 20kHz
    • Priority: -15dB to +15dB per channel

    Add-ons:
    • DEEP Preamps: Tube Stage
    • DEEP Compressors: Opto, 16T, 16VU, PeakLimiter76, Mighty, OptTronik, Bus
    • DEEP GEQ's: Proportional-Q, DiGi-GEQ, Hybrid • RackFX units: De-Esser, DynEQ4, MultiBD3, MultiBD4, Bucket Brigade, Echo, Hypabass
CONTENTS

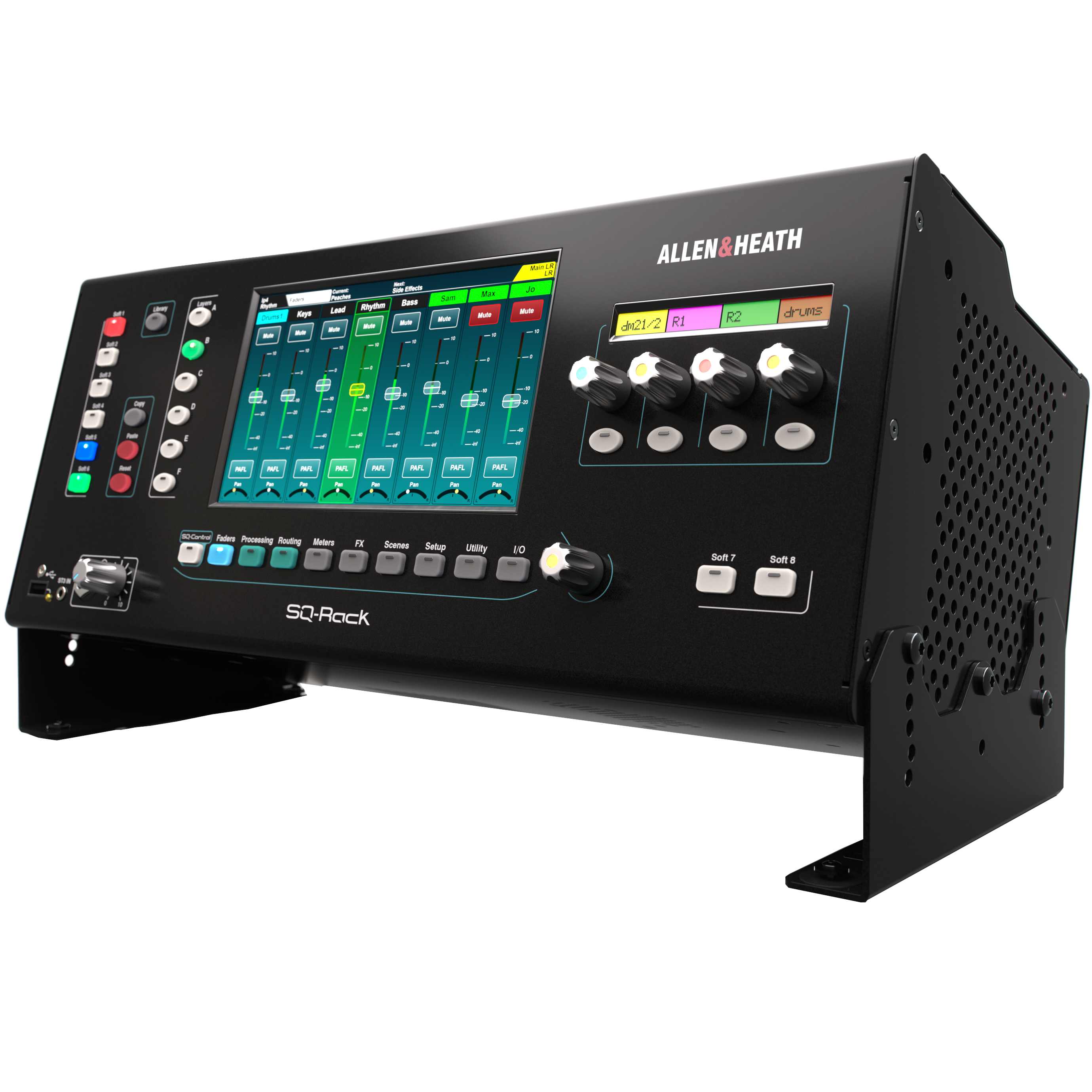

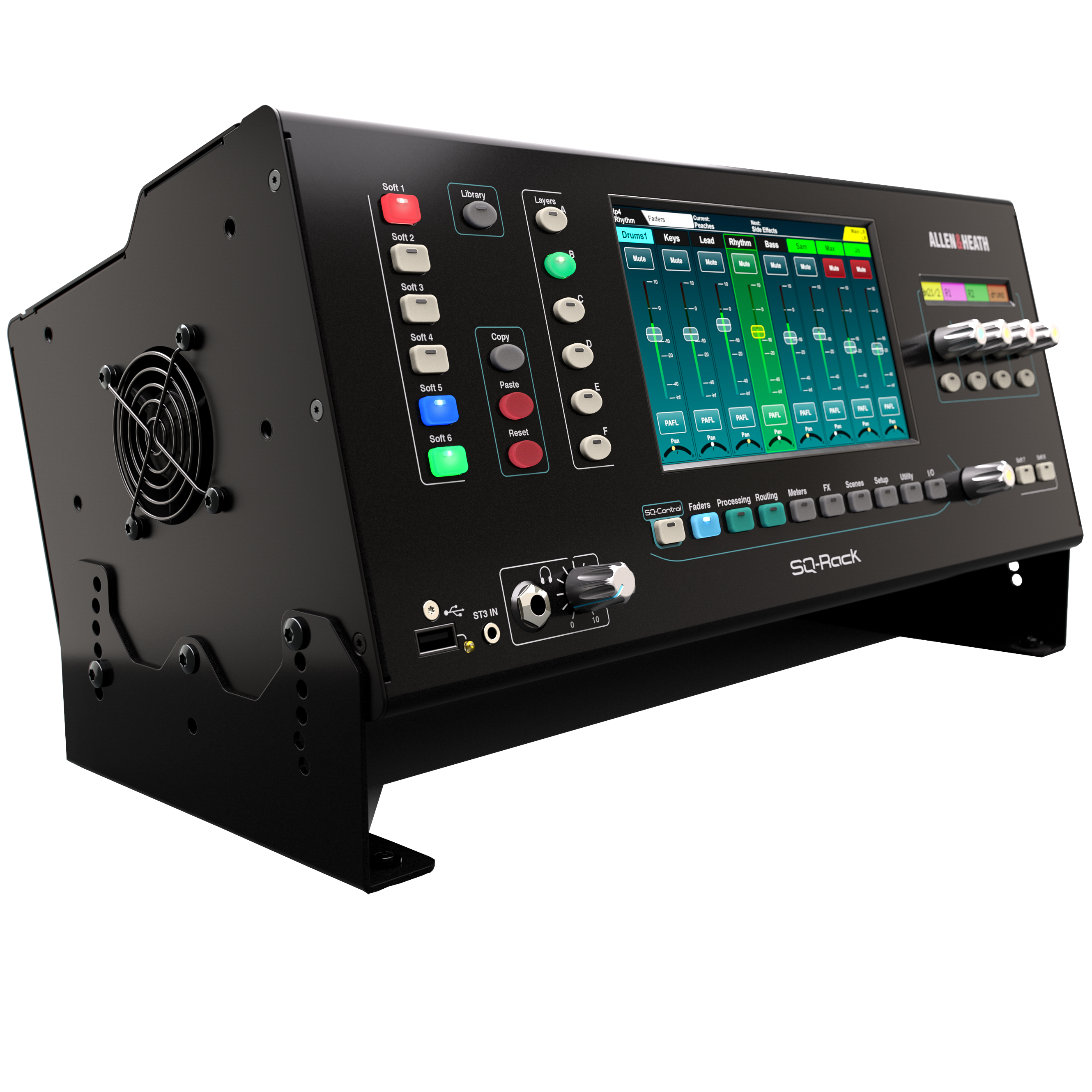

    (1) Allen & Heath SQ Rack

BYFP ipCases

Microphone

Video

DJ

Speaker

Lighting

Mixer

Control

Utility
