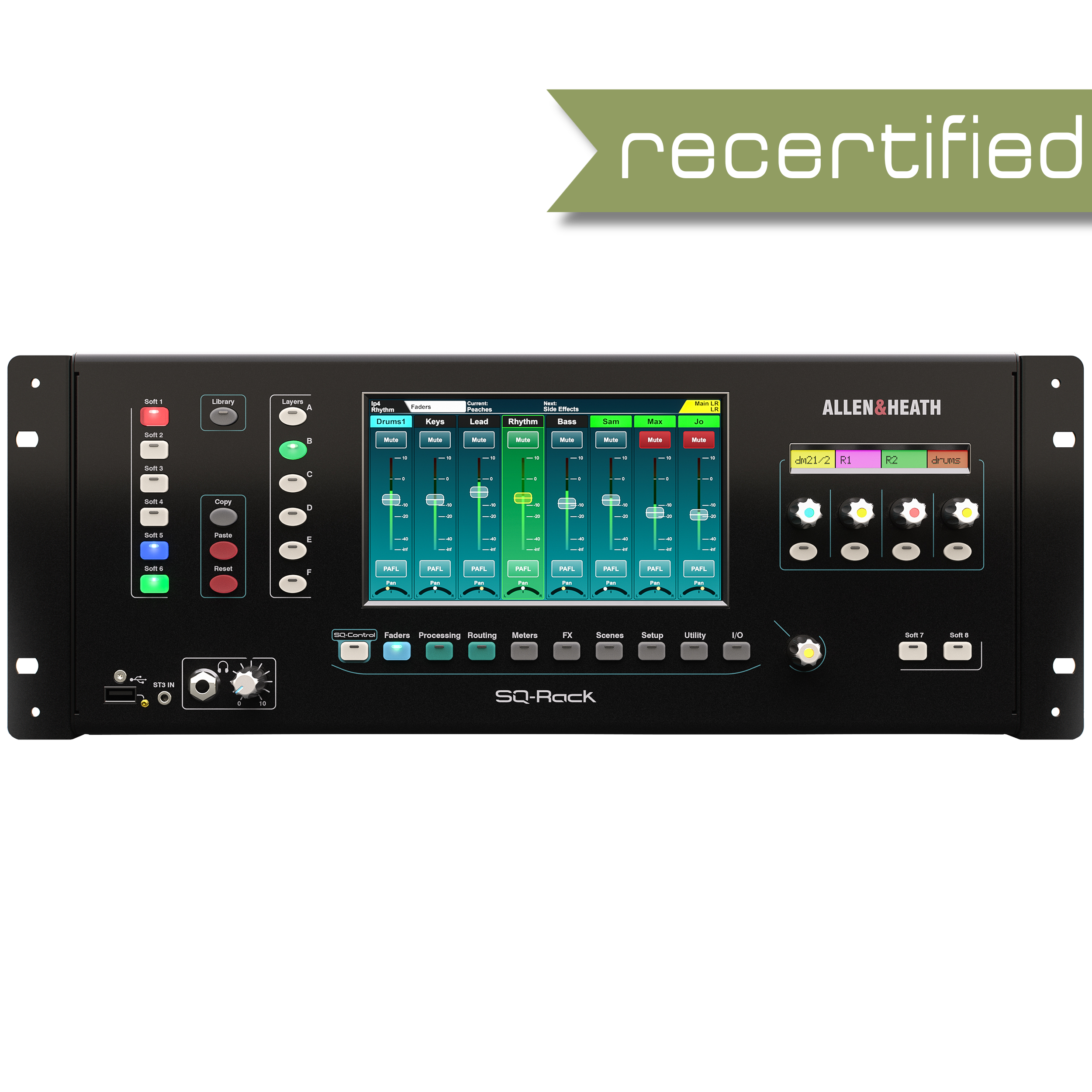

Allen & Heath SQ Rack Mixer
19%, only 0 left
Allen & Heath SQ Rack Mixer
Product SKU
    34445

Allen & Heath SQ Rack Mixer

$2,499.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The SQ-Rack is the ultimate tool for audio professionals, delivering Allen & Heath’s renowned 96kHz SQ core in a compact, rack-mountable design. Perfectly crafted to meet the demands of live sound and installation environments.

It combines power, flexibility, and intuitive control in one versatile solution.

With exceptional connectivity, SQ-Rack offers unparalleled I/O capability. Featuring local preamps alongside the intelligent SLink port, it integrates seamlessly with Allen & Heath’s Everything I/O ecosystem. Expand your options further with Dante, Waves, MADI, or additional SLink option cards, and enjoy multichannel USB connectivity using a computer or direct-to-drive for straightforward recording and playback.

SQ-Rack also excels when it comes to control. Designed with ease and speed of use in mind, it features plenty of hands-on control, a dedicated fader screen, and a customizable SQ-Control display. For added flexibility, remote control is a breeze with the SQ-MixPad, SQ-4You, and SQ-Control apps, giving you complete command wherever you are and at whatever your level of technical know-how.

Whether you’re equipping a venue, a touring band taking it to the next level, or building a professional in-ear monitoring system, the SQ-Rack is built for any challenge. From installations in bars to cruise ships, or integration with larger systems to bands on the move and IEM/pro touring, SQ-Rack is the perfect solution to provide premium sound every time.

FEATURES
    • Rack-mountable 4U digital mixer for Live, Studio and Installation use
    • 48x Input Channels
    • 16x Local Mic/Line Inputs (XLR)
    • 2x ¼” Stereo Inputs (TRS)
    • 1x 3.5 mm Stereo Input
    • 36x Total Busses
    • 12x Stereo Mix (Aux or Group) + Main
    • PAFL Bus
    • 14x Assignable Local Analogue Outputs (12x XLR + 2x ¼” TRS)
    • AES Digital Output
    • Dedicated Talkback mic input (XLR)
    • ¼” TRS Stereo Headphone out with dedicated control
    • SLink EtherCON connection for remote audio using dSnake/ME, DX or GigaACE/GX protocol (128x128 channels)
    • I/O Port for Option Card (including 3rd party protocols – Dante/Waves/MADI)
    • 8x Mute Groups
    • 8x DCA Groups
    • 8x Stereo FX with dedicated FX Returns
    • DEEP Processing Ready
    • RackExtraFX Effects suite
    • 7" capacitive touchscreen
    • 8x Assignable SoftKeys
    • 4x Assignable Soft Rotaries
    • 6x Layers for 96 assignable Channel Strips across Fader, Processing and Routing screens
    • Dedicated Faders screen
    • Dedicated SQ-Control screen
    • Single/Dual Footswitch Control
    • Input channel pairs switchable mono/stereo
    • Patchable Insert points
    • Input processing – Trim, HPF, Gate, PEQ, Compressor, Delay
    • Output processing – Graphic EQ, PEQ, Compressor, Delay
    • DEEP Automatic Mic Mixing
    • 2x 31/61 Band Real Time Analysers
    • Quick copy/paste/reset for parameters
    • User Permissions to restrict operator access
    • 300x Scene memories per Show
    • Channel Safes, Global and per Scene Recall Filters
    • FX, processing and channel Libraries
    • SQ-Drive for stereo and multitrack recording/playback direct to USB drive
    • USB transfer of Scenes, Libraries, Shows
    • 32x32 channel, class compliant USB-B audio interface
    • A&H MIDI Control driver for MIDI control via USB or TCP/IP
    • Remote mixing apps for iPad, Android, Mac and PC
    • Compatible with ME personal monitoring range
SPECIFICATIONS
    • Mic/Line Inputs: Balanced XLR, fully recallable
    • Input Sensitivity: -60 to +0dBu
    • Switchable Pad: -20dB
    • Analogue Gain: 0dB to +60dB, 1dB steps
    • Maximum Input Level: +30dBu
    • Input Impedance: >5kO
    • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
    • THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
    • Phantom Power: +48V (+3V / -2V)
    • Stereo Line Inputs:
    • ST1, ST2 connectors: Balanced, 1/4" TRS jack
    • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
    • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
    • Trim: +/-24dB
    • Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
    • Input Impedance: >7kO
    • Outputs:
    • XLR Outputs: Balanced, XLR
    • Outputs A and B Balanced: 1/4" TRS Jack
    • Source: Patchable
    • Output Impedance: <75O
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -90dBu (muted, 20Hz - 20kHz)
    • AES Digital Output: Balanced XLR 2 ...Fixed Source
    • USB Audio:
    • SQ-Drive: USB-A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16,24-bit, source fully patchable
    • Multitrack Record: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    • Multitrack Playback: 1-16 channel 96kHz, 1-32 channel 48kHz, 24-bit, WAV, fully patchable
    • USB Audio Streaming: USB-B, Core Audio compliant, ASIO/WDM for Windows
    • Send (upstream): 32 channel, 48/96kHz, 24-bit
    • Return (downstream): 32 channel, 48/96kHz, 24-bit
    • AMMs:
    • Configuration: 2x 24ch or 1x 48ch, freely assignable
    • Type: Gain Sharing
    • Sidechain Filter HPF / LPF: 12dB/octave 20Hz - 5kHz / 120Hz - 20kHz
    • Priority: -15dB to +15dB per channel
    • Add-ons:
    • DEEP Preamps: Tube Stage
    • DEEP Compressors: Opto, 16T, 16VU, PeakLimiter76, Mighty, OptTronik, Bus
    • DEEP GEQ's: Proportional-Q, DiGi-GEQ, Hybrid • RackFX units: De-Esser, DynEQ4, MultiBD3, MultiBD4, Bucket Brigade, Echo, Hypabass
CONTENTS
    (1) Allen & Heath SQ Rack
