DESCRIPTION

Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 is available in handheld, headworn, guitar, lavalier, and body-pack configurations. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each System 9 configuration includes the ATW-R900a receiver and either a body-pack transmitter or handheld microphone/transmitter. The ATW-R900a is a non-diversity, single-channel receiver with an advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a also offers volume control along with AF Peak, RF, and power indicator lights.

FEATURES
    • Easy operation and clear, natural sound quality
    • 4 selectable frequency-coordinated VHF channels
    • Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
    • Reliable performance and durable construction
    • Advanced dipole antenna system for extended operating range
SPECIFICATIONS
    • Operating Frequencies: VHF highband, 169 MHz to 172 MHz
    • Modulation Mode: FM
    • Maximum Deviation: +/-10 kHz
    • Dynamic Range: >/=90 dB (A-weighted), typical
    • Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
    • Operating Range: 200' (60 m) typical. Open range environment with no interfering signals
    • Operating Temperature Range: 40° F (4° C) to 110° F (43° C). Battery performance may be reduced at very low temperatures
    • Frequency Response: 80 Hz to 13 kHz
    • Receiving System: Non-diversity, single-channel, dual antenna system
    • Image Rejection: 50 dB minimum
    • RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
    • Audio Output: Nominal Output Level. XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load). 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load).
    • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
    • Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
    • Bodypack RF Power Output: 10 mW

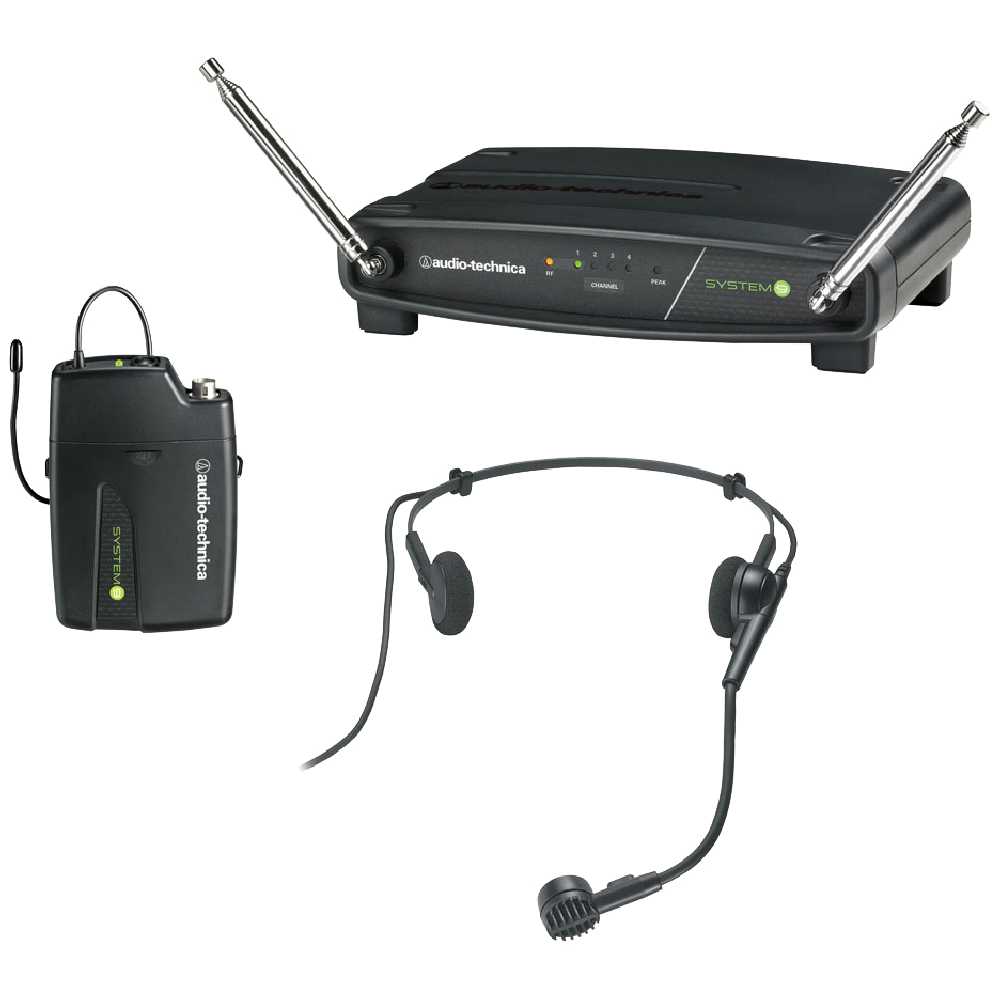

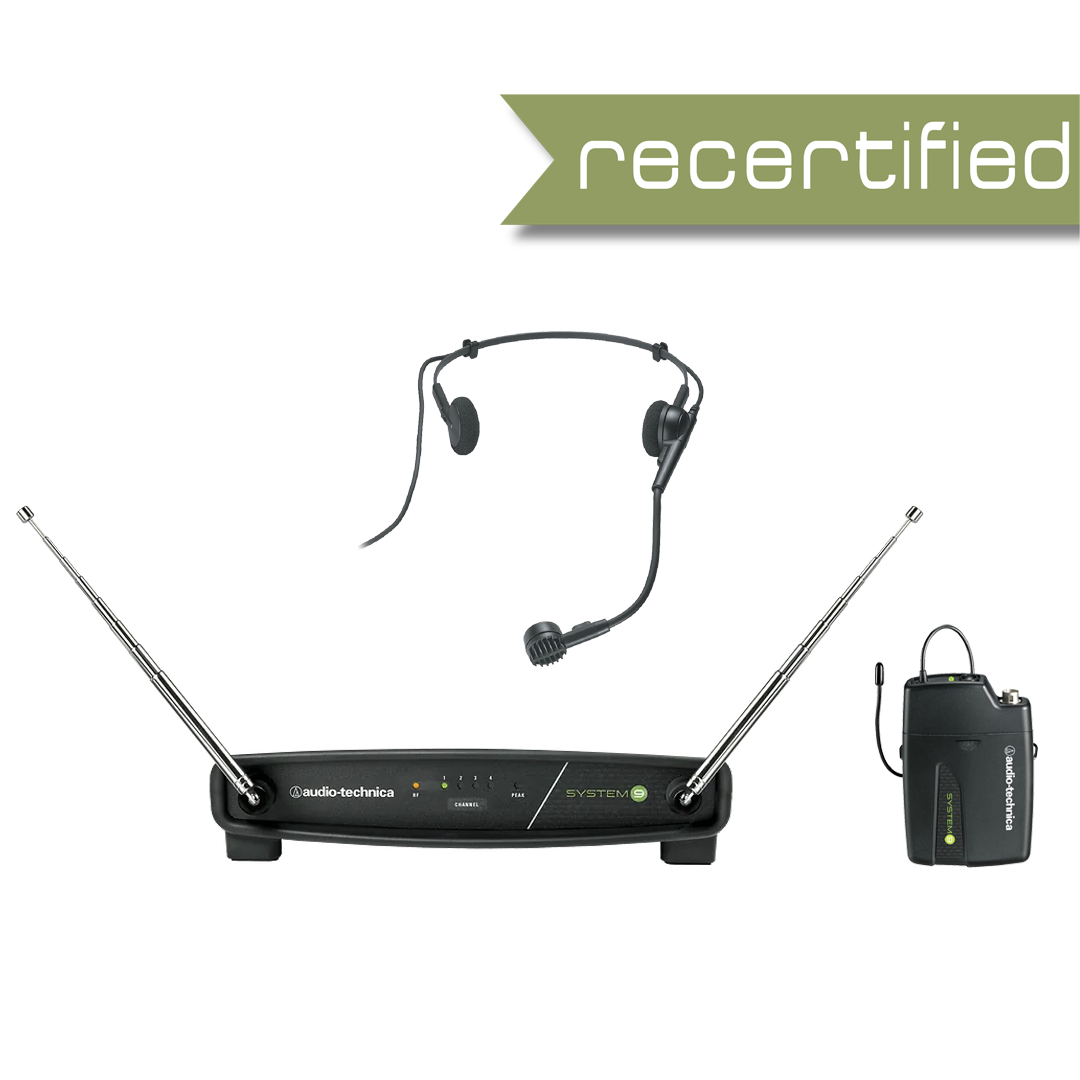

CONTENTS

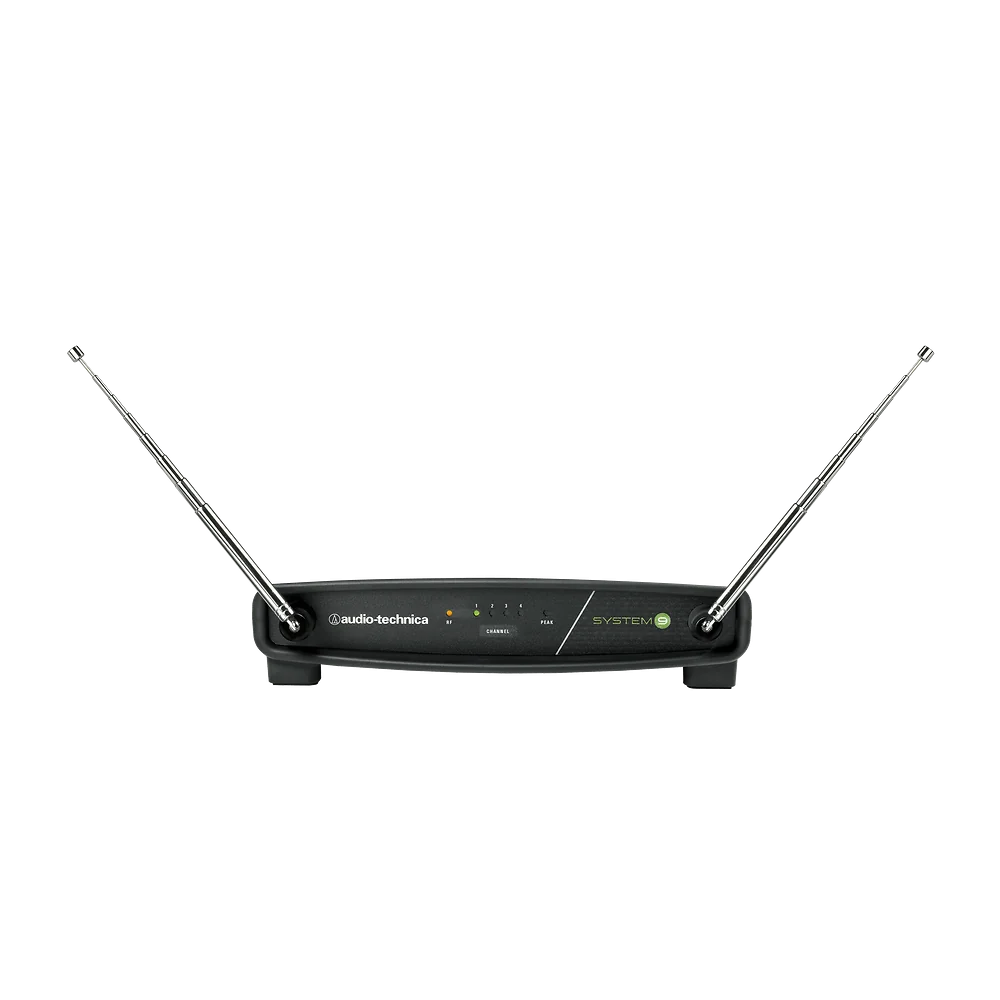

    (1) Audio-Technica ATW-R900a Receiver

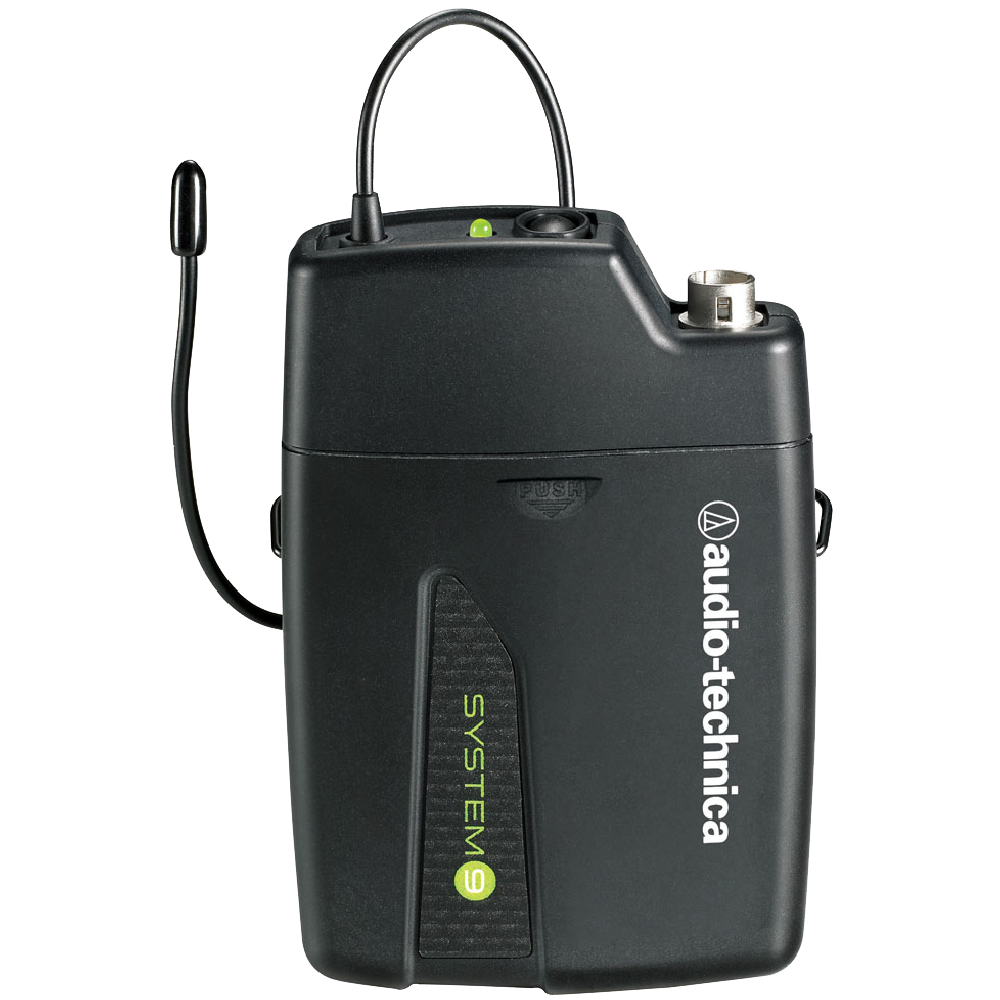

    (1) Audio-Technica ATW-T901a Body-Pack Transmitter

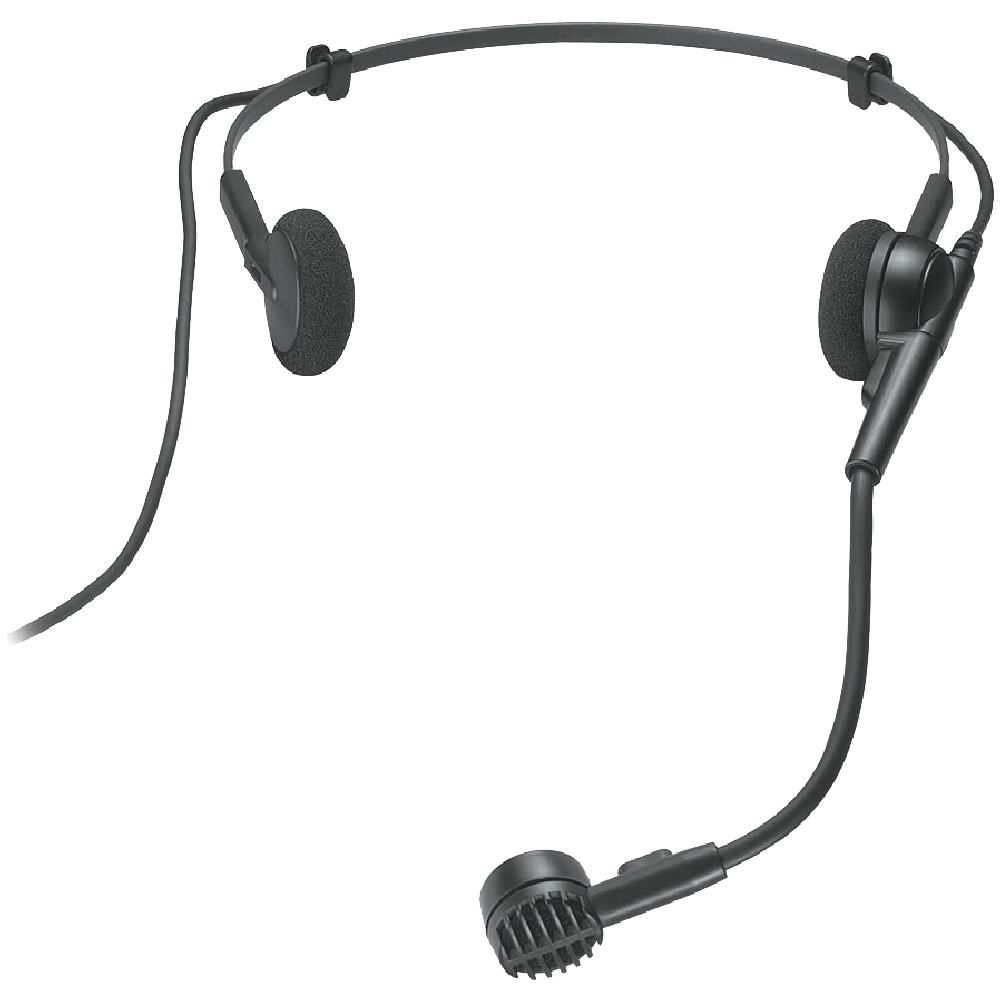

    (1) Audio-Technica PRO 8HEcW Headworn Microphone
    (1) Power Cable
    (1) Owner's Manual
