QuickQ

Intuitive plug-and-play interface

QuickQ software is designed with a quick and easy user interface and a comprehensive feature-set that makes programming easy for students, volunteers, or part-time operators, and is even comfortable to use by professionals on small-scale shows.

The smartphone-like interface features an intuitive home screen and gesture support that makes it easy to use. Fixtures can be visually laid out within the software's home screen exactly as they are rigged, where they can be selected and controlled using simple actions, such as pinch to zoom.

The software incorporates powerful fixture effects, which enable fast and flexible programming. Build cues, cue stacks and chases within the software, re-ordering cues simply by dragging and dropping cues with stacks and syncing chases using sound to light or tap to time them.

QuickQ software runs across the range of QuickQ consoles and is also available as QuickQ Designer for Windows and Mac to enable pre-programming.

You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.QuickQ uses ChamSys extensive and continuously updated personality library with over 30,000 personalities.QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

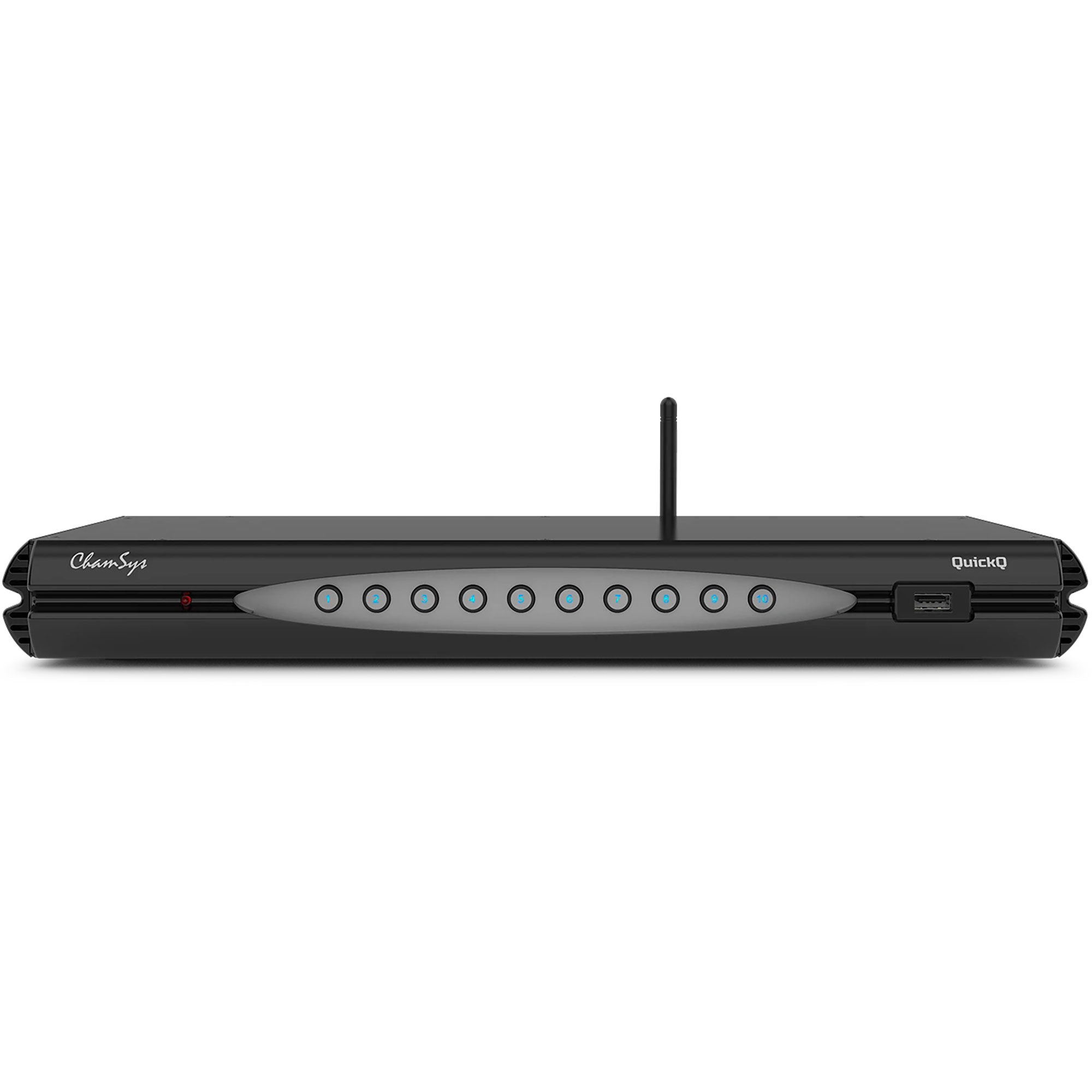

QuickQ Rack is a small rack mountable version of the QuickQ console designed for installations. It features the same operating system as QuickQ series consoles, but is designed to operate as a remote system without physical user control.

Featuring 10 playback/execute buttons on the unit, the QuickQ Rack is ideally paired with 10Scene wall plates.

Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.

Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.

Simplified Control for Smaller Lighting Systems

Interface

The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

Quickly Accessible Control

Multi-Funtion faders control static and moving head fixtures in cue, group, fixture mode.

Colour Control

On-screen colour, intensity, position & beam control

QuickQ Rack is a small rack mountable version of the QuickQ console designed for installations. It features the same operating system as QuickQ series consoles, but is designed to operate as a remote system without physical user control.

Featuring 10 playback/execute buttons on the unit, the QuickQ Rack is ideally paired with 10Scene wall plates.

Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.

Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.

Features
    • Ideal for installations and architectural settings

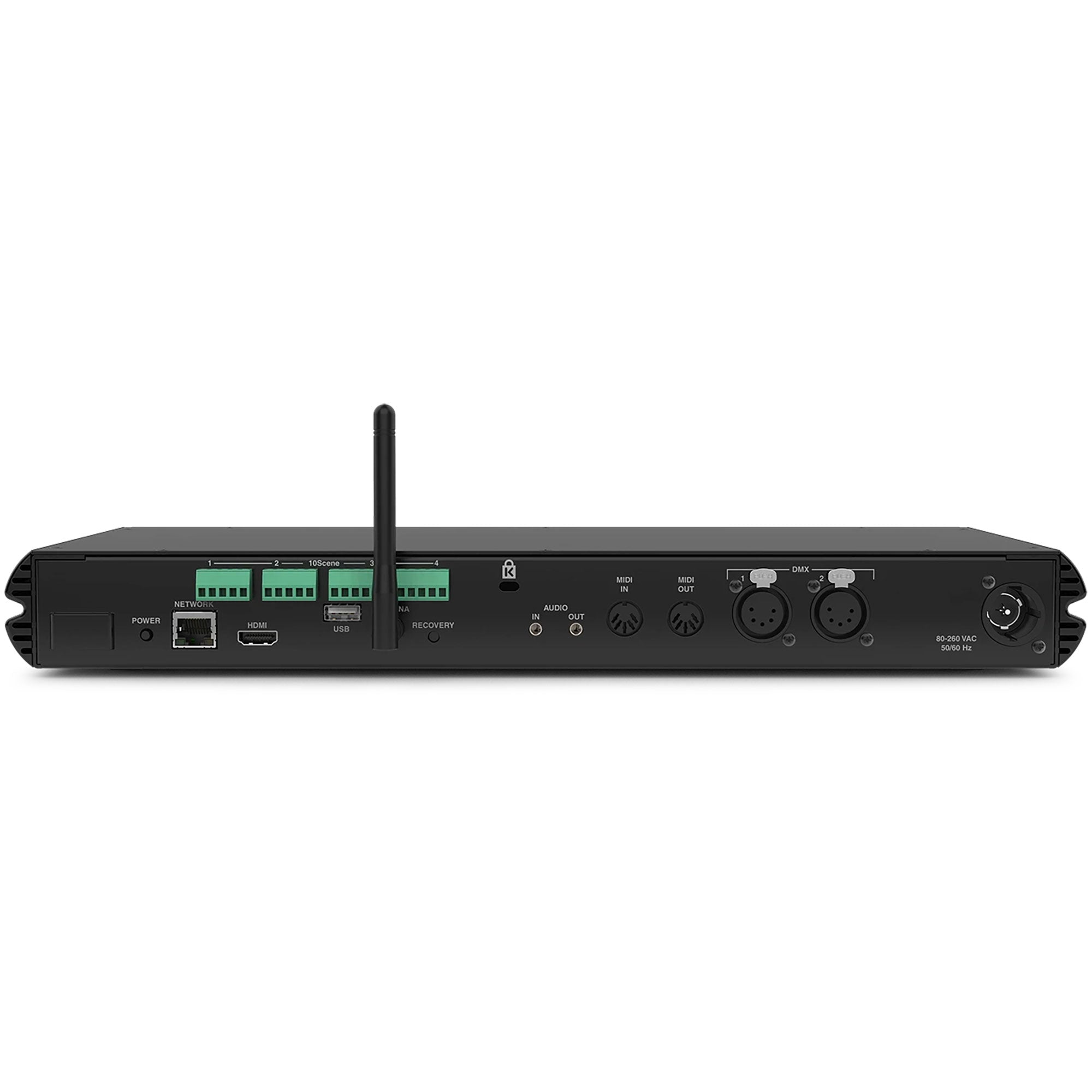

    • Featuring four Universes of DMX output
    • Two RDM enabled 5-pin DMX connectors
    • Inbuilt Wi-Fi for programming and remote control
    • Ten buttons for activation of Cues and Playbacks
    • Four 10Scene ports for connection of up to forty 10Scene wall plate
    • Features the same intuitive software as QuickQ Consoles
    • Simple Hot-Takeover mode allowing an external console to take control

COMPARE

QuickQ 10
$2125
QuickQ 20
$2975
QuickQ 30
$3975
Universes 1 2 4
Channels 512 1024 2048
Input Wifi Yes Yes Yes
Encoders 2 dedicated Hue & Saturation 6, 4 attribute plus 2 dedicated Hue & Saturation 6, 4 attribute plus 2 dedicated Hue & Saturation
DMX Ports 1 2 3
Network ports 1, with Artnet & sACN support 1, with Artnet & sACN support 1, with Artnet & sACN support
Audio In & Out In & Out In & Out
Midi No In & Out In & Out
External Monitor 1 HDMI 1 HDMI 1 HDMI
USB Ports 2 2 2
Multi-Function Fixture faders 20 20 40
