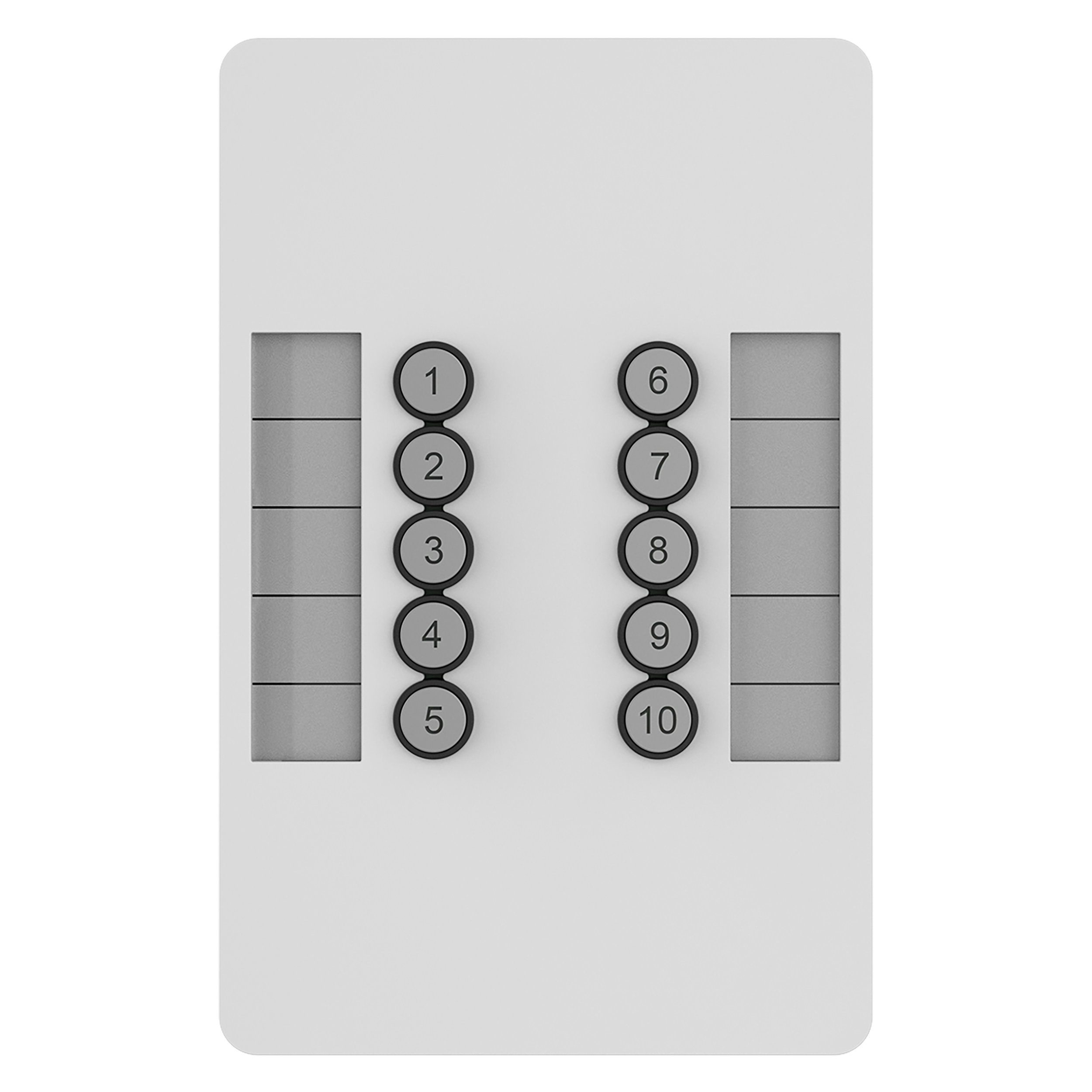

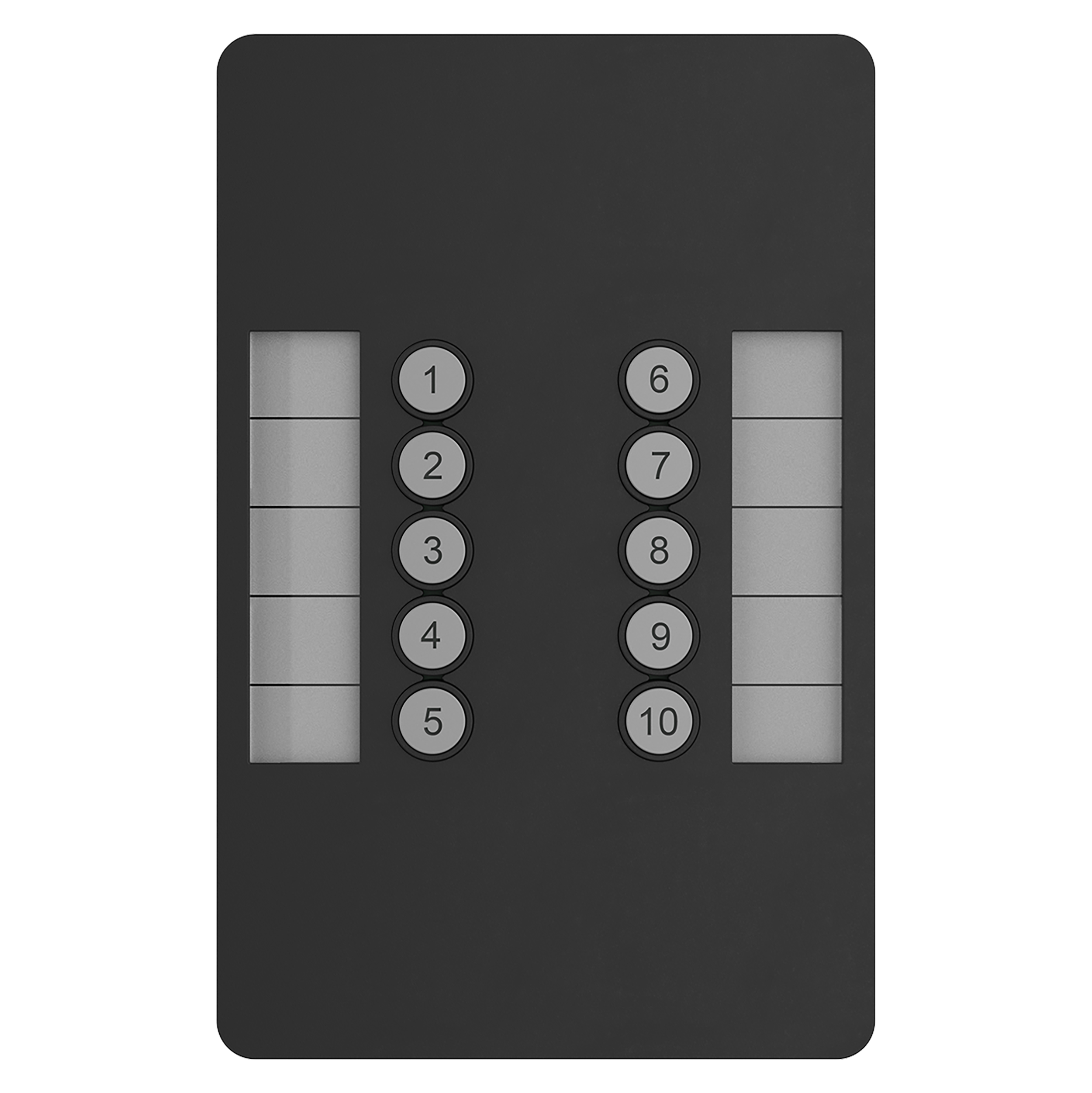

The 10Scene Wall Plate features ten 10Scene trigger buttons, with dual colour LED status indication.
Connect 10Scene wall plates directly to the QuickQ Rack or to the SnakeSys Gateway interface, where it can then integrate with any MagicQ or QuickQ system for remote Scene activation.
Supplied in a dual pack containing two wall plates available in either EU or US back box fit and with two black and two white clip on faceplates to go with.
• Using standard Cat 5E cable for connectivity
• Connect direct to QuickQ Rack or 10Scene Gateway, no power injectors required
• Easy to daisy chain – up to ten 10Scene wall plates per chain
• Long distance – one 10Scene at 1000 metres or five 10Scenes in a chain at 300m
• Supplied in a dual pack containing 2 wall plates, 2 white faceplates and 2 black faceplates
• Available in EU (Part no:300-055) or US (Part no:300-054) single gang backbox fit
10Scene Buttons: 10
Color of Buttons: Red/Blue
Powered via 10Scene Protocol: Yes
Max Number of 10Scene Wall Plates Per Chain: 10
Compatibility: With QuickQ Rack (In-built connectors or via Gateway)
System Compatibility: MagicQ and QuickQ
(1) Pack ChamSys SnakeSys 10Scene Wall Plate
(2) White Cover Plates
(2) Black Cover Plates
(1) Label Kit
