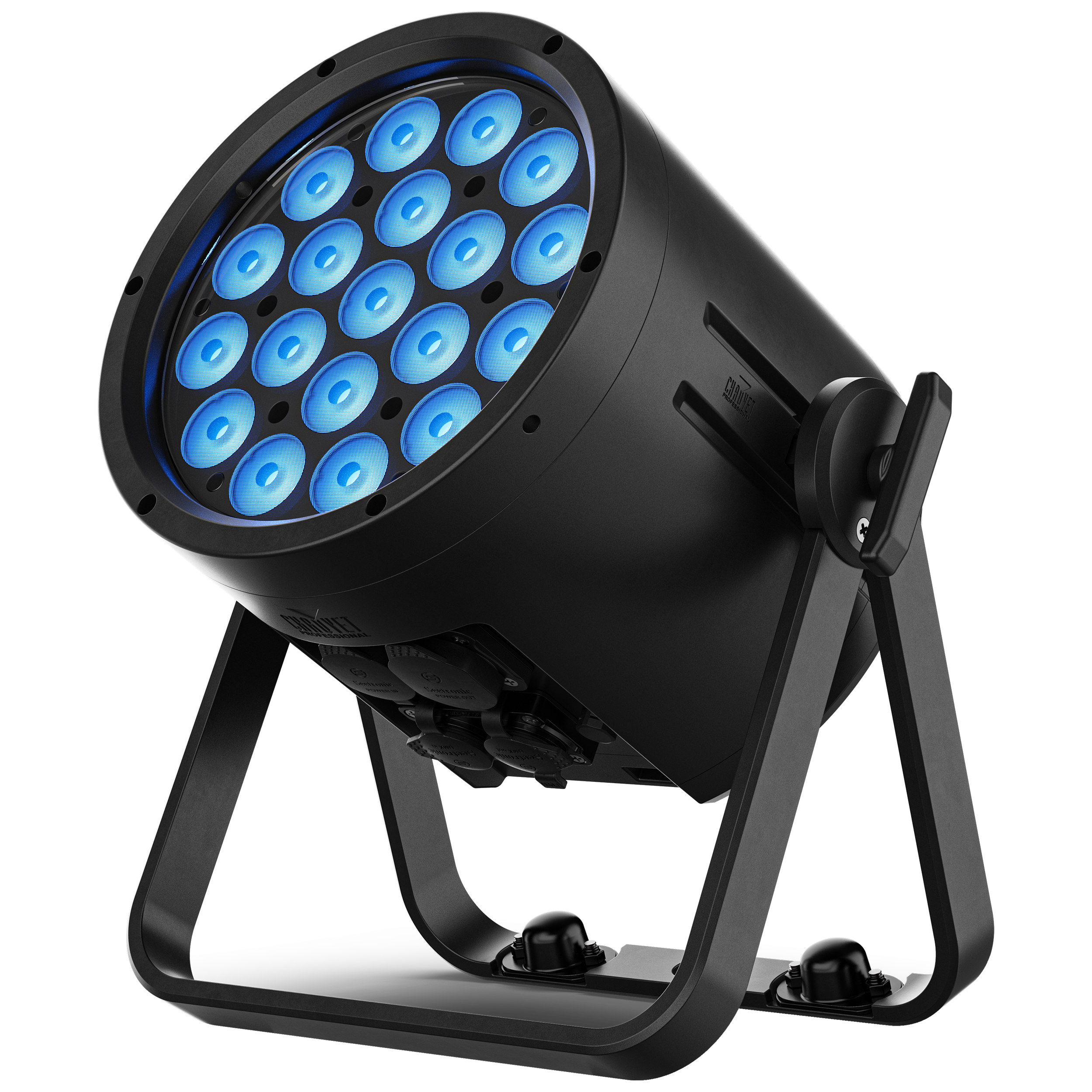

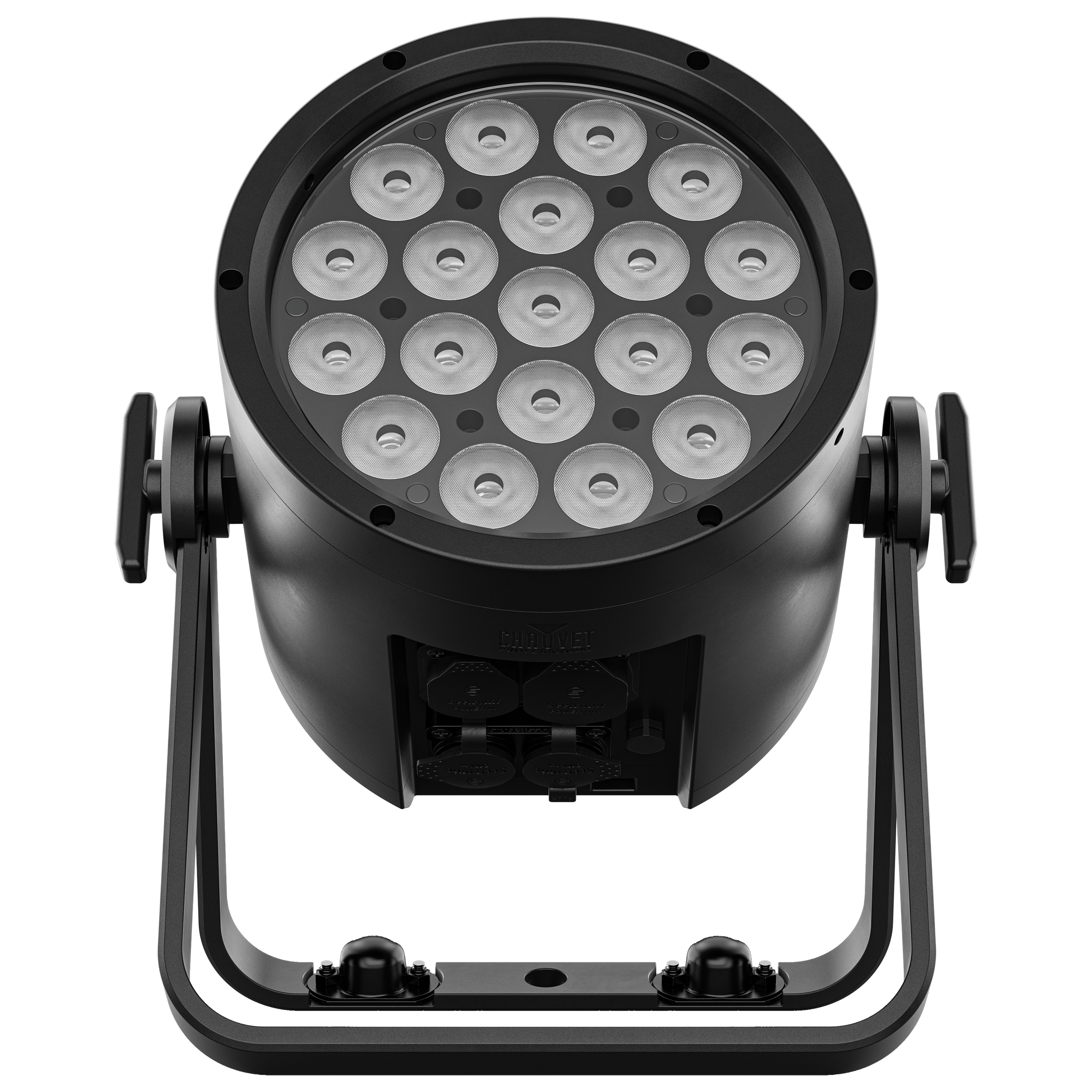

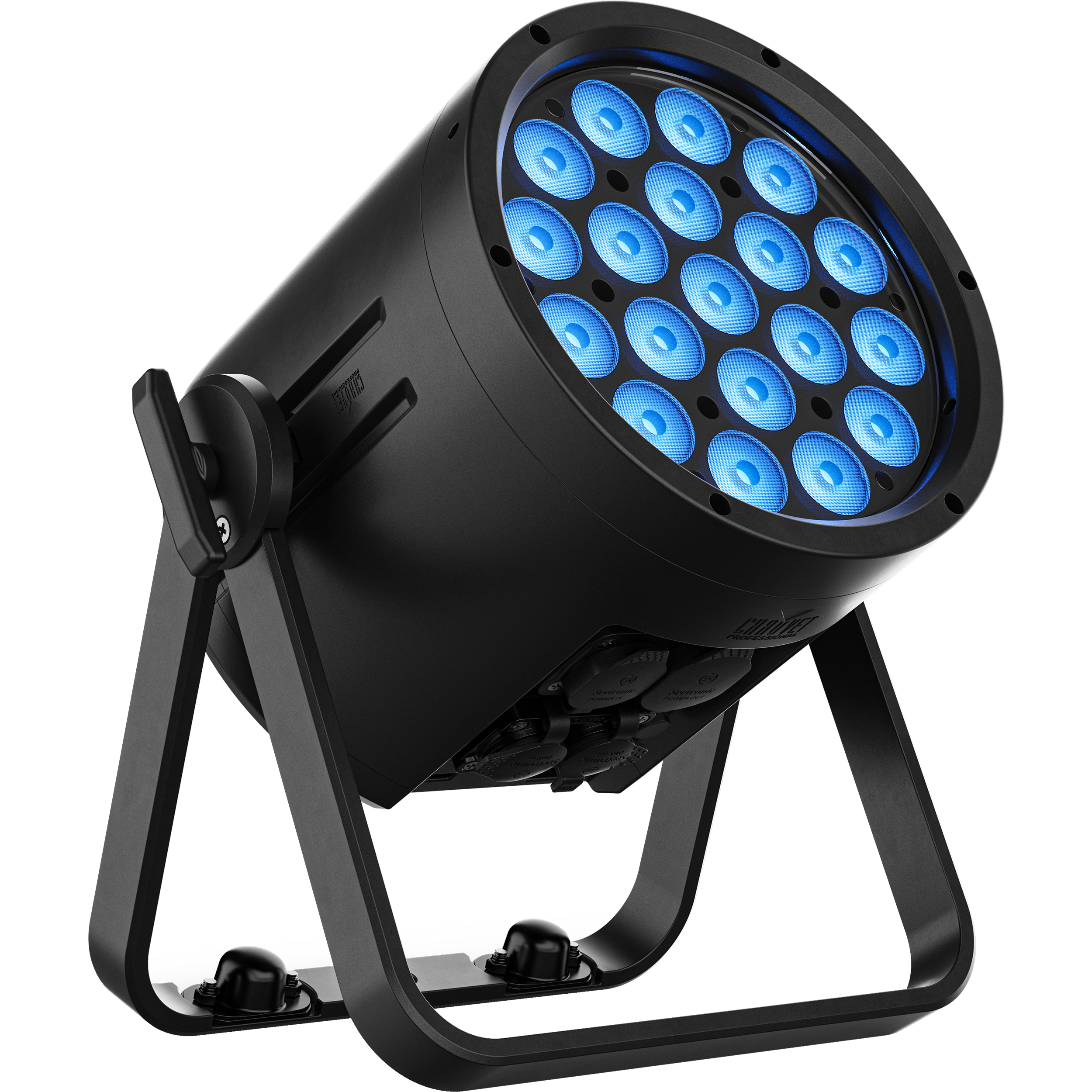

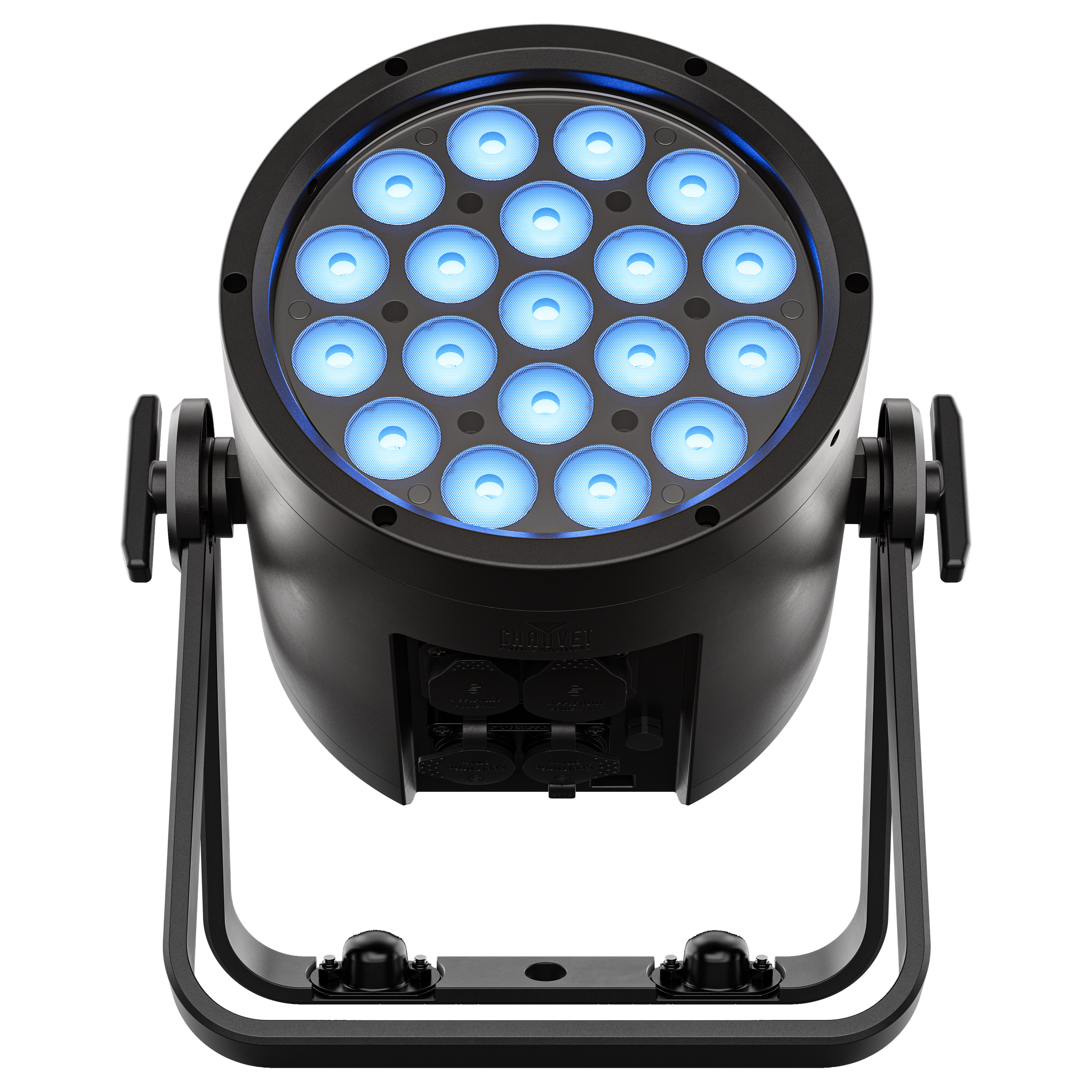

WELL POD 3 is a fully-accessorized addition to any rental package, delivering great output, fantastic color rendering, and the flexibility of a PAR fixture design with a removable split yoke ideal for both truss and floor mounting. Up to 18 hours of battery life from a wash light engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.
• A fully realized kit of (4) Battery operated black IP65 rated par style fixture with (19) RGB Warm White LEDs and a beam angle of 12.7 degrees
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Built-in IP65 5-pin DMX in/out allows for wired data
• Built in Seetronic IP65 PowerKon input/output
• Control over DMX, CRMX, RDM, or RF
• Easy connection to WELL CONNECT box and CHAUVET CONNECT for app control
• USB-C port for convenient software updates
• Removable split yoke for both hanging and floor standing
• Pressure equalizing M6 Gore valve
• Built-in safety cable attachment point

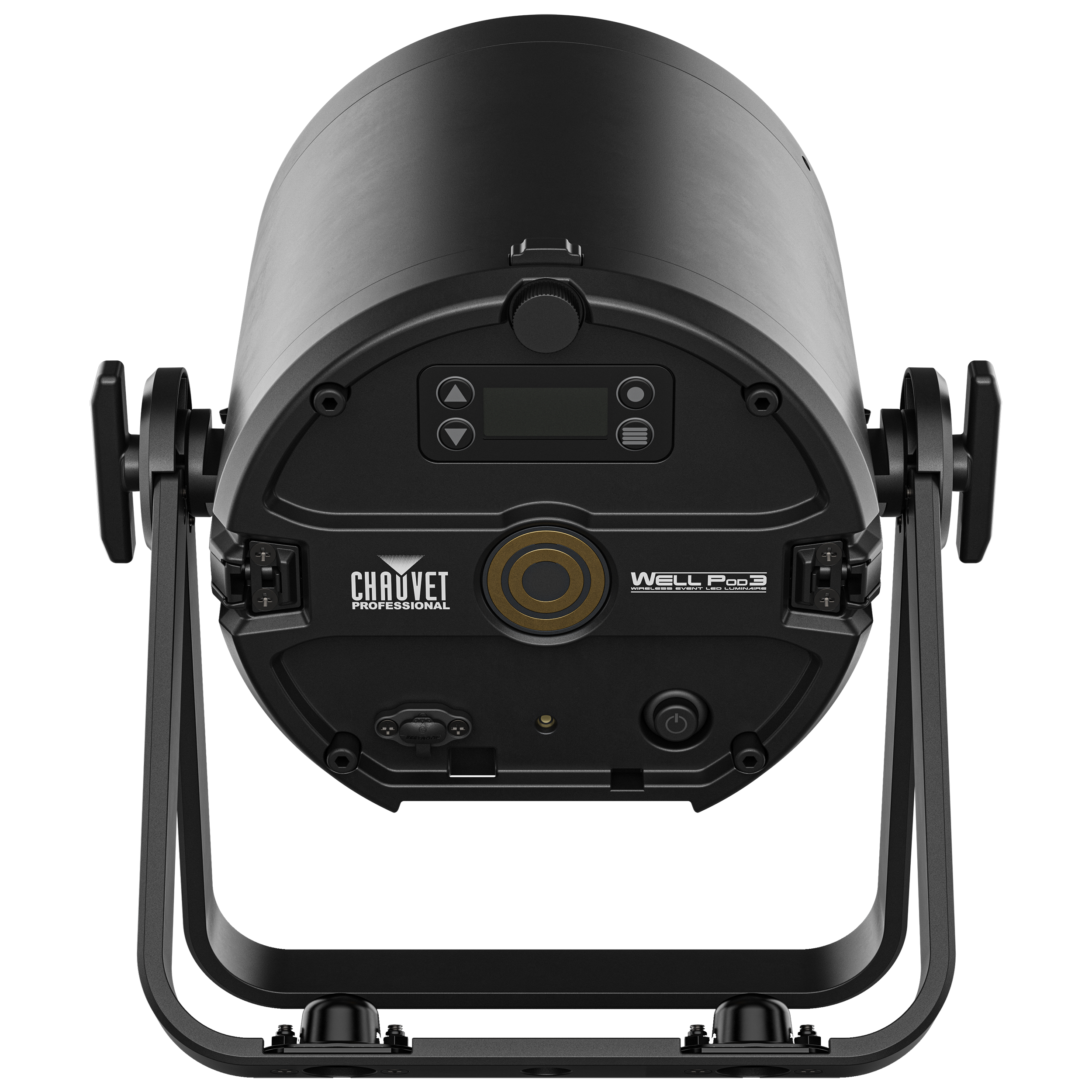

• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM adjustment
• Included RF remote

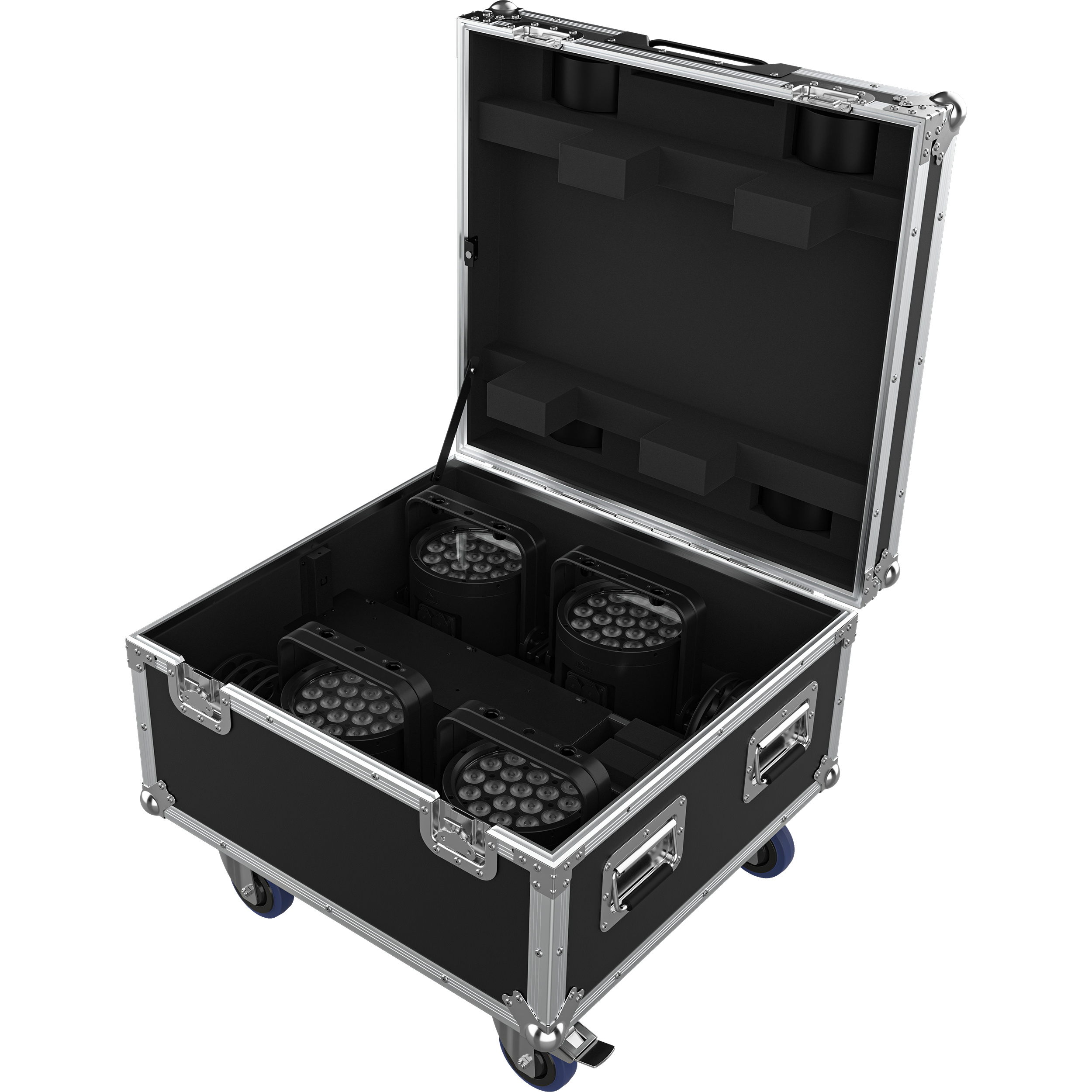

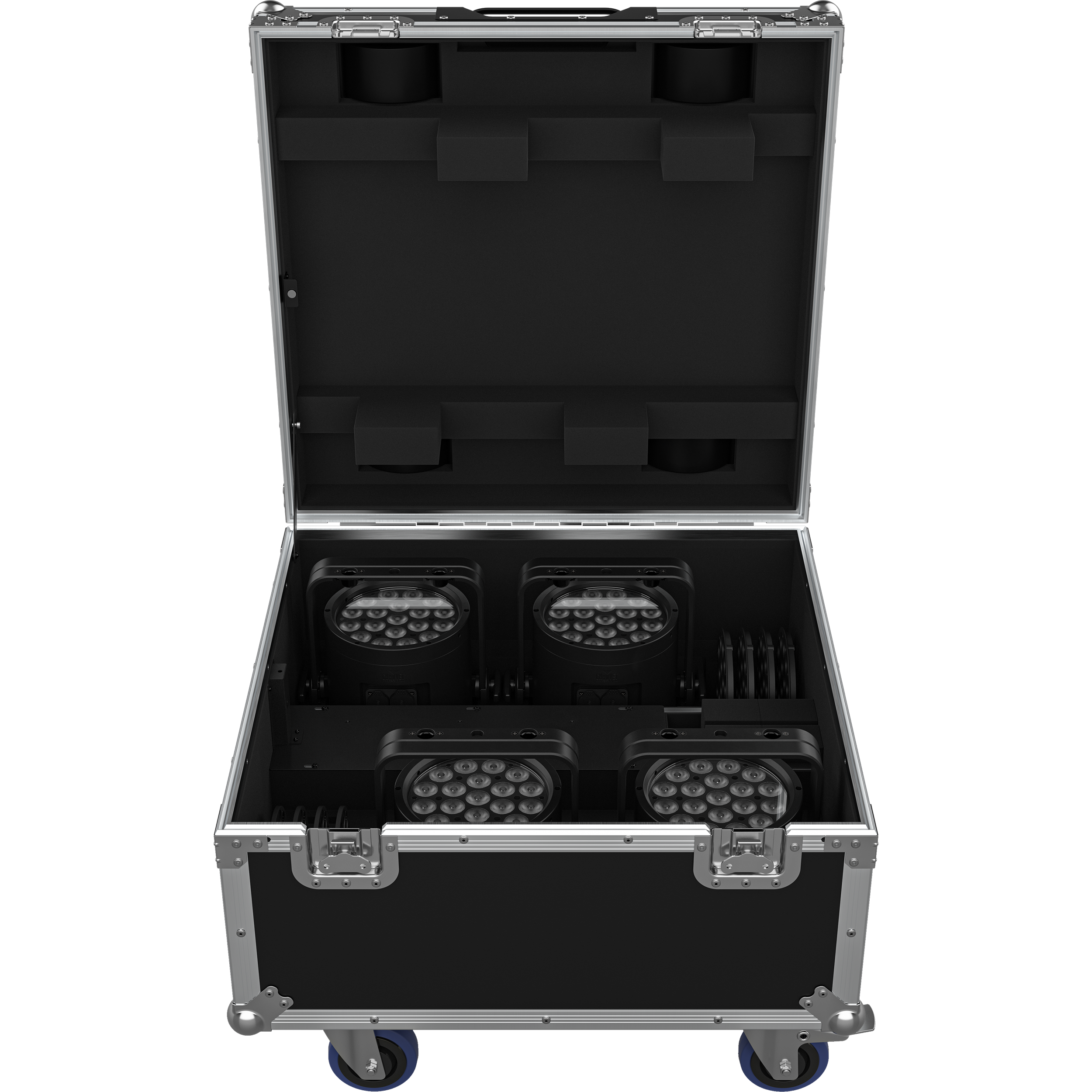

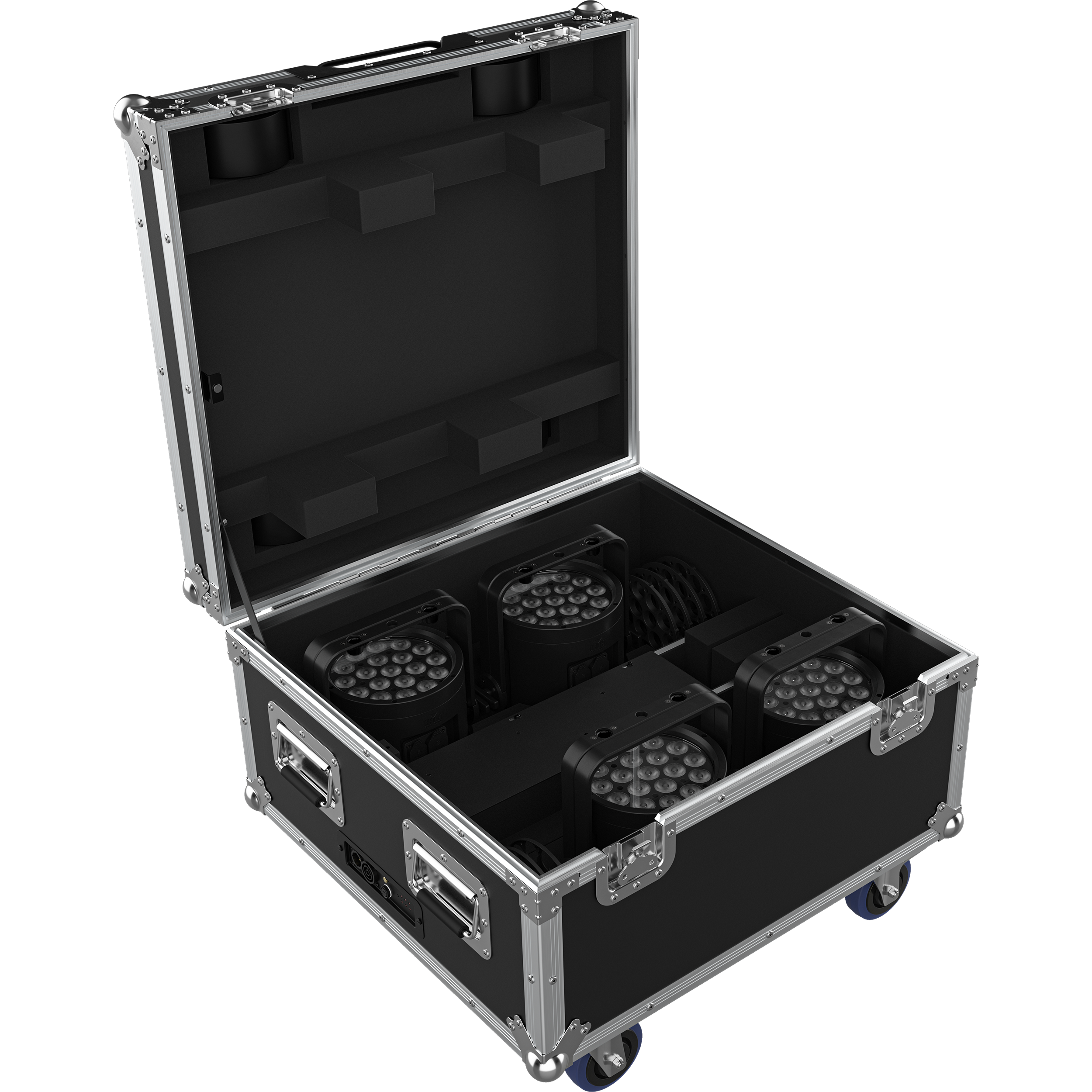

• Included 4 pack charging case
• OPTICAL:
• Light Source: 19 LEDs (RGBWW), 13.4W, (960mA) 50,000 hours life
• Color Temperature (Range): 2800 to 6500 K
• Beam Angle: 12.7°
• Field Angle: 25.4°
• Cutoff Angle: 47.2°
• Lumens: 3557 lm (AC power)
• Illuminance: 1692 lux @ 5 m (AC power)
• Lumens: 1994 lm (OFF battery setting)
• Illuminance: 946 lux @ 5 m (OFF battery setting)
• Lumens: 2177 lm (5-hour battery setting)
• Illuminance: 1033 lux @ 5 m (5-hour battery setting)
• Lumens: 1379 lm (8-hour battery setting)
• Illuminance: 655 lux @ 5 m (8-hour battery setting)
• Lumens: 845 lm (12-hour battery setting)
• Illuminance: 398 lux @ 5 m (12-hour battery setting)
• Lumens: 555 lm (18-hour battery setting)
• Illuminance: 261 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
• DYNAMIC EFFECTS:
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 1 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves:...MX Channels: 4, 8, or 13
• Modes/Personalities: 3 personalities (4Ch, 8Ch, 13Ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX
• ELECTRICAL:
• SINGLE UNIT:
• Power Linking: 16 units @ 120 V; 27 units @ 208 V; 30 units @ 230 V;
• Power and Current: 79 W, 0.74 A @ 120 V, 60 Hz
• Power and Current: 56 W, 0.43 A @ 208 V, 60 Hz
• Power and Current: 56 W, 0.39 A @ 230 V, 50 Hz
• 4 PACK CASE:
• Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
• Power and Current: 306 W, 4.11 A @ 120 V, 60 Hz
• Power and Current: 306 W, 2.37 A @ 208 V, 60 Hz
• Power and Current: 305 W, 2.2 A @ 230 V, 50 Hz
• BATTERY:
• Battery Type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 2.53 hours
• Battery Life: 3hr, 5hr, 8hr, 12hr
• Battery Power: 25.9V, 6.6 Ah
• CERTIFICATION/QUALIFICATIONS:
• Certifications / Qualifications: CE, UKCA, FCC, ROHS
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• (4) Chauvet Professional WELL POD 3
• (1) Charging Case
• (4) Omega Brackets
• (4) Detachable Split Yokes
• (1) RF Controller
• (1) Quick Reference Guide
