Product SKU
    Product SKU # 19055

Chauvet 6x WELL Fit with Charging Case

$4,670.00
DEALS (4).png__PID:f938d8e2-4ca2-40a2-bc62-0d4a4059d5ea

FREE SHIPPING

DEALS (5).png__PID:52f938d8-e24c-42e0-a23c-620d4a4059d5

EXPERT SUPPORT

DEALS (6).png__PID:9b52f938-d8e2-4ca2-a0a2-3c620d4a4059

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a Pro

855-772-2937

2025_25_25-BYFP0014.jpeg__PID:575cf788-193d-4f0d-b5e6-77ef45e1499d
Chauvet Pro Logo.png__PID:11e48346-e7f3-41ee-8aa3-847da39643b4Well Fit logo.png__PID:4b86da66-0710-41f2-8451-668a9dfea251
WELL FIT X-RIGHT - 10-11-2025 11-00-03.png__PID:b95e263a-ce6f-4b86-9a66-071021f20451

LEGACY

WELL FIT

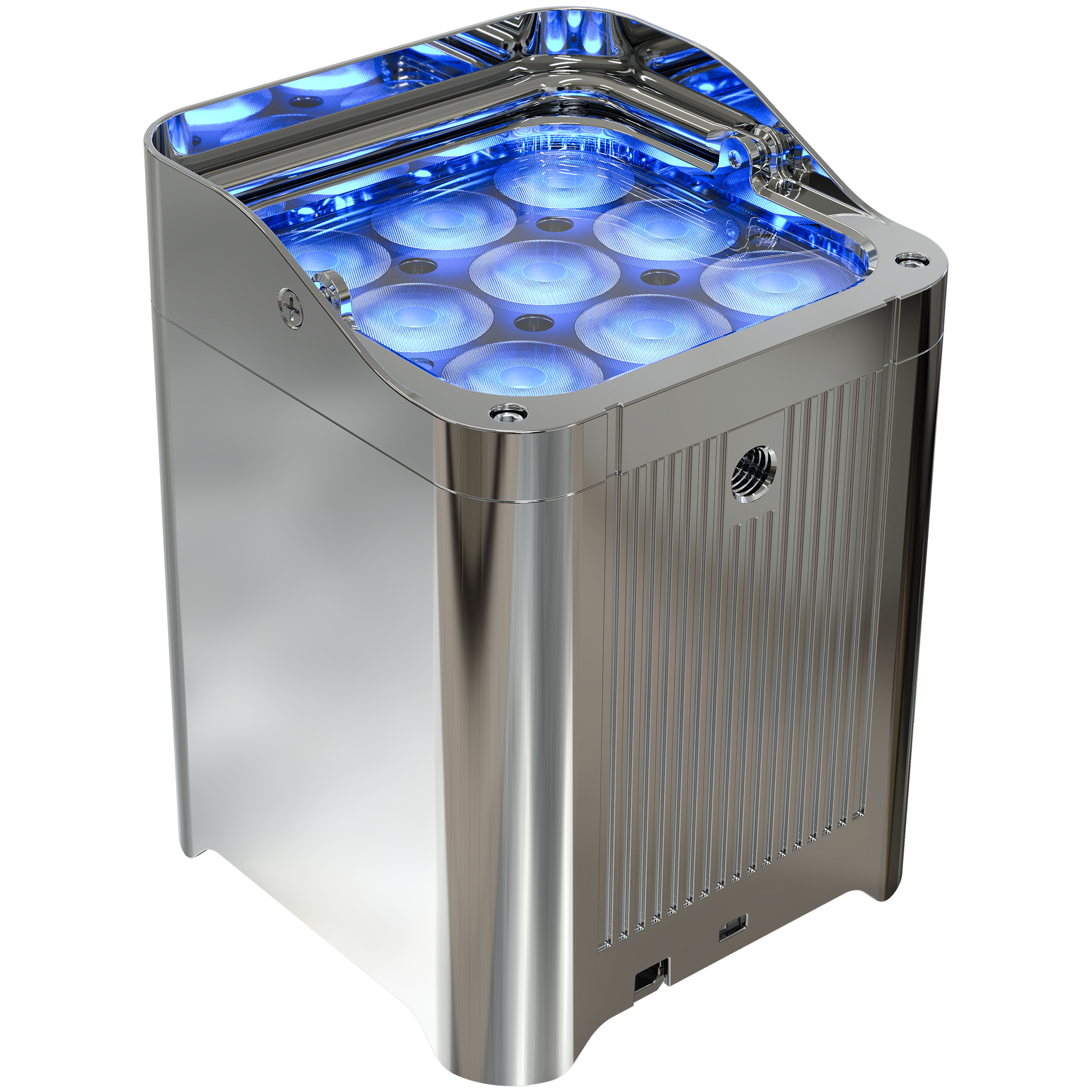

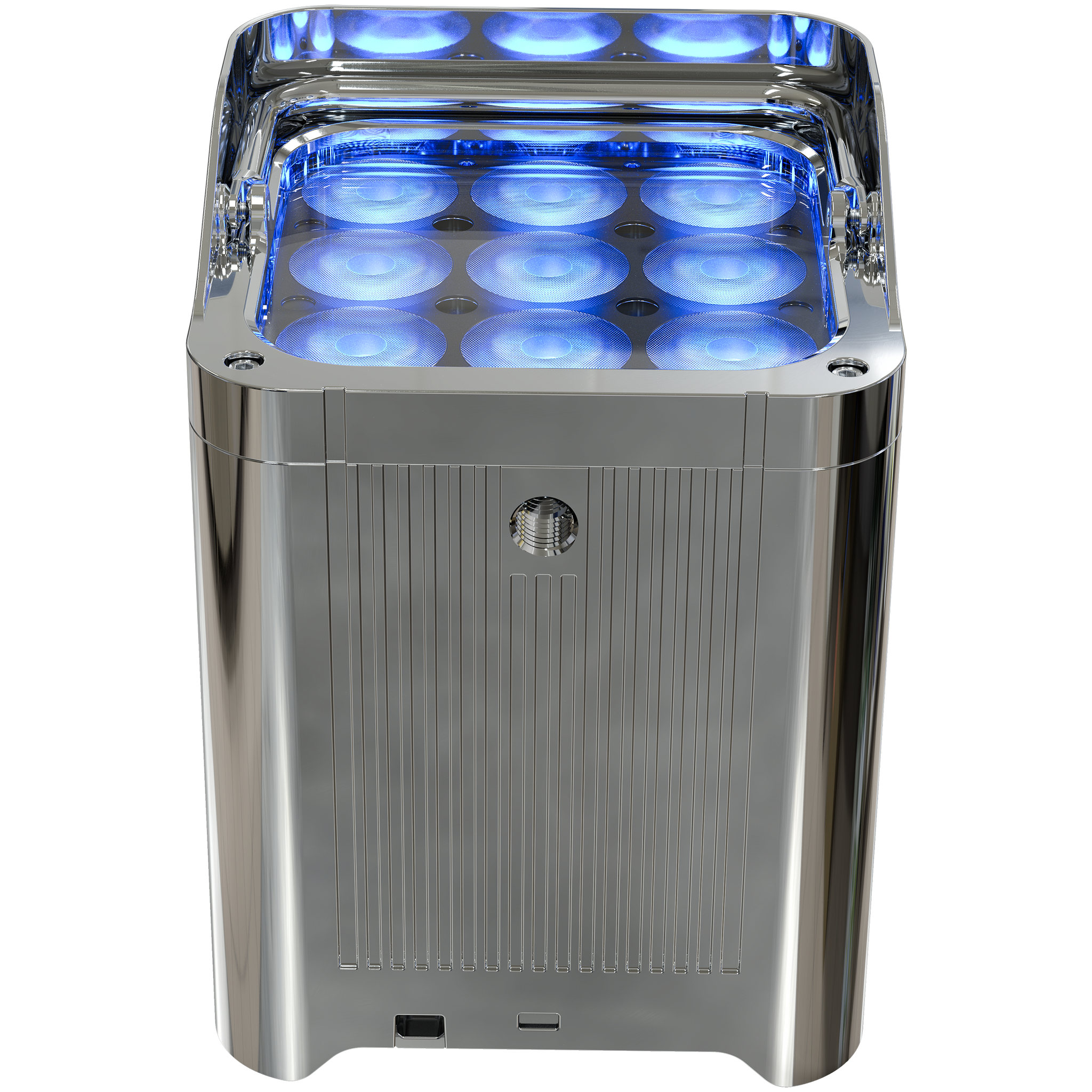

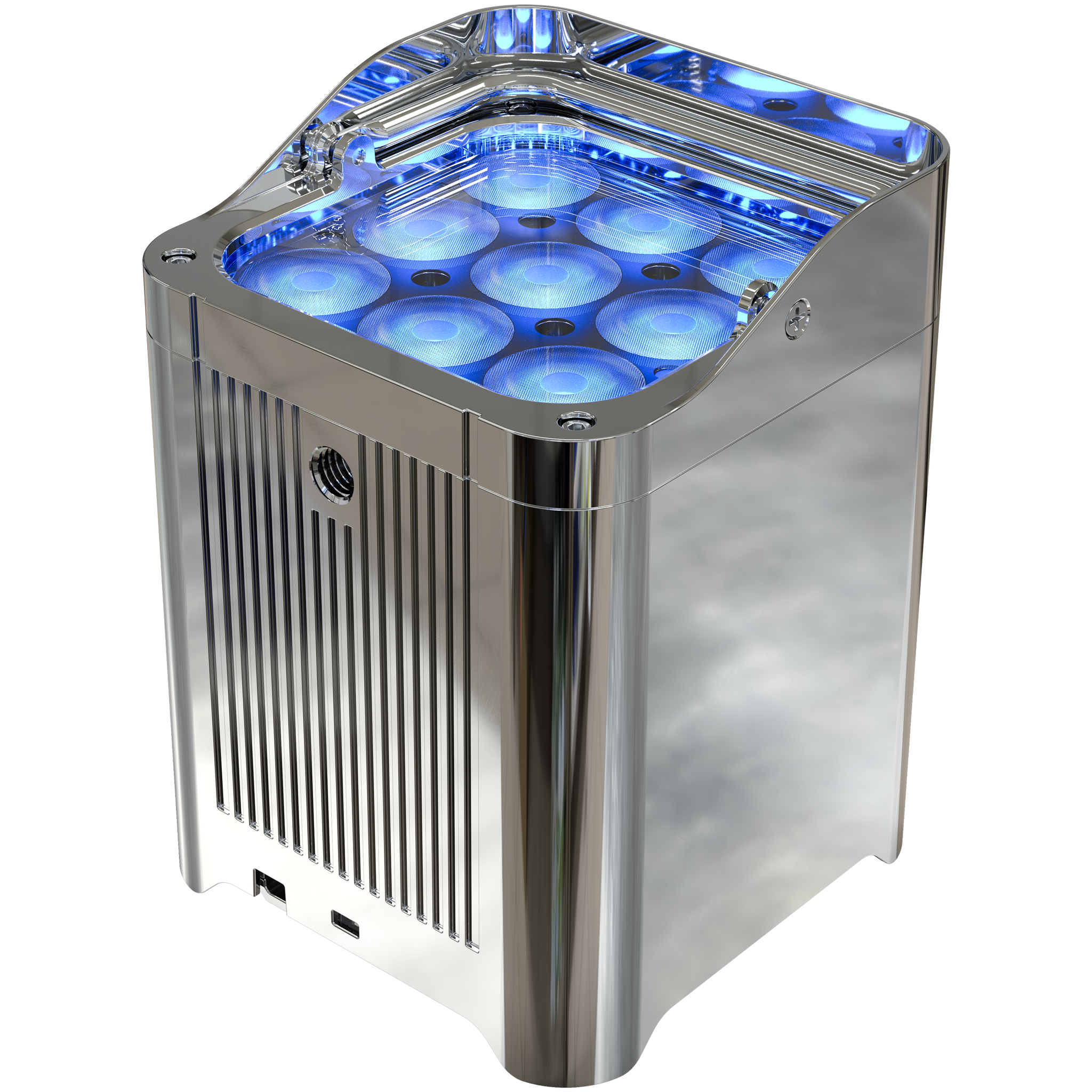

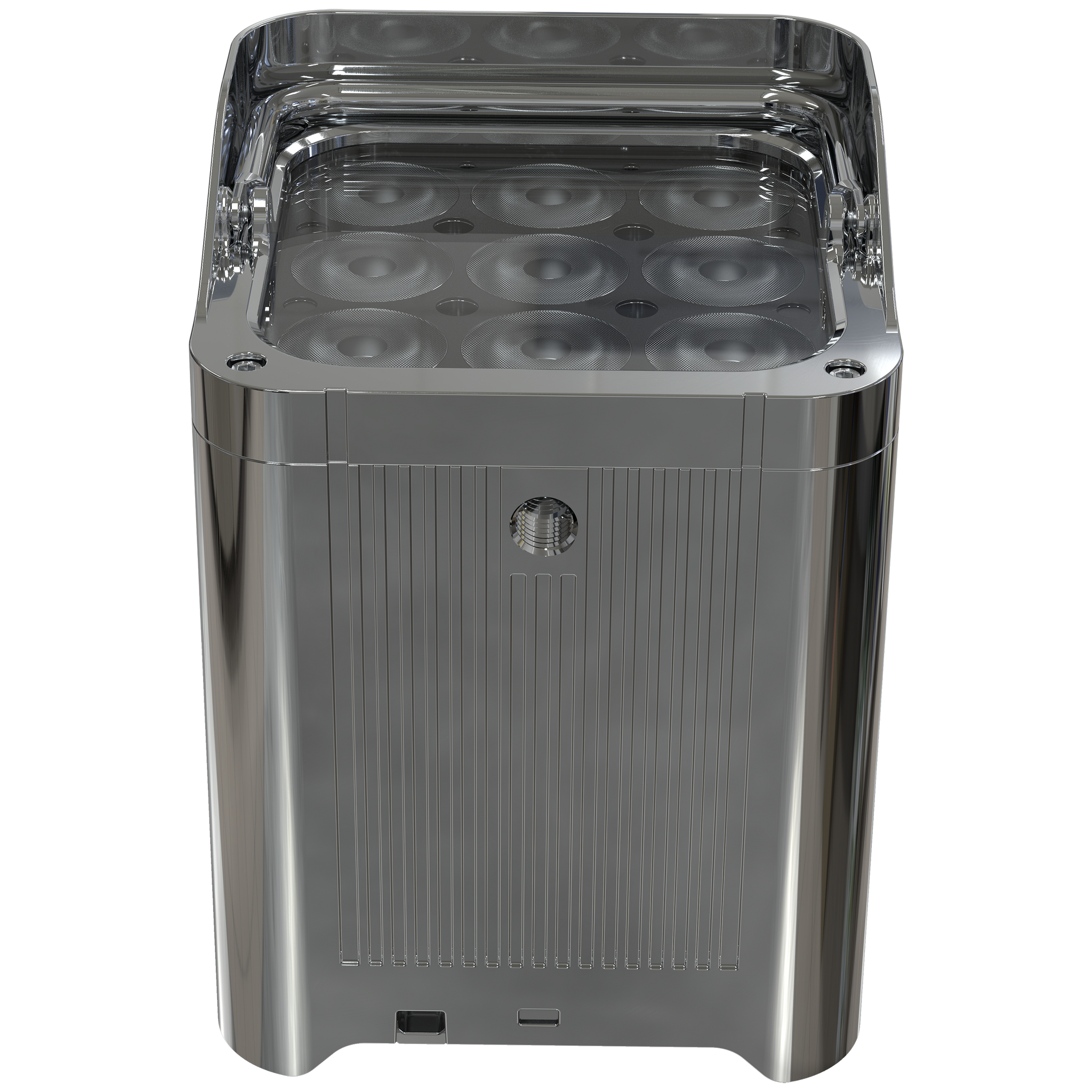

WELL FIT is a must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any decor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.

At a Glance

  • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.

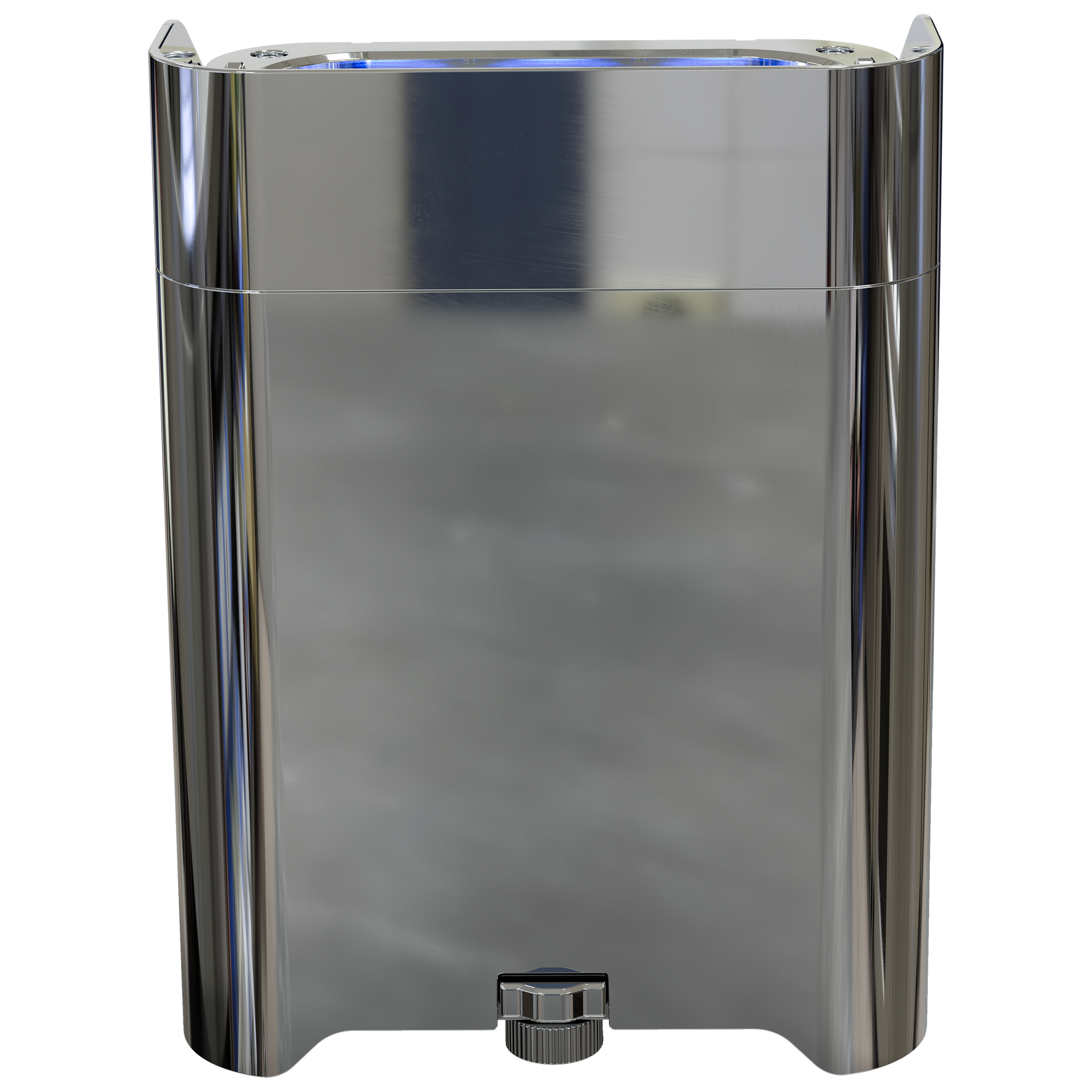

  • Chrome exterior for blending into its surroundings.

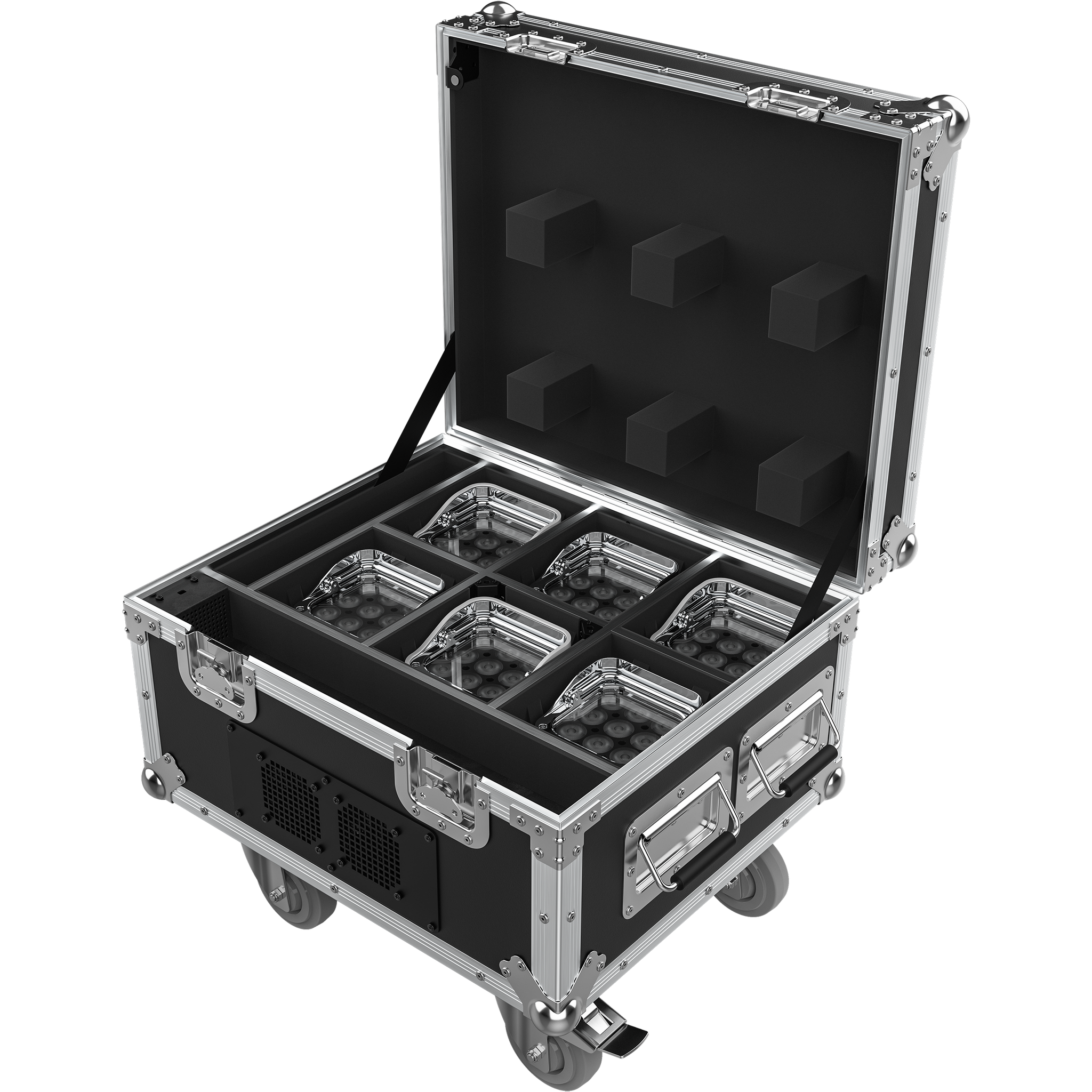

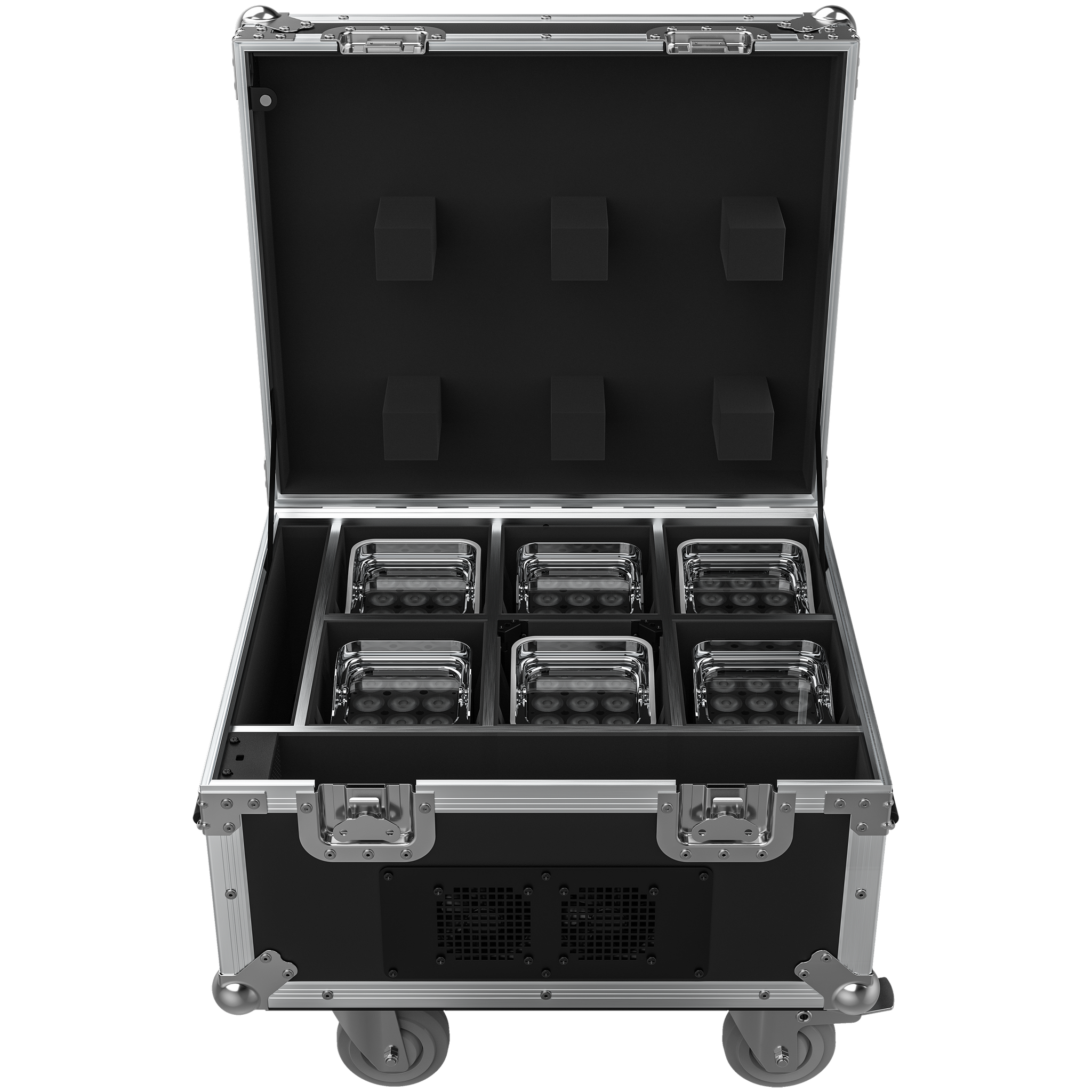

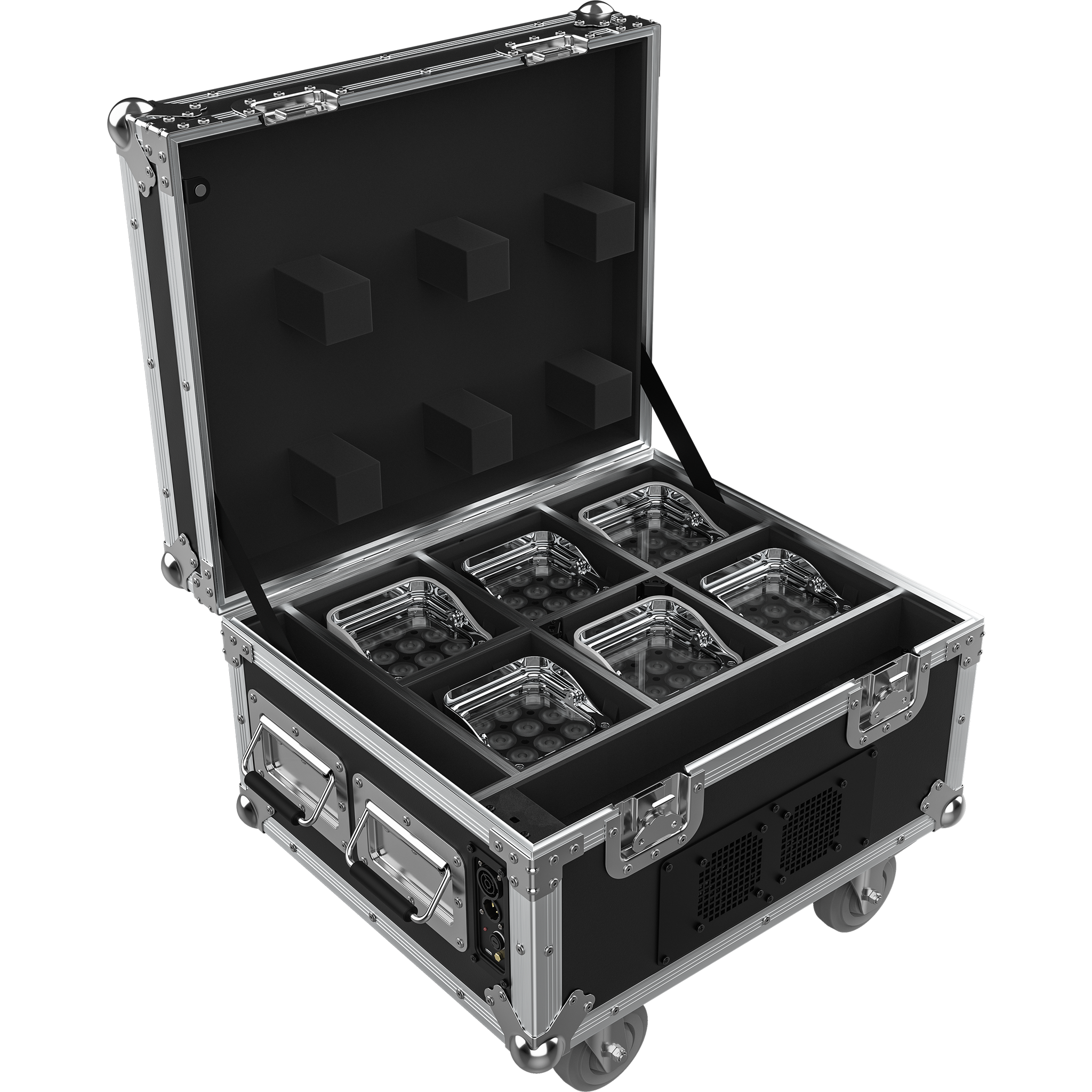

  • Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.
  • 8 hours of operation at full and a quick 5 hours charging time for frequent use.
  • Built in automated programs recallable by IR, WDMX or manually.
  • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.
ConnectFX App Logo.jpg__PID:e6ebfc5d-1251-4409-bf00-6598695cf721

ConnectFX delivers dynamic and reliable control solutions when paired with WELL CONNECT. Available for iOS® and Android in both phone and tablet versions.

Download_on_the_App_Store_Badge_US-UK_RGB_blk_092917.svg__PID:e92abbe3-857a-40aa-8bb5-bb81484e0eefDownload_on_the_Play_Store_Badge_US-UK_RGB_blk_092917.svg__PID:2abbe385-7ad0-4a4b-b5bb-81484e0eef4b
Features
    • A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote
    • Chrome exterior for blending into its surroundings.
    • Ships with 6 slot drop in charging case for easy storage and re charging of the battery.
    • 8 hours of operation at full and a quick 5 hours charging time for frequent use.
    • Built in automated programs recallable by IR, WDMX or manually.
    • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.
Specifications
    • OPTICAL:
    • Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).
    • Beam Angle: 10.8°
    • Field Angle: 19.6°
    • Illuminance (19.6°): 988 lux @ 5 m
    • PWM Frequency: 1200 Hz

    • DYNAMIC EFFECTS:
    • Color Macros: 5 macros
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 24 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    • CONSTRUCTION / PHYSICAL:
    • Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)
    • Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
    • Weight (single unit): 7.4 LB (3.4 kg)
    • Weight (charging case): 103.6 lb (47 kg)
    • Exterior Color: Chrome
    • Housing Material: Aluminum die-cast

    • CONNECTIONS:
    • Power Connection: Edison (Local) plug to Neutrik® powerCON
    • Power Input: Neutrik® powerCON®
    • Cable Length (Power): 5 ft (1.5 m)
    • CONTROL:
    • Control Protocol: W-DMX™, IRC
    • DMX Channels: 3, 4, 6 or 10
    • Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)

    • ELECTRICAL:
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V

    • BATTERY:
    • Battery Type: Lithium Ion
    • Rechargeable: Yes
    • Battery Charge Time: 5 hours
    • Battery Life: (all on) 8 hours, (single LED) 20 hours
    • Battery Power: 14.8 V, 11 Ah

    • CERTIFICATION/QUALIFICATIONS:
    • Certifications / Qualifications: CE, UKCA
    • IP Rating: IP65, temporary outdoor/wet use
Contents
    • (6) Chuavet Professional WELL FIT
    • (1) Charging case
    • (1) IR remote
    • (1) powerCON power cable with Edison plug
    • (1) QRG
    • (1) Warranty Card
