Product SKU
    Product SKU # 24490

Chauvet COLORado Panel Q40

Product Short Title

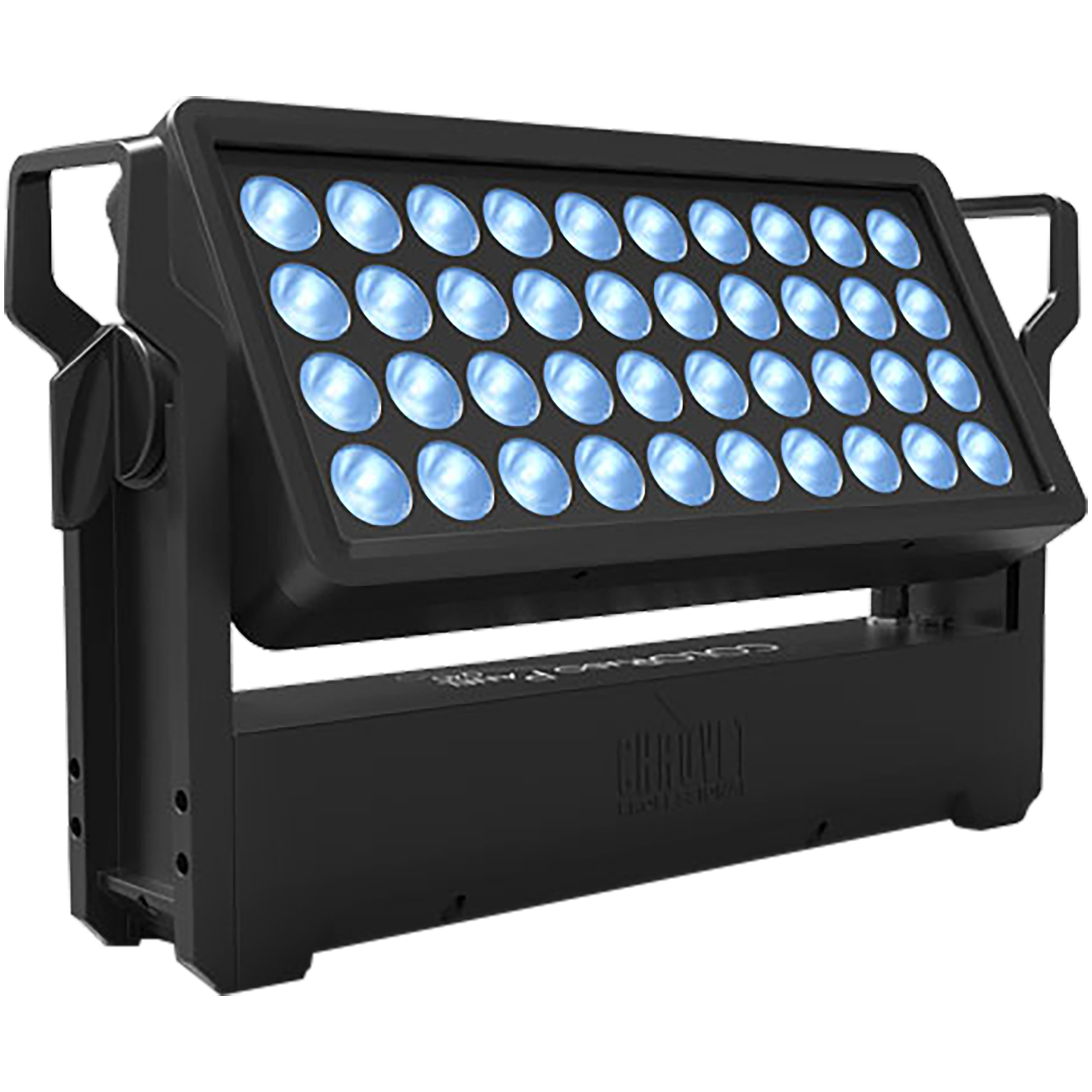

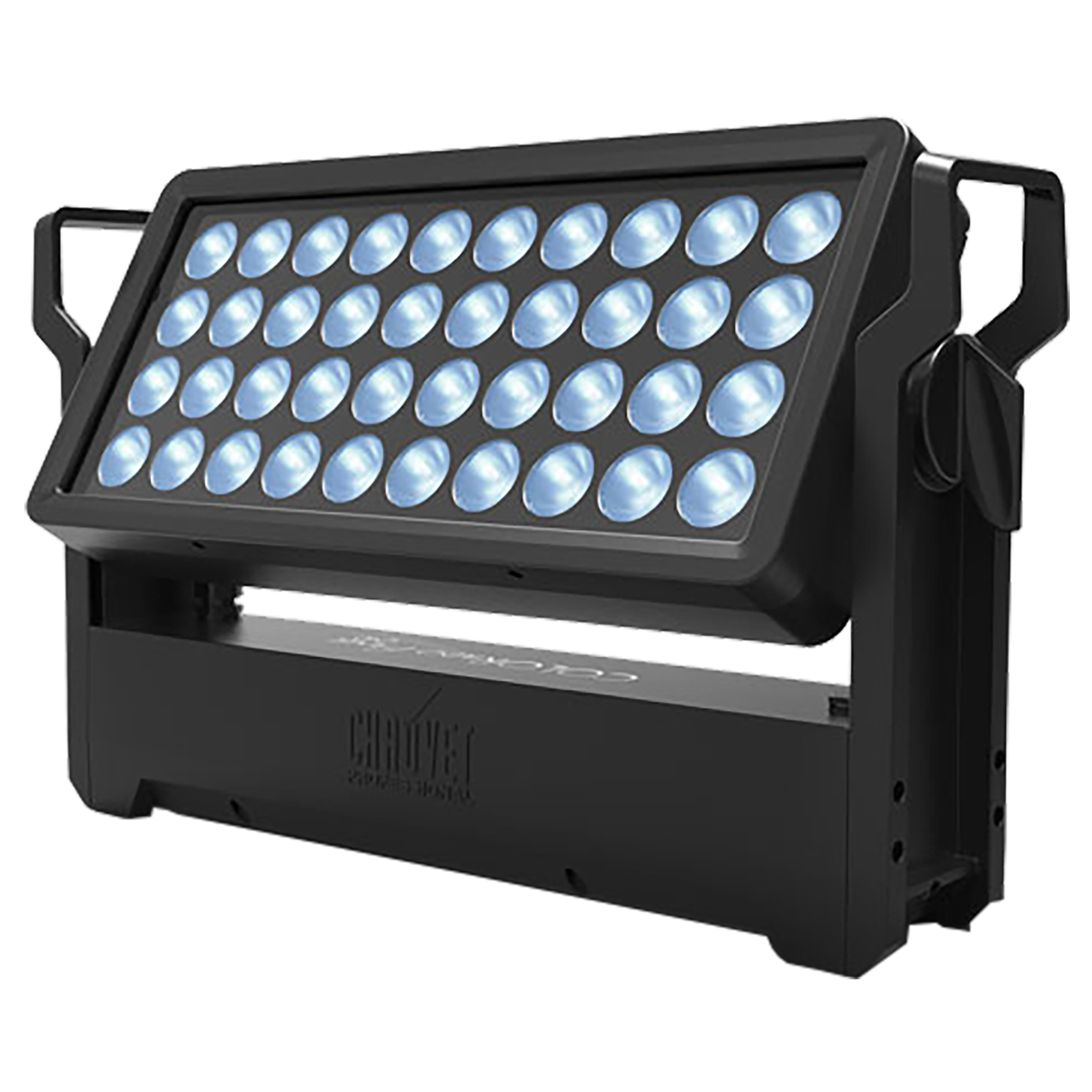

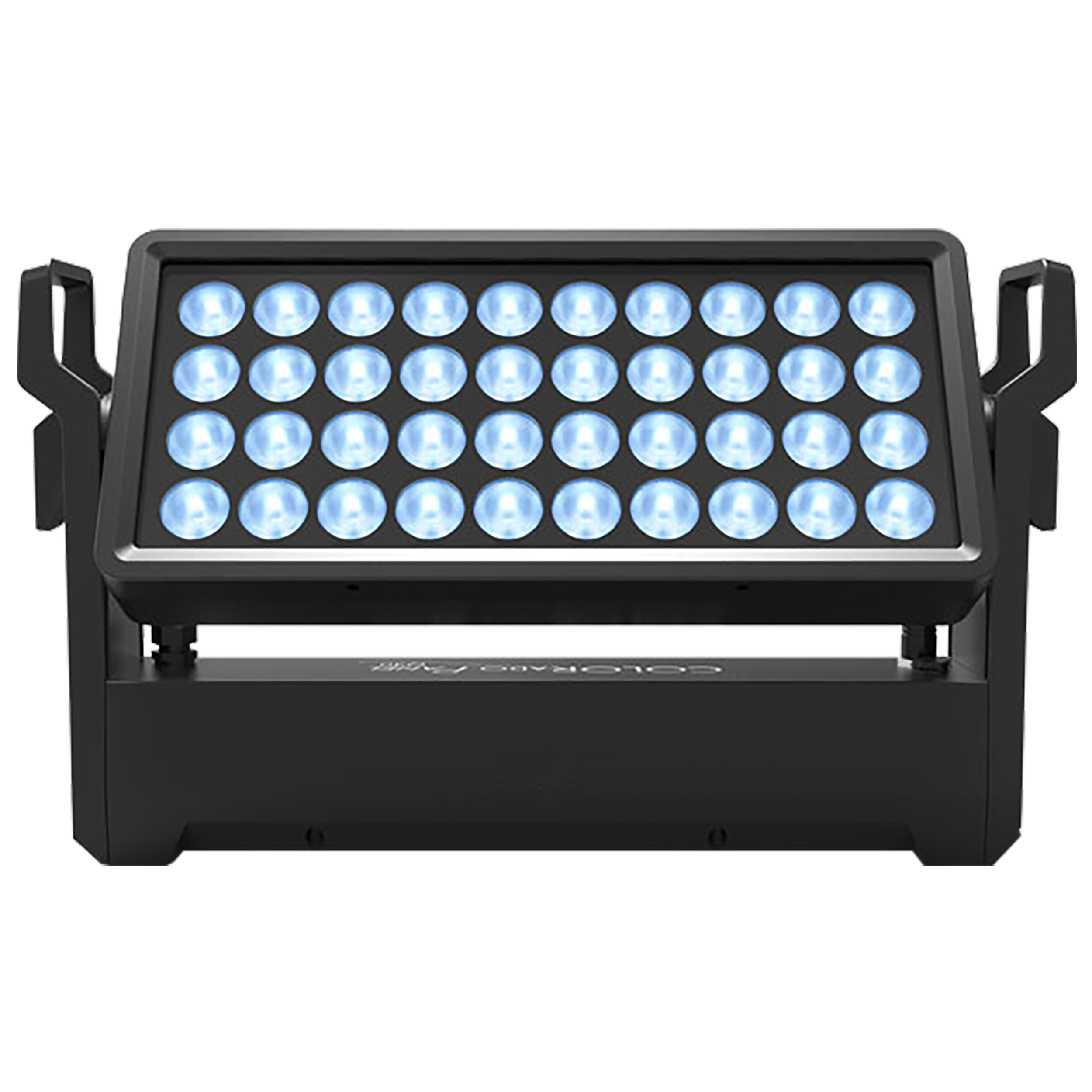

    COLORado Panel Q40 Powerful IP65-Rated Rectangular Wash Light
$2,535.00

PICK UP TODAY

Quick & Complimentary Shipping

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP8997_SQ_1.png__PID:e7077992-36de-44a6-a734-ae2d97143238

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

$179.99
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack

BYFP ipCase for Shure BETA 98AMP/C 3-Pack

$169.99
COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.
FEATURES
    • Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
    • Superior edge-to-edge color mixing
    • At home in any weather conditions with IP rated power and DMX connections
    • Included magnetic flood filter for wide area wash
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
    • WDMX & RDM (Remote Device Management) for added flexibility
    • Selectable, smooth dimming curves to eliminate flicker and choppiness in fades
    • Easy to read OLED display with password protection and touchscreen interface
    • Advanced optics provide exceptional color mixing and high efficiency
    • Included omega bracket for quick and easy truss/pipe mounting
SPECIFICATIONS
    OPTICAL
    • Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
    • Color Temperature (Range): 2800 to 10000 K
    • Installed Optics: 15°
    • Beam Angle (w/o Filter): 20.4°
    • Beam Angle (w/ Filter): 24.6°
    • Field Angle (w/o Filter): 33.8°
    • Field Angle (w/ Filter): 50.4°
    • Lumens: 29,407
    • Lumens (w/ Filter): 17,992
    • Illuminance (w/o Filter): 8,347 lux @ 5 m
    • Illuminance (w/ Filter): 2,590 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    DYNAMIC EFFECTS
    • Tilt Ranges: 0° to 150°
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 27 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONSTRUCTION / PHYSICAL
    • Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
    • Weight: 28.2 lb (12.8 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum alloy, Aluminum die-cast
    • Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

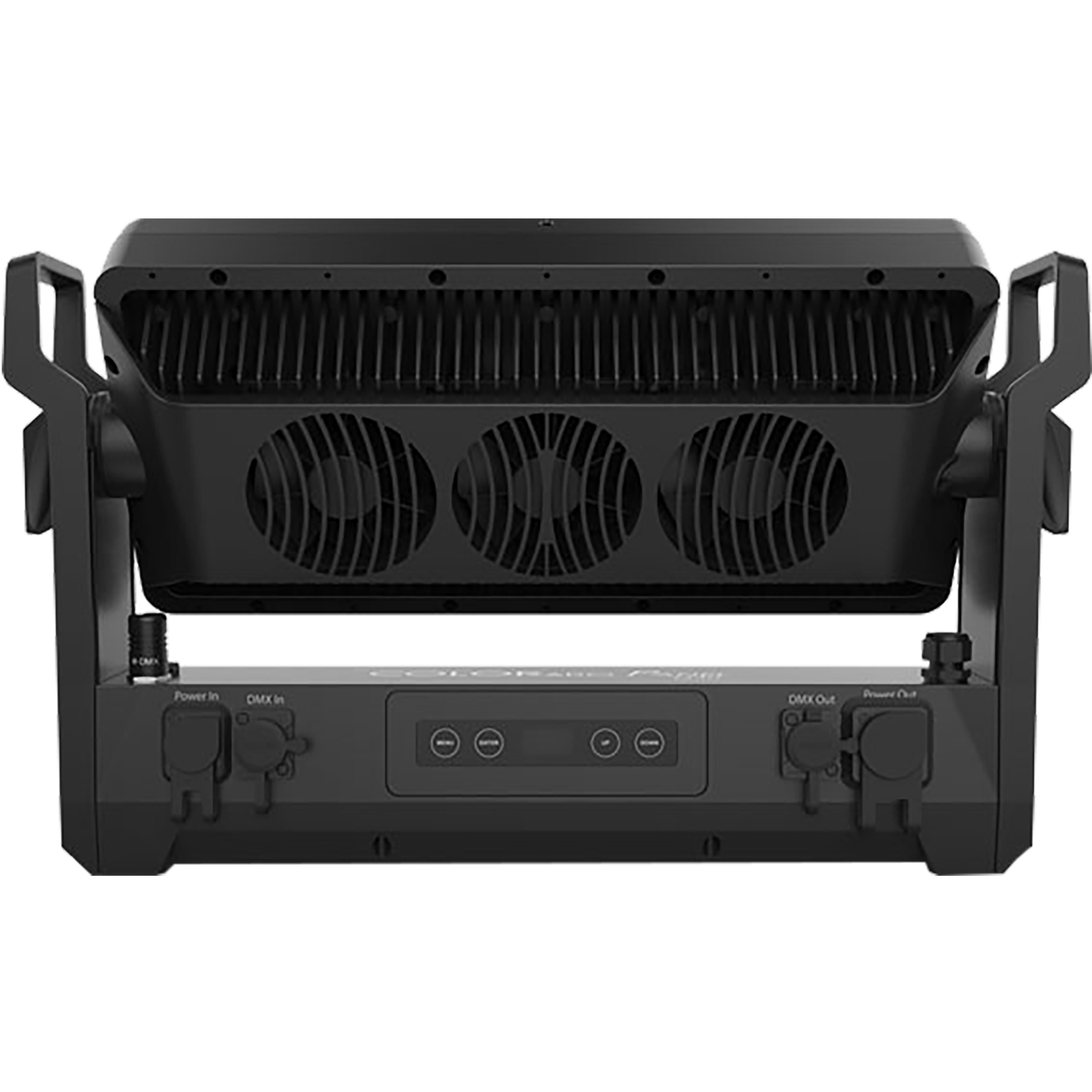

    CONNECTIONS
    • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP65 XLR
    • Cable Length (Power): 5 ft (1.5 m)

    CONTROL
    • Control Protocol: DMX, W-DMX, RDM
    • DMX Channels: 4, 7, 11, 16 or 22
    • Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)

    ELECTRICAL
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
    • Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
    • Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
    • Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz
    • Certifications / Qualifications: CE, MET, FCC
    • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
CONTENTS
    (1) Chauvet Professional COLORado Panel Q40
    (1) Color Blending Filter Lens
    (1) Omega Bracket with Mounting Hardware
