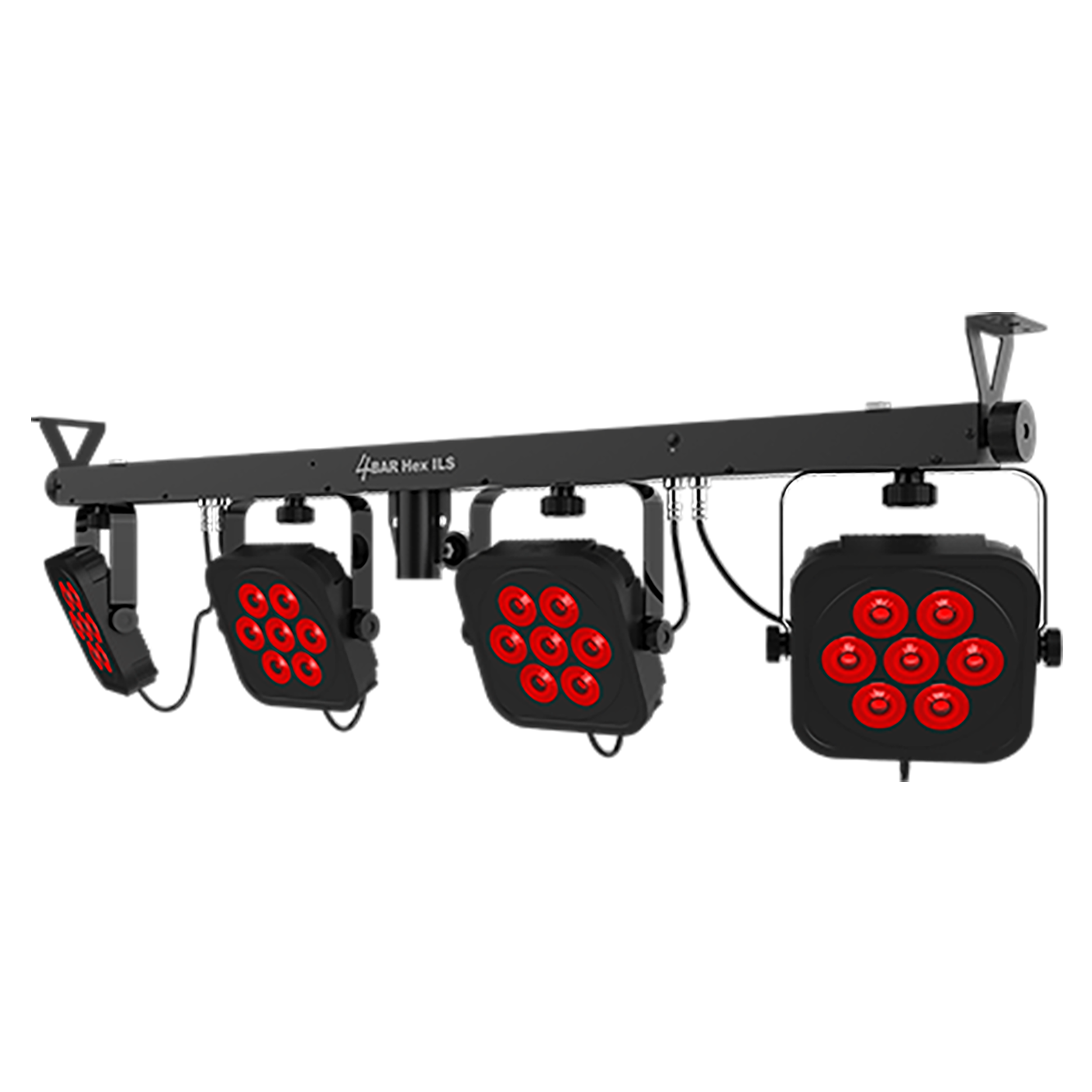

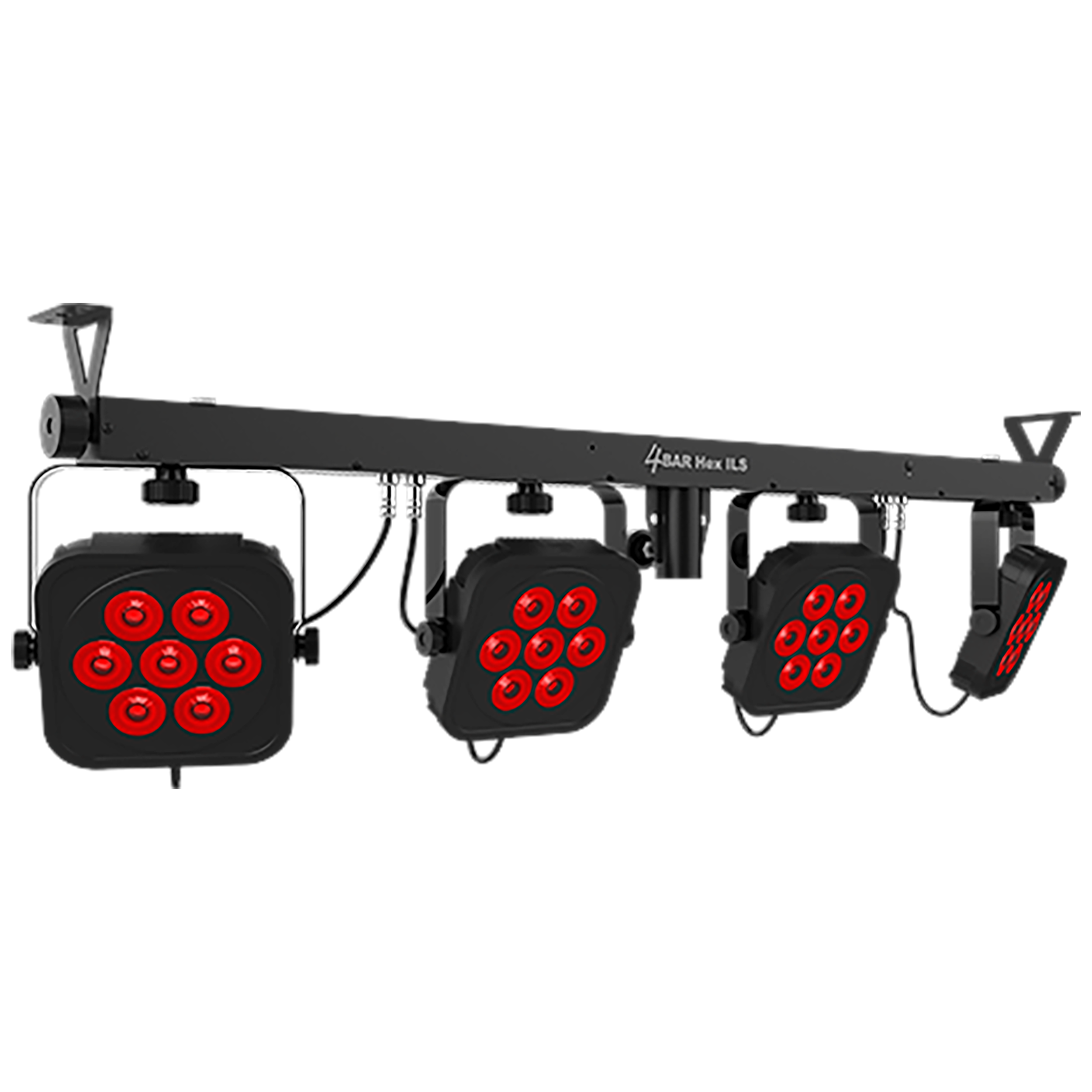

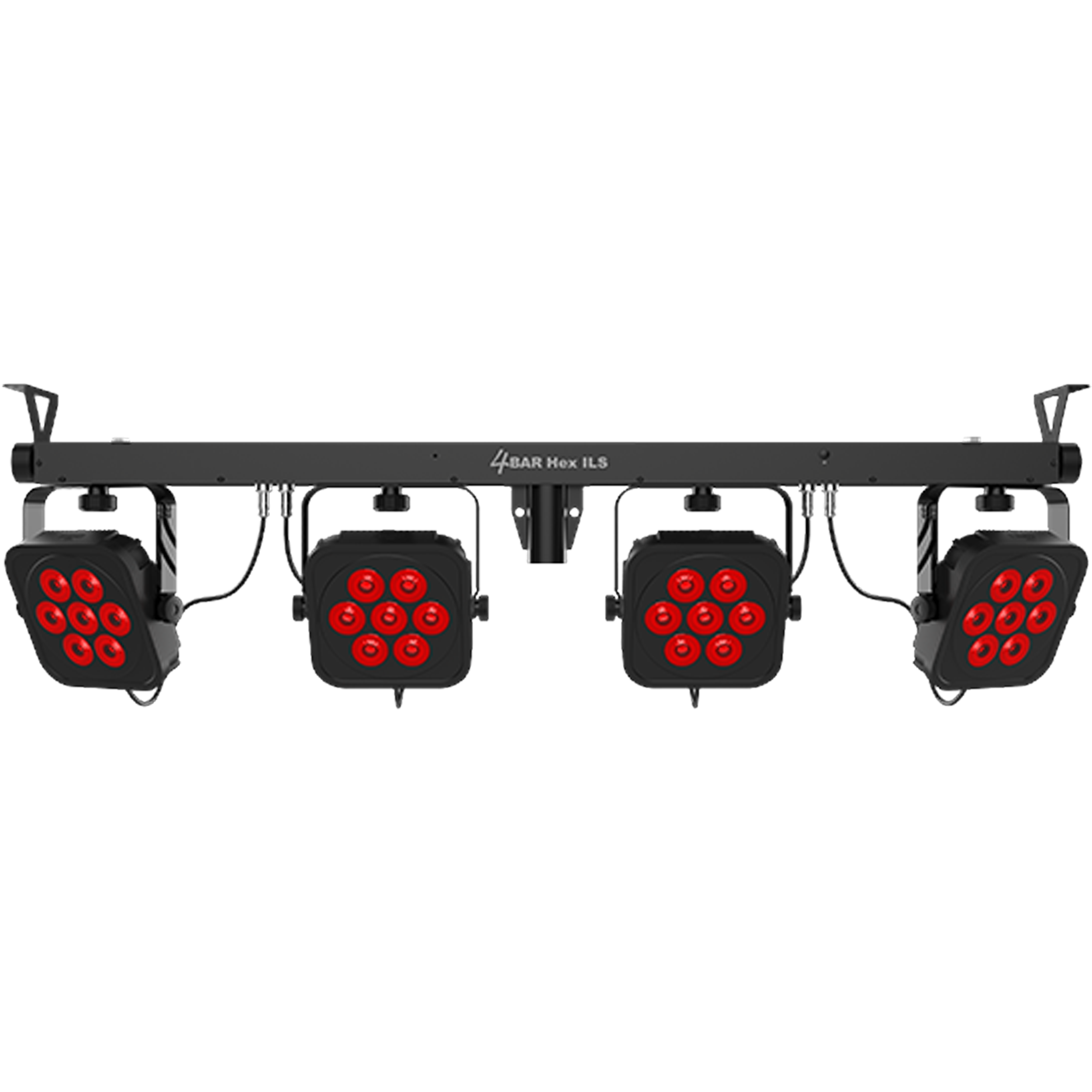

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
• Complete wash lighting solution fitted with high-intensity, hex color (RGBAW+UV) LEDs
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
• Update the unit’s software from the built-in USB port
• Out of the box wireless control with included footswitch or optional IRC-6 controller

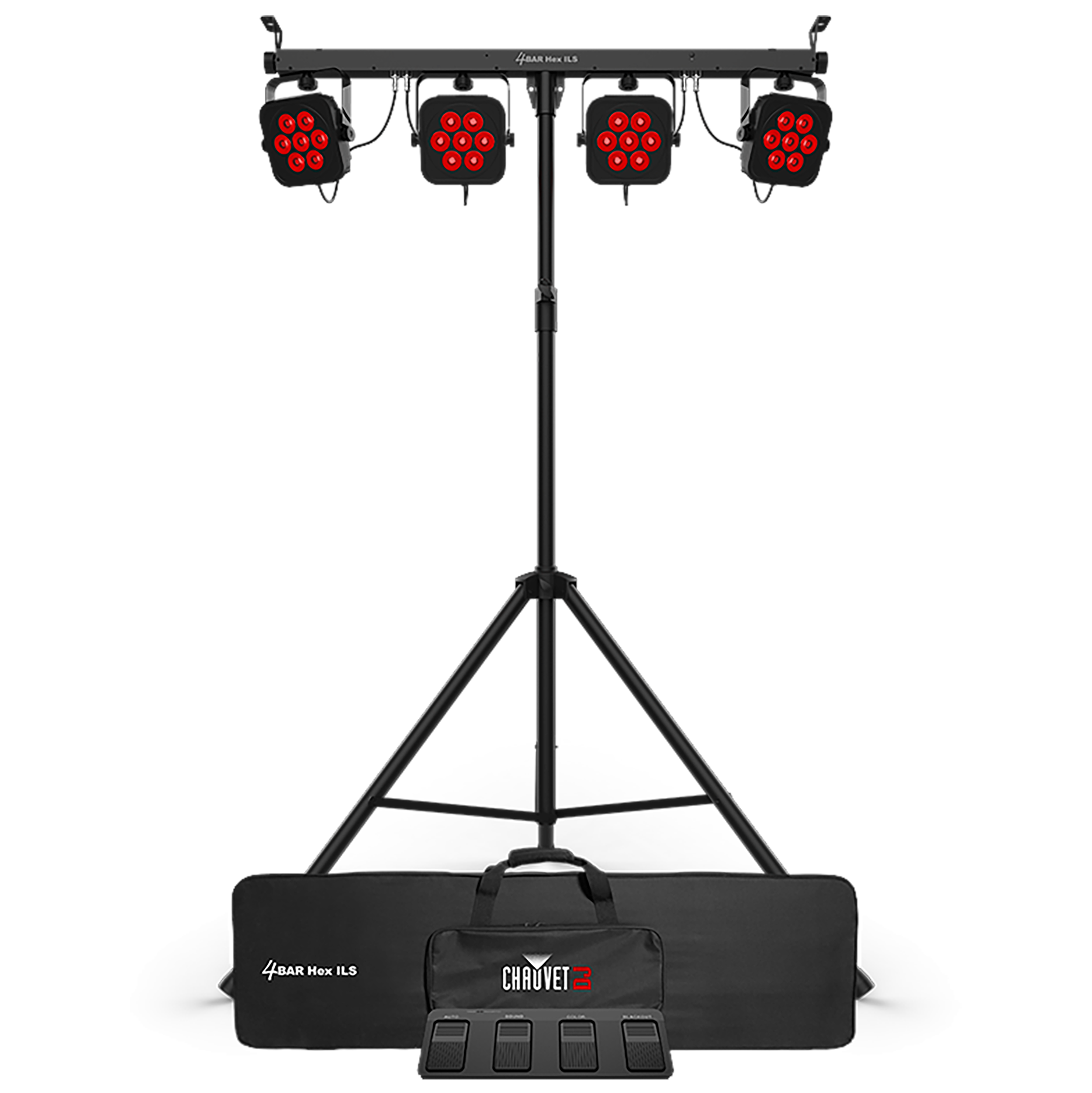

• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts
• DMX Channels 6, 8, or 27
• DMX Connectors 3-pin XLR
• Max Unobstructed Distance:(foot switch) 100 ft (30.5 m)
• Light Source 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
• Strobe Rate 0 to 20 Hz
• Beam Angle 16°
• Field Angle 25°
• Illuminance 1570 lux @ 2 m (per pod)
• Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 97 W, 1.3 A @ 120 V, 60 Hz and 94 W, 0.7 A @ 230 V, 50 Hz
• Weight 12.2 lb (5.5 kg)
• Size 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Approvals CE, RoHS, UKCA
• Footswitch Battery 9 V
• Operating Frequency (D-Fi) 2.412 to 2.484 GHz
• Operating Frequency (foot switch) 433 MHz
• Stand Height 7 ft 4 in (2.2 m)
• Fits Tripod Sizes 1.5 in (36.80 mm)
• Bracket Mounting Hole M10 (1.5 mm pitch)
• Weight (Controller) 1.2 lb (0.6 kg)
• Size (Controller) 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Optional Controllers IRC-6, ILS Command
(1) Chauvet DJ 4BAR Hex ILS
(1) Power Cord
(1) Carrying Bag
(1) Tripod
(1) Tripod Carry Bag
(1) Wireless Footswitch
(1) Quick Reference Guide
