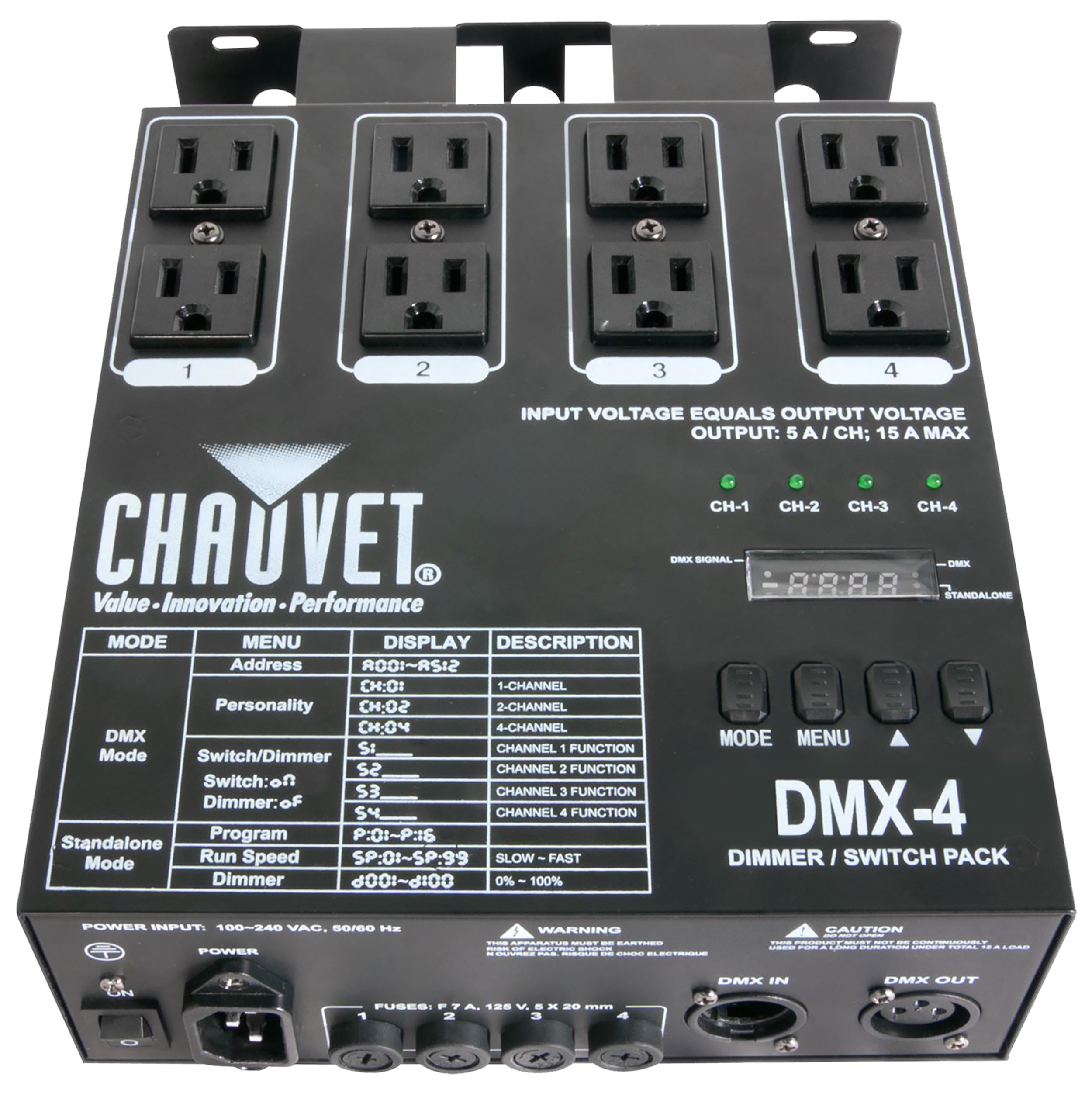

It’s a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.

FEATURES

• 4- Channel dimmer / switchpack with up to 5 amps per channel (15A max)
• Provides DMX control for on/off or dimming to non-DMX fixtures
• Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures
• Custom looks at your fingertips with 16 built-in, configurable chases
• Easy control using standalone mode or DMX control

SPECIFICATIONS

DMX Channels: 1, 2, or 4
DMX Connectors: 3-pin XLR
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 5 lbs (2.2 kg)
Approvals: CE

CONTENTS

(1) Chauvet DJ DMX-4 Dimmer
(1) Power Cord
(1) Warranty Card
(1) Operator's Instructions
