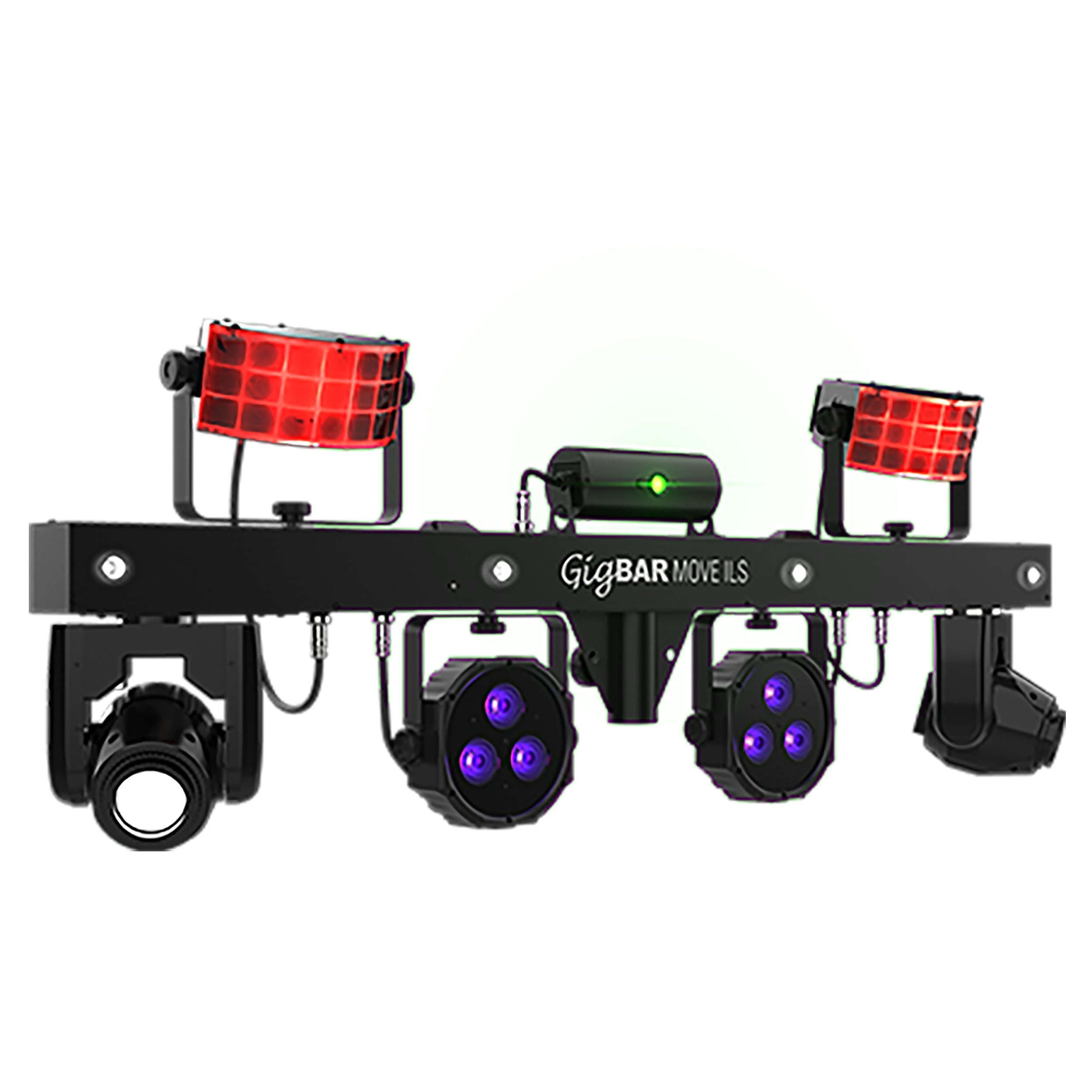

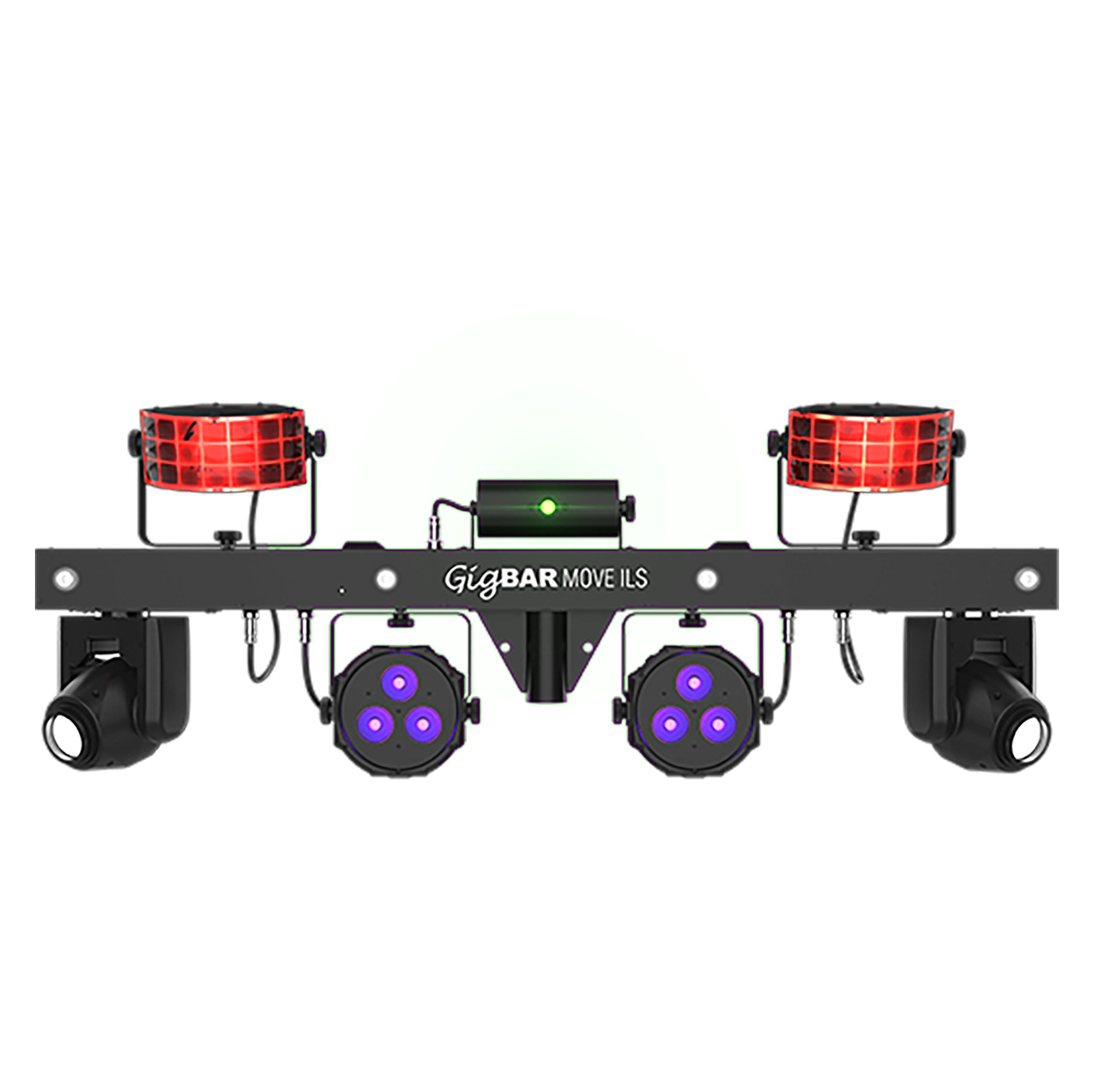

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.
• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Separate color and gobo wheels in moving heads allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all functions, directly from the full color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects and make them pop
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
DMX Channels: 3, 29, or 51
DMX Connectors: 3- pin XLR
Pan and Tilt: 540°/180°
Colors:(Moving Head): 9 + open, split colors, continuous scroll at variable speeds
Gobos:(Moving Head): 9 + open, continuous scroll at variable speeds
Light Source:
(Pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(Strobe): 4 LEDs (cool white) 5 W (1.2A), 50,000 hours life expectancy
(Derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy (moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Beam Angle: (moving head): 17° (pars): 22° (strobe): 30°
Field Angle: (pars): 33° (strobe): 62°
Coverage Angle: (derbv): 131°, (laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance:
(pars): 1,205 lux @ 2 m (per par), (moving head): 5,140 lux @ 2m (per head)
(strobe): 130 lux @ 2 m (per LED)
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 250 W, 3 A @ 120 V, 60 Hz 248 W, 1.8 A @ 230 V, 50 Hz
Weight: (bar only) 31 lbs (14 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, UKCA, RoHS, FCC, FDA
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Tripod Leg Width: 3.9 ft (1.2 m)
Footswitch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Included Controllers: RF remote, wireless footswitch
Cable Length: 10 ft (3 m)
Tripod Thickness: 1.37 in (35 mm)
Optional Controllers: RF
RF Remote Battery: 23A, 12 V alkaline
(1) Chauvet DJ GigBAR Move Plus ILS
(1) Power Cord
(1) RF Remote
(1) Carrying Bag
(1) Tripod
(1) RF Remote
(1) User Manual
(1) Tripod Carry Bag
(1) Footswitch
