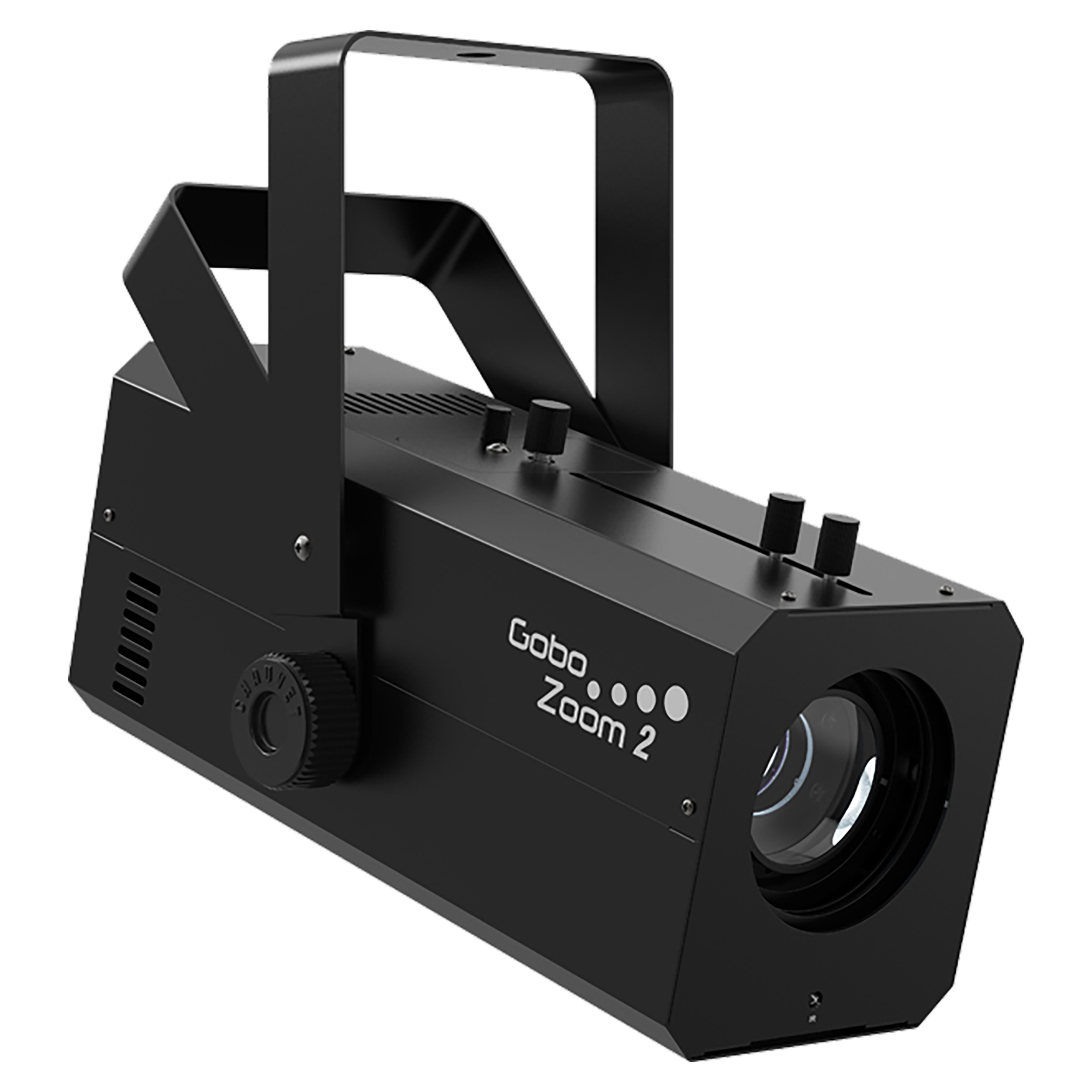

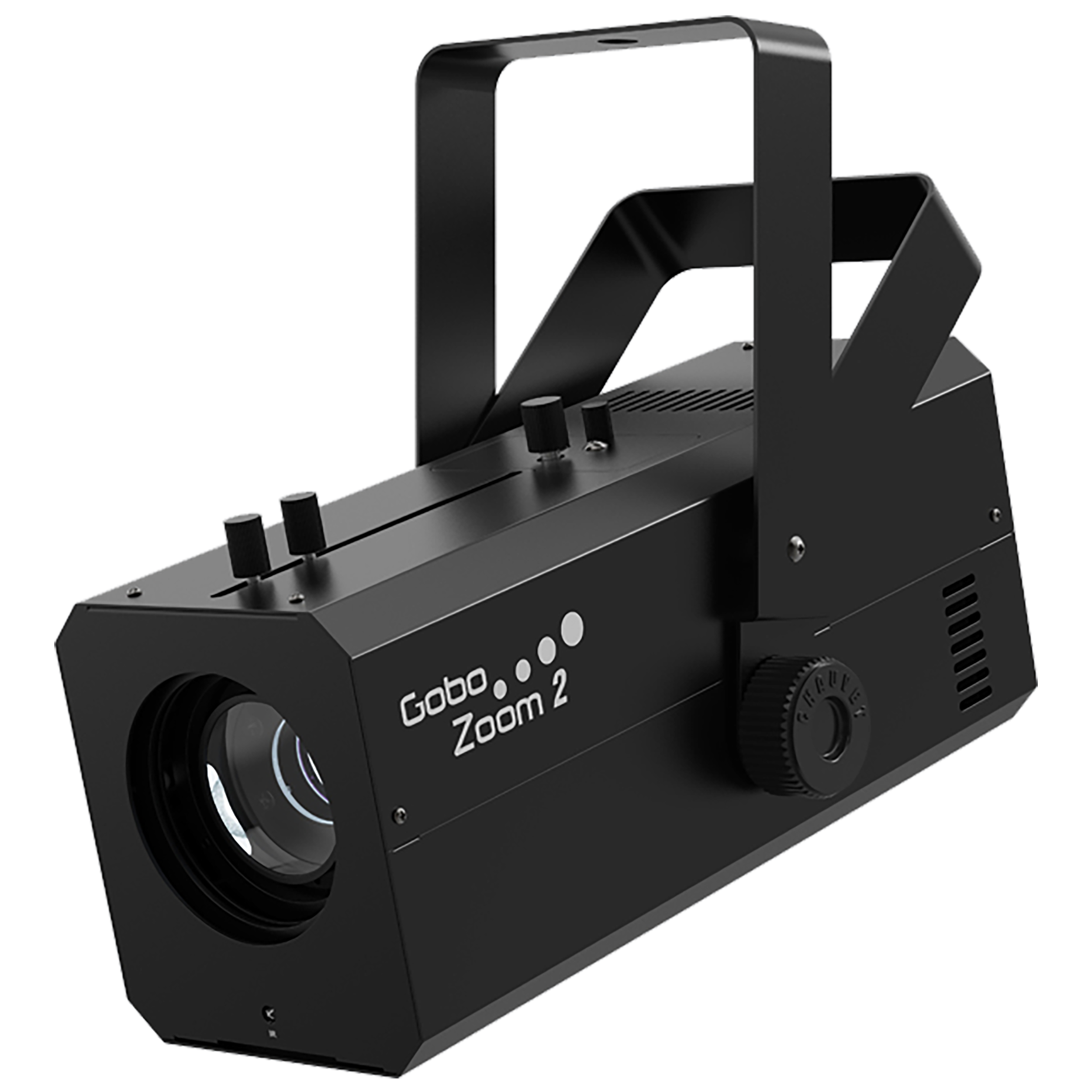

Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED. Proper positioning of gobos is easy with an innovative manual rotation knob that allows fast indexing without gobo removal. Gobo Zoom 2 comes with 10 popular holiday gobos and manual zoom for short-throw or long-throw applications, making it versatile and convenient. The convenience doesn’t stop there. Most functions are accessible with an optional IRC-6 remote and set-up time can be reduced by power linking multiple units.
• High-powered custom gobo projector with a punchy 70 W LED
• Innovative manual rotation knob allows fast indexing without gobo removal
• Manual zoom for short-throw or long-throw applications
• Includes 10 popular holiday gobos
• Access most functions via the optional IRC-6 remote
• Reduce set-up time by power linking multiple units
• Includes 10 popular holiday gobos
• DMX Channels: 1
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
• PWM Frequency: 4000 Hz
• Illuminance:
- 21°: 8,030 lux @ 2 m
- 38°: 2,660 lux @ 2 m
• Lumens 2,894
• Power Linking: 7 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 74 W, 1 A @ 120 V, 60 Hz and 72 W, 0.6 A @ 230 V, 50 Hz
• Weight: 5.8 lb (2.6 kg)
• Size: 13 x 6 x 5.7 in (330 x 150 x 145 mm)
• Approvals: CE
• Gobo Size (E): 37.3 mm outside, 22 mm image, 1 mm max thickness
• Zoom Angle (Manual): 21° to 38°
• Bracket Mounting Hole: 13 mm
• Optional Controllers: IRC
(1) Chauvet DJ Gobo Zoom 2
(1) Power Cord
(1) Quick Reference Guide
