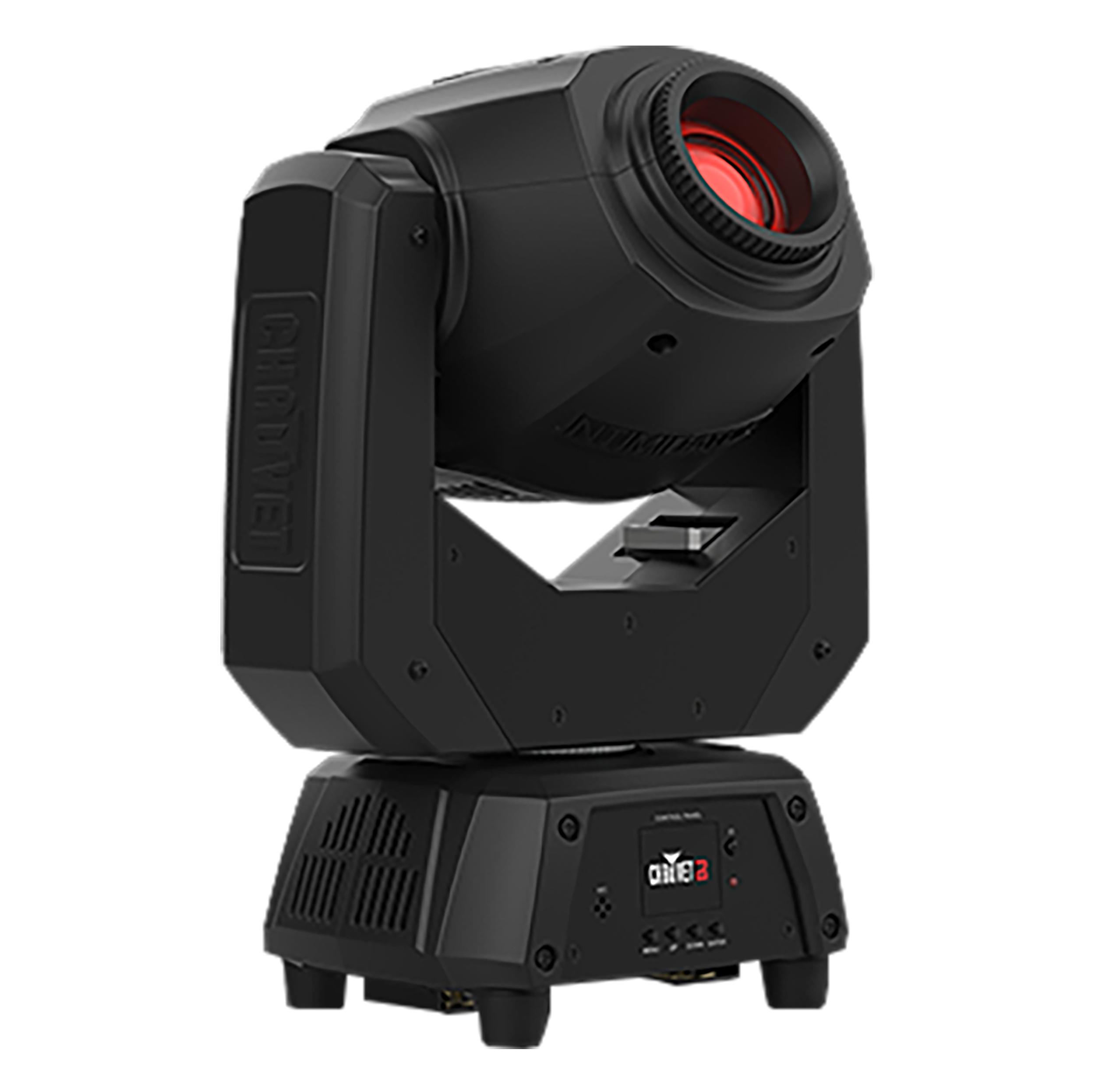

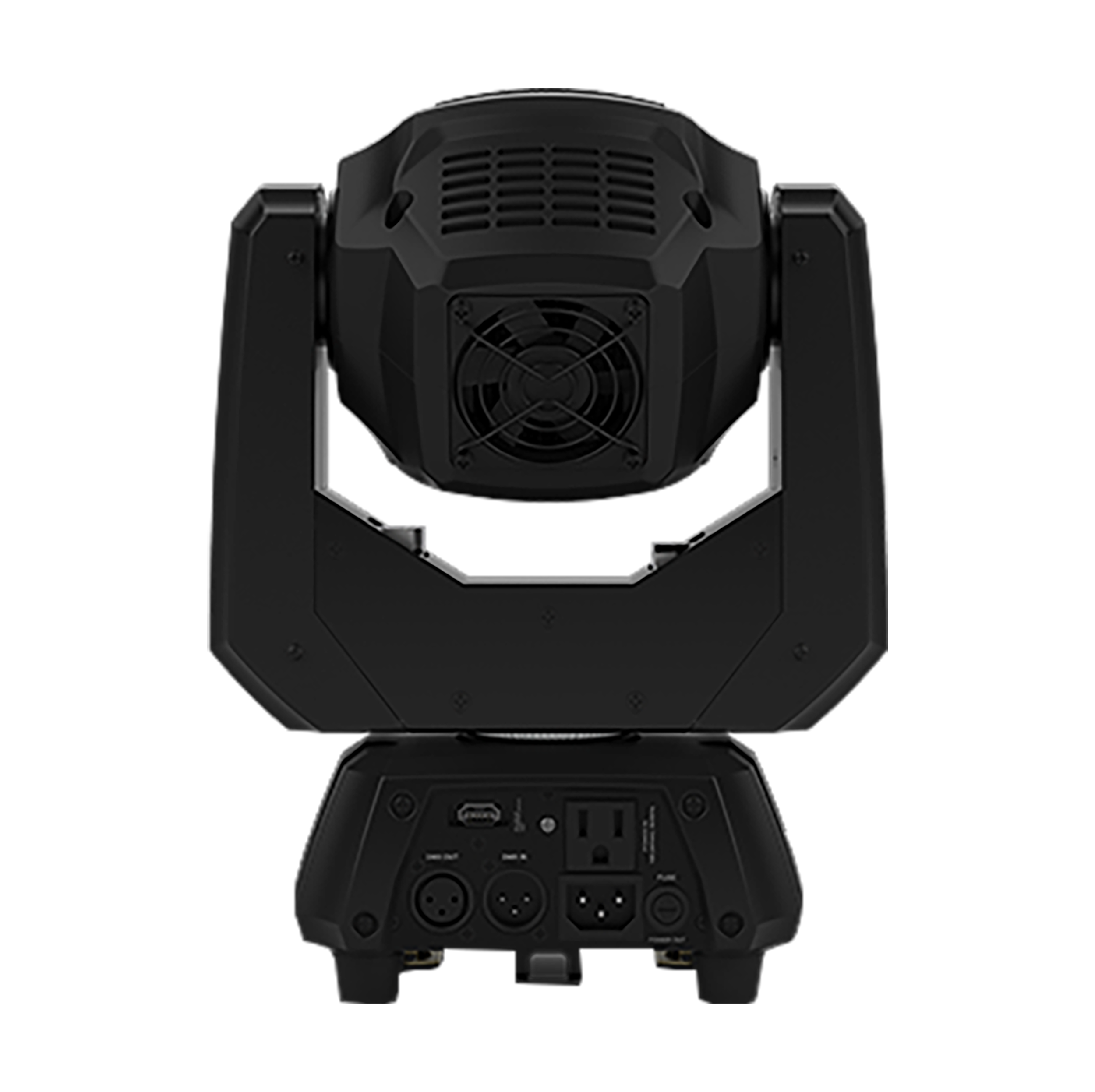

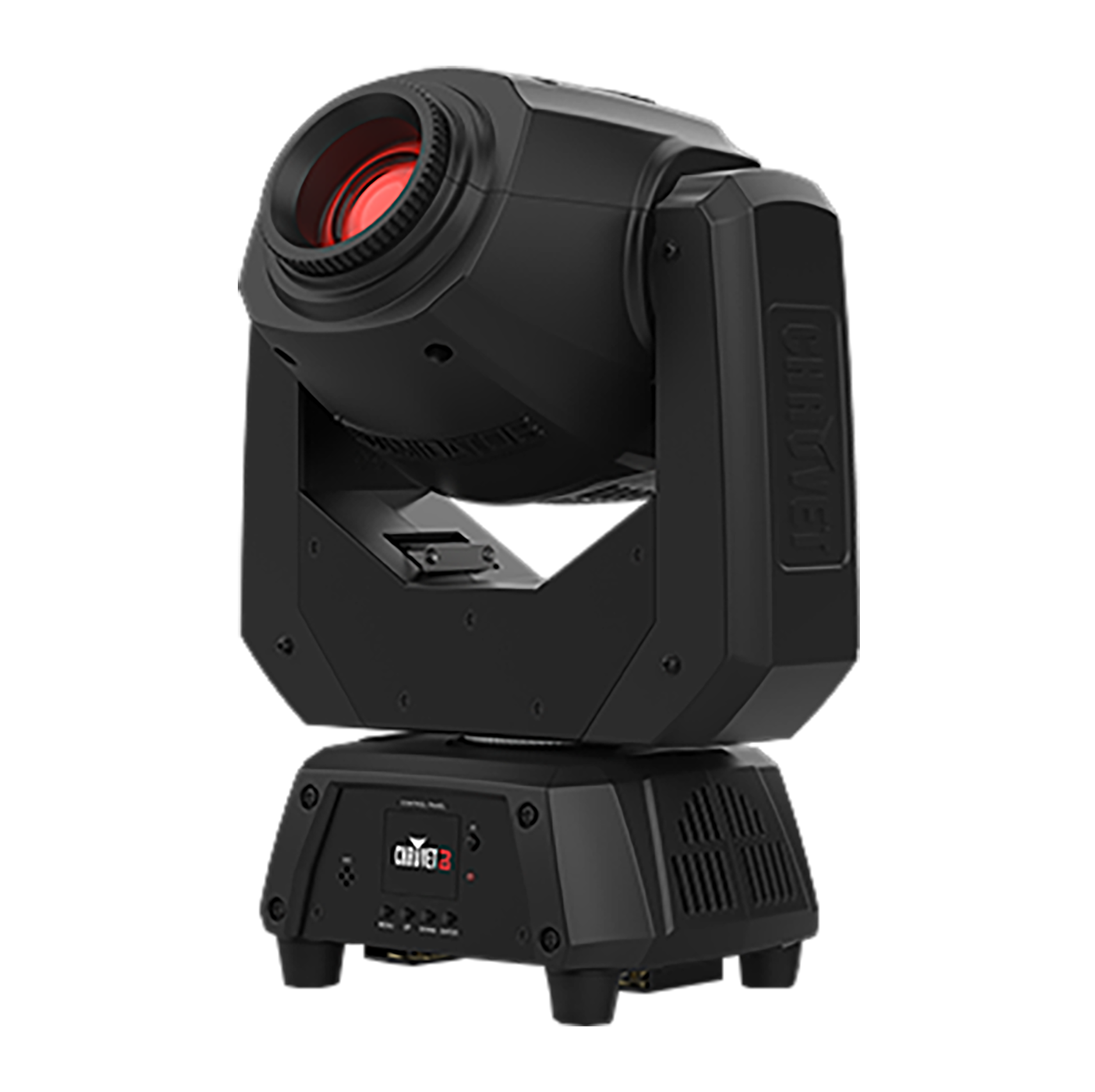

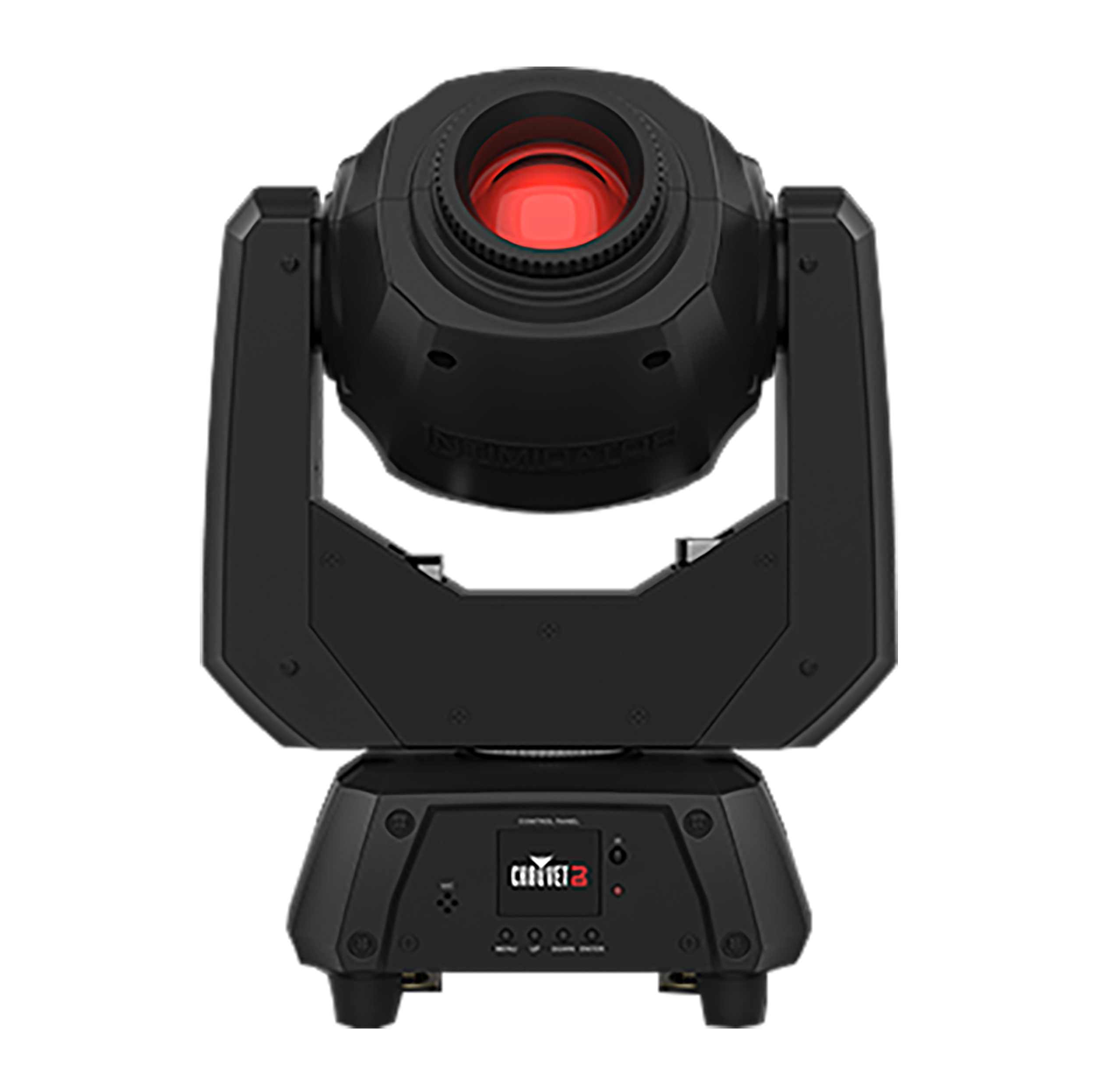

Intimidator Spot 60 ILS is a compact, punchy 70-watt moving head for on the go. This fixture is small, but mighty and is ideal for mobile entertainers. The Intimidator Spot 60 ILS is compatible with our ILS* ecosystem of products which means it’s easy to setup and sync to a wide range of fixture types and is D-Fi compatible for wireless control. The ideal counterpart to the Intimidator Free Spot 60 ILS, this fixture has the same impressive feature set including rotating gobos, a 3-facet prism, manual zoom, and automatic focus. As well as features like the new home position, the innovative Totem mode that keeps beams on the dance floor, and a ¼ turn hanging bracket that gets you in and out of your gigs in no time. Enjoy cutting edge ILS technology with the benefits of a compact fixture with the Intimidator Spot 60 ILS.
• Feature-packed moving head designed for mobile performances
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB® compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
• New home position allows for smoother programming
• ¼-turn hanging bracket allows for quick removal when needed
• Project crisp gobos from nearly any distance with the motorized focus
• Manual zoom for short or long throw applications
• 3-facet prism splits the beam and covers a larger area
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-color LCD display
• Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
• DMX Channels: 8, 10 or 14
• DMX Connectors: 3-Pin XLR
• Pan and Tilt: 540°/240°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 240° tilt
• Colors: 8 + open, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n lock, continuous scroll at variable speeds
• Light Source: 1 LED (cool white) 70 W, (3.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Zoom Angle (Manual): 15° to 17°
• Illuminance: (15°) : 10,012 lux @ 2 m, (17°) : 7,792 lux @ 2 m
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 107 W, 1.5 A @ 120 V, 60 Hz, 105 W, 1 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Weight: 11.2 lb (5.1 kg)
• Size: 9.9 x 7.8 x 13.8 in (251 x 199 x 351mm)
• Approvals: CE, RoHS, UKCA
• Prism: 3-facet round static
• Optional Controllers: IRC-6
• Color Temperature: 15,000 K
• Bracket Mounting Hole: 13 mm
(1) Chauvet DJ Intimidator Spot 60 ILS
(1) Power Cord
(1) Omega Bracket
(1) Quick Reference Guide
