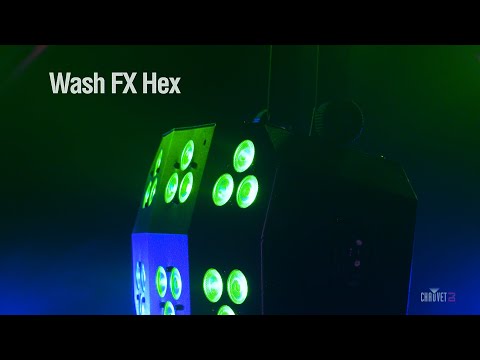

Brilliance, brightness and versatility are packed inside this powerhouse multi-purpose effect light that packs a punch with hex color (RGBAW+UV) LEDs. Wash FX Hex functions as a chase effect, blinder, or a wash light. 6 chasing zones mean Wash FX Hex can be used as a regular wash light or eye-candy effect and an advanced master/slave feature that allows you to mirror effects between units. Multiple control options include stand-alone mode, DMX, and IR as Wash FX Hex is compatible with an optional IRC-6 wireless remote for wireless triggering. Power linking saves time running cables.
Multi-purpose effect light functions as chase effect, blinder, or a wash light
Generate a broad spectrum of colors and achieve natural-looking color temperatures with Hex color LEDs
Advanced master/slave feature allows you to mirror effect between units
Use as a regular wash light or eye-candy effect with 6 chasing zones
Multiple control options include stand-alone, DMX, IR, or master/slave
Power linking saves time running cables
DMX Channels
3, 6, 11 or 40
DMX Connectors
3-pin XLR
Light Source
18 LEDs (hex-color RGBAW+UV) 8 W, 2.8 A, 50,000 hours life expectancy
Strobe Rate
0 to 24 Hz
Beam Angle
41°
Field Angle
68°
Illuminance
2,422 lux @ 2 m
Power Linking
3 units @ 120 V; 5 units @ 230 V
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current
200 W, 2.5 A @ 120 V, 60 Hz; 194 W, 1.5 A @ 230 V, 50 Hz
Weight
7.0 lbs (3.2 kg)
Size
11.2 x 6.3 x 13 in (285 x 160x 330 mm)
Wavelength
380 to 400 nm
(1) Chauvet DJ Wash FX Hex (1) Power Cable (1) Quick Reference Guide
