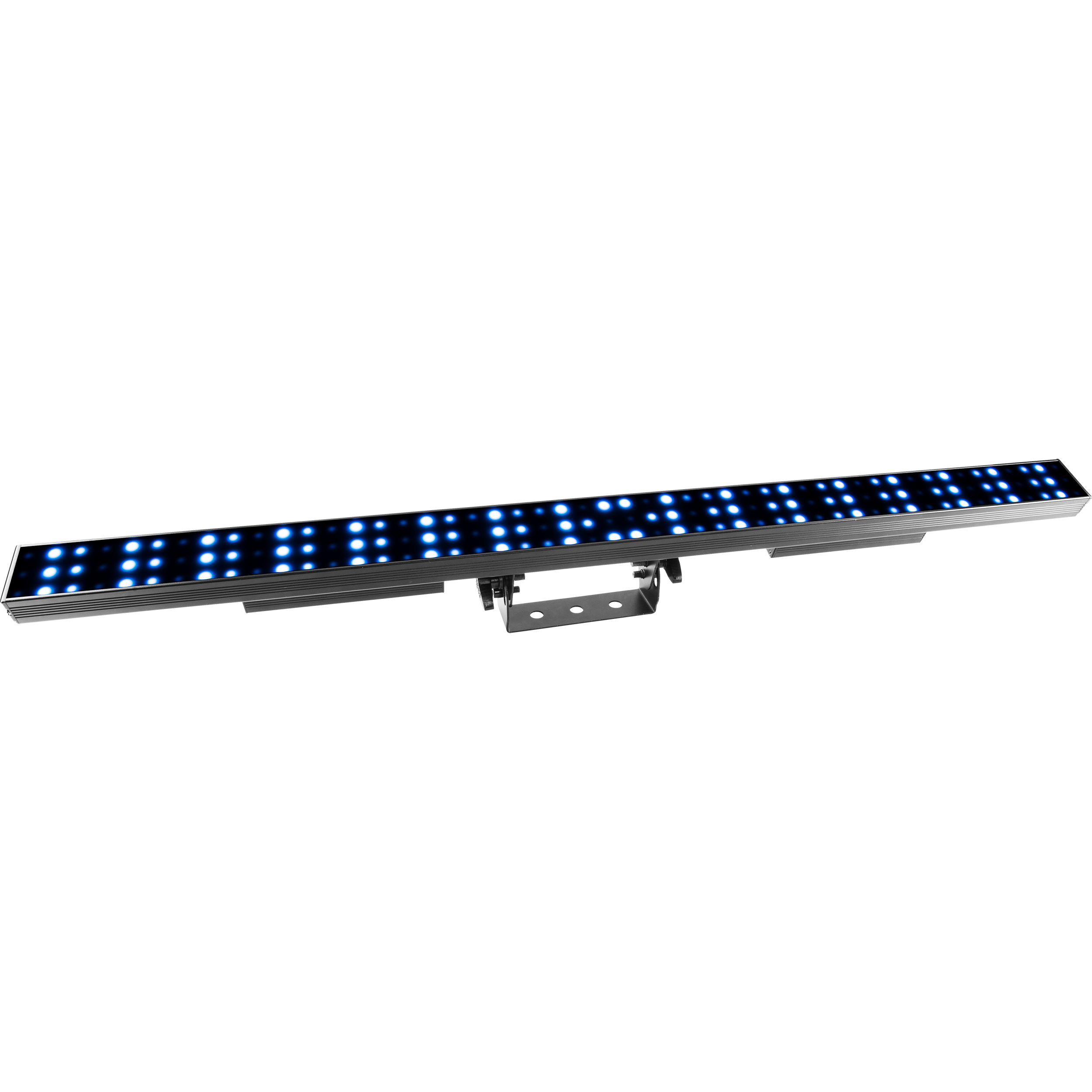

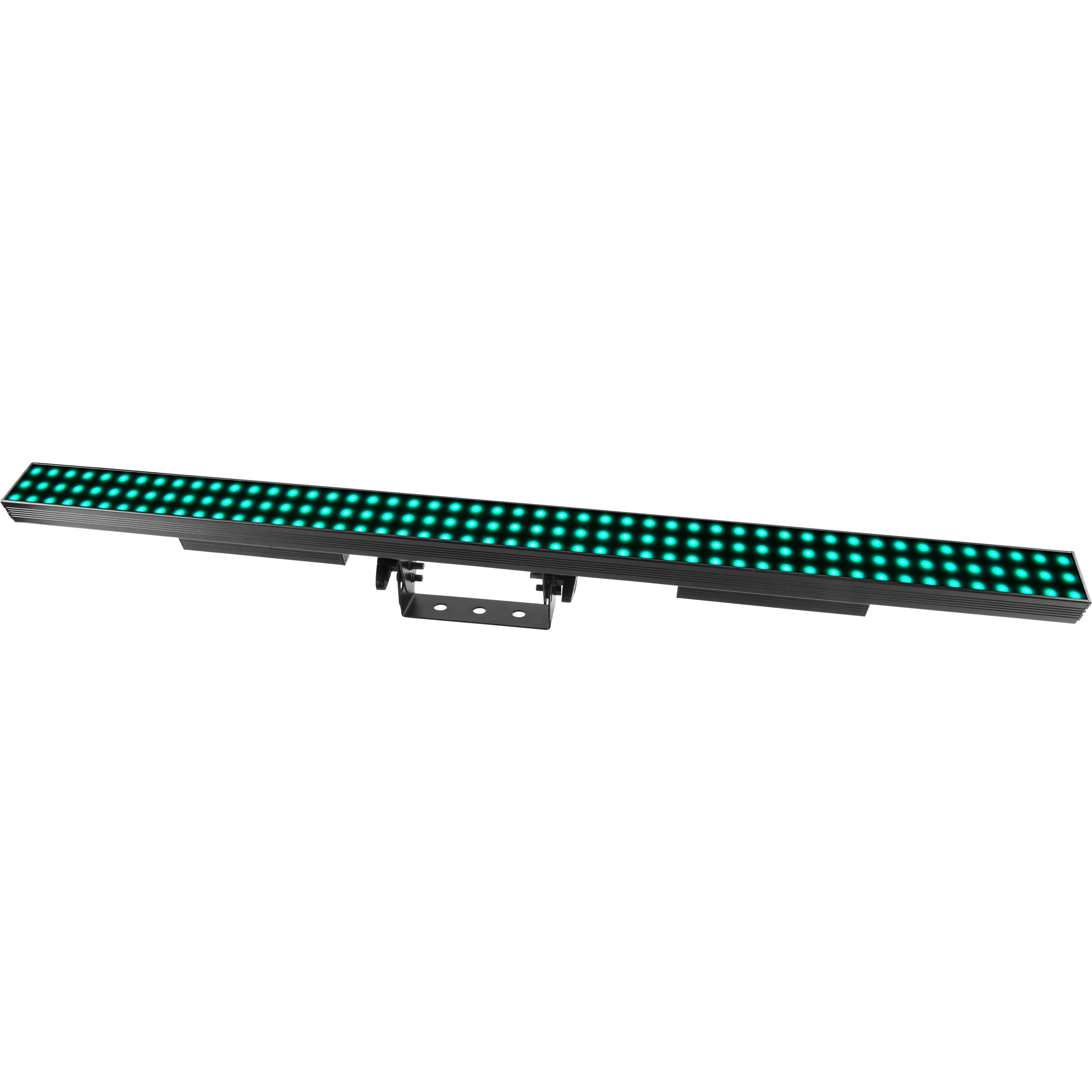

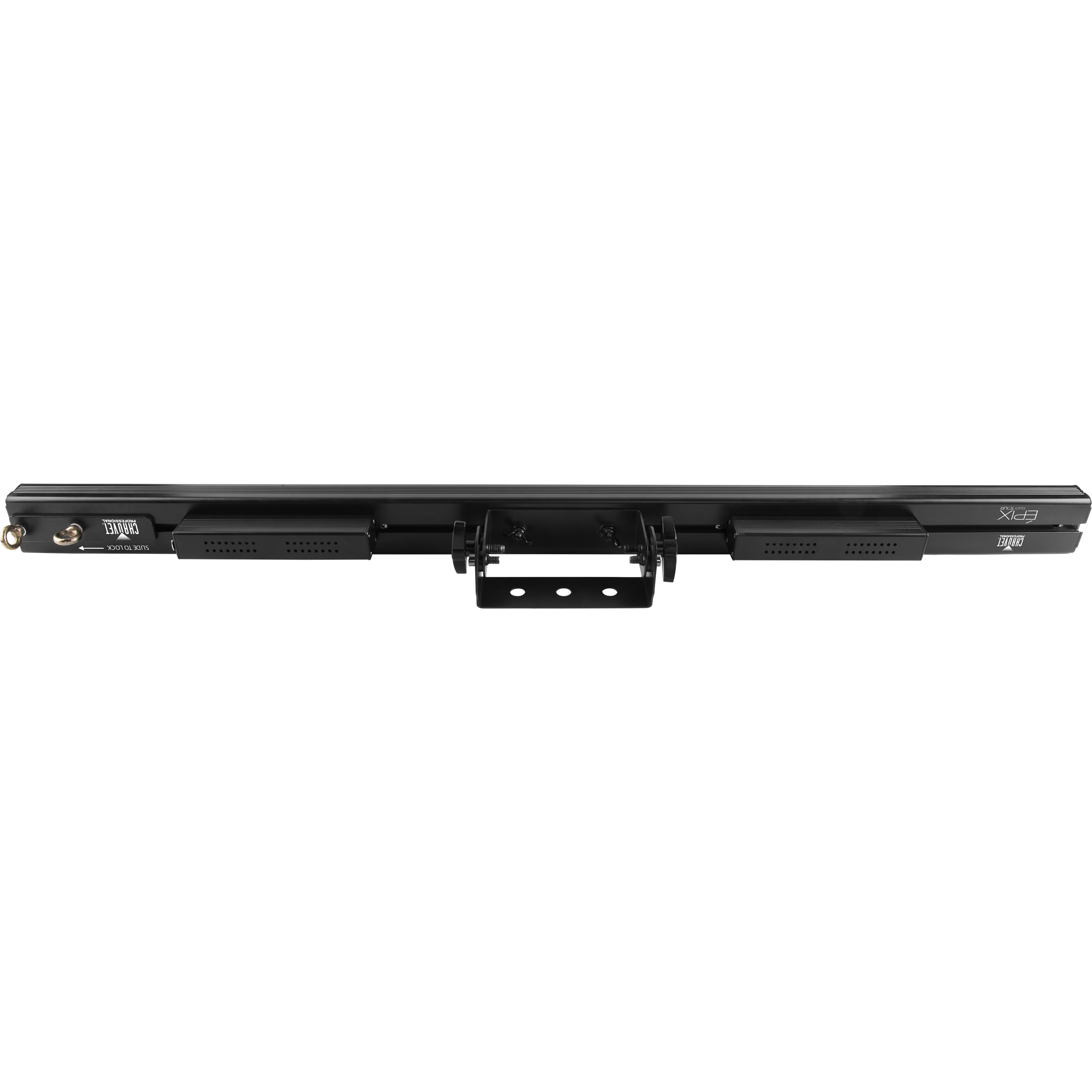

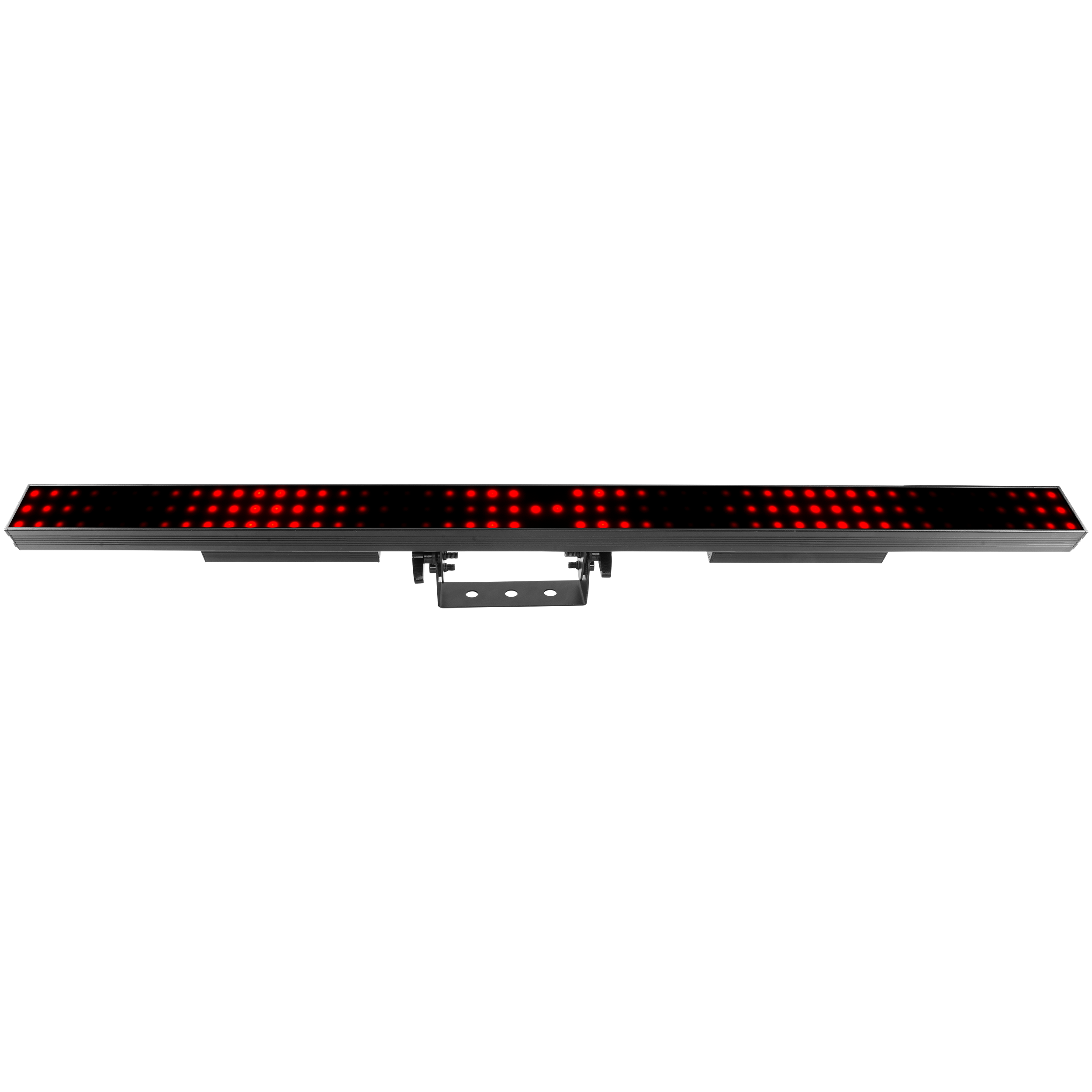

ÉPIX Bar Tour is a pixel-mapping 1-meter LED bar, featuring 150 LEDs in three rows and a 125° viewing angle. Use the ÉPIX Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).
FEATURES
-
• Pixel-mapping 1-meter 50 x 3 LED bar for showing video and/or motion graphics
• Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
• Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
• ÉPIX Drive 900 is required for operation
SPECIFICATIONS
-
• OPTICAL:
• Light Source: 150 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle: 125°
• Illuminance (white frost filter installed): 2,040 NITS
• Illuminance (black stealth filter installed): 601 NITS
• Pixels: 50 x 3
• Pixel Pitch: 20 mm
• Refresh Rate: 4,700 Hz (S-PWM)
• CONSTRUCTION / PHYSICAL:
• Dimensions: 39.37 x 4.72 x 2.36 in (1000 x 120 x 60 mm)
• Weight: 4.54 lb (2.06 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• CONNECTIONS:
• Data Connectors: 4-pin XLR
• Physical Linking: 6 inline ÉPIX Bar Tour
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• CONTROL:
• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 450
• ELECTRICAL:
• Power and Current: 50 W, 0.42 A @ 120 V, 60 Hz
• Power and Current: 50 W, 0.24 A @ 208 V, 60 Hz
• Power and Current: 50 W, 0.21 A @ 230 V, 50 Hz
• CABLE:
• Cable 1: 4PXLREXT16IN
• Cable 2: 4PXLREXT5FT
• Cable 3: 4PXLREXT50FT
• CERTIFICATION/QUALIFICATIONS:
• Certifications / Qualifications: CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
CONTENTS
-
• (1) Chauvet Professional ÉPIX Bar Tour
• (1) White Frost Filter
