Product SKU
    34937

Chauvet Maverick MK Pyxis

$1,725.00

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

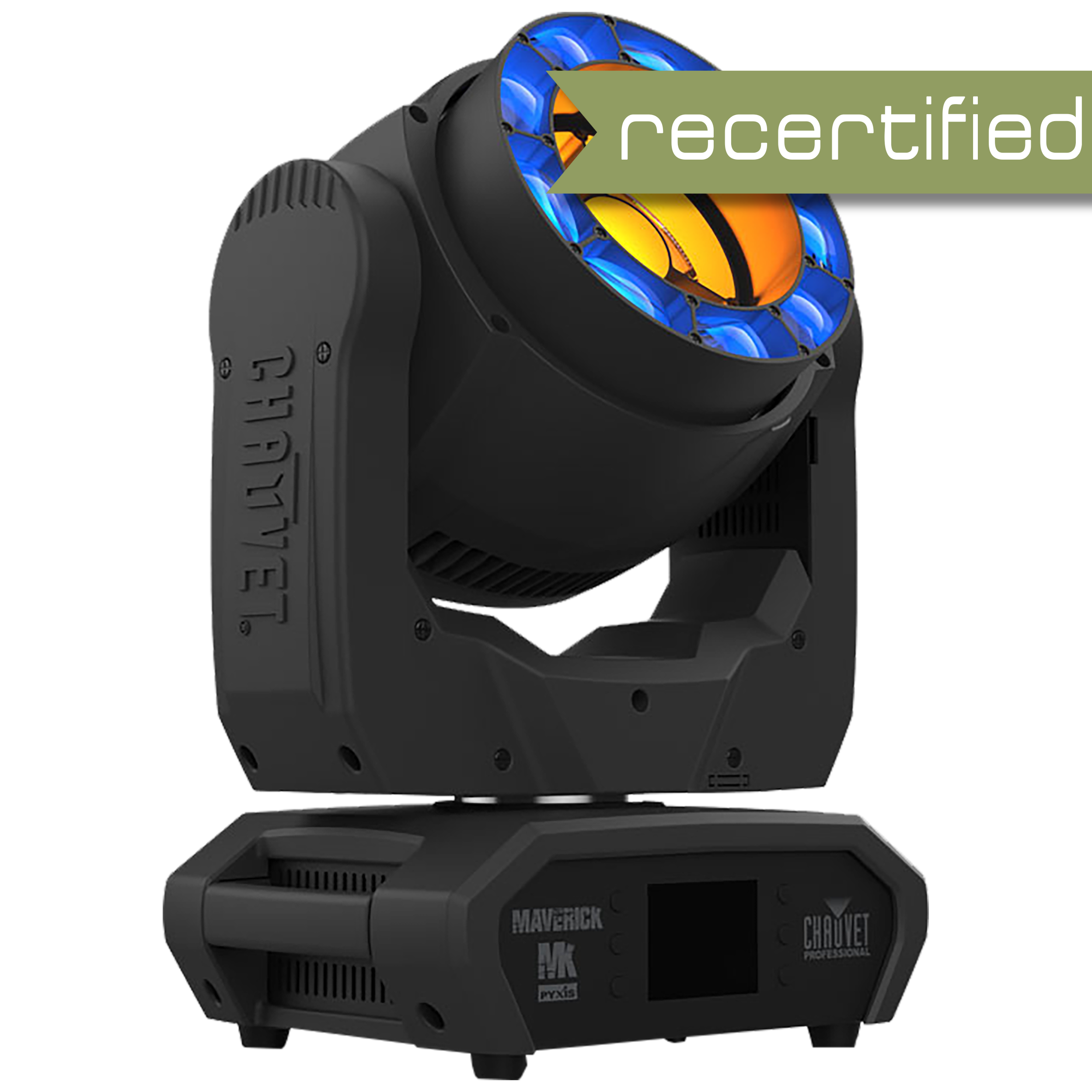

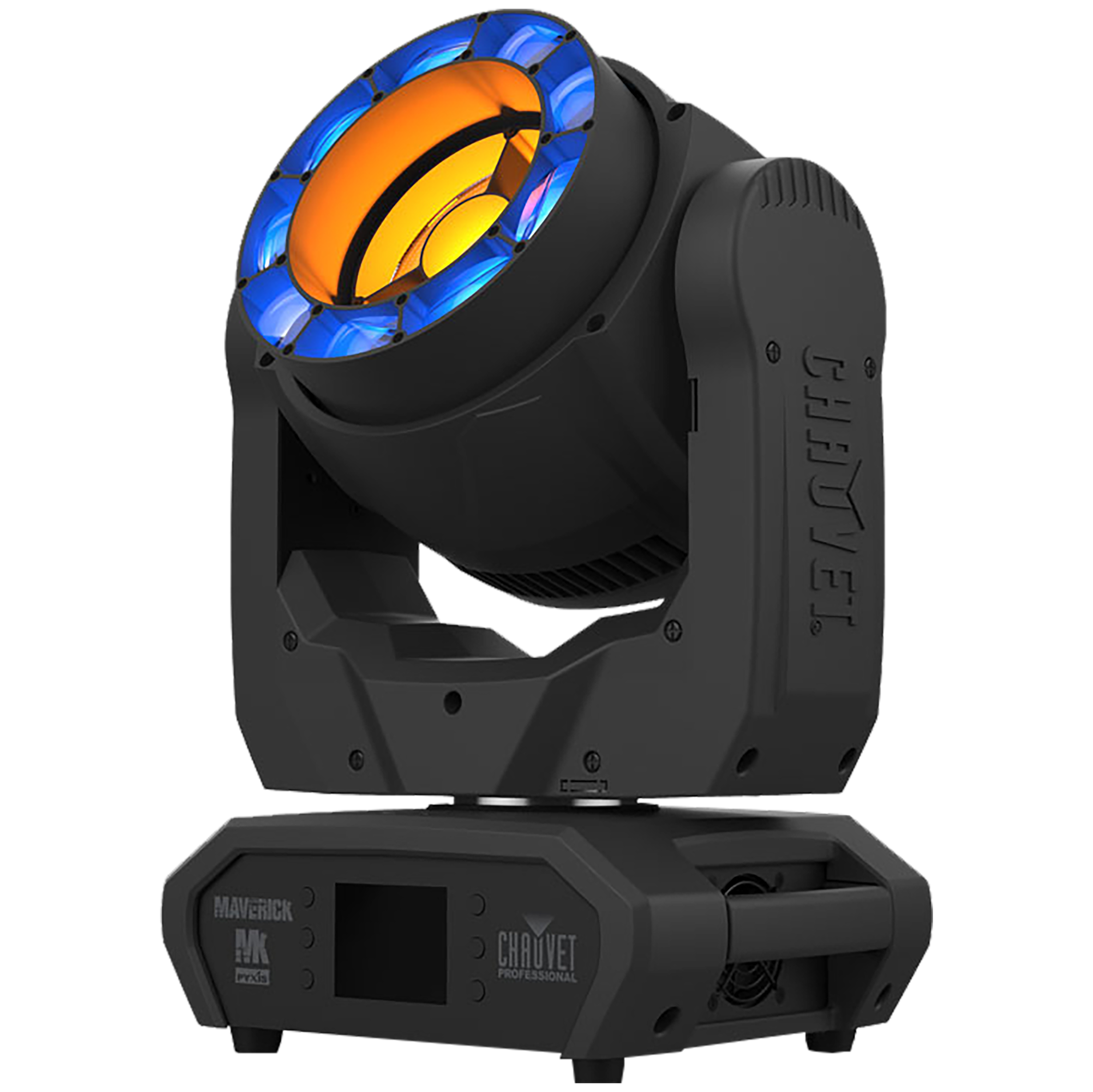

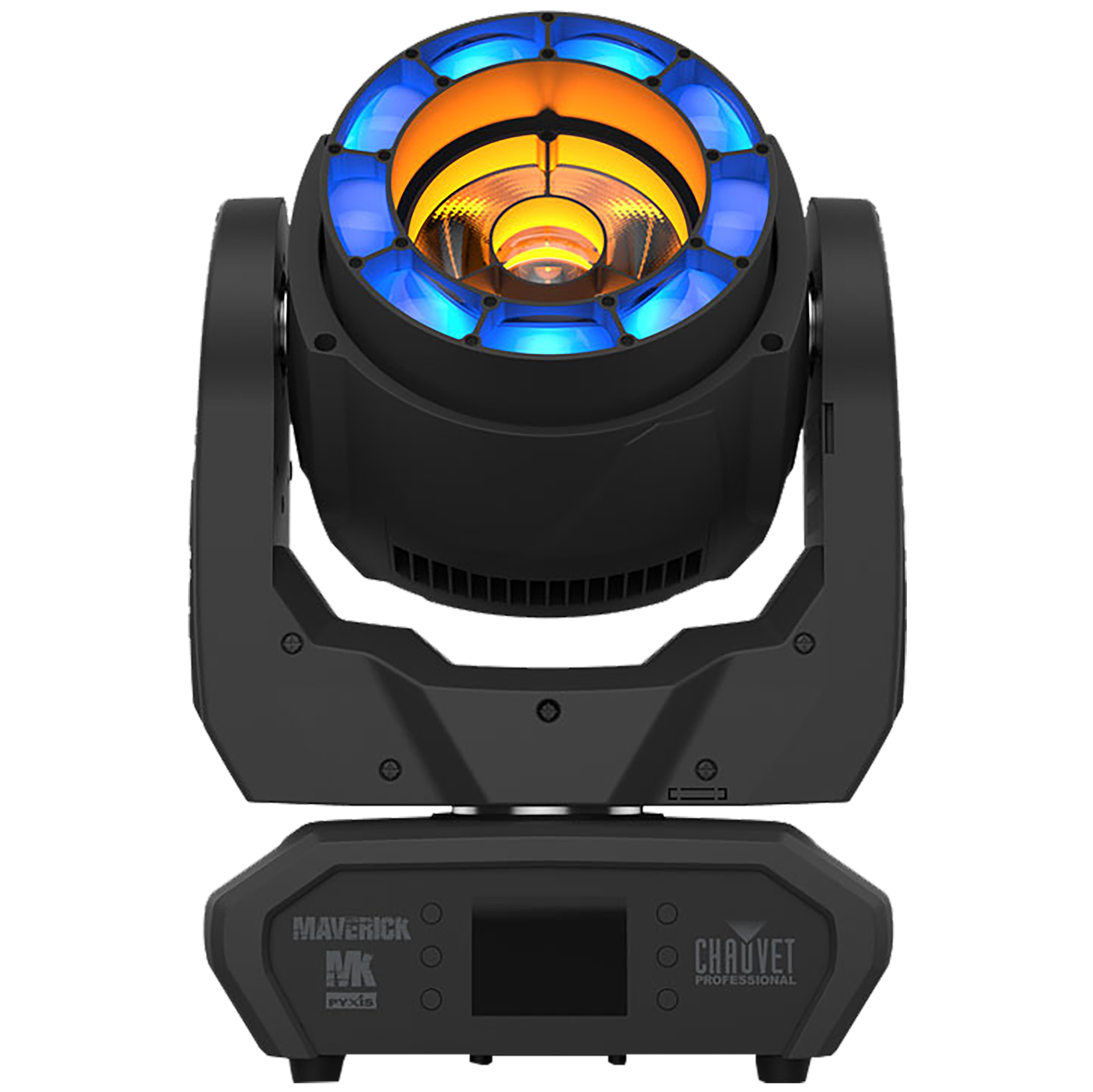

Maverick MK Pyxis empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement, and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built-in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.

FEATURES
    • A full featured RGBW LED wash and beam fixture with 360° continuous pan and tilt movement
    • A (9) 15 W RGBW LED outer ring of LEDs with a 4.9°— 58.4° zoom range and pixel control for wash and narrow effects
    • A single 60 W RGBW LED center pixel with a fixed 3° beam angle for dedicated beam color effects
    • Virtual Color wheel with instantaneous access to 21 colors
    • Built in color effects for quick design possibilities
    • Built in virtual gobo wheel with background colors for impressive atmospheric effects
    • Quiet operation for a wide range of installation situations
    • DMX, W-DMX, S ACN, Art-Net, and Kling-Net control for full flexibility
    • RDM enabled for remote addressing and trouble shooting
    • Converts TCP/IP to DMX for shorter data cable runs
    • 2.8°— 58.4° zoom range for variable beam sizes
    • True 1 compatible power input
    • Battery backup touchscreen display with auto rotate depending on fixture orientation
    • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
SPECIFICATIONS
    • Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
    • Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
    • Color Temperature (Range): 2,800 to 10,000 K
    • Beam Angle (Center Pixel and Outer Ring): 2.8°
    • Beam Angle (Center Pixel): 2.7°
    • Beam Angle (Outer Ring): 4.9° to 32°
    • Field Angle (Center Pixel and Outer Ring): 6.7°
    • Field Angle (Center Pixel): 4.5°
    • Field Angle (Outer Ring): 7.9° to 47.8°
    • Cutoff Angle: 8.3° to 58.4°
    • Zoom Range: 4.9° to 58.4°
    • Lumens – Source (Center Pixel): 1,700 (outer ring) 4,300
    • Lumens – Output (Center Pixel): 1,100 (outer ring) 2,400
    • Illuminance (Center Pixel / Outer Ring): 11,267 lux @ 5 m
    • Illuminance (Center Pixel): 19,306 lux @ 5 m
    • Illuminance (Outer Ring): (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt
    • Color Temperature Presets: Yes
    • Move-in-Black: Yes
    • Dim Modes: 2
    • Dim Curves: 4
    • Power Connection: Edison plug to Seetronic Powerkon IP65
    • Power Input/Output: Seetronic Powerkon IP65

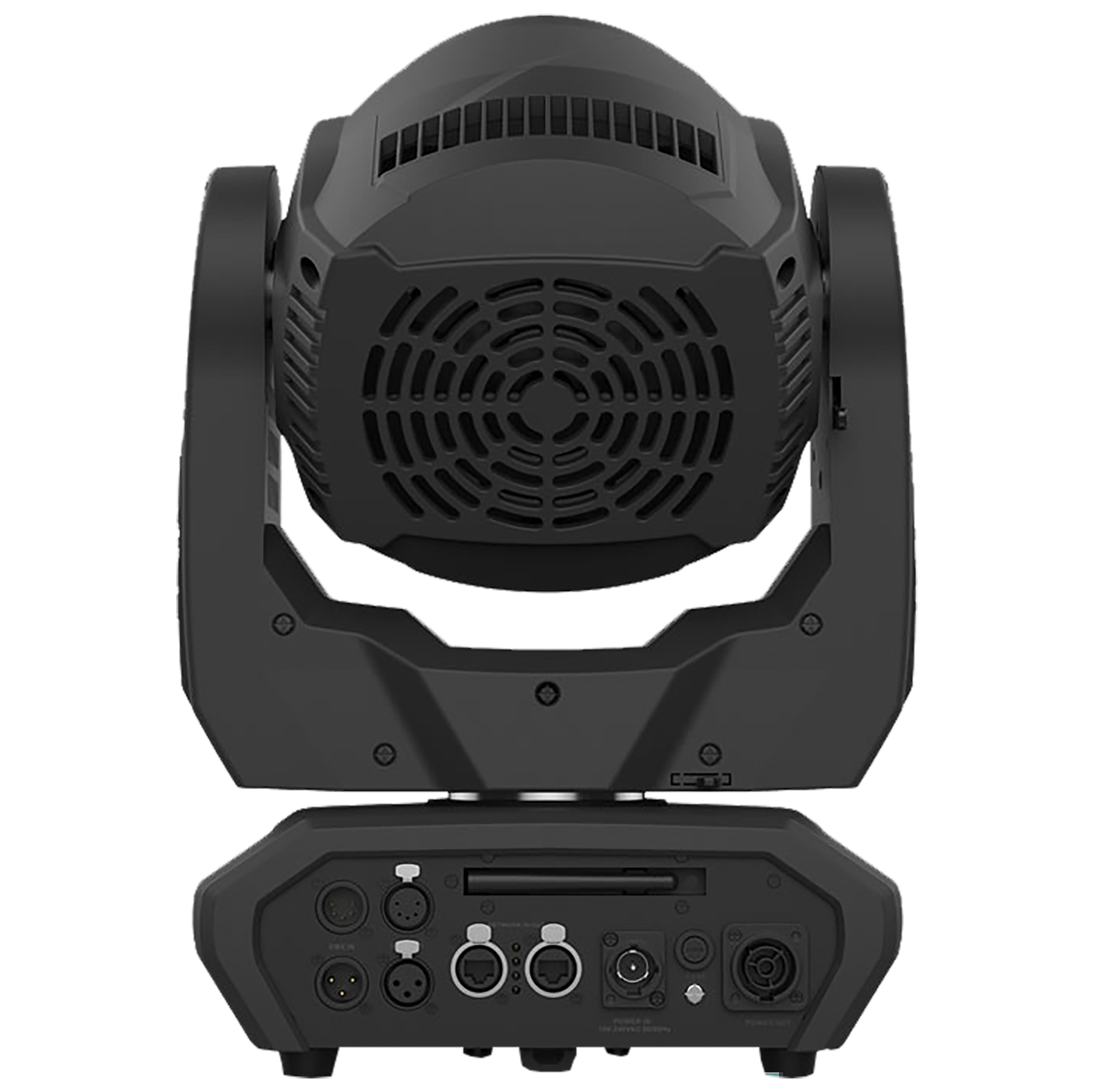

    • Data Connectors: 3- and 5-pin XLR, , Amphenol XLR Net RJ45 Connectors in/out
    • Cable Length (Power): 5 ft (1.5 m)
    • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
    • DMX Channels Single Mode: 26,66,113,131
    • DMX Channels Dual Mode – Function: 13,26,33
    • DMX Channels Dual Mode – Pixel: 30,40,80
    • Art-Net Channels Single Mode: 26,66,113,131
    • Art-Net Channels Dual Mode – Function: 13,26,33
    • Art-Net Channels Dual Mode – Pixel: 30,40,80
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 4 units @ 120 V;7 units @ 208 V; 8 units @ 230 V
    • Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz
    • Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz
    • Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz
    • Certification/Qualifications: CE and IP Rating: IP20, dry location
CONTENTS
    (1) Chauvet Maverick MK Pyxis
    (1) Seetronic Powerkon IP65 Power Cord
    (1) Omega Bracket with Mounting Hardware
