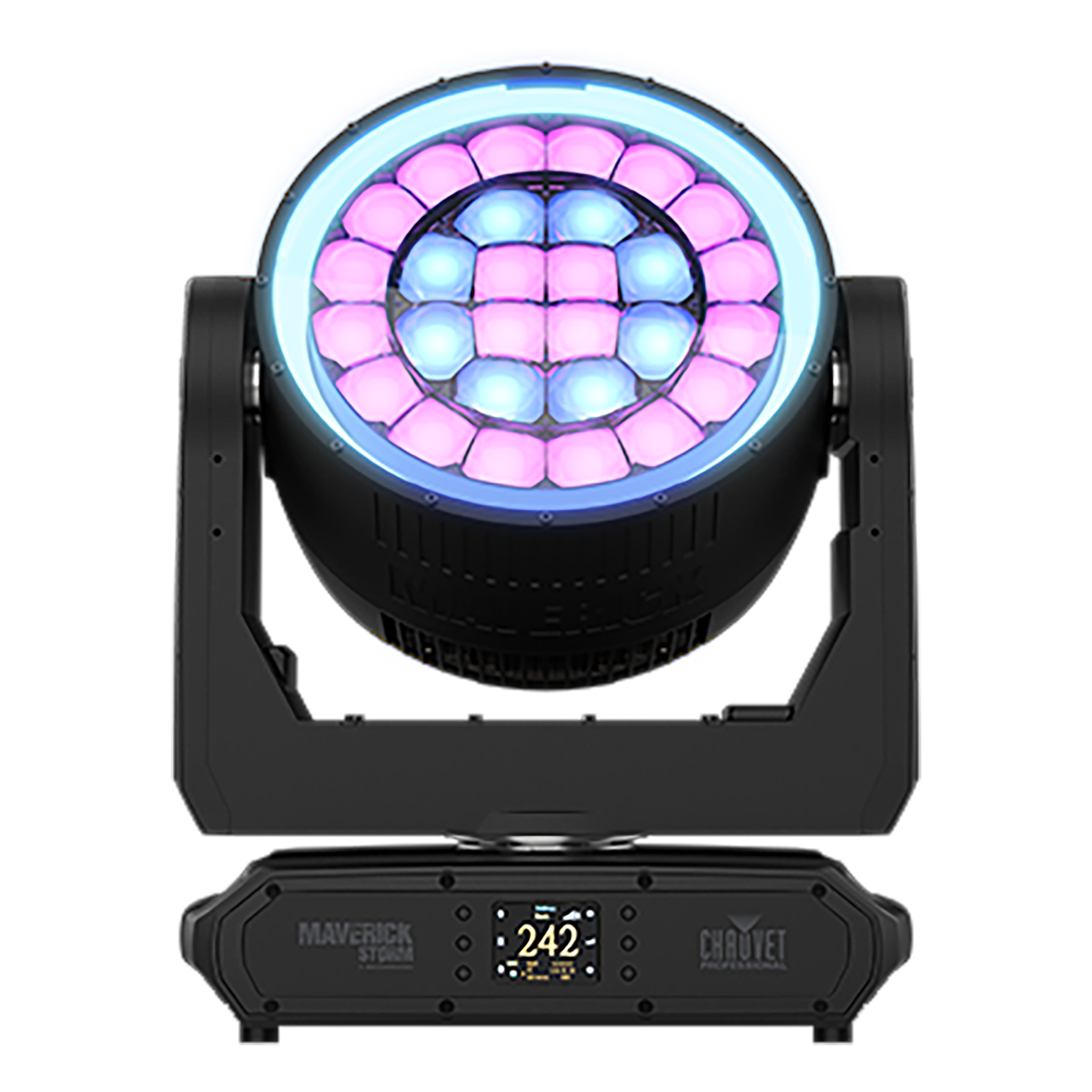

Maverick Storm 3 BeamWash features a 12-zone pixel-mappable RGB LED outer ring for even more stunning eye candy effects when you need them and a stealth filter for when you don’t. Its 16-lens outer zone and 12-lens inner zone deliver massive lumen output from 28x45W RGBW LEDs and provide two zones of independent zoom control to create beam and wash combinations from a single fixture. Built-in macros with foreground and background control easily generate complex pixel eye candy. A unique lens design delivers excellent color blending, tight aerial beam effects and visual impact live or on camera. Dual mode operation enables pixel-mapped eye candy to run under ArtNet/sACN control with separate assignment of motorized functions to DMX. Housed in an advanced IP65-rated alloy body, Maverick Storm 3 BeamWash is built with the durability and versatility to perform in any venue, indoors or out.
• Full-featured, compact IP65 BeamWash with (28) 45w RGBW LEDs that zoom down to 3.9 degrees to produce powerful, tight aerial beams and out to 53.8 degrees for wide washes and individual pixel control for stunning eye candy effects with two independent zones of zoom control along with a (256) LED ring with 12 zones of control for even more eye candy effects
• 3.9° to 53.8° zoom range in both zoom zones
• 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities
• Incredibly bright! Over 18,500 lumens!
• Fully pixel mappable LEDs
• User selectable full output 7500 K calibrated white
• Selectable PWM settings for camera operation
• 6 distinct dimming modes for advanced control
• Simple and complex DMX channel profiles for programming versatility including dual mode operation.
• 5-pin DMX and EtherCON input/output connections
• RDM Enabled for remote addressing & troubleshooting
• Easy to read OLED display with simple, effective menu options
• USB-C port for convenient software uploads
• Easily accessible web server for testing and setting fixture functions
• Removable handles on the arms make moving the fixture easy.
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost
OPTICAL
Light Source: 28 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy
Light Source: 256 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy
Color Temperature (Range): 2700 to 8000 K
Beam Angle: 3.9° to 36.4°
Field Angle: 6.7° to 48.7°
Cutoff Angle: 7.9° to 53.8°
Zoom Range: 3.9° to 53.8°
Lumens – Source: 25,800
Lumens – Output: 18,594
Illuminance (3.3°): 61,338 lux @ 5 m
Illuminance (53.8°): 2211 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/260°
Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: No
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Curves: 4
CONSTRUCTION / PHYSICAL
Dimensions: 18.98 x 11.93 x 23.74 in (482 x 303 x 603 mm)
Weight: 82.45 lb (37.4 kg)
Exterior Color: Black
Housing Material: Aluminum diecast, High-impact flame-retardant polymer, steel
CONNECTIONS
Power Connection: Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, sACN, Kling-Net, RDM, DMX, WDMX
DMX Channels (Single Mode): 20ch, 32ch,38ch, 180ch, 336ch,416ch, 424ch
DMX Channels (Dual Mode) (Pixel): 120ch, 148ch, 296ch
Art-Net/sACN Channels (Single Mode): 20ch, 32ch,38ch, 180ch, 336ch,416ch, 424ch
Art-Net/sACN/Kling-Net Channels (Dual Mode) (Pixel): 120ch, 148ch, 296ch
Modes/Personalities: 13 personalities (20ch, 32ch,38ch, 180ch, 336ch,416ch, 424ch, 12ch, 35ch, 46ch, 120ch, 148ch, 296ch
(1) Chauvet Maverick Storm 3 BeamWash
(1) Seetronic Powerkon IP65 Power Cord to Bare Wire
(2) 140 D Omega Brackets with Mounting Hardware
