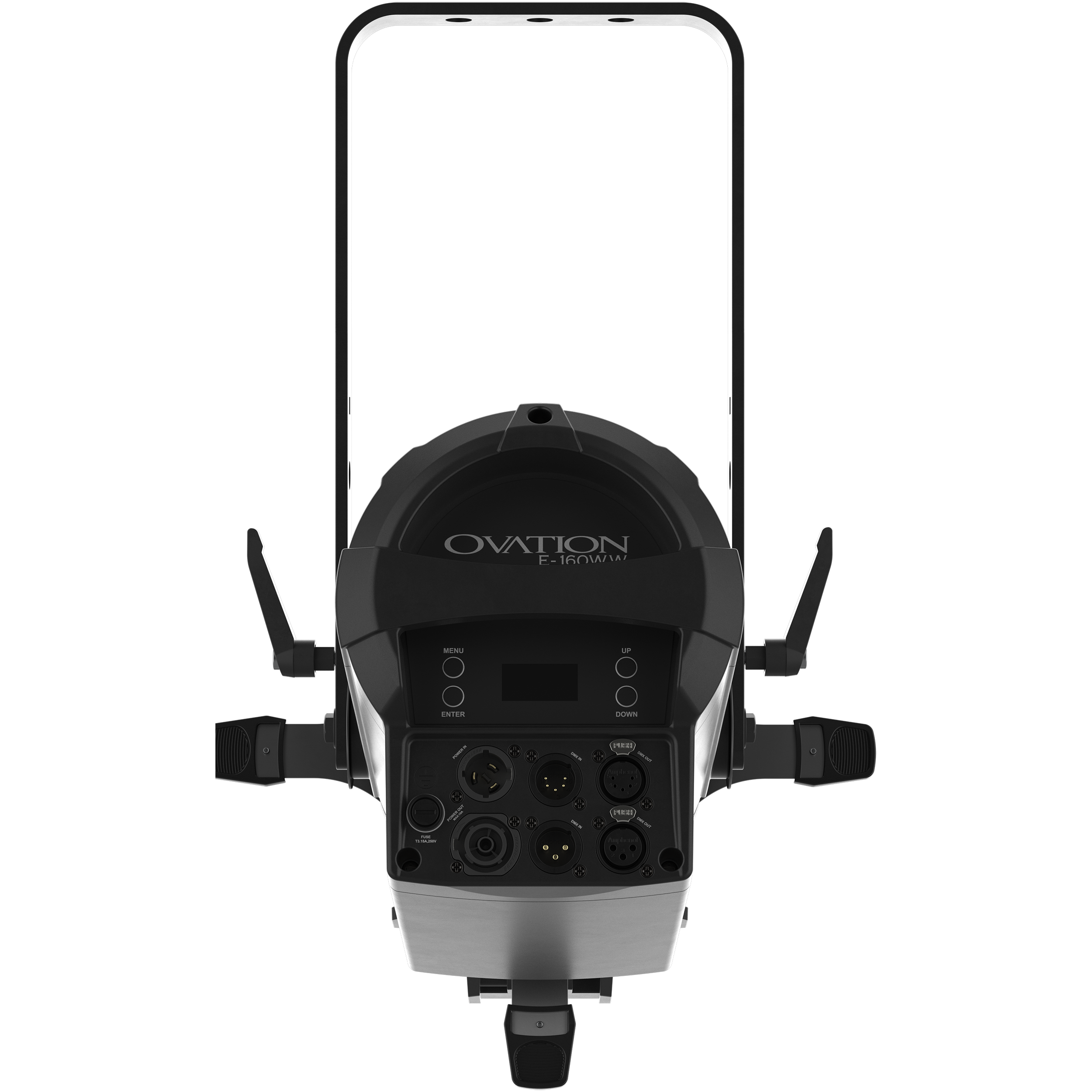

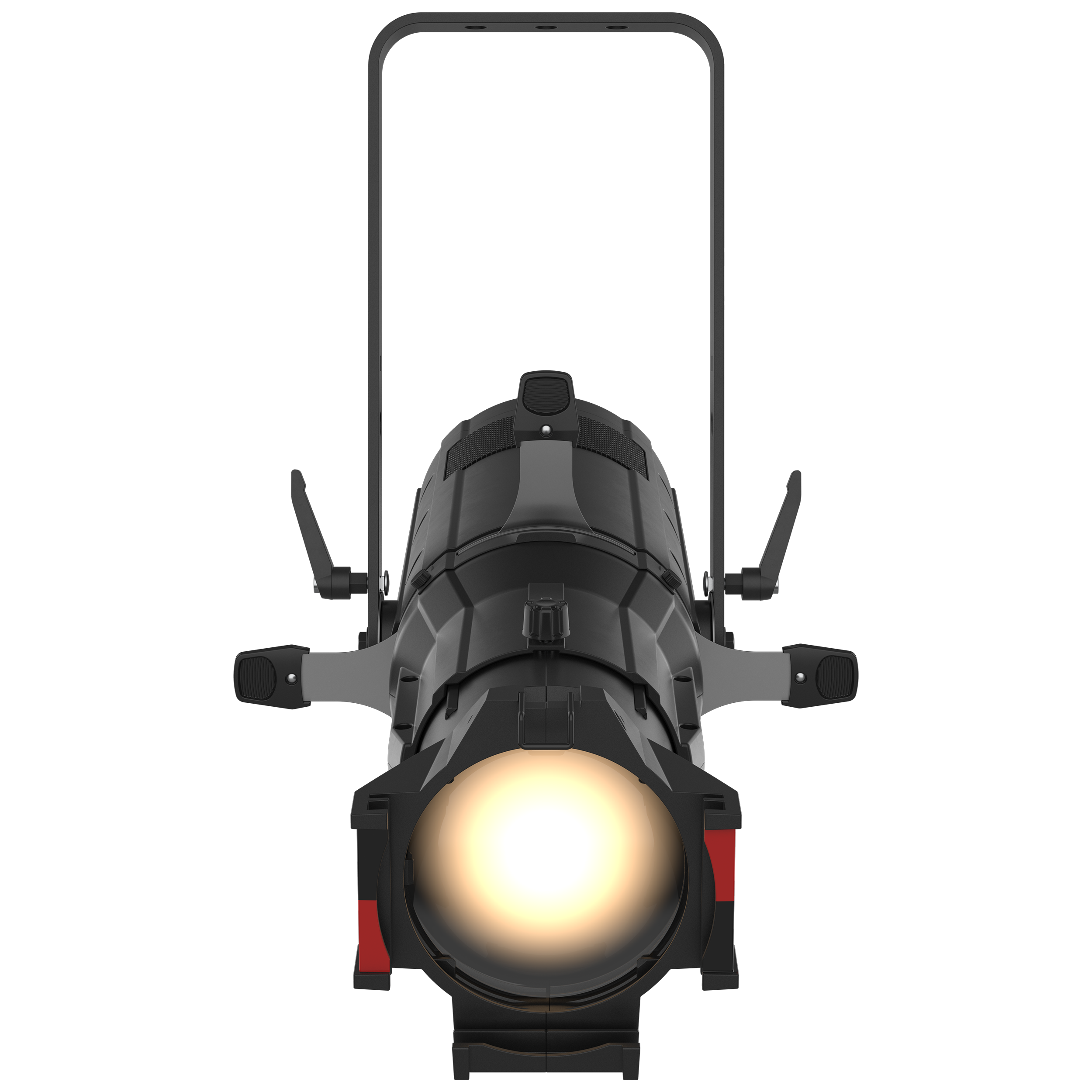

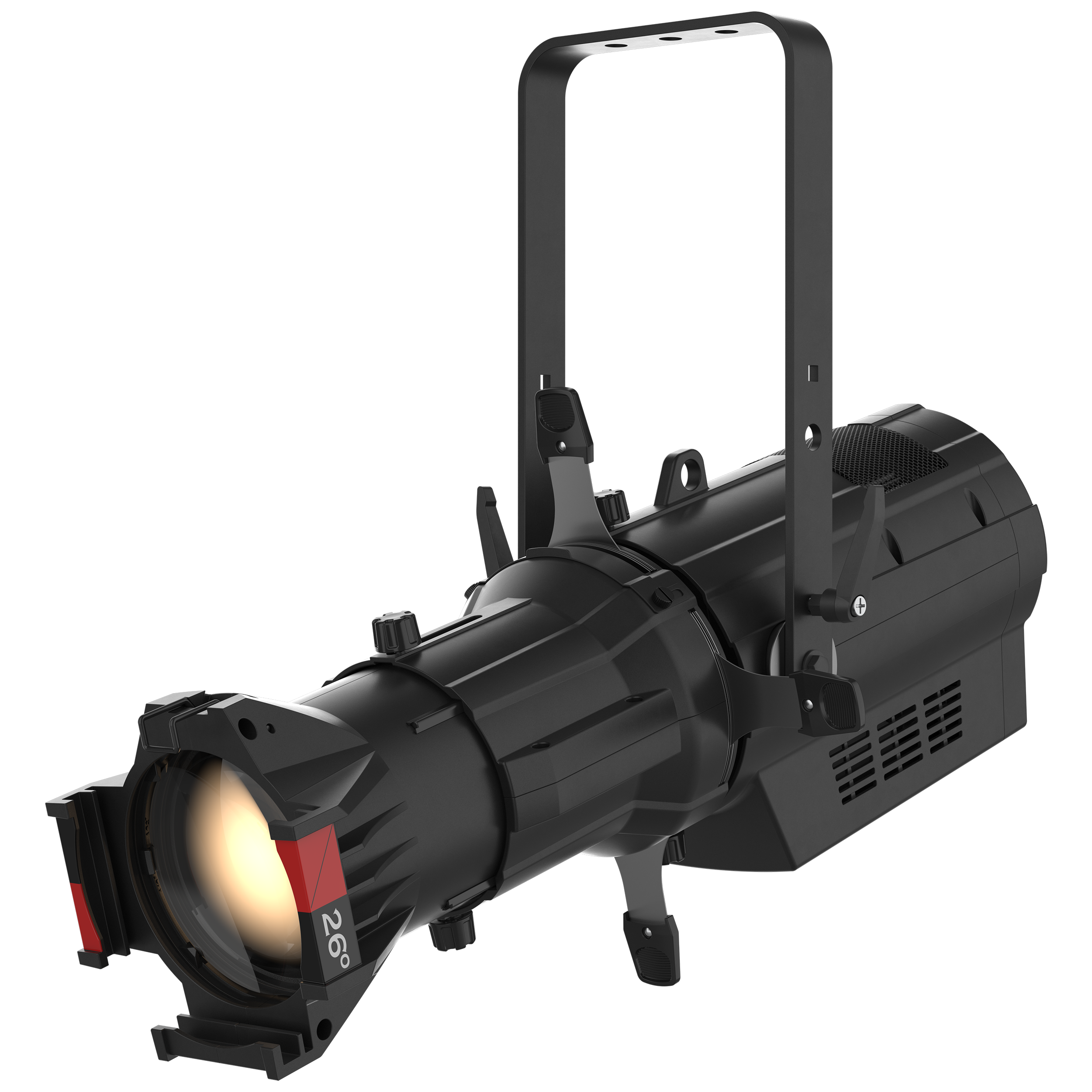

Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws only 100 W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.
• Warm white ERS style fixture with output similar to a tungsten 575 W source
• Draws less than 100 W of power, a true electrical bill reducing fixture
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theater applications
• OPTICAL:
• Light Source: 1 LED (WW) 86 W, (2.3 A), 3031 K, 50,000 hours life expectancy
• Color Temperature (At Full): 3031 K
• CRI: 90
• Dimming Modes: 4
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• DYNAMIC EFFECTS:
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 29 Hz
• Color Temperature Presets: Yes
• Dim Curve: 4
• Dim Modes: 4
• CONSTRUCTION / PHYSICAL:
• Dimensions (Fixture Only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Weight (Fixture Only): 14.2 lb (6.4 kg)
• Exterior Color: Black
• Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
• CONNECTIONS:
• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)
• CONTROL:
• Control Protocol: DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)
• ELECTRICAL:
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 23 units @ 208 V; 25 units @230V; 26 units @ 240 V
• Power and Current: 101 W, 0.86 A @ 120 V, 60 Hz
• Power and Current: 100 W, 0.51 A @ 208 V, 60 Hz
• Power and Current: 99 W, 0.47 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• (1) Chauvet Professional Ovation E-160WW
• (1) Seetronic Powerkon IP65 Power Cord
