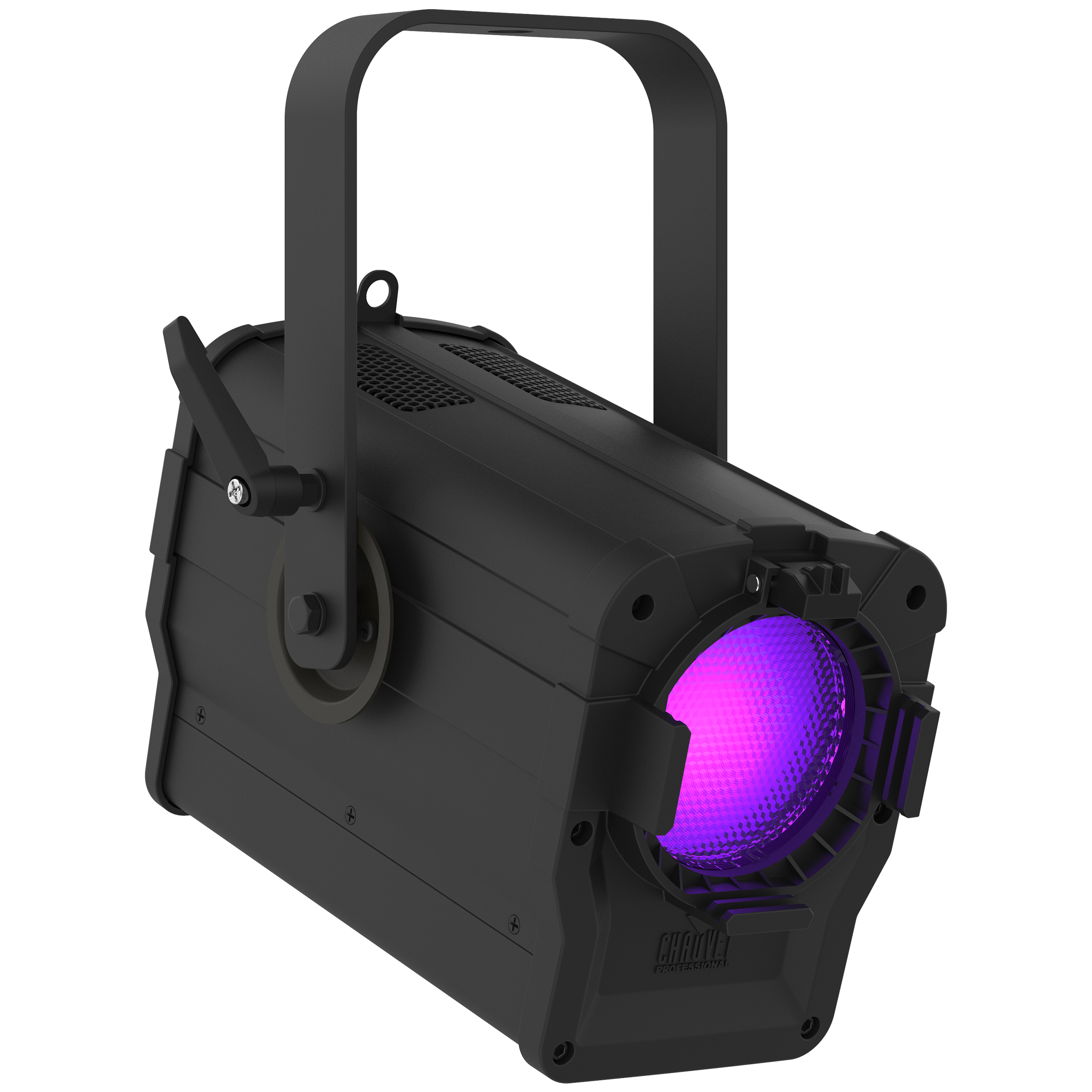

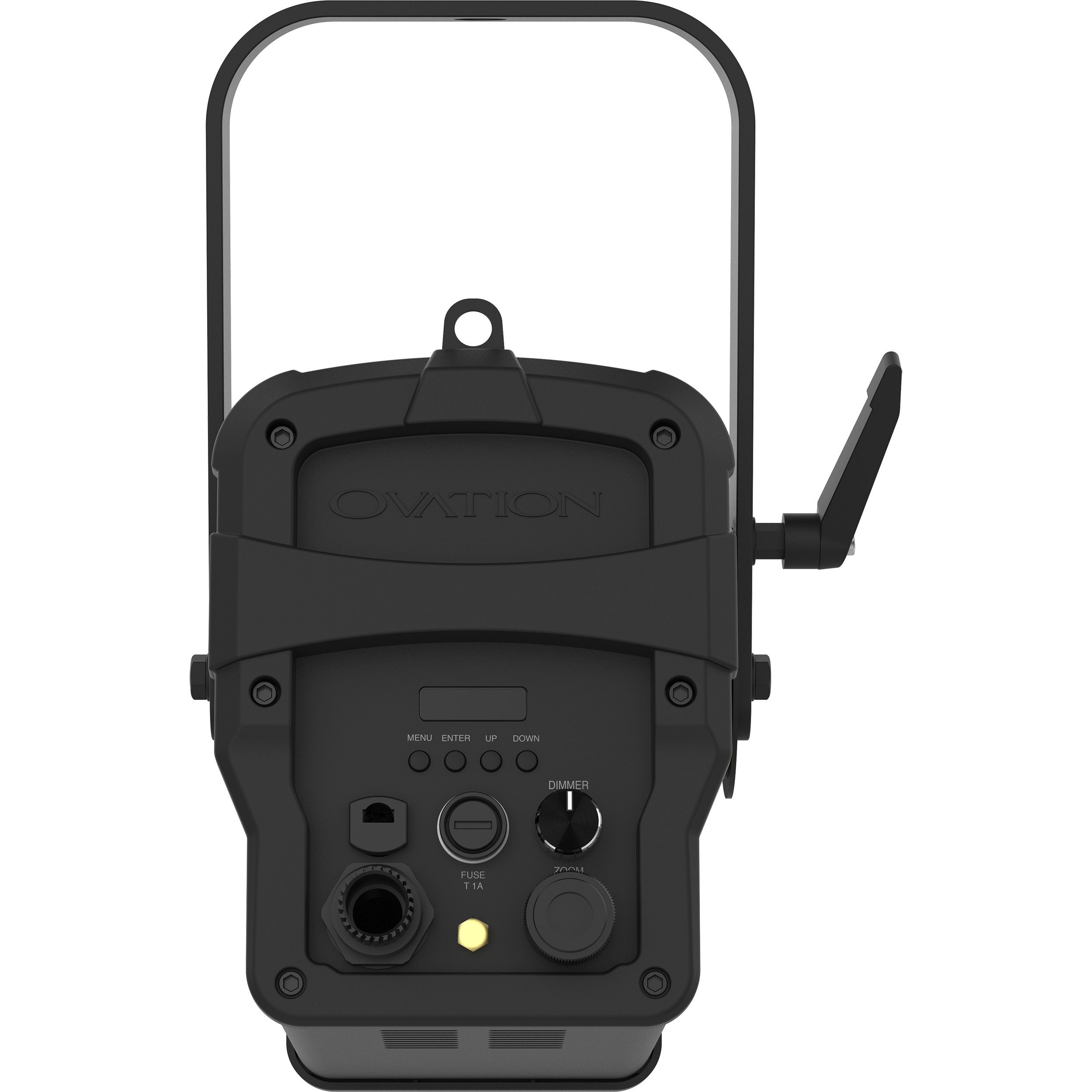

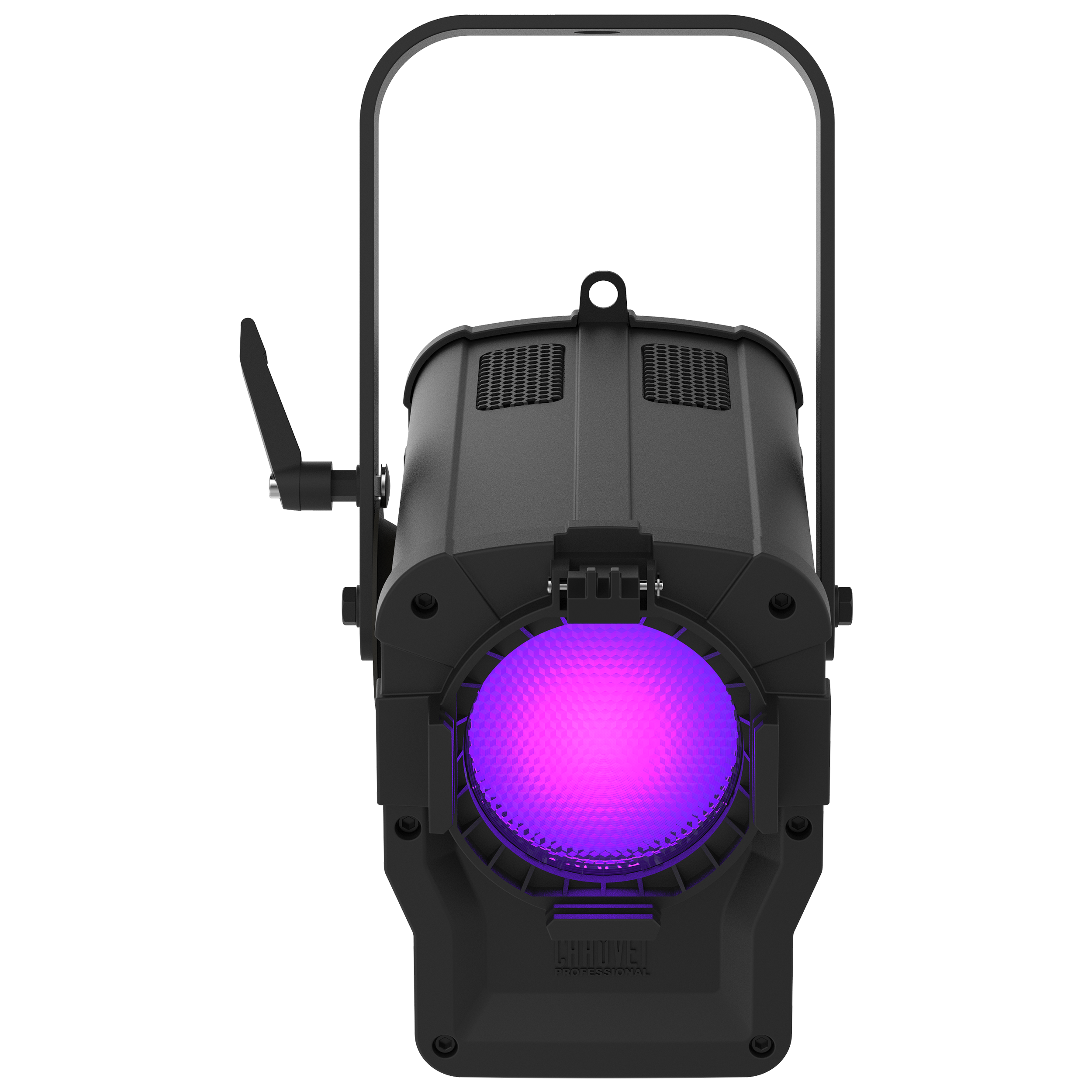

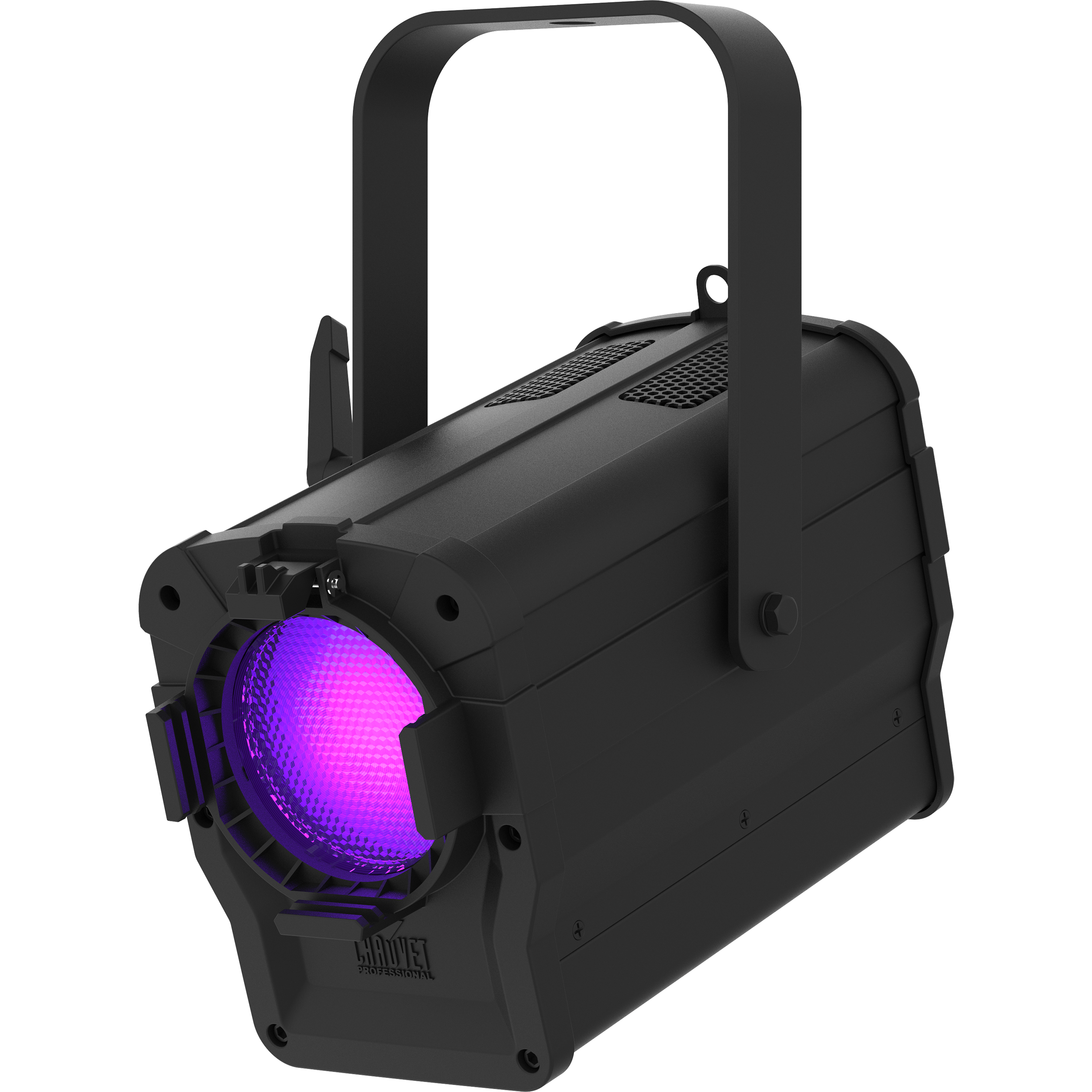

Ovation F-55FC is a full color RGBAL LED (3-inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. Our handy Virtual Color Wheel and Color Temperature presets are shared from our other full color Ovation fixtures. A manual zoom with a 18° – 87° field range allows you to add a beautifully soft field of light where needed.
• Compact, full color fresnel for tight spaces and on-location lighting
• 16-bit dimming resolution for smooth fades
• Soft and even field of light
• Virtually silent operation for use in any situation
• Manually controlled variable zoom range between 18° to 87°
• OPTICAL:
• Light Source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4 W, (700 mA), 3779 K, 50,000 hours life expectancy
• Color Temperature (At Full): 3779 K
• CRI (3200 K): 91
• Beam Angle: 18° to 67°
• Field Angle: 32° to 87°
• Zoom Range: 18° to 87°
• Lumens (30°): 114
• Lumens (69°): 462
• Illuminance (32°): 36 lux @ 5 m
• Illuminance (73°): 18 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• DYNAMIC EFFECTS:
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• CONSTRUCTION / PHYSICAL:
• Dimensions: 9.64 x 4.64 x 6.53 in (245 x 118 x 166 mm)
• Weight: 5.4 lb (2.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel
• Accessory Holder/Gel Frame Size: 3.25 in (83 mm)
• CONNECTIONS:
• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR
• Cable Length (Signal): 1.79 ft (0.54 m)
• Cable Length (Power): 3.5 ft (1.07 m)
• CONTROL:
• Control Protocol: DMX, RDM
• DMX Channels: 3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)
• ELECTRICAL:
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 28 W, 0.392 A @ 120 V, 60 Hz
• Power and Current: 27 W, 0.243 A @ 208 V, 60 Hz
• Power and Current: 27 W, 0.224 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET
• IP Rating: IP20, dry location
• (1) Chauvet Professional Ovation F-55FC
• (1) Gel Frame
