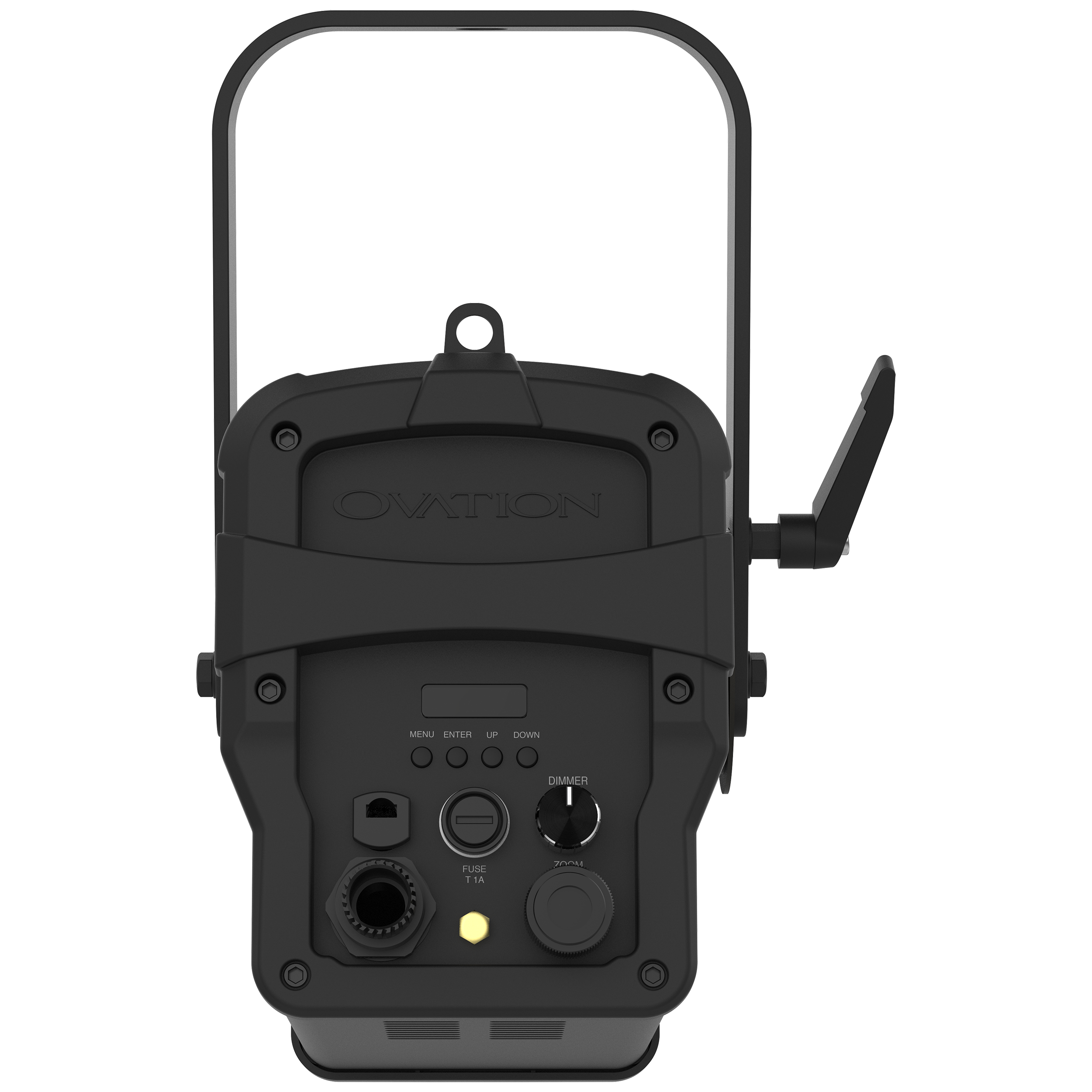

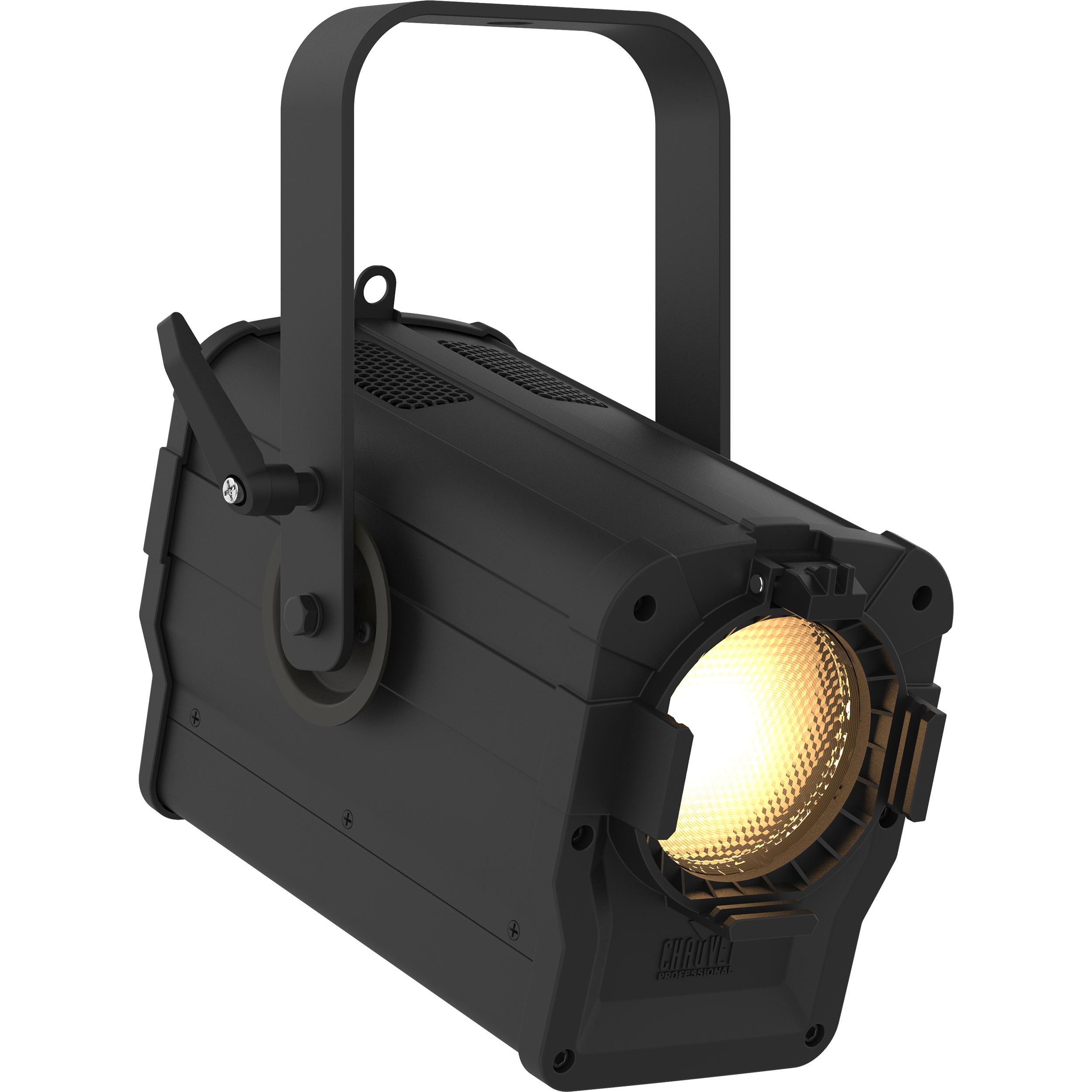

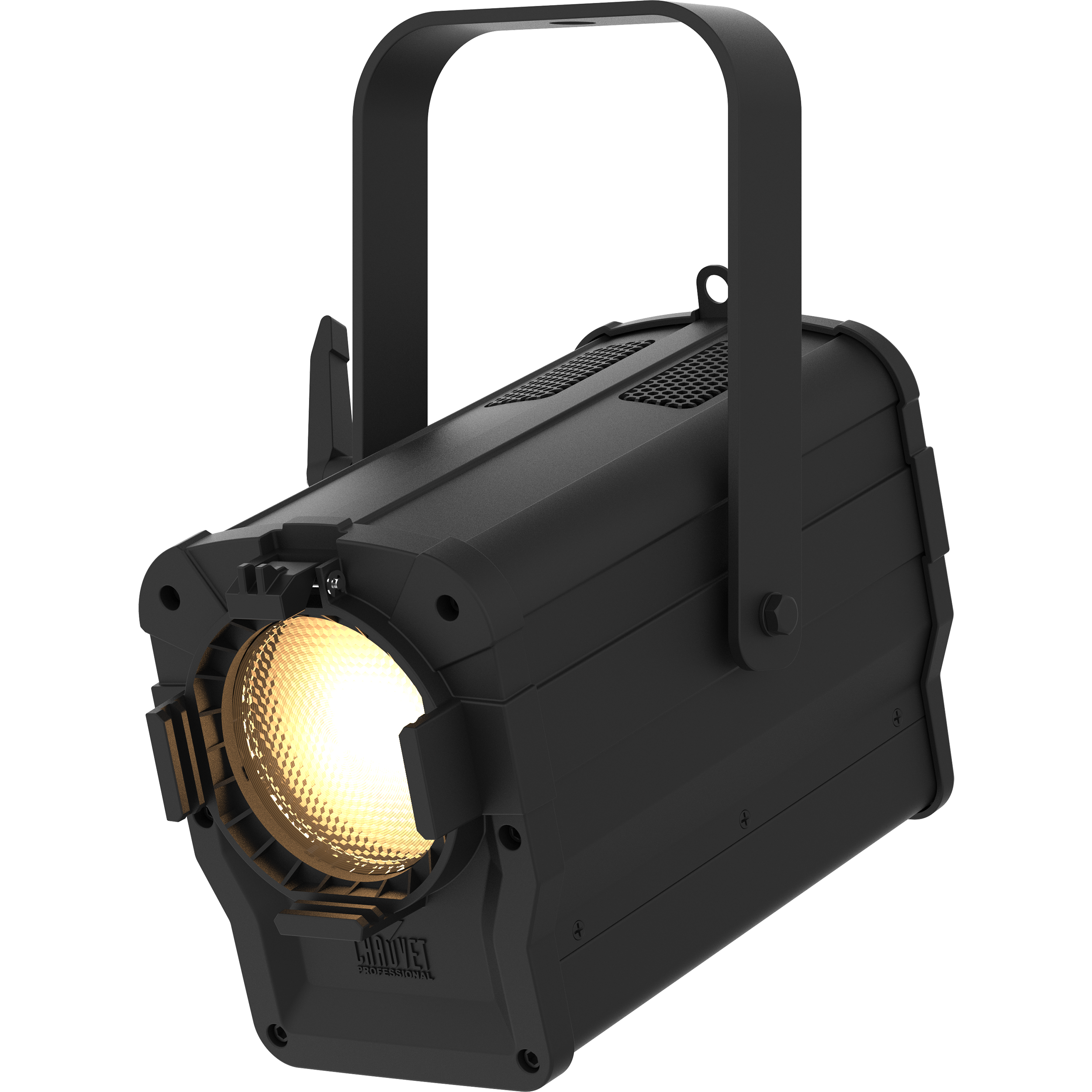

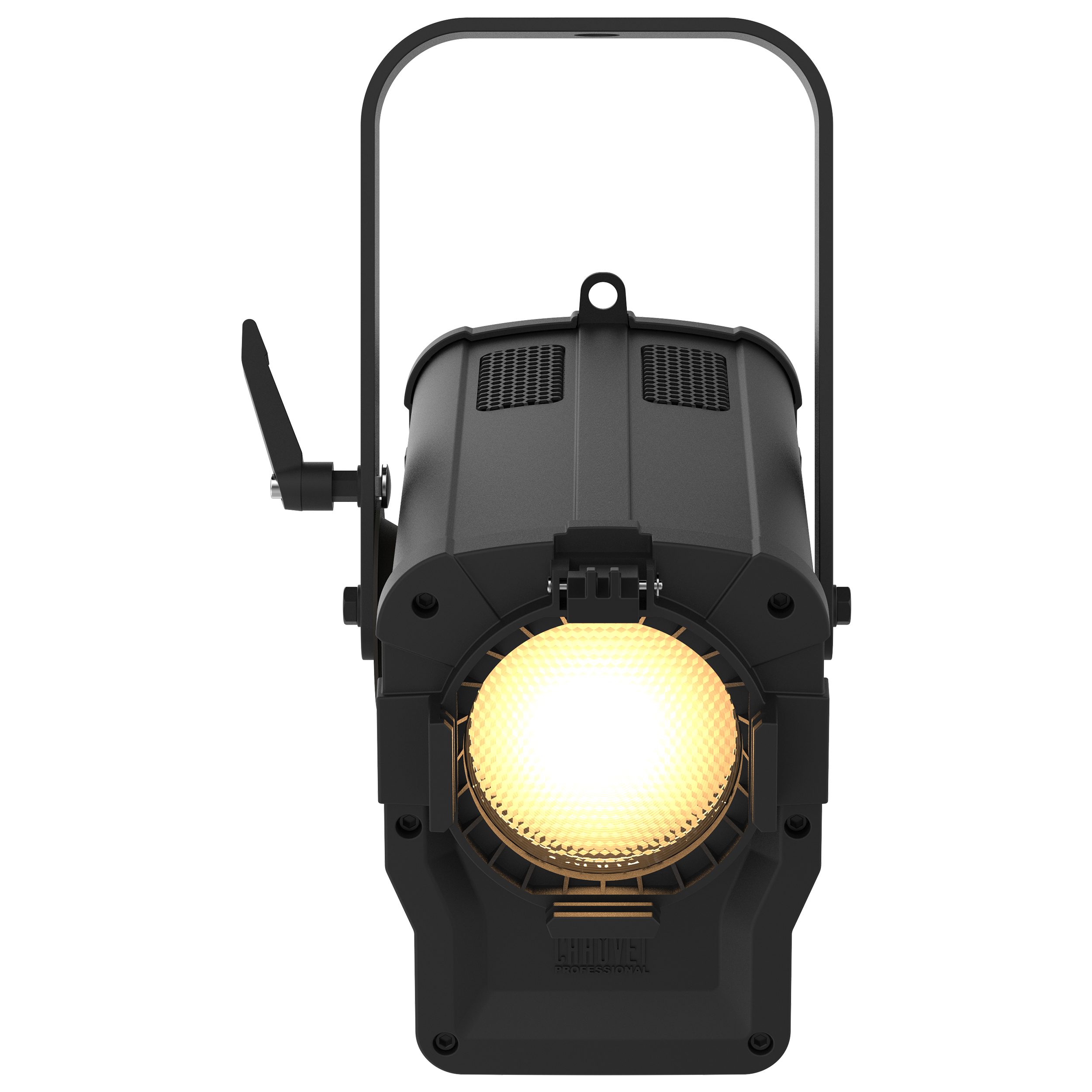

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.
FEATURES
-
• Compact warm white Fresnel for tight spaces and on-location lighting
• Soft and even field of light
• Virtually silent operation for use in any situation
• Manually controlled variable zoom range between 18° to 87°
• 16-bit dimming resolution for smooth fades
SPECIFICATIONS
-
• OPTICAL:
• Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
• Color Temperature (At Full): 3120 K
• CRI (3200 K): 92.5
• Beam Angle: 20.1° to 61.4°
• Field Angle: 31.5° to 75.1°
• Zoom Range: 20° to 75°
• Lumens (31.5°): 959
• Lumens (75.1°): 2,243
• Illuminance (31°): 313 lux @ 5 m
• Illuminance (75.1°): 97 lux @ 5 m
• DYNAMIC EFFECTS:
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Dim Modes: 4
• Built-in Automated Programs: No
• CONSTRUCTION / PHYSICAL:
• Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
• Weight: 4.8 lb (2.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 3.25 in (83 mm)
• CONNECTIONS:
• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR
• Cable Length (Signal): 1.79 ft (0.54 m)
• Cable Length (Power): 3.5 ft (1.07 m)
• CONTROL:
• Control Protocol: DMX, RDM
• DMX Channels: 1, 2 or 5
• Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
• ELECTRICAL:
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 33 W, 0.285 A @ 120 V, 60 Hz
• Power and Current: 33 W, 0.178 A @ 208 V, 60 Hz
• Power and Current: 34 W, 0.155 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET
• IP Rating: IP20, dry location
CONTENTS
-
• (1) Chauvet Professional Ovation F-55WW
• (1) Gel Frame
