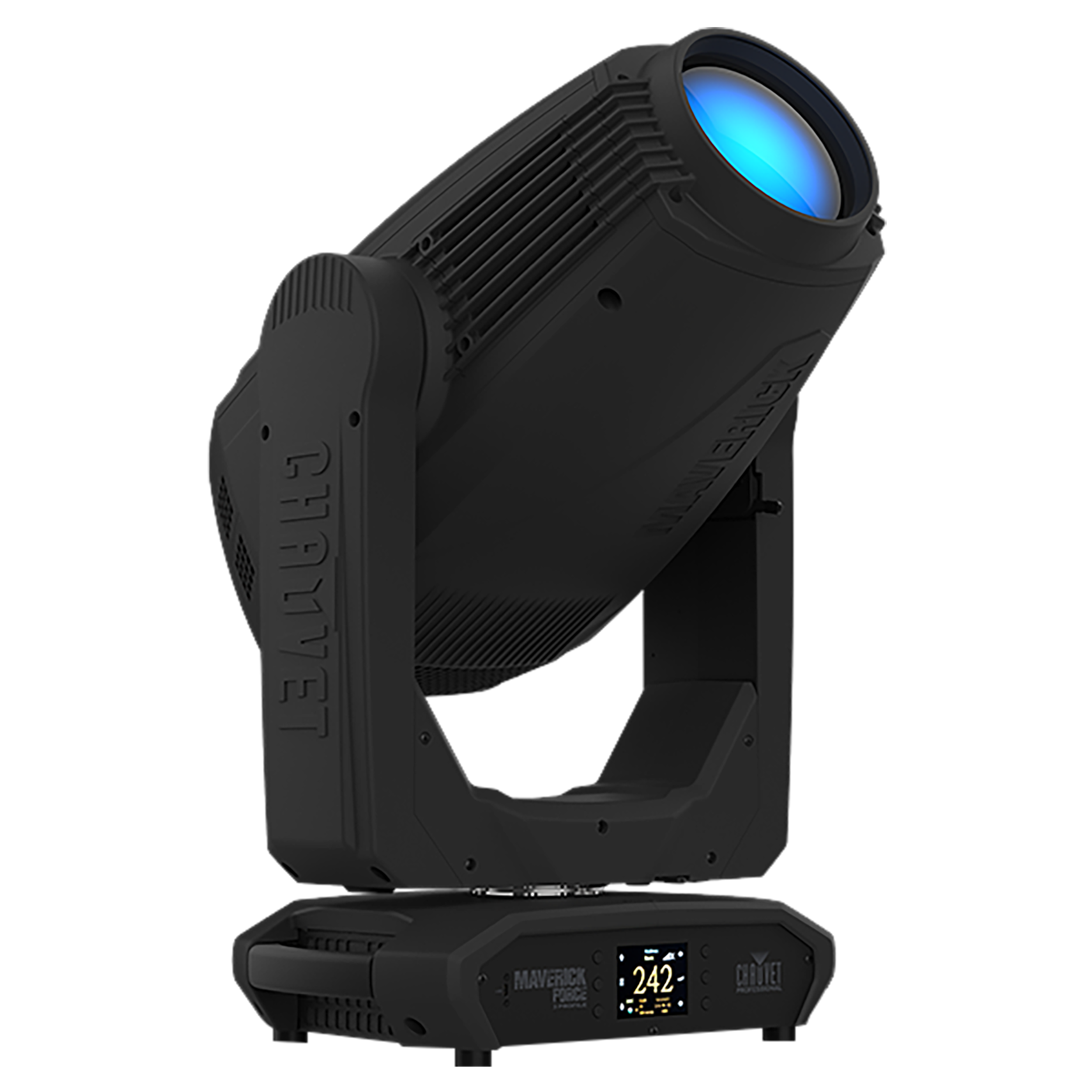

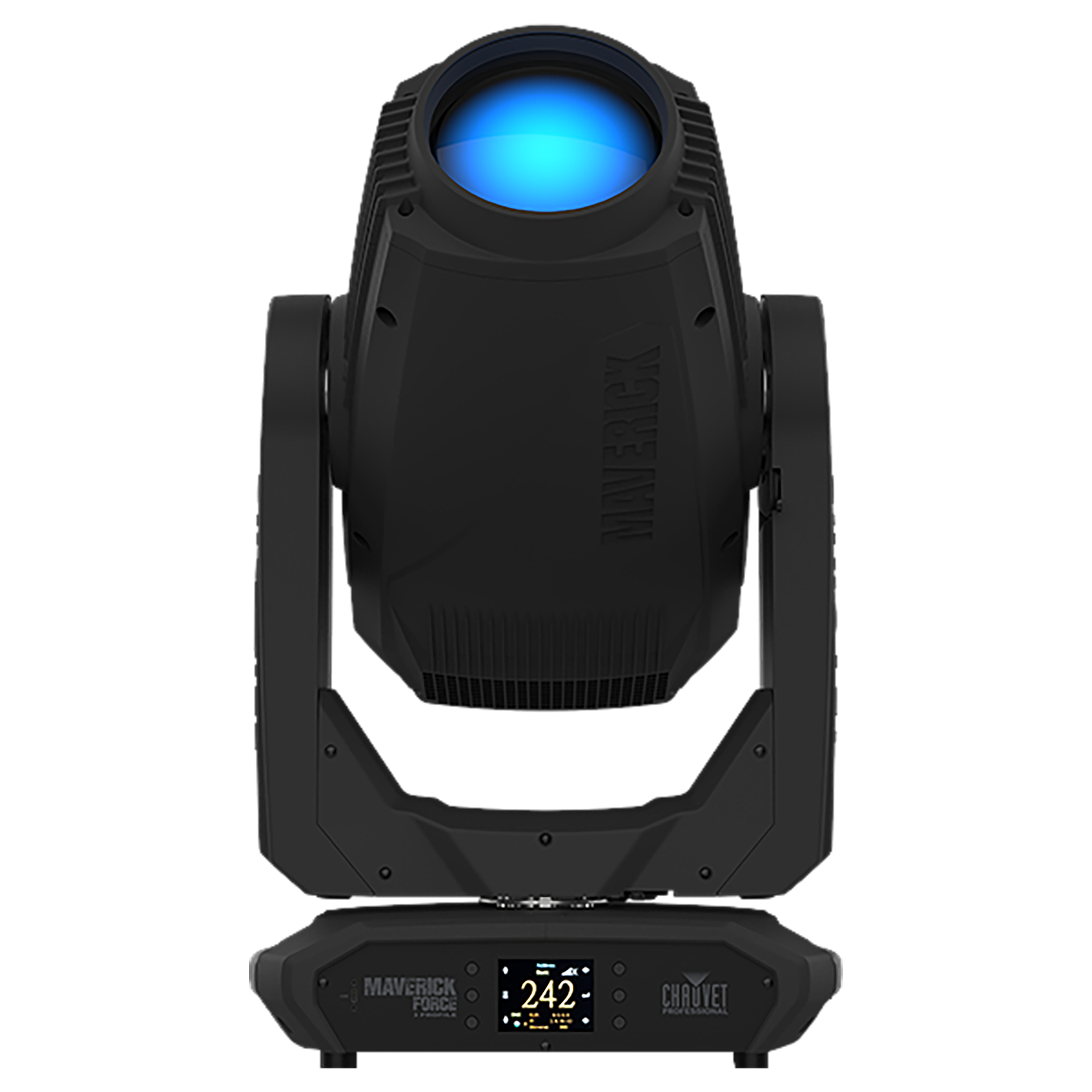

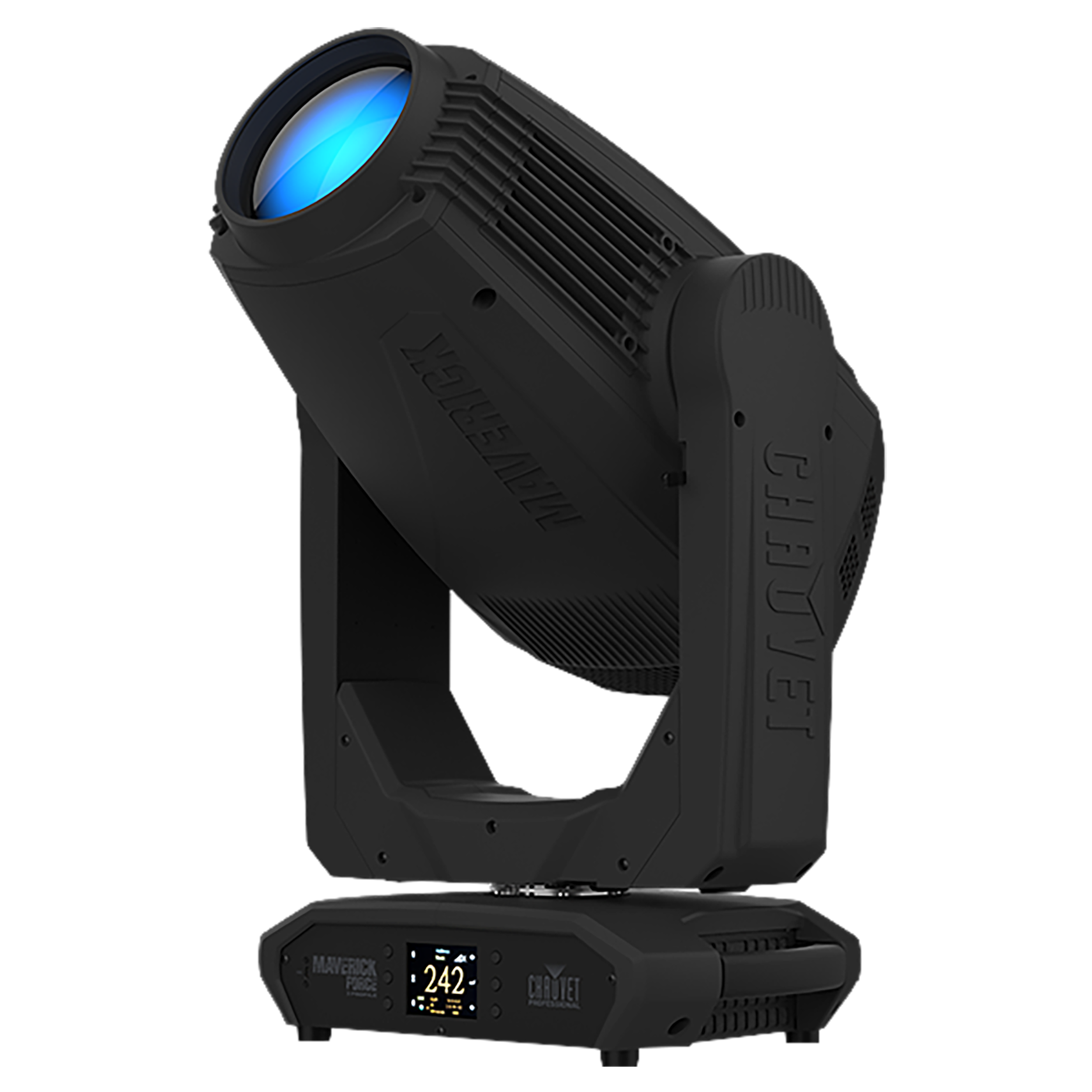

Maverick Force S Profile is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Just over 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter. A 7-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorized iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.
• Fully featured, compact and lightweight 350 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY color mixing system to create a wide pallet of colors
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM Enabled for remote addressing and trouble shooting
• 4.5° to 41.6° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• 4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
OPTICAL
• Light Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 50,000 hours life expectancy
• Color Temperature (at full): 6937K
• CRI: 69
• CRI with CRI Filter: 89.6
• Front Lens Diameter: 119 mm
• Beam Angle: 4.5° to 35.9°
• Field Angle: 5.2° to 40.5°
• Zoom Angle: 5.8° to 41.6°
• Lumens - Source: 20,000
• Lumens – Output: 14,669
• Illuminance (4.5°): 51,865 lux @ 5 m
• Illuminance (41.6°): 1,648 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Colors: CMY Wheels
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (metal), continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 blades, each with dual axis movement
• Framing Shutter Rotation: 120°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4
CONSTRUCTION / PHYSICAL
• Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
• Weight: 52.9 lb (24 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

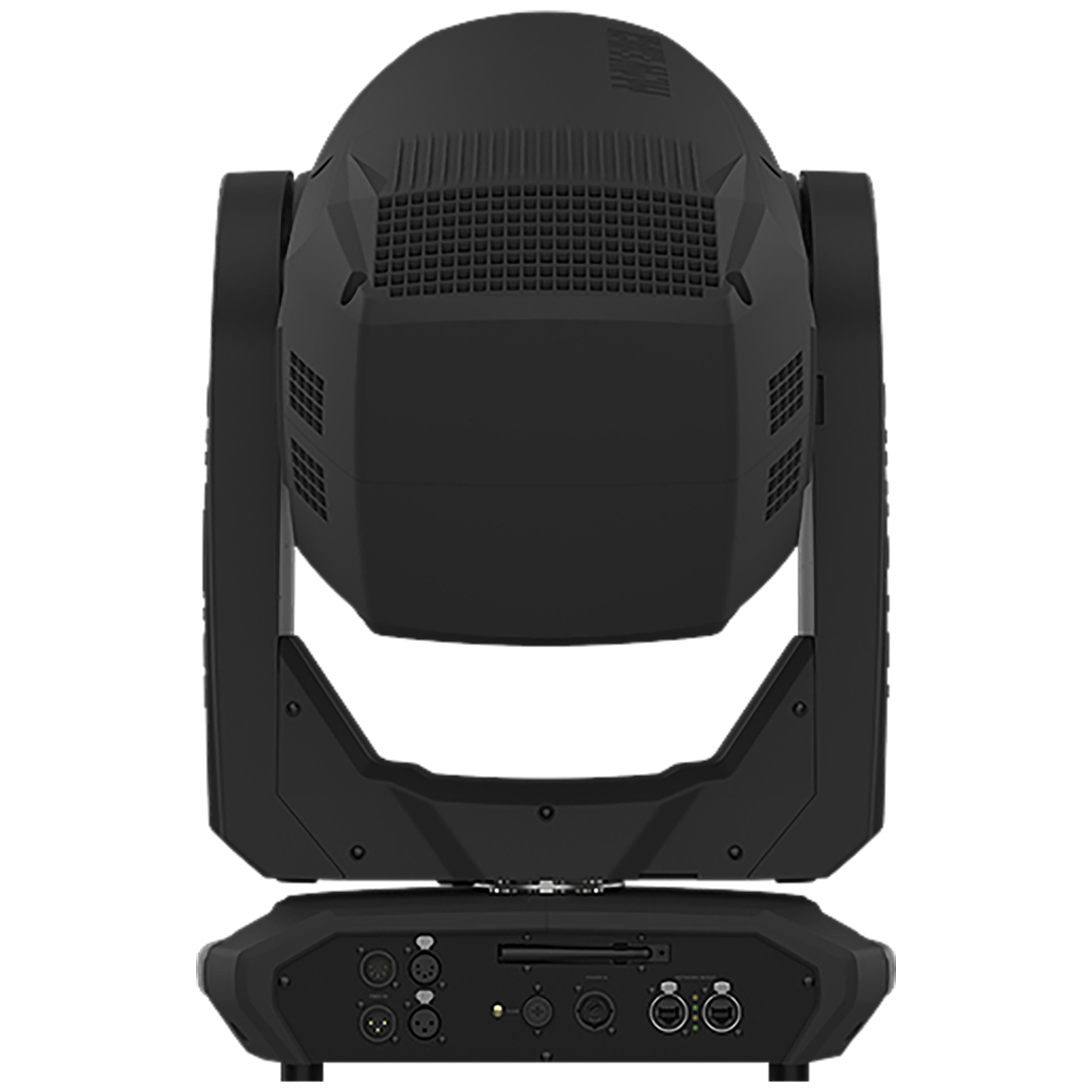

CONNECTIONS
• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (Power): 5 ft (1.5 m)
CONTROL
• Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
• DMX Channels: 31 or 47
• Art-Net Channels: 31 or 47
• Modes/Personalities: 2 personalities (31, 47)
(1) Chauvet Maverick Force S Profile
(1) Seetronic Powerkon IP65 Power Cord
(2) Omega Brackets with Mounting Hardware
