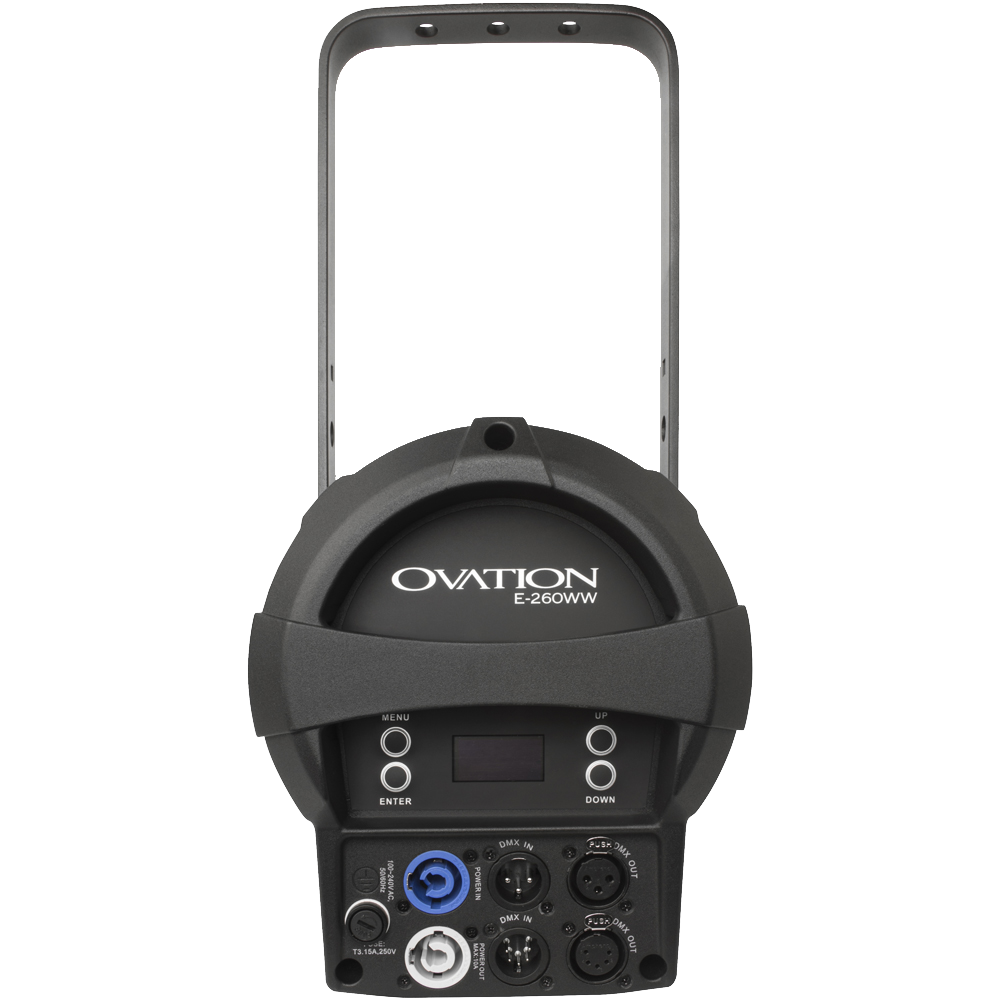

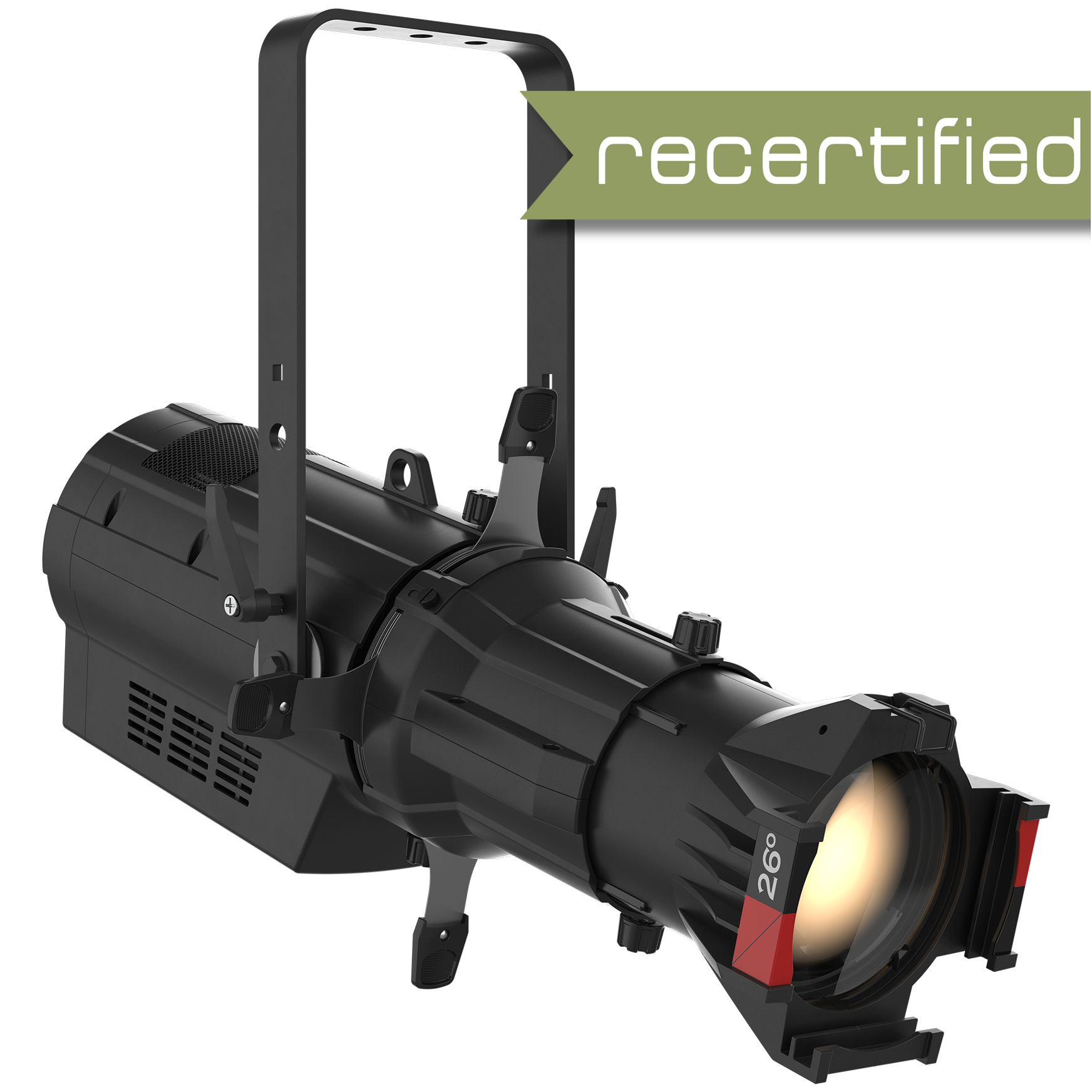

Chauvet Professional Ovation E-260WW Light Fixture
Chauvet Professional Ovation E-260WW Light Fixture
29%, only 0 left
Chauvet Professional Ovation E-260WW Light Fixture
Chauvet Professional Ovation E-260WW Light Fixture
Product SKU
    34908

Chauvet Professional Ovation E-260WW Light Fixture

$999.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

Ovation E-260WW is powered by a single-source LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

FEATURES
    • Warm white ERS style fixture with output exceeding a tungsten 750w source
    • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
    • Flat, even field of light for superior gobo projection
    • RDM (Remote Device Management) for added flexibility
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
SPECIFICATIONS
    • Light Source: 1 LED (WW), 202 W, 3.6 A, 3149 K, 50,000-hour life expectancy
    • Color Temperature (Full): 3149 K
    • CRI: 91
    • Beam Angle (19° Lens): 12°
    • Beam Angle (26° Lens): 16°
    • Beam Angle (36° Lens): 20°
    • Beam Angle (50° Lens): 26°
    • Beam Angle (15°–30° Lens, Narrow): 9°
    • Beam Angle (15°–30° Lens, Wide): 13°
    • Beam Angle (25°–50° Lens, Narrow): 20°
    • Beam Angle (25°–50° Lens, Wide): 24°
    • Field Angle (19° Lens): 18°
    • Field Angle (26° Lens): 25°
    • Field Angle (36° Lens): 33°
    • Field Angle (50° Lens): 49°
    • Field Angle (15°–30° Lens, Narrow): 22°
    • Field Angle (15°–30° Lens, Wide): 29°
    • Field Angle (25°–50° Lens, Narrow): 29°
    • Field Angle (25°–50° Lens, Wide): 40°
    • Dimming Modes: 4
    • Illuminance (19° Lens): 9,256 lux @ 5 m
    • Illuminance (26° Lens): 6,910 lux @ 5 m
    • Illuminance (36° Lens): 4,053 lux @ 5 m
    • Illuminance (50° Lens): 1,703 lux @ 5 m
    • Illuminance (15°–30° Lens, Narrow): 12,430 lux @ 5 m
    • Illuminance (15°–30° Lens, Wide): 14°
    • Illuminance (25°–50° Lens, Narrow): 21°
    • Illuminance (25°–50° Lens, Wide): 22°
    • Gobo Size (Standard): "A" = 86 mm (Outside), 79 mm (Image), 2.5 mm Max Thickness
    • Gobo Size (Optional): "B" = 94 mm (Outside), 69 mm (Image), 2.5 mm Max Thickness
    • Accessory Holder/Gel Frame Size: 6.25 in (159 mm) (19°, 26°, 36°, and 50° Lenses)
    • Accessory Holder/Gel Frame Size: 7.5 in (191 mm) (15°–30° Lens)
    • Accessory Holder/Gel Frame Size: 7.5 in (191 mm) (25°–50° Lens)
    • Power Connection: Edison (Local) Plug to Neutrik powerCON
    • Power Input: Neutrik powerCON
    • Power Output: Neutrik powerCON
    • Data Connectors: 3-Pin and 5-Pin XLR
    • Cable Length (Power): 5 ft (1.5 m)
    • Control Protocol: DMX
    • DMX Channels: 1, 2, 3, or 6
    • Personalities: 1-, 2-, 3-, and 6-Channel Modes
    • Input Voltage: 100–240 VAC, 50/60 Hz (Auto-Ranging)
    • Power Linking: 8 Units @ 120 V; 13 Units @ 208 V; 14 Units @ 230 V
    • Power Consumption: 209 W, 1.655 A @ 120 V, 60 Hz
    • Power Consumption: 206 W, 1.026 A @ 208 V, 60 Hz
    • Power Consumption: 204 W, 0.925 A @ 230 V, 50 Hz
    • Certifications: CE, MET
    • IP Rating: IP20 (Dry Location)
CONTENTS
    (1) Chauvet Professional Ovation E-260WW Light Fixture
