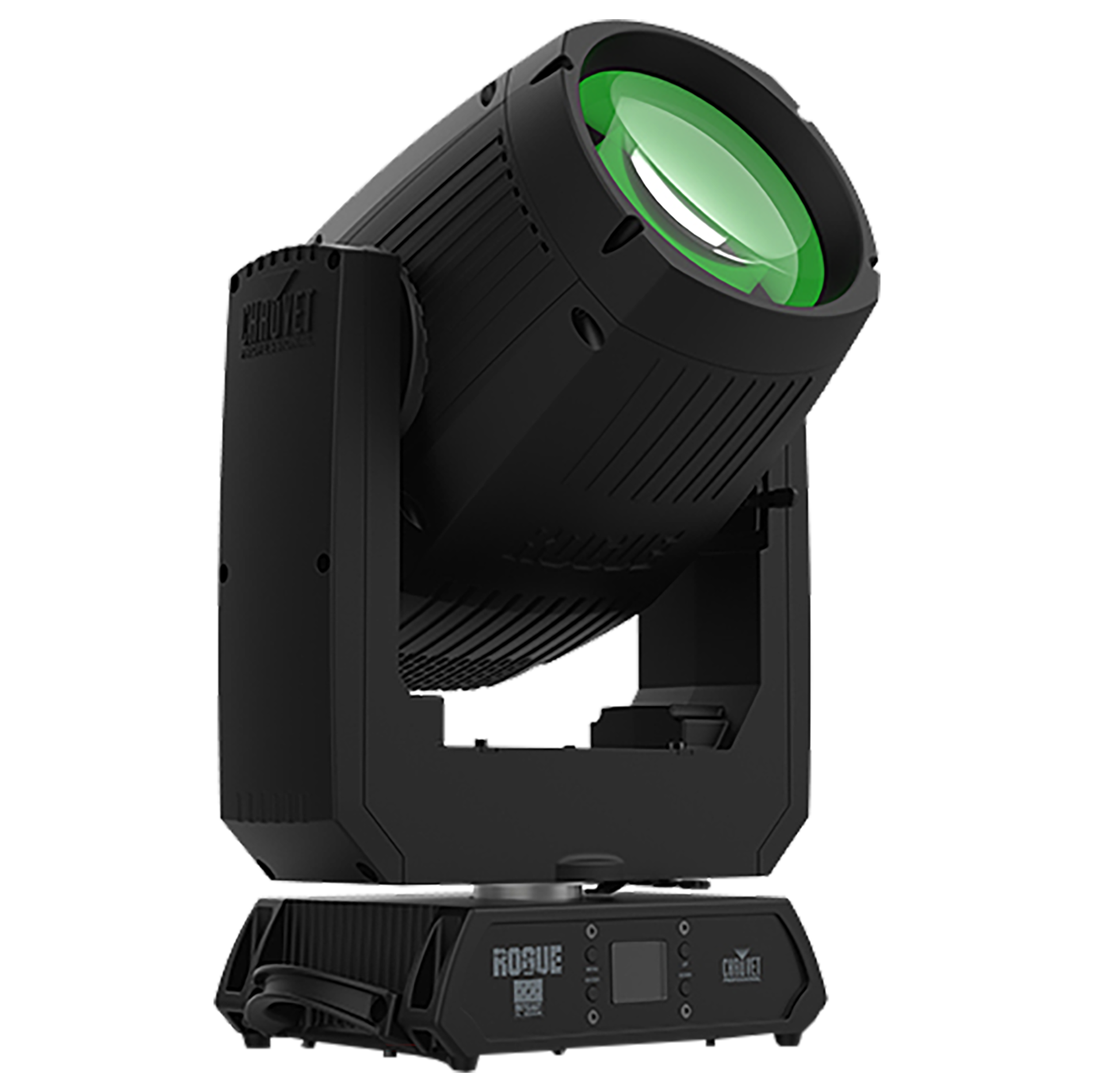

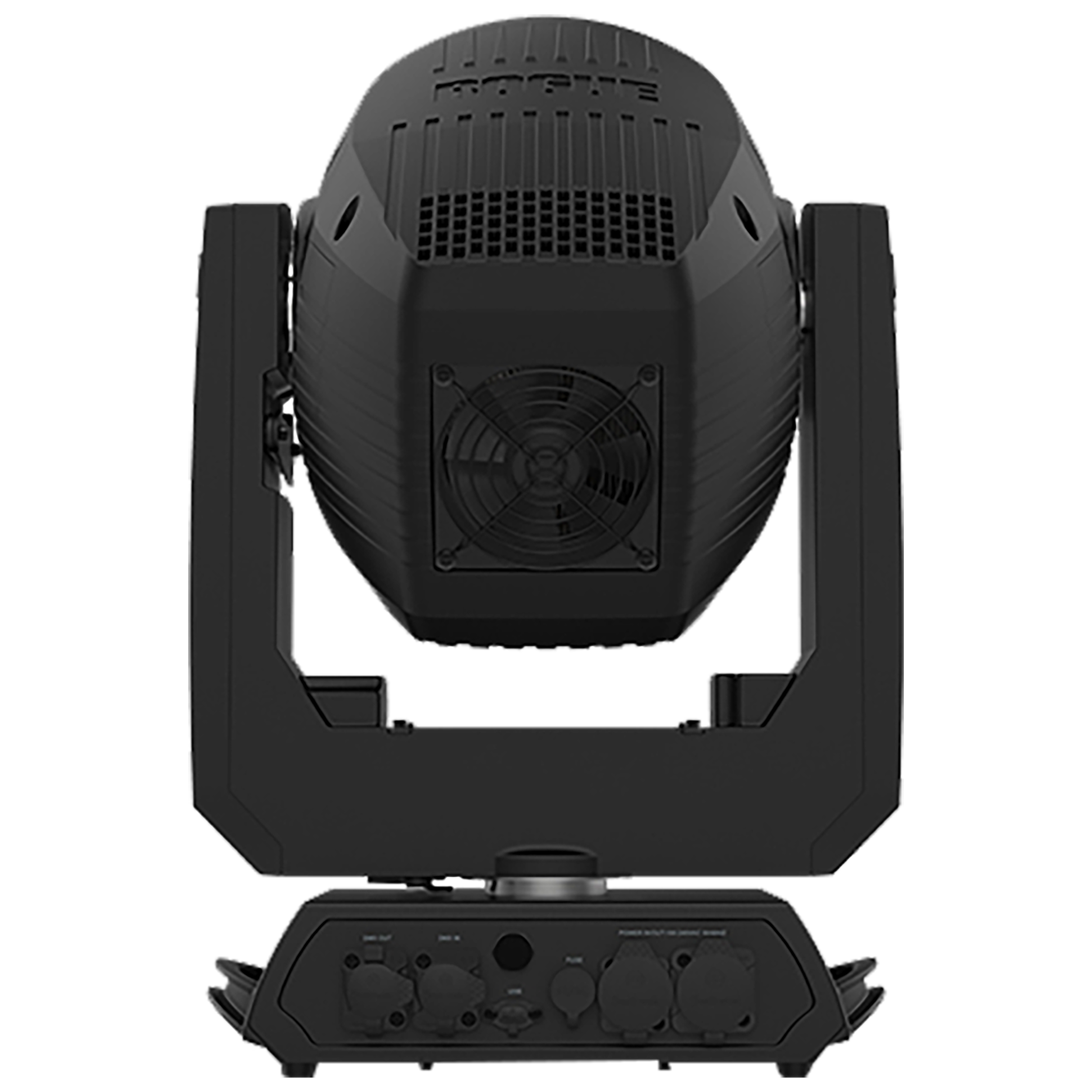

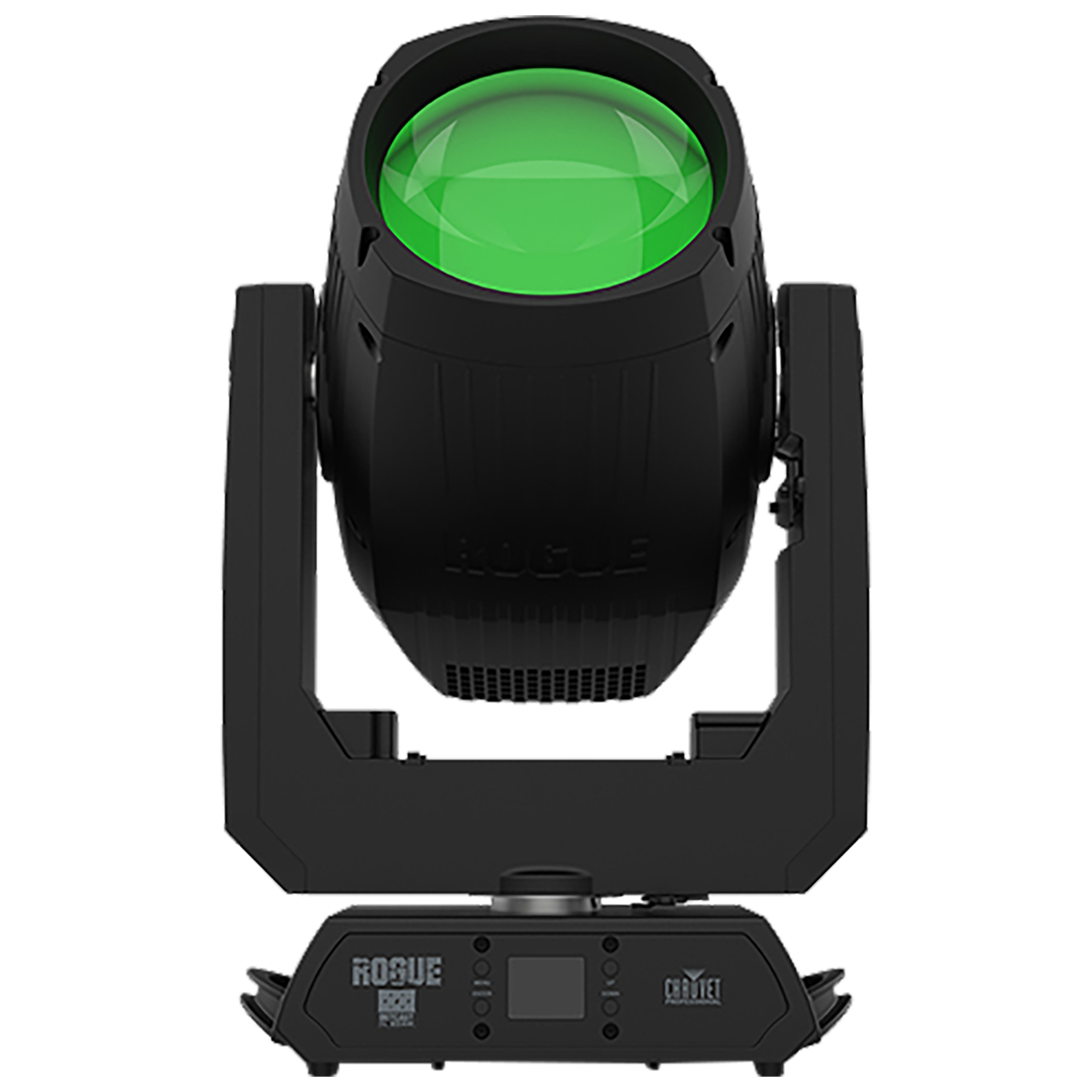

Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.
• Fully featured, high powered IP65 rated LED beam fixture
• Lightweight and durable aluminum/magnesium alloy body
• Fast and precise movement of pan and tilt functions
• Individually controllable and layerable 5- and 8-facet prisms
• Frost for softening beam edges and effects
• 5-pin DMX input/output connections
• Tight 1.4° beam for extremely focused areal effects
• RDM enabled for remote addressing and troubleshooting
• 7 rotating and 7 static gobos on one wheel for dynamic gobo effects
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software
OPTICAL
• Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
• Color Temperature (At Full): 6928 K
• Front Lens Diameter: 160 mm
• CRI: 69.3
• Beam Angle: 1.4°
• Field Angle: 1.7°
• Cutoff Angle: 1.8°
• Lumens – Source: 5500
• Lumens – Output: 3218
• Illuminance (Total): 224,670 lux @ 5 m
DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 14 + white, split colors, continuous scroll at variable speeds
• Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 5 Facets, motorized, linear, rotating
• Prism: 8 Facets, motorized, round, rotating
• Move-in-Black: Yes
CONSTRUCTION / PHYSICAL
• Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
• Weight: 35.4 lb (16.1 kg)
• Exterior Color: Black
• Housing Material: Aluminum/Magnesium diecast
CONNECTIONS
• Power Connection: Bare ended to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (Power): 5 ft (1.5 m)
CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 17 or 19
• Modes/Personalities: 2 personalities (17, 19)
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
• Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
• Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F
• Noise Level (Idle): 24.7 dB(A) @ 1 m
• Noise Level (Max): 35.3 dB(A) @ 1 m
• Noise Level (Auto): 36.4 dB(A) @ 1 m
• Noise Level (ECO): 36.5 dB(A) @ 1 m
• Noise Level (Full): 43.3 dB(A) @ 1 m
(1) Chauvet Professional Rogue Outcast 1L Beam
(1) Seetronic Powerkon IP65 Power Cord
(2) Omega Brackets with Mounting Hardware
