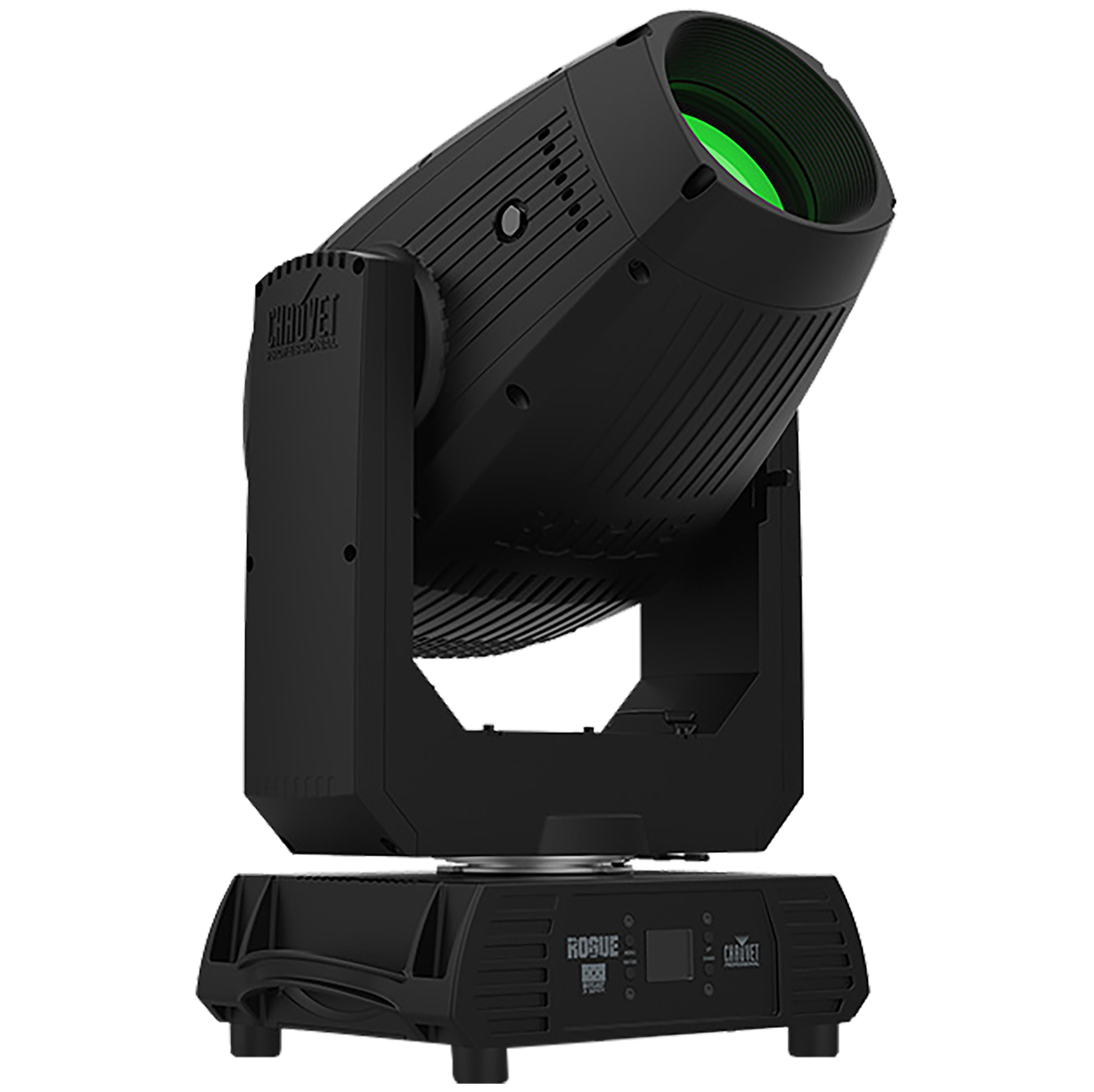

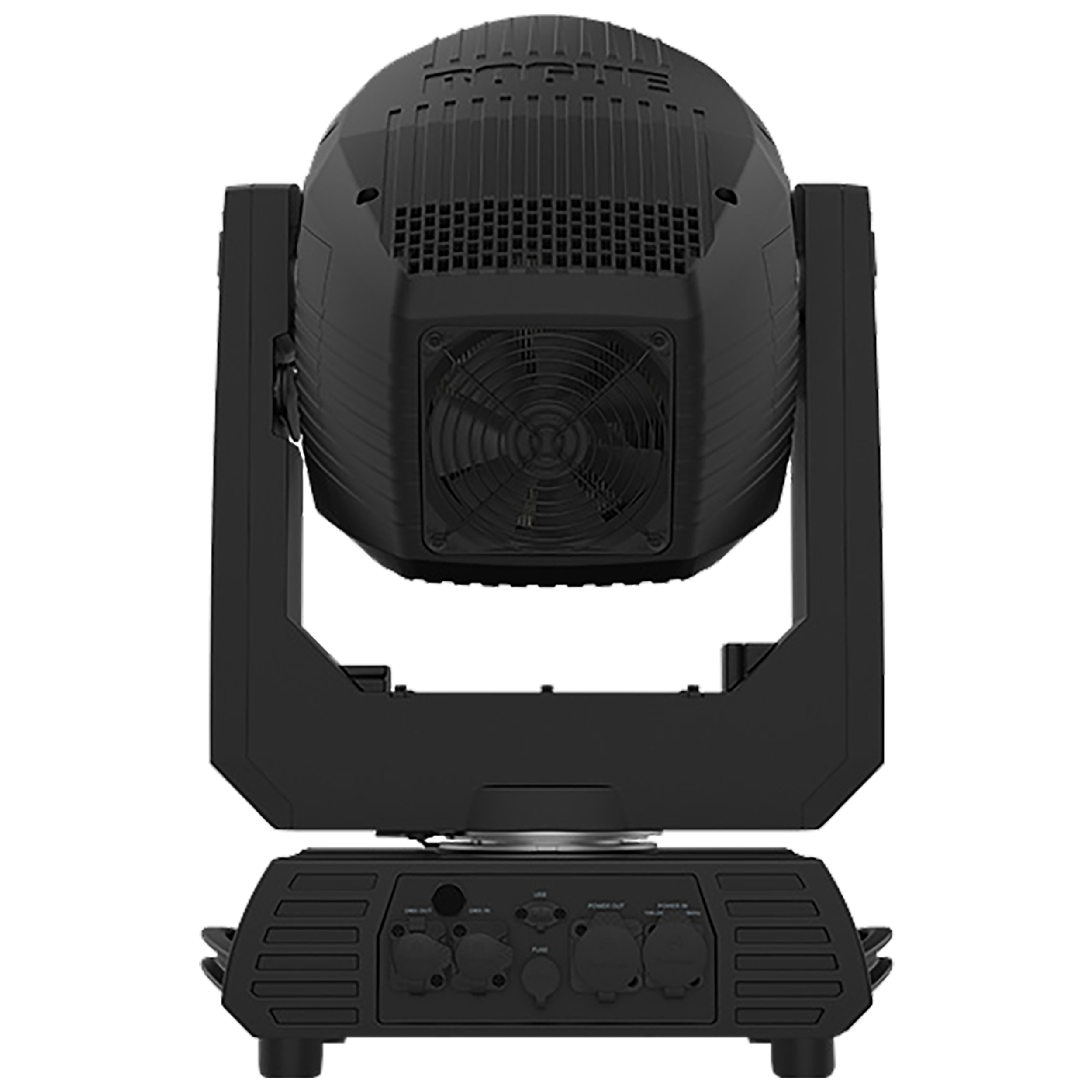

Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines the latest lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance impervious design that withstands particulates such as fog and haze.
• IP 65 rated LED Spot with (2) color wheels, a static and rotating gobo wheel, motorized zoom, Iris, 5 facet prism, encased in a lightweight aluminum and magnesium alloy
• Zoom range of 4.9° to 38.7° to easily cover stages and surfaces from a distance
• Perfect gobo morphing between gobo wheels
• Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 5-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• IP65 rated power input/output connections for power linking
• 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software
OPTICAL
• Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.
• Color Temperature (At Full): 7044 K
• Front Lens Diameter: 119 mm
• CRI: 70
• Beam Angle: 4.9° to 33.7°
• Field Angle: 5.5° to 38°
• Cutoff Angle: 5.6° to 38.7°
• Lumens – Source: 20,000
• Lumens – Output: 14,989
DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move in Black: Yes
CONSTRUCTION / PHYSICAL
• Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
• Weight: 51 lb (23.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer
CONNECTIONS
• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)
CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 20 or 25
• Modes/Personalities: 2 personalities (20, 25)
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
• Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz
• Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz
• Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET, UKCA
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F
• Noise Level (Idle): 24.2 dB(A) @ 1 m
• Noise Level (Max): 33.9 dB(A) @ 1 m
• Noise Level (Auto): 34.5 dB(A) @ 1 m
• Noise Level (Eco): 31.0 dB(A) @ 1 m
• Noise Level (Full): 46.9 dB(A) @ 1 m
(1) Chauvet Professional Rogue Outcast 3 Spot
(1) Seetronic Powerkon IP65 Power Cord
(2) Omega Brackets with Mounting Hardware
