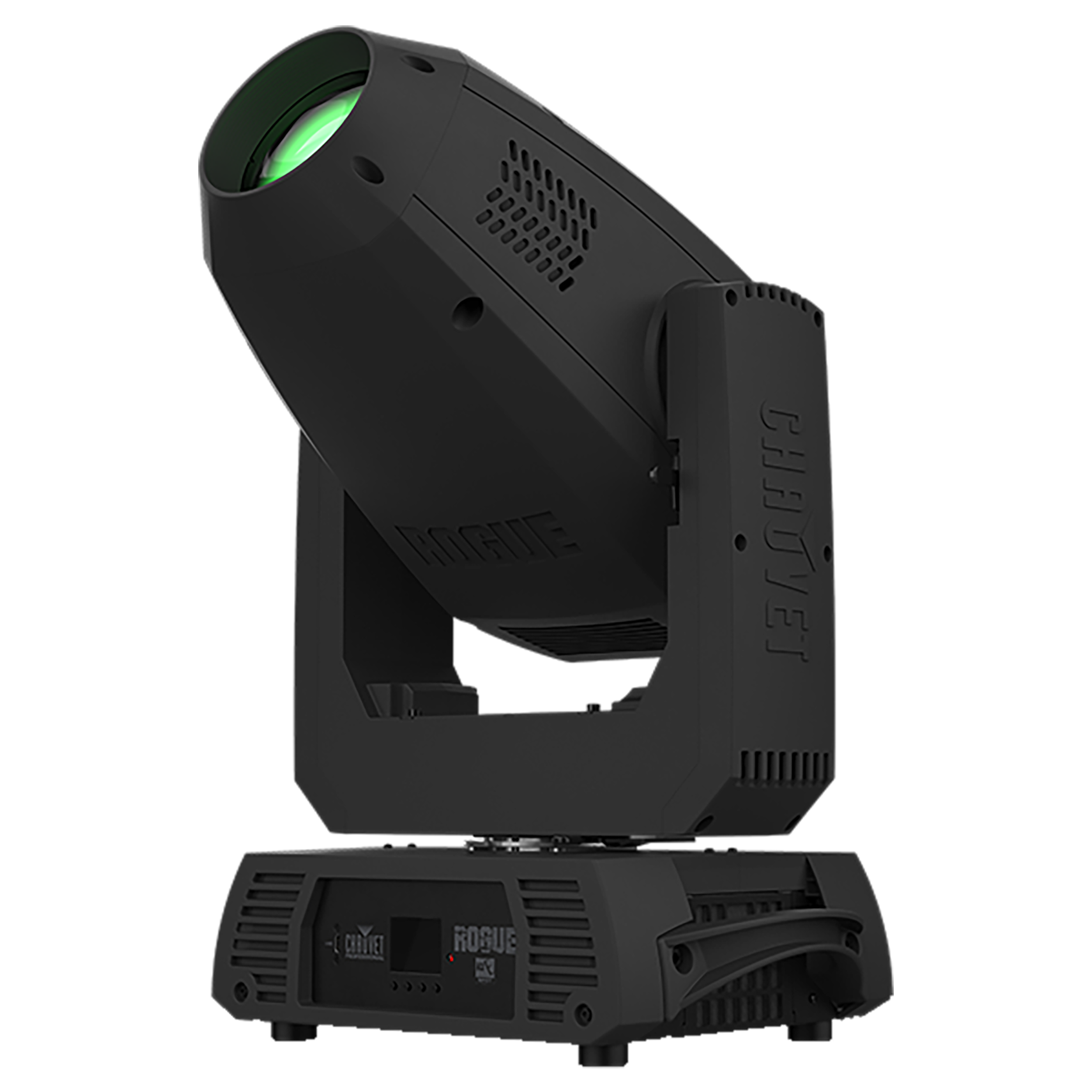

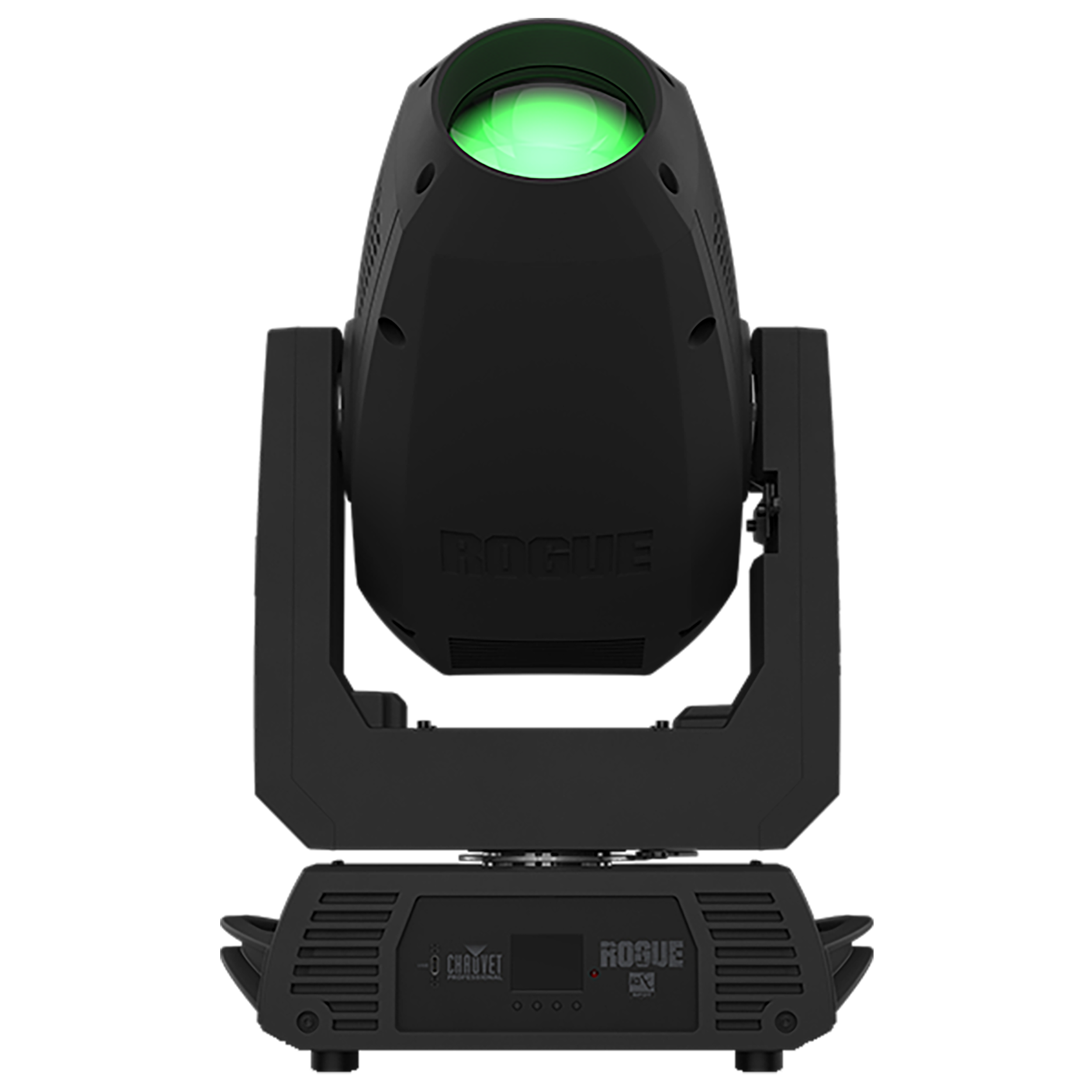

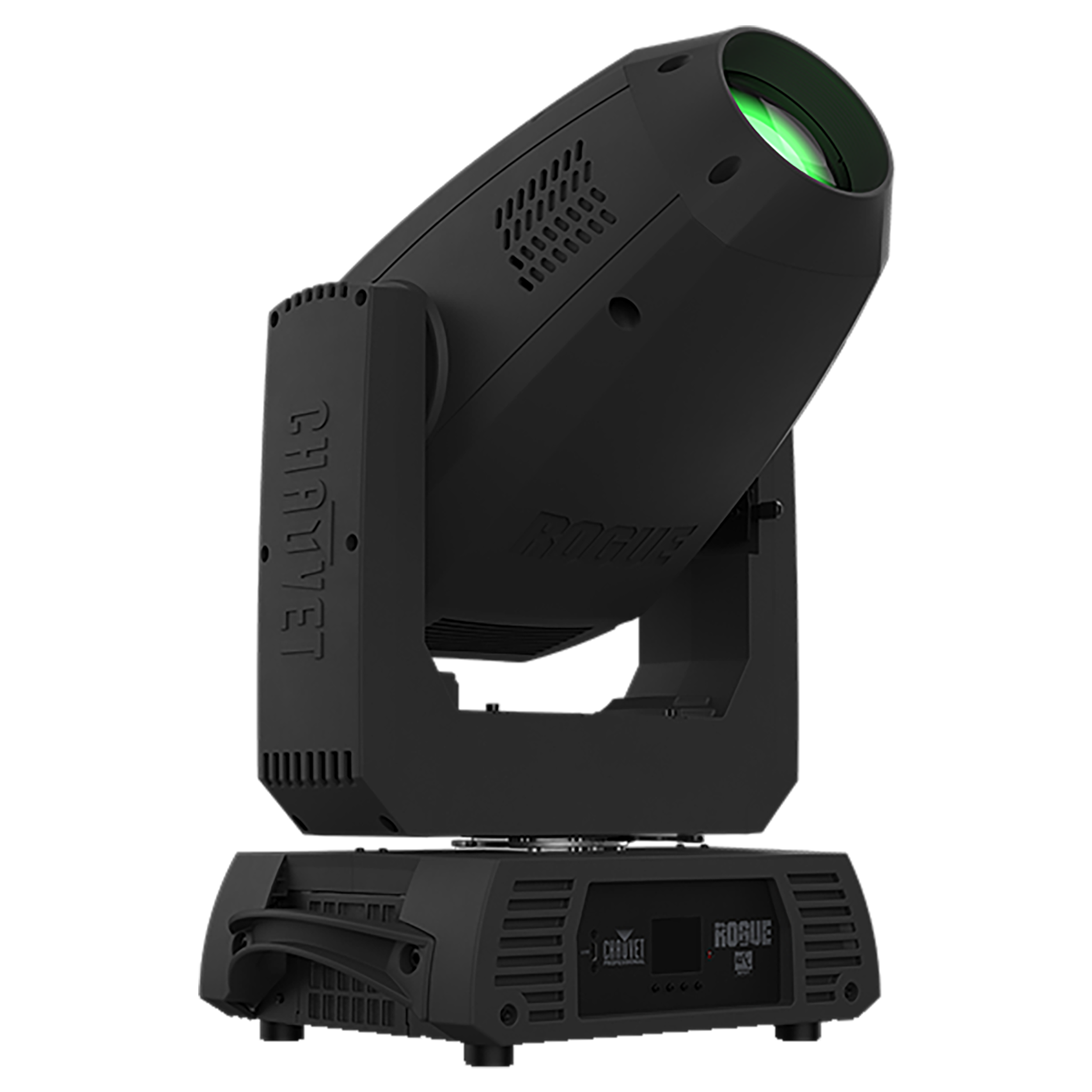

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.
FEATURES
-
• A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• 8.4° to 42.8° Zoom range
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting.
• Selectable LED maximum output to match legacy Rogue R1X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility
SPECIFICATIONS
-
OPTICAL
• Light Source: 1LEDs (CW) 350 W, (5 A), 8527 K, 50,000 hours life expectancy.
• Color Temperature (At Full): 8527 K
• Front Lens Diameter: 90mm
• CRI 68.2
• Beam Angle: 8.4° to 33°
• Field Angle: 10.1° to 39.3°
• Cutoff Angle: 11.5° to 42.8°
• Zoom Range: 8.4° to 42.8°
• Lumens – Source: 24,500
• Lumens – Output: 15,705
• Illuminance (7°): 35,405 lux @ 5 m
• Illuminance (42.8°): 2,492 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors (1): 8 + white, split colors, continuous scroll at variable speeds
• Colors (2): 8 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move in Black: Yes
CONSTRUCTION / PHYSICAL
• Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
• Weight: 34 lb (15.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
• Software Update: USB-C

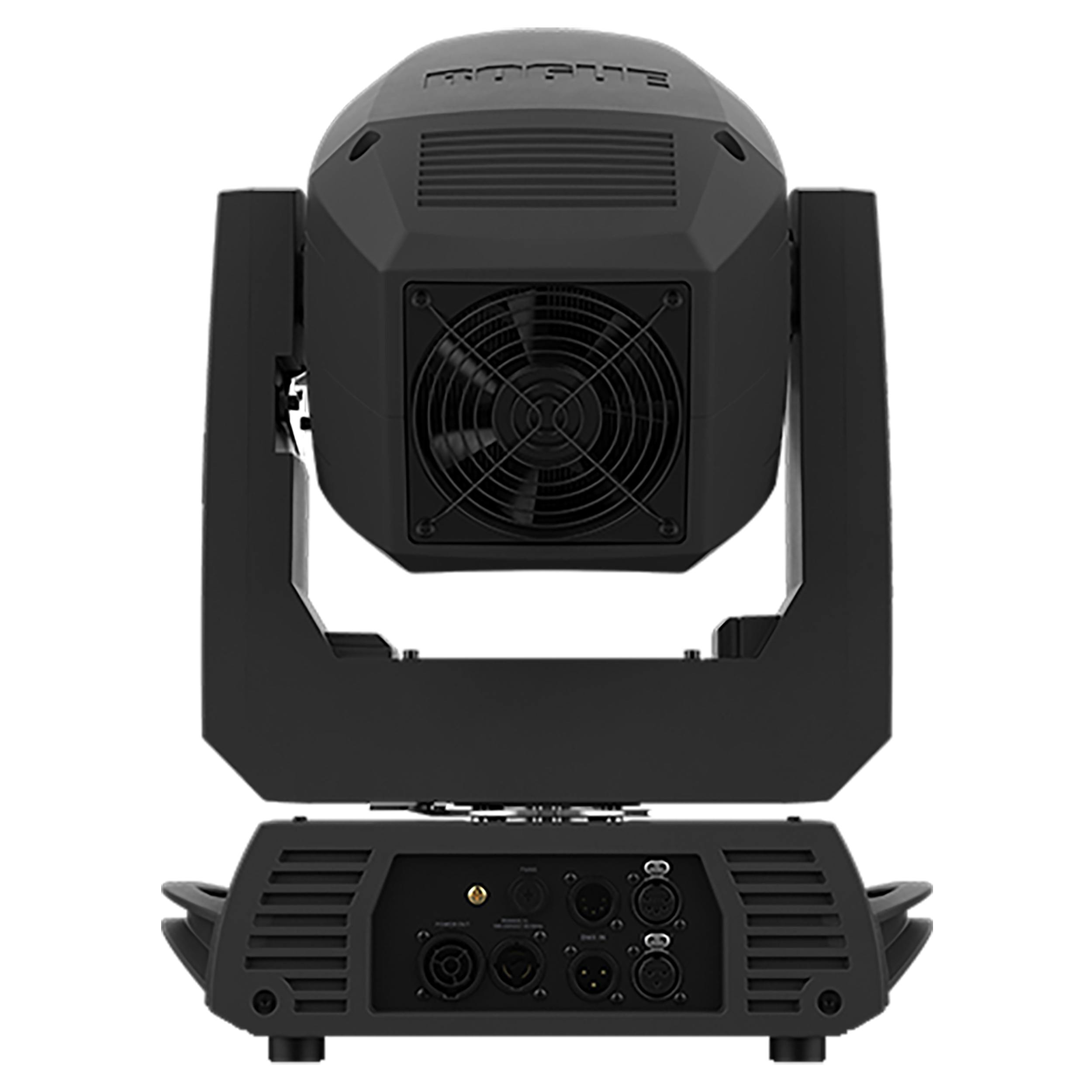

CONNECTIONS
• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)
• Software Connection: USB-C
CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 19 or 25
• Modes/Personalities: 2 personalities (19, 25)
ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V; 9 units @ 240V
• Power and Current: 535 W, 4.541 A @ 120 V, 60
• Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
• Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz
• Certifications / Qualifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Noise Level (Idle): 4.1 dB(A) @ 1 m
• Noise Level (Max): 35.0 dB(A) @ 1 m
• Noise Level (Auto): 33.3 dB(A) @ 1 m
• Noise Level (Eco): 31.2 dB(A) @ 1 m
• Noise Level (Full): 40.2 dB(A) @ 1 m
CONTENTS
-
(1) Chauvet Rogue R3E Spot
(1) Seetronic PowerKon Power Cord
(2) 140D Omega Brackets with Mounting Hardware
