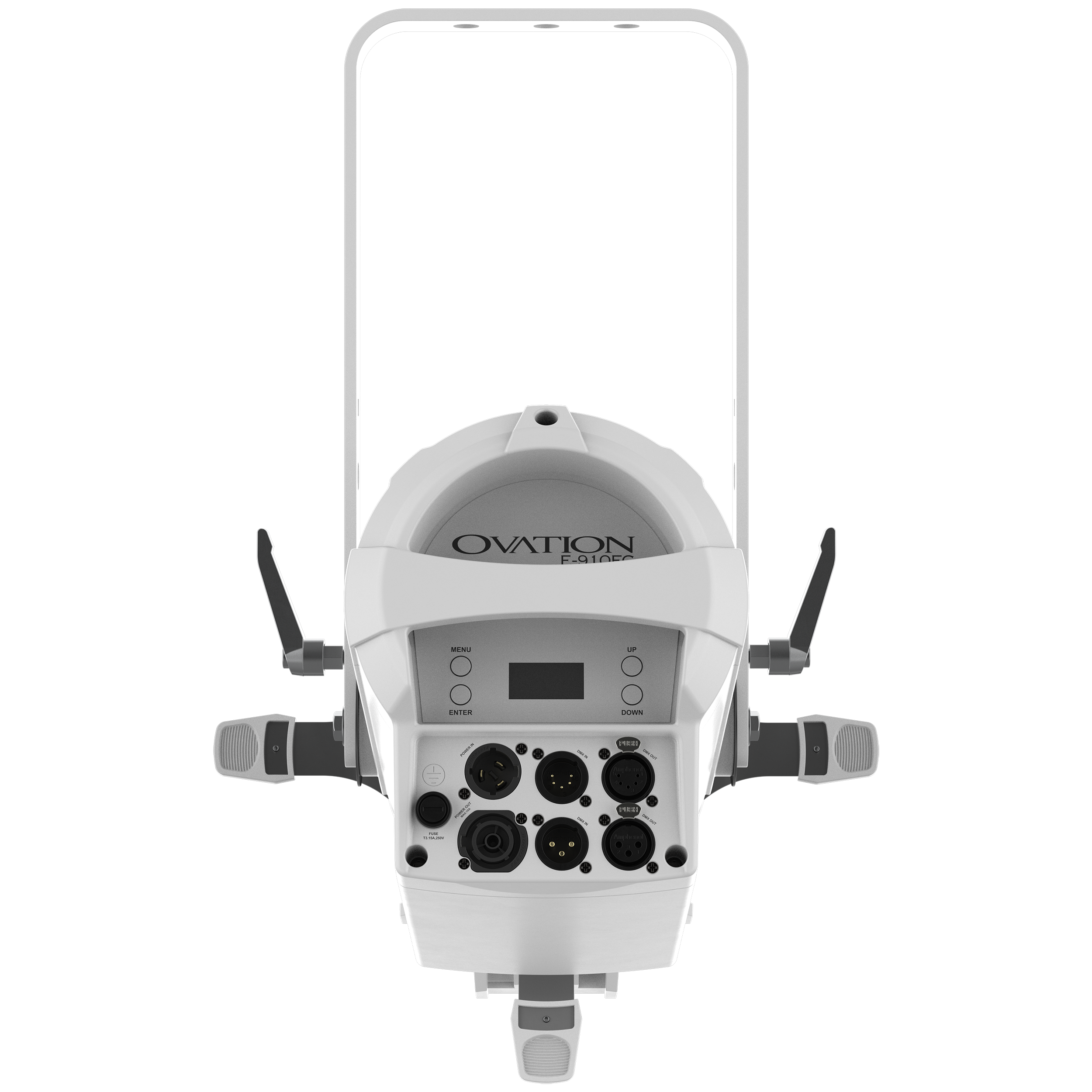

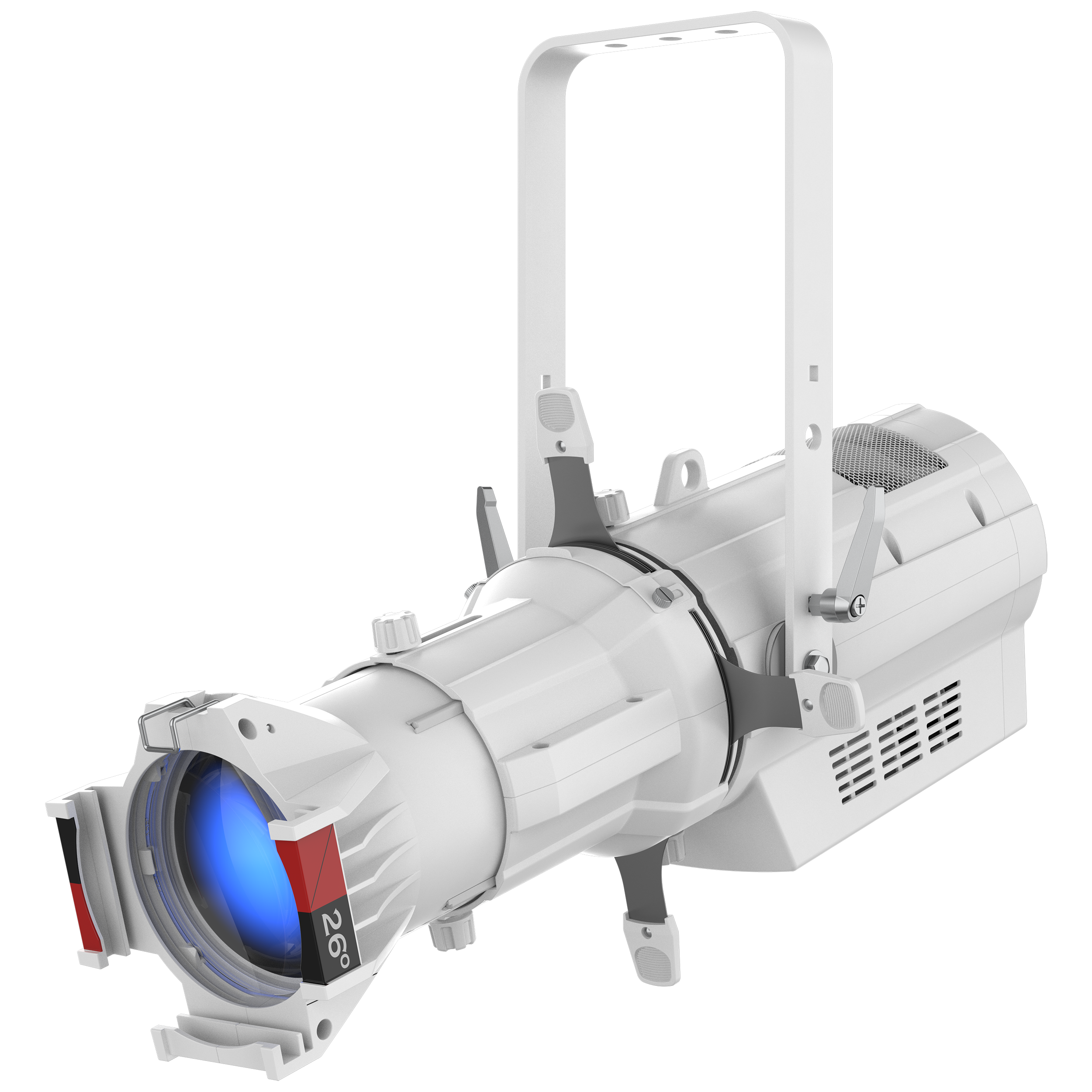

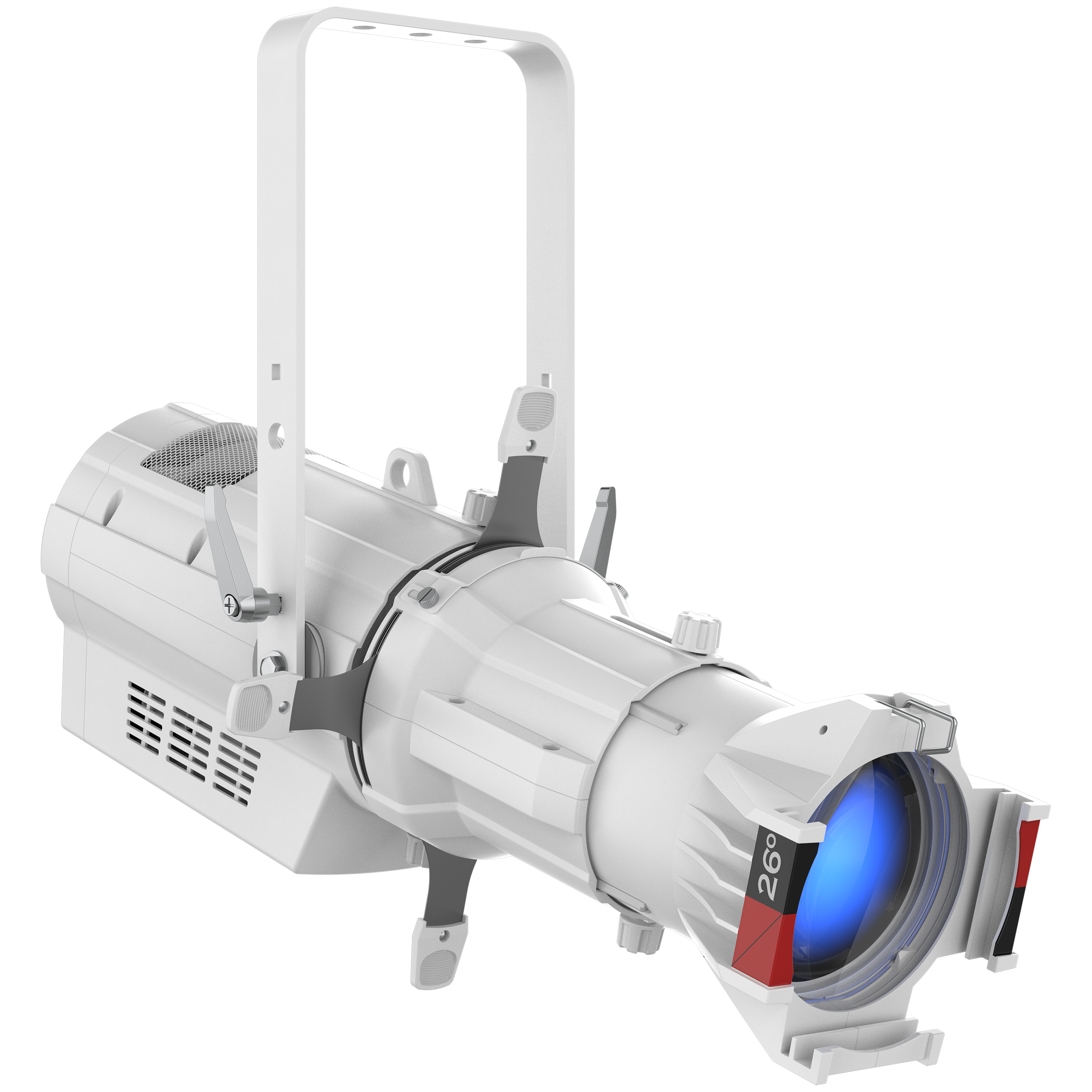

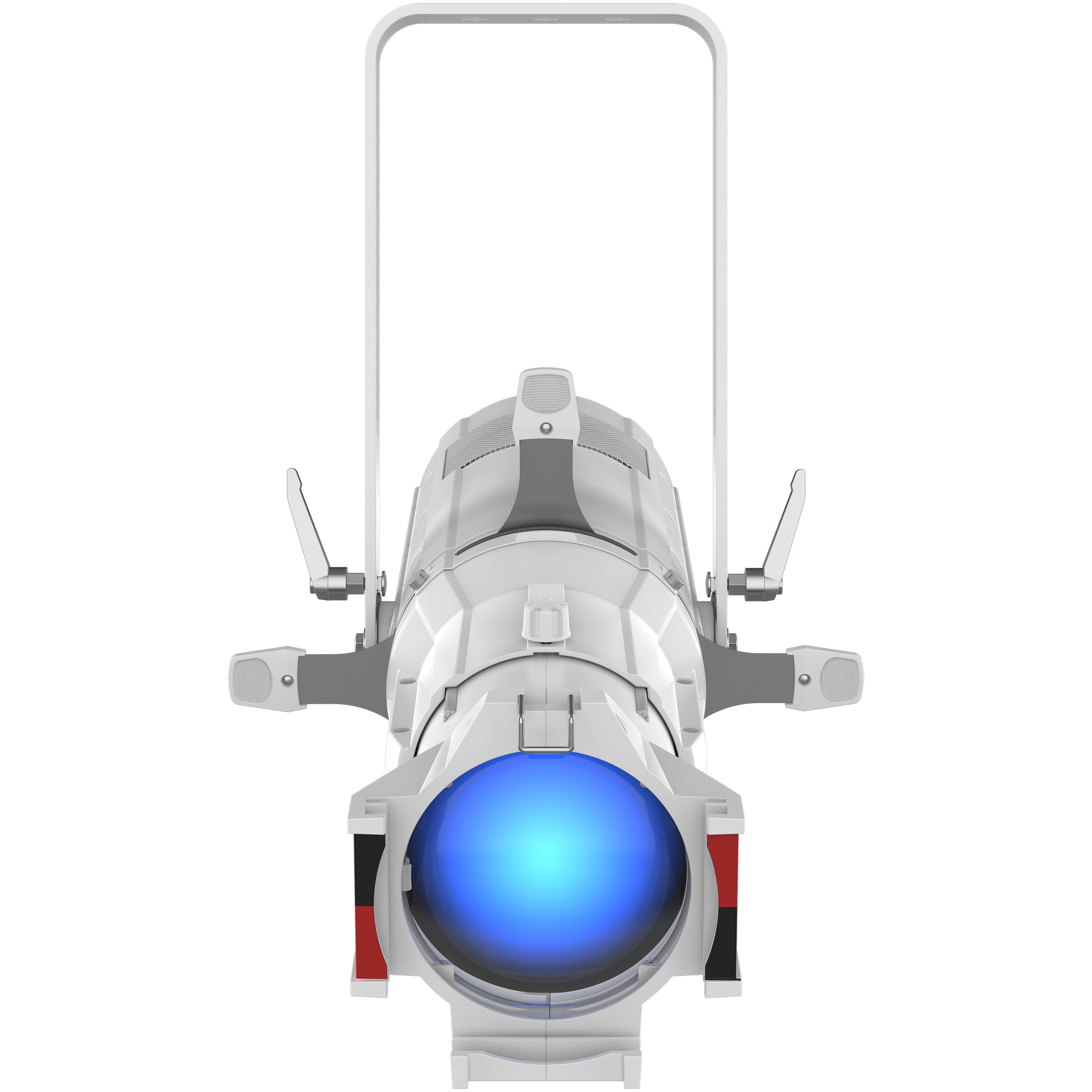

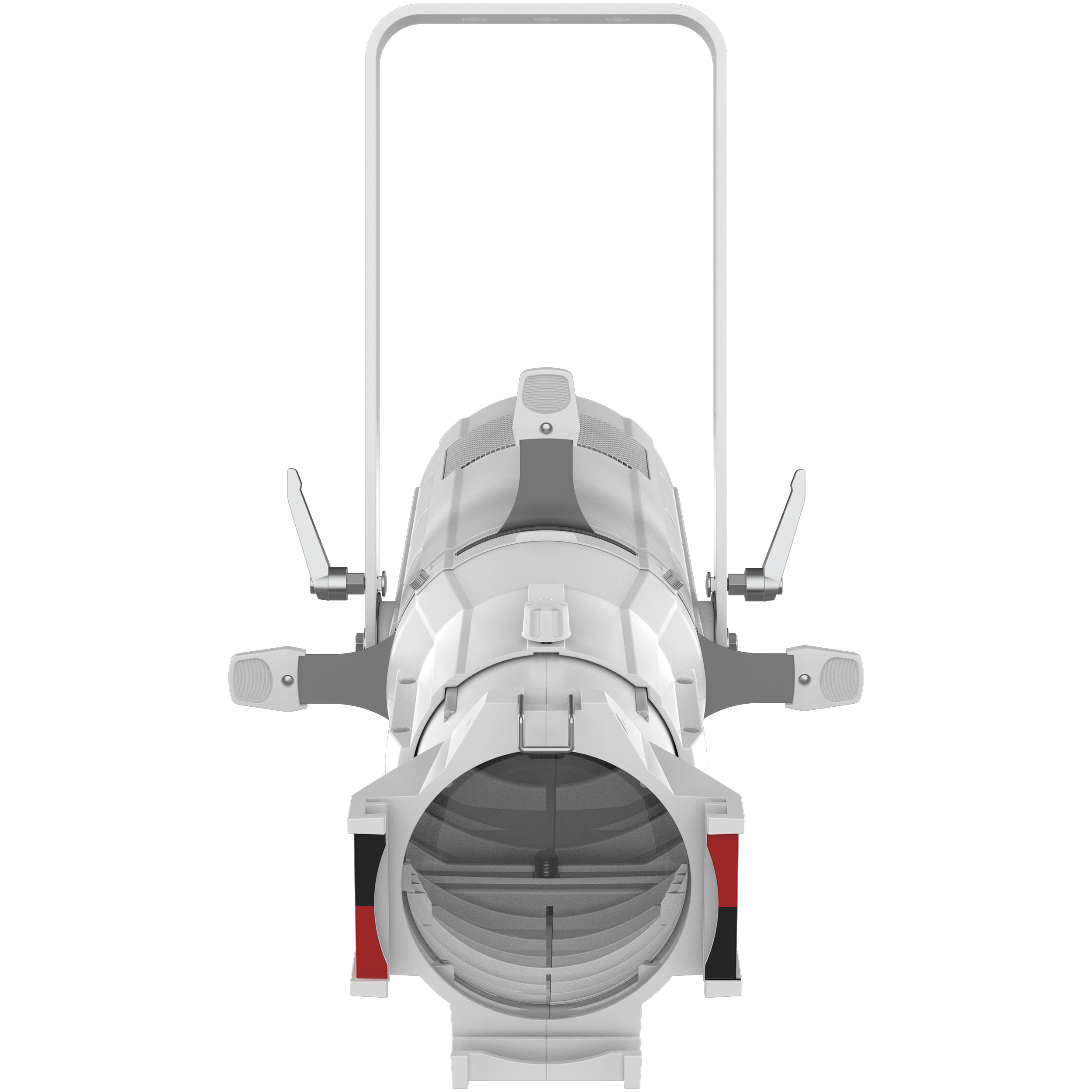

Ovation E-910FC is a high-performance ERS-style fixture with full RGBA-Lime color mixing and color temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM and on-board dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors. The Ovation E-910FC is also available in a white housing to blend into architectural applications.
• Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Ultra smooth 16-bit dimming of master dimmer and individual colors
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
• Color Temperature (at full): 5850K
• Dimming Modes: 9
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Exterior Color: Black
• Gobo Size (Optional): “A” 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B” 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Protocol(s): DMX, RDM
• DMX Channels: 3, 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz
• (1) Chauvet Professional Ovation E-910FC (Engine Only, NO LENS TUBE)
• (1) Neutrik powerCON Power Cord
