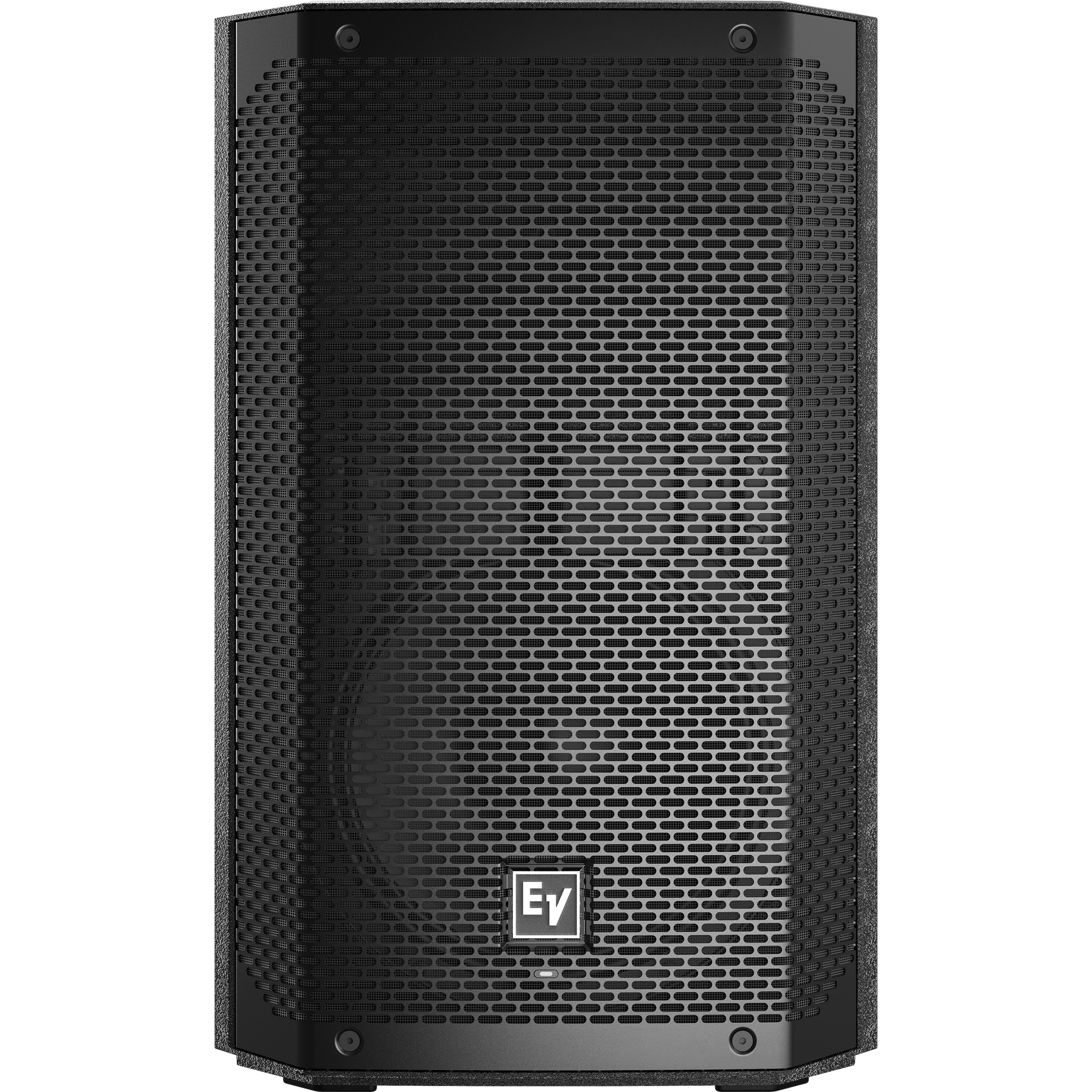

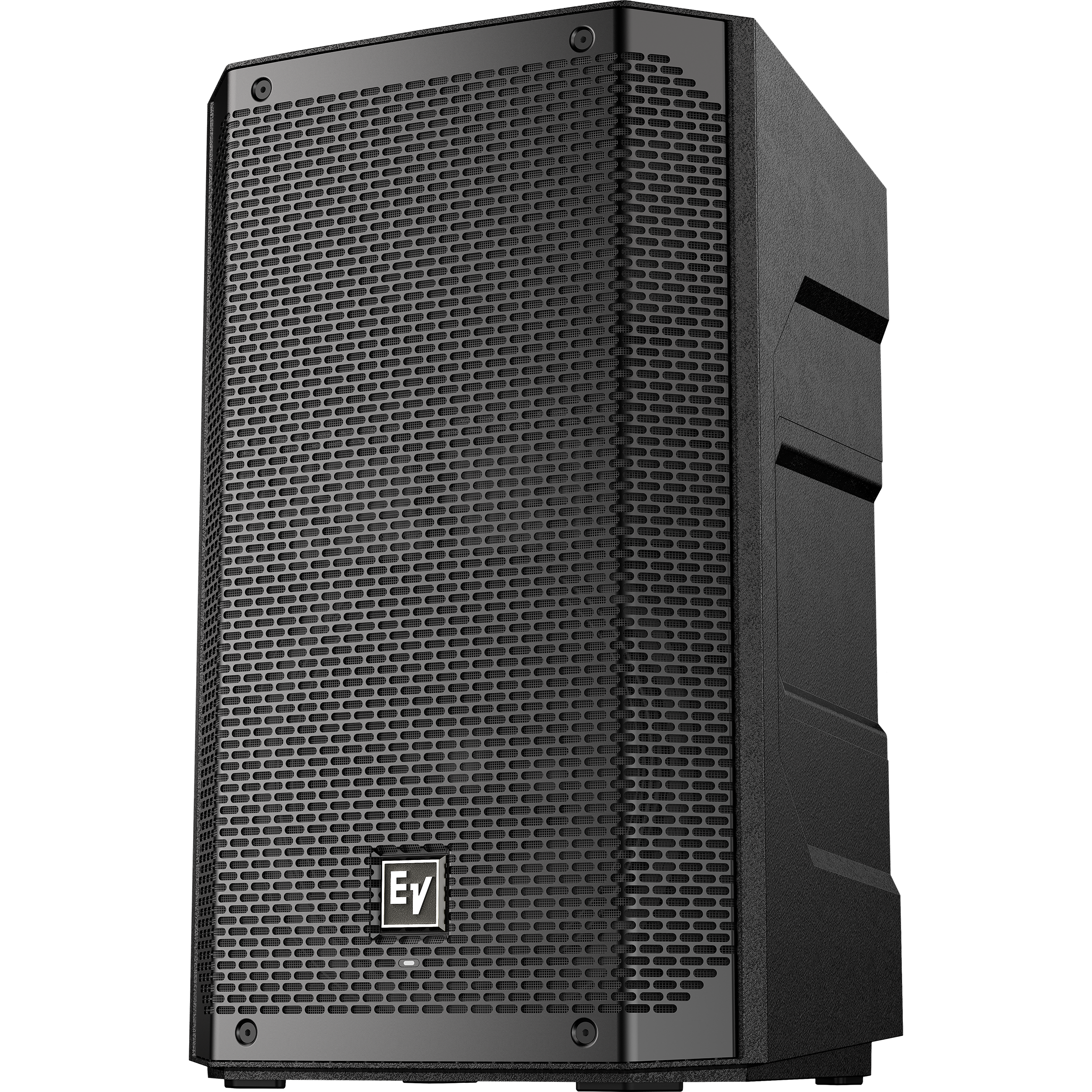

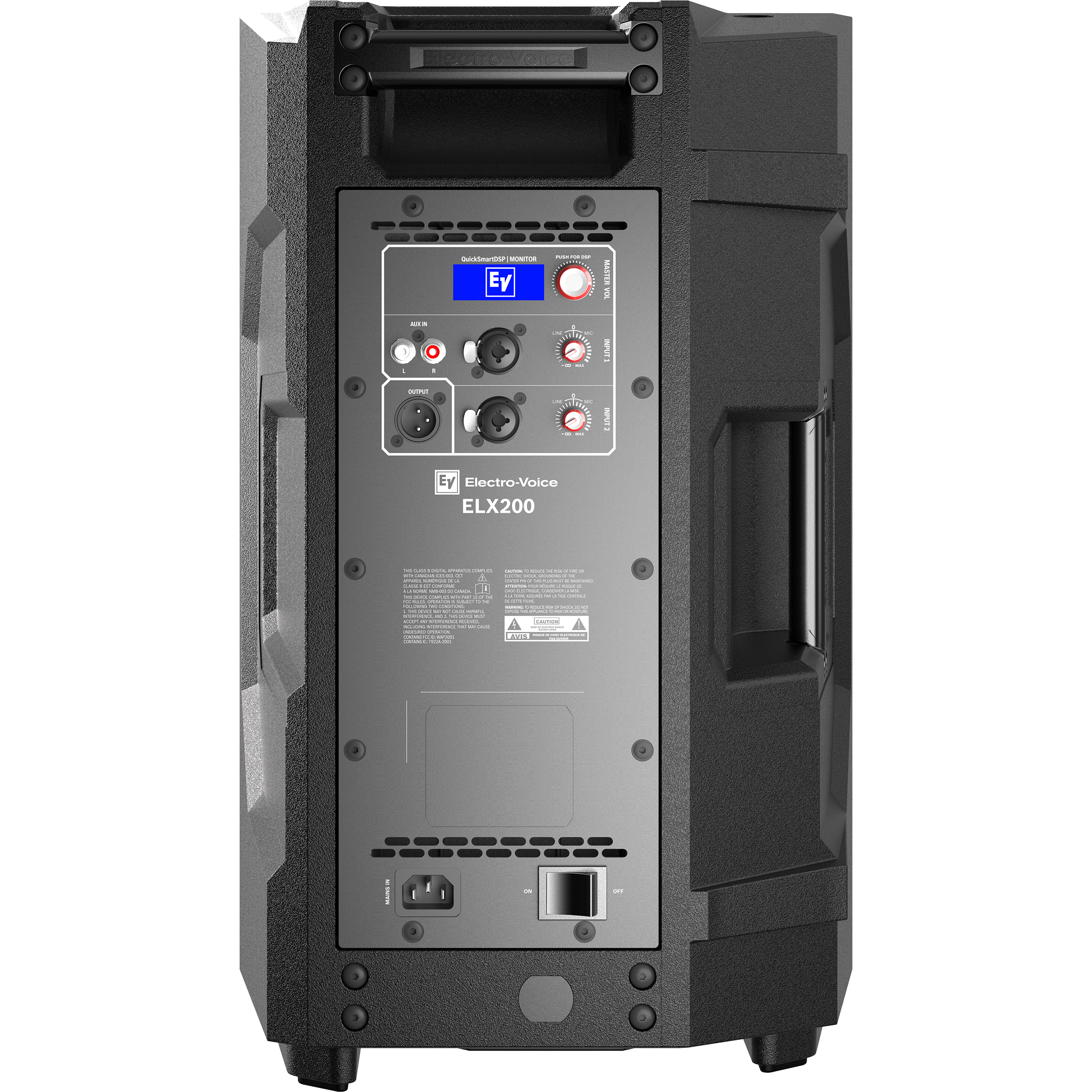

Electro-Voice ELX200 Powered Full Range Speakers

Product SKU #22124

['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU #22124"},{"id":44201461678248,"title":"ELX200-10P","option1":"ELX200-10P","option2":null,"option3":null,"sku":"22124","requires_shipping":true,"taxable":true,"featured_image":{"id":36568565973160,"product_id":7883719049384,"position":1,"created_at":"2023-07-07T12:01:26-07:00","updated_at":"2023-07-07T12:02:29-07:00","alt":"22124","width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side.png?v=1688756549","variant_ids":[44201461678248]},"available":false,"name":"Electro-Voice ELX200 Powered Full Range Speakers - ELX200-10P","public_title":"ELX200-10P","options":["ELX200-10P"],"price":79900,"weight":15876,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549826693","featured_media":{"alt":"22124","id":28987612790952,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side.png?v=1688756549"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU #22125"},{"id":44201461711016,"title":"ELX200-12P","option1":"ELX200-12P","option2":null,"option3":null,"sku":"22125","requires_shipping":true,"taxable":true,"featured_image":{"id":36568568004776,"product_id":7883719049384,"position":5,"created_at":"2023-07-07T12:01:52-07:00","updated_at":"2023-07-07T12:02:29-07:00","alt":"22125","width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side_9eacaac3-c2e7-4819-a186-e9488238e6a3.png?v=1688756549","variant_ids":[44201461711016]},"available":false,"name":"Electro-Voice ELX200 Powered Full Range Speakers - ELX200-12P","public_title":"ELX200-12P","options":["ELX200-12P"],"price":84900,"weight":18284,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549826709","featured_media":{"alt":"22125","id":28987615051944,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side_9eacaac3-c2e7-4819-a186-e9488238e6a3.png?v=1688756549"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU #22126"},{"id":44201461743784,"title":"ELX200-15P","option1":"ELX200-15P","option2":null,"option3":null,"sku":"22126","requires_shipping":true,"taxable":true,"featured_image":{"id":36568569151656,"product_id":7883719049384,"position":9,"created_at":"2023-07-07T12:02:07-07:00","updated_at":"2023-07-07T12:02:29-07:00","alt":"22126","width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side_79c4cde0-bbe1-464a-a4bd-dbe948532581.png?v=1688756549","variant_ids":[44201461743784]},"available":true,"name":"Electro-Voice ELX200 Powered Full Range Speakers - ELX200-15P","public_title":"ELX200-15P","options":["ELX200-15P"],"price":94900,"weight":22362,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549826716","featured_media":{"alt":"22126","id":28987616166056,"position":9,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200_10P_Side_79c4cde0-bbe1-464a-a4bd-dbe948532581.png?v=1688756549"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]

Model

$799.00

FREE DELIVERY

PICK UP TODAY

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8

SCHEDULE A DEMO TODAY

DESCRIPTION

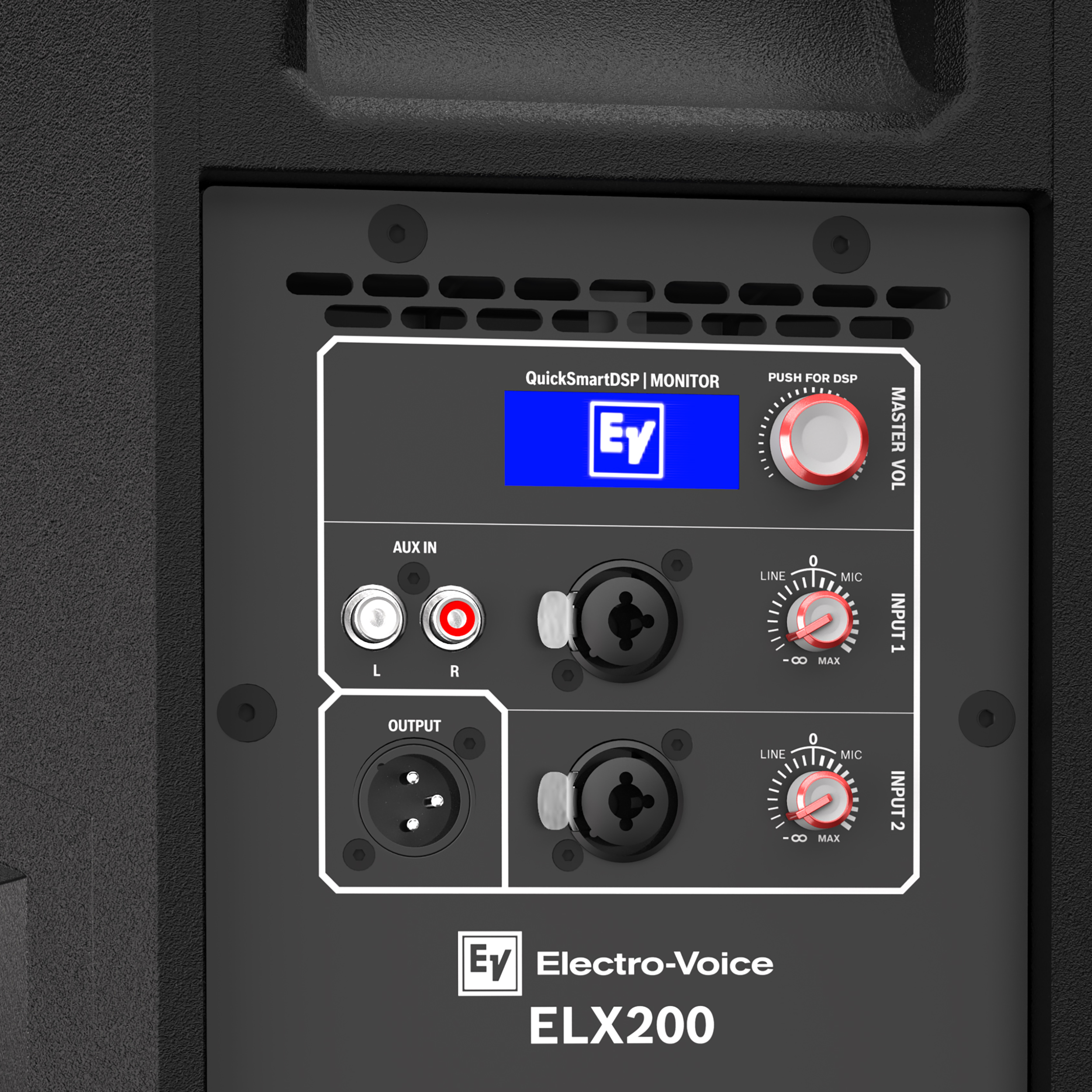

ELX200 Powered Full Range Speaker features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV. Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

FEATURES

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries. • QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD. • High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV. • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading. • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

SPECIFICATIONS

ELX200-10P Color: Black Frequency response (-3 dB): 59 Hz -18 kHz¹ Frequency range (-10 dB): 53 Hz - 20 kHz¹ Maximum SPL: 130 dB2 Coverage (H x V): 90° x 60° Power rating: 1200 W LF Transducer: EVS-10M 254 mm (10 in) HF transducer: DH-1L 1-inch titanium compression driver Crossover Frequency: 1800 Hz Connectors: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR Enclosure: Polypropylene Grille: 18 AWG steel with powdercoat Suspension: (3) M10 suspension points Dimensions (H x W x D): 21.0 in x 13.0 in x 12.6 in Net Weight: 29.9 lb Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ ELX200-12P Color: Black Frequency response (-3 dB): 57 Hz - 16 kHz¹ Frequency range (-10 dB): 51 Hz - 20 kHz¹ Maximum SPL: 130 dB² Coverage (H x V): 90° x 60° Power rating: 1200 W LF Transducer: EVS-12M 300 mm (12 in) HF transducer: DH-1L 1-inch titanium compression driver Crossover Frequency: 1700 Hz Connectors: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR Enclosure: Polypropylene Grille: 18 AWG steel with powdercoat Suspension: (3) M10 suspension points Dimensions (H x W x D): 24.8 in x 14.3 in x 13.6 in Net Weight: 34.4 lb Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ ELX200-15P Color: Black Frequency response (-3 dB): 55 Hz -16 kHz¹ Frequency range (-10 dB): 48 Hz - 19 kHz¹ Maximum SPL: 132 dB2 Coverage (H x V): 90° x 60° Power rating: 1200 W LF Transducer: EVS-15M 381 mm (15 in) HF transducer: DH-1L 1-inch titanium compression driver Crossover Frequency: 1600 Hz Connectors: (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR Enclosure: Polypropylene Grille: 18 AWG steel with powdercoat Suspension: (3) M10 suspension points Dimensions (H x W x D): 28.0 in x 16.7 in x 15.2 in Net Weight: 41.7 lb Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³

CONTENTS

(1) Electro-Voice ELX200 Powered Full Range Speaker (1) Power Cable (1) Operator's Instructions
