Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
12-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL
Frequency Range
43 Hz -- 20 kHz
Maximum SPL
135 peak dB
Power Consumption
100 -- 240 V~, 50 -- 60 Hz, 1.6 -- 0.8 A
Power Rating
2000 W
Frequency Response
55 Hz -- 20 kHz
Coverage (Nominal -6 dB) H
90 degrees
Coverage (Nominal -6 dB) V
60 degrees
LF Transducer
SMX2120 300 mm (12 in)
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
1600 Hz
Connector Type
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material
18-mm, 13-ply birch plywood with EVCoat
Grill
16AWG steel with powdercoat

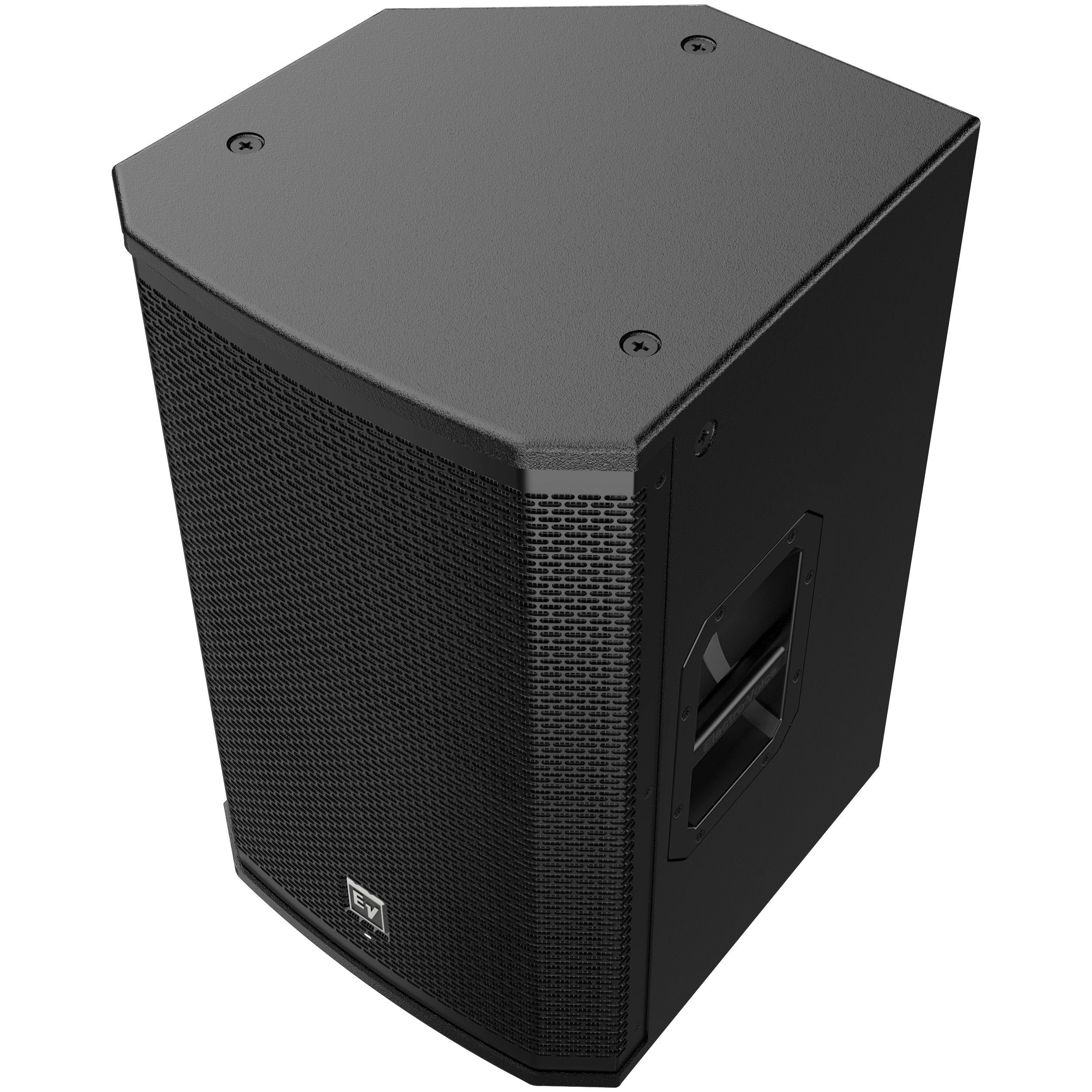

Suspension
(8) M10 suspension points
Height
613 mm (24.13")
Width
613 mm (24.13")
Width
381 mm (15")
Depth
400 mm (15.75")
Weight Net
23.6 kg (52.03 lbs)
(1) Electro Voice ETX-12P Two-Way Powered 12" Loudspeaker (1) US IEC Power Cord (1) Operator's Instructions
