Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX Powered Loudspeakers apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
15-inch LF SMX woofer
6.5-inch MF driver
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
136 dB peak SPL
Frequency Range
38 Hz -- 20 kHz
Maximum SPL
136 peak dB
Power Consumption
100 -- 240 V~, 50 -- 60 Hz, 1.6 -- 0.8 A
Power Rating
2000 W
Frequency Response
48 Hz -- 20 kHz
Coverage (Nominal -6 dB) H
60 degrees
Coverage (Nominal -6 dB) V
40 degrees
LF Transducer
SMX2151 380 mm (15 in)
MF Transducer
EVS-6C 6.5-in midbass driver
HF Transducer
DH3-B 1.25-in titanium compression driver
Crossover Frequency
700 Hz, 2900 Hz
Connector Type
(2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material
18-mm, 13-ply birch plywood with EVCoat
Grill
16AWG steel with powdercoat
Suspension

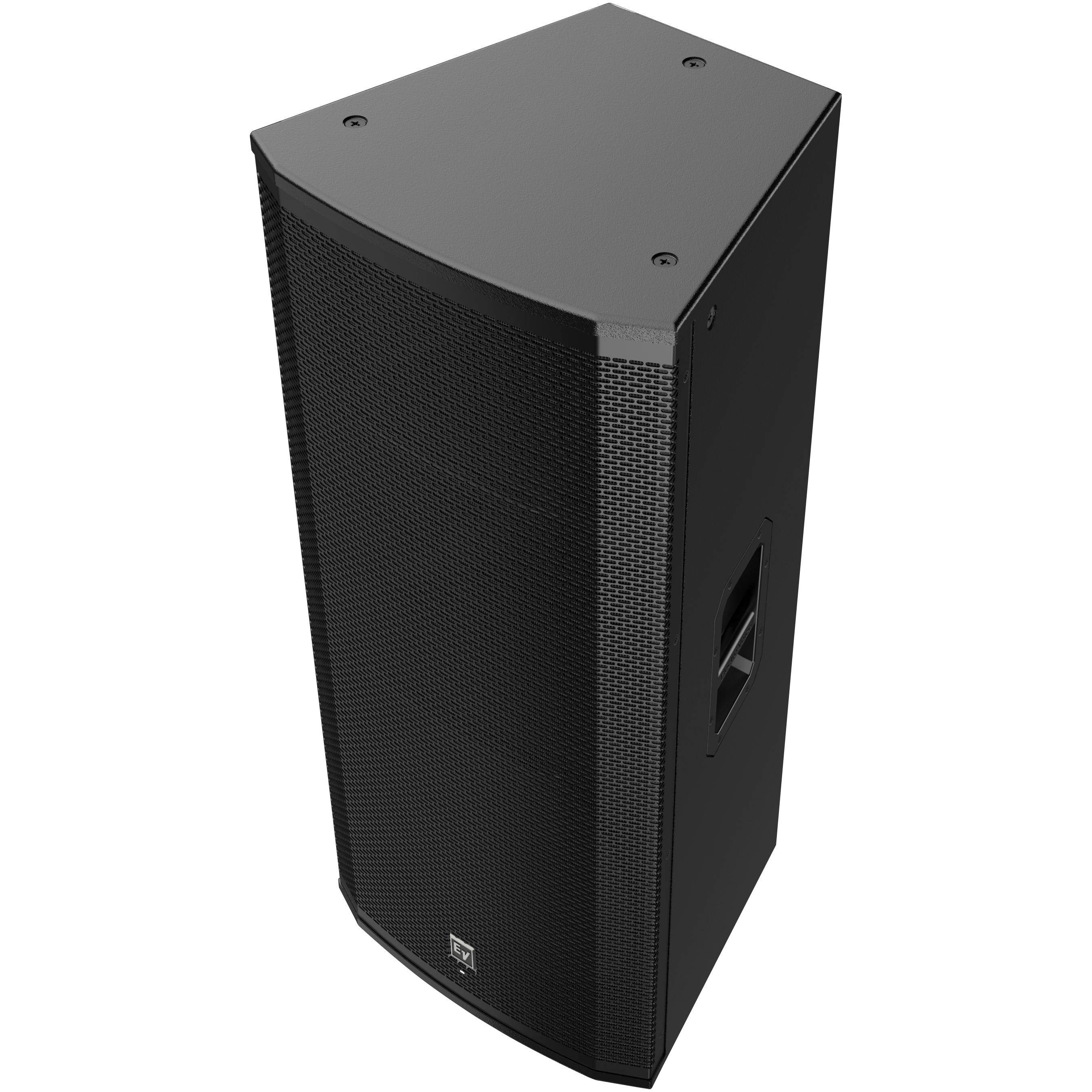

(8) M10 suspension points
Height
1023 mm (40.28")
Width
469 mm (18.46")
Depth
426 mm (16.77")
Weight Net
41.7 kg (91.93 lbs)
(1) Electro Voice ETX-35P Three Way Powered 15" Loudspeaker (1) US IEC Power Cord (1) Operator's Instructions
