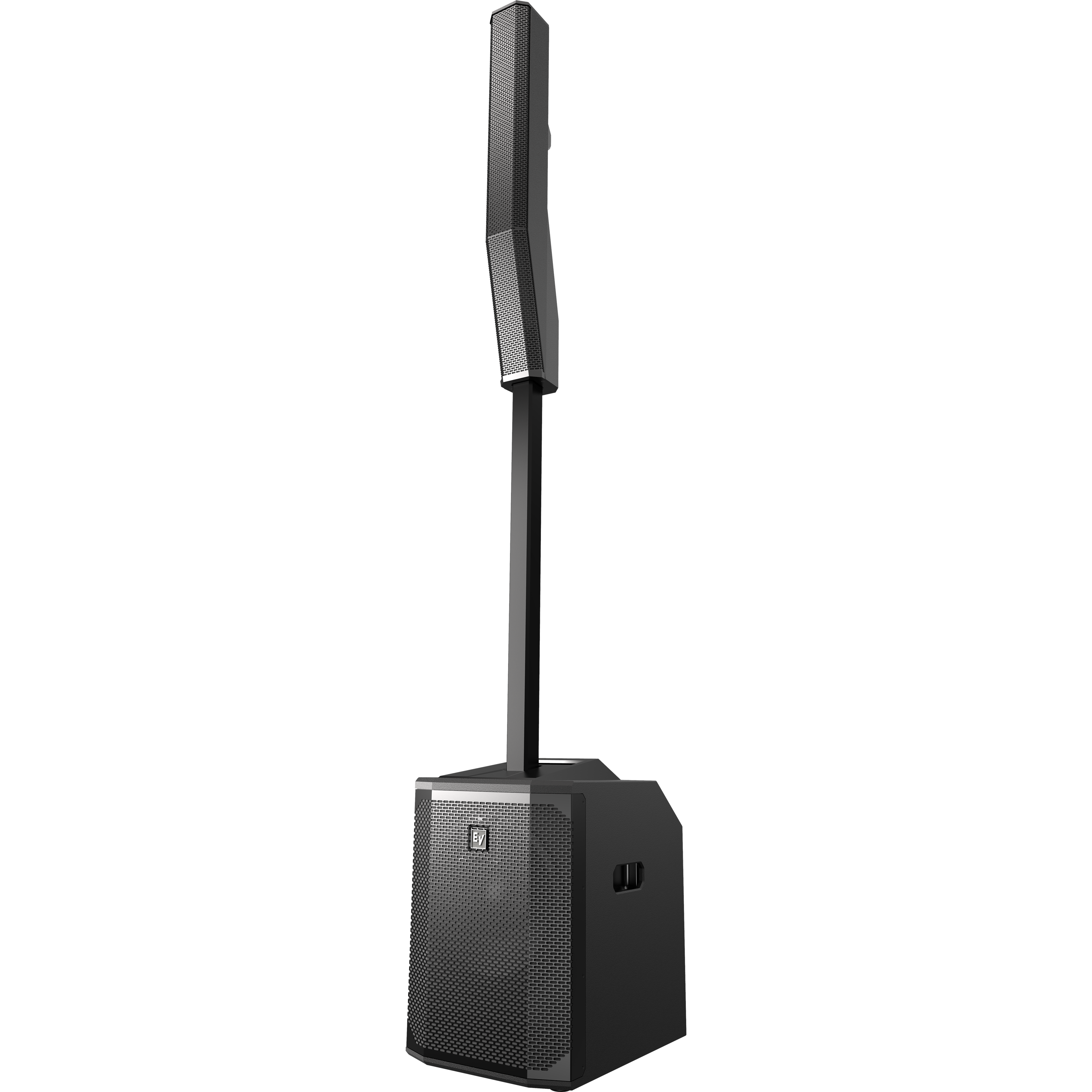

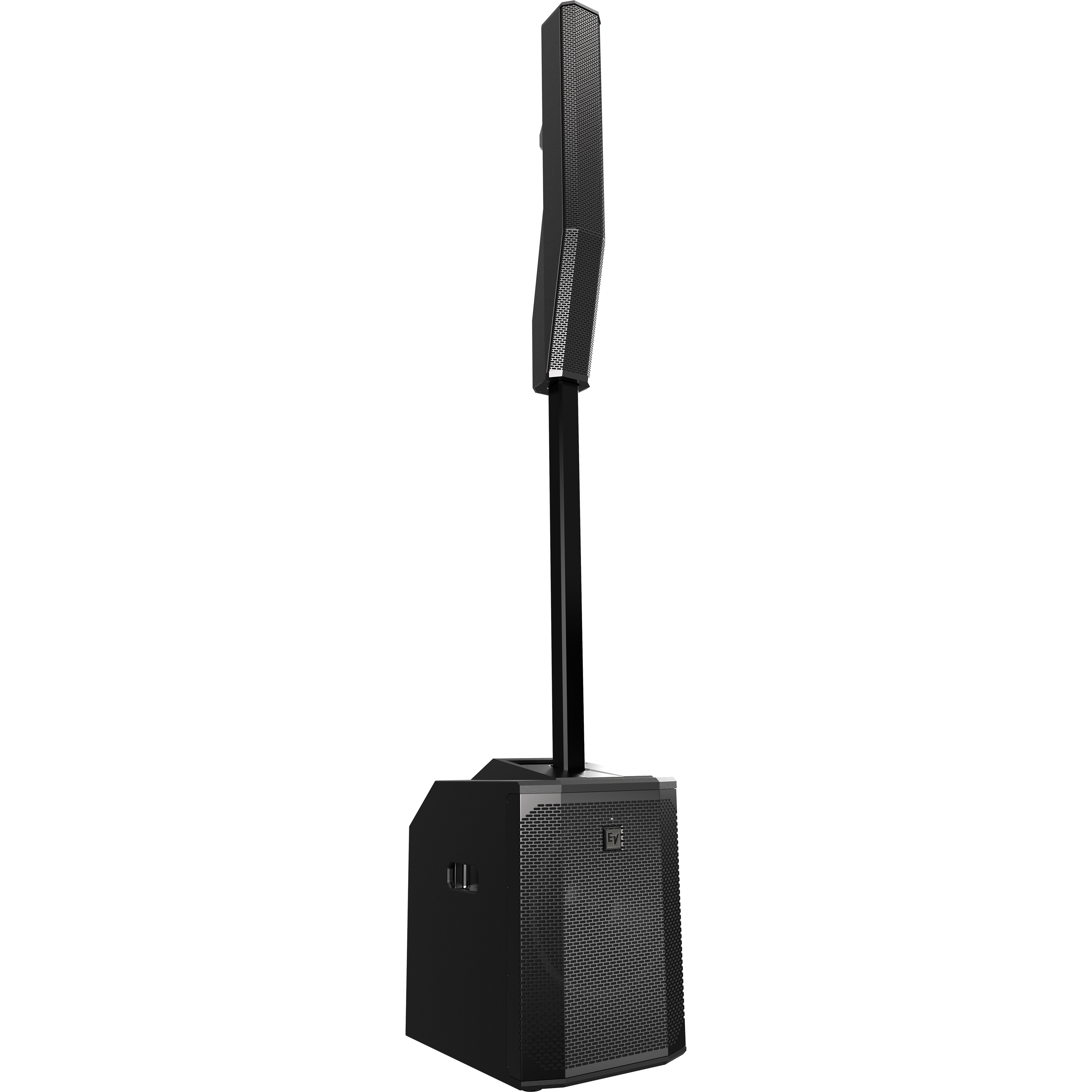

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.
The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.
The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

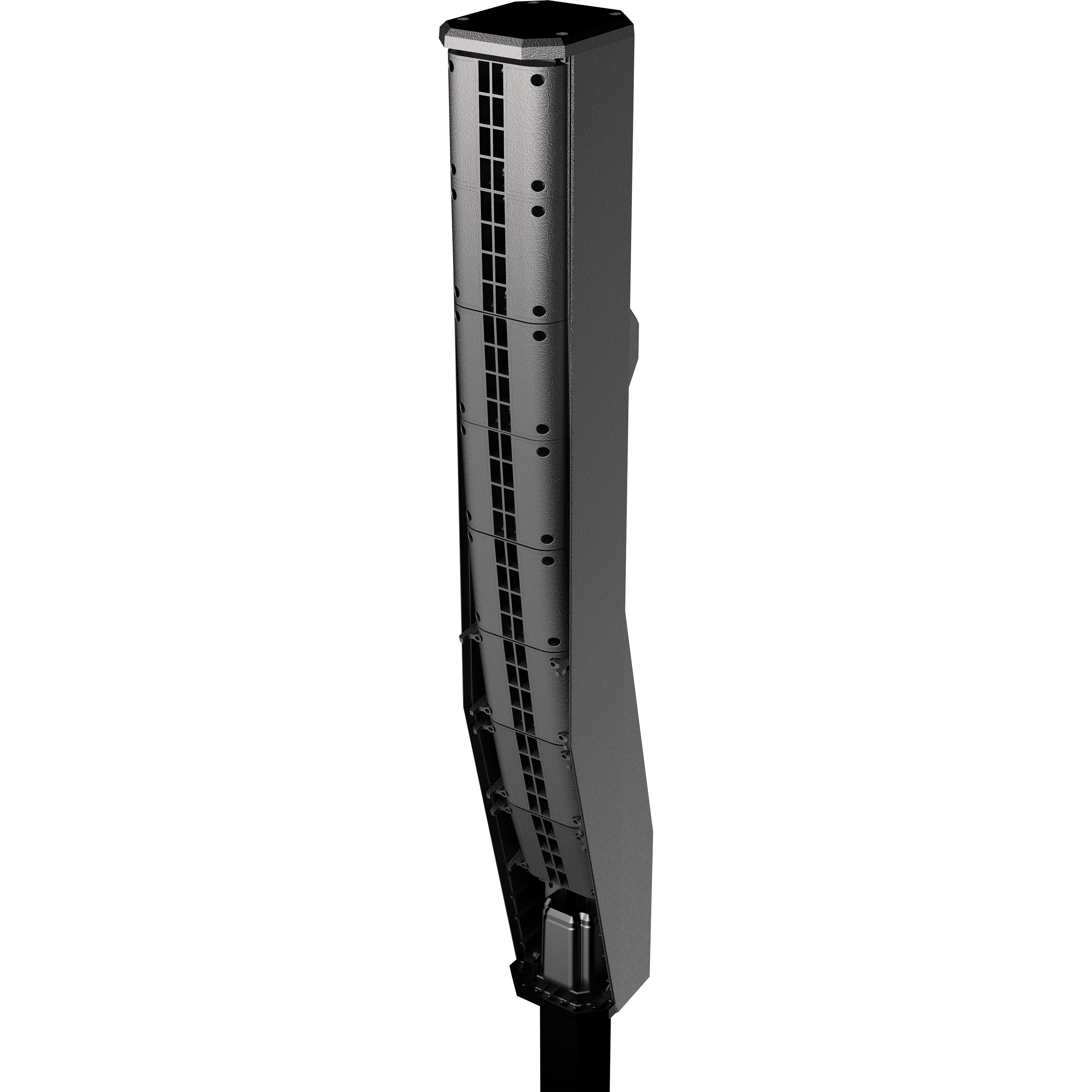

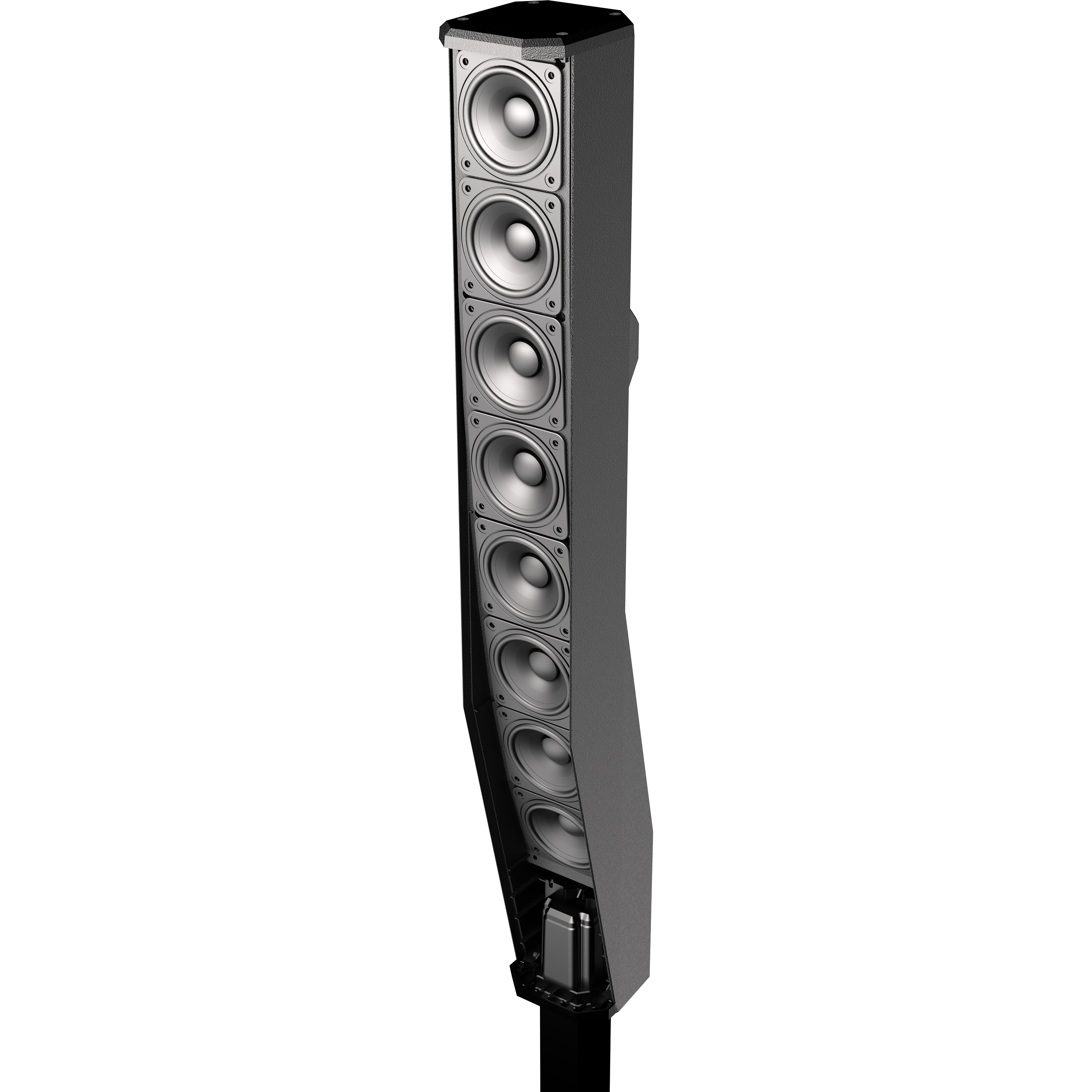

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

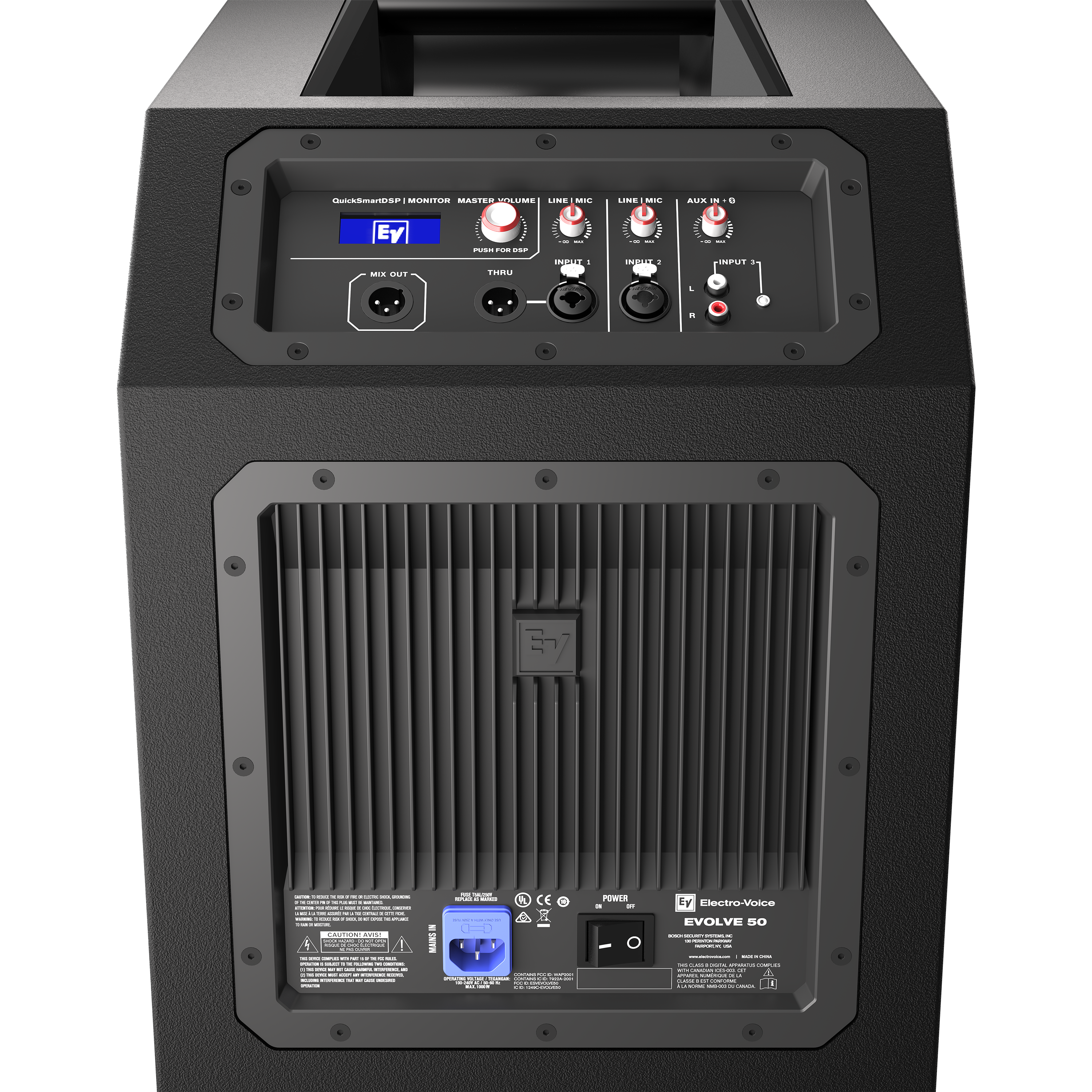

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.
Bluetooth is available in select countries
EV QuickSmart Mobile application: quickly and
wirelessly configure, control, and monitor up to
six EVOLVE 50 systems simultaneously, and
receive immediate notification during critical
performance conditions. Bluetooth®
connectivity is available in select countries.
High-quality Bluetooth® audio streaming for
background music or musical accompaniment.
Bluetooth® connectivity is available in select
Real PA performance -Legendary EV audio quality via eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
Ultra-wide 120° horizontal coverage via customdesigned waveguides and array-formed 40°
asymmetrical vertical coverage means all
acoustical energy is directed towards both
sitting and standing audiences.
QuickSmartDSP provides best-in-class
processing via EV's signature single-knob user
interface with LCD.
Ideal for portable applications. Light weight and
intuitive assembly via the magnet assisted sub
pole make a quality performance easier than
Professional performance, column convenience
- superior Electro-Voice-engineered components
and premium materials deliver best-in-class
sound quality, power and reliability
No need to bring additional gear to the gig -
onboard eight-channel digital mixer with prograde preamps and studio-quality effects
Easily expand your PA - use QuickSmart Link to
connect two EVOLVE 50Ms via a network cable
- double your mic/line inputs and mix the whole
band via the QuickSmart Mobile app
Frequency Response (-3 dB)
43 Hz-20 KHz
Frequency Range (-10 dB)
37 Hz-20 KHz
Coverage (H x V)
120° x 40°
LF Channel Rating
HF Channel Rating
EVOLVE50 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output
EVOLVE 50M4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4" TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio
1x 1/4" Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
1x RJ45 QuickSmart-Link connector
Sub: 15 mm plywood
