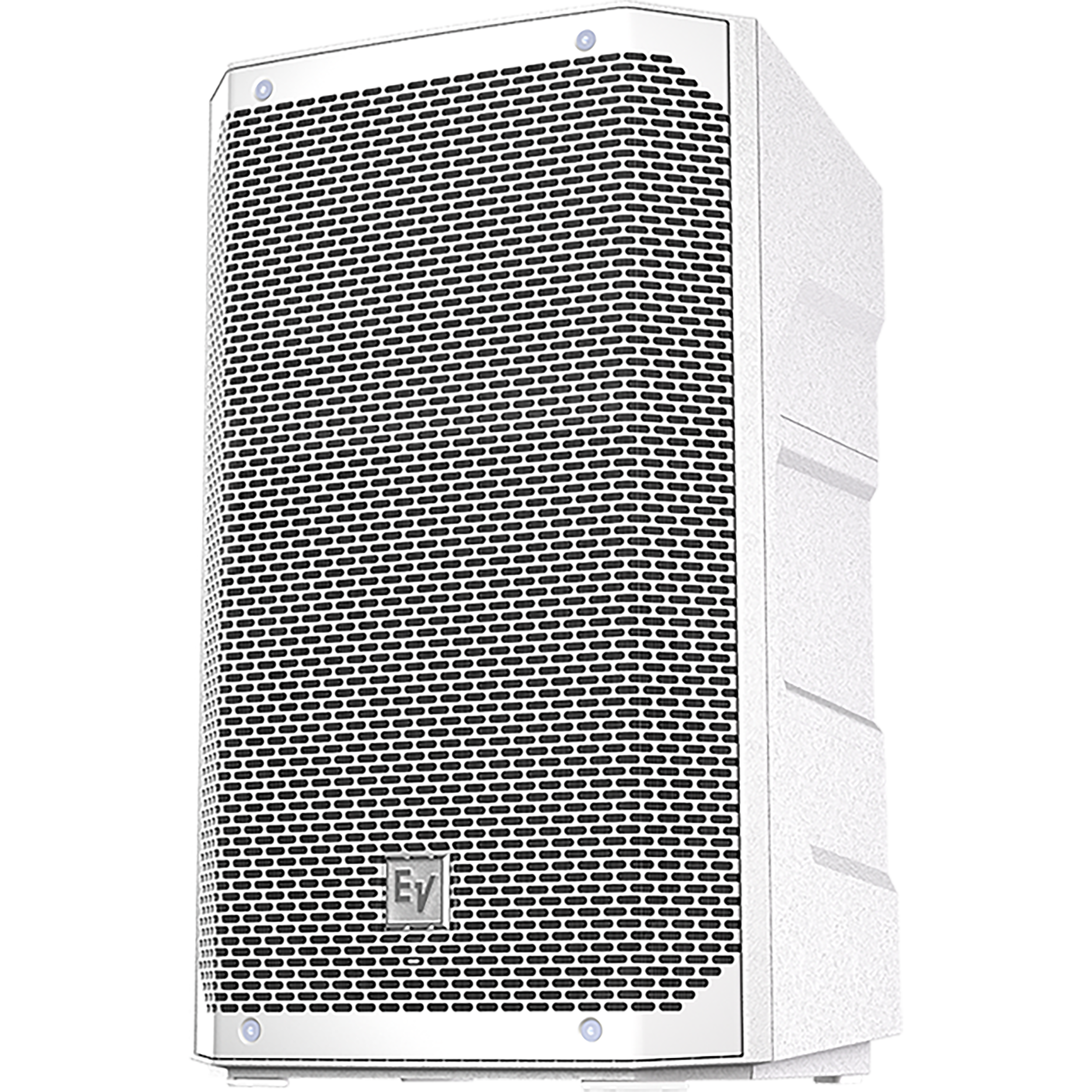

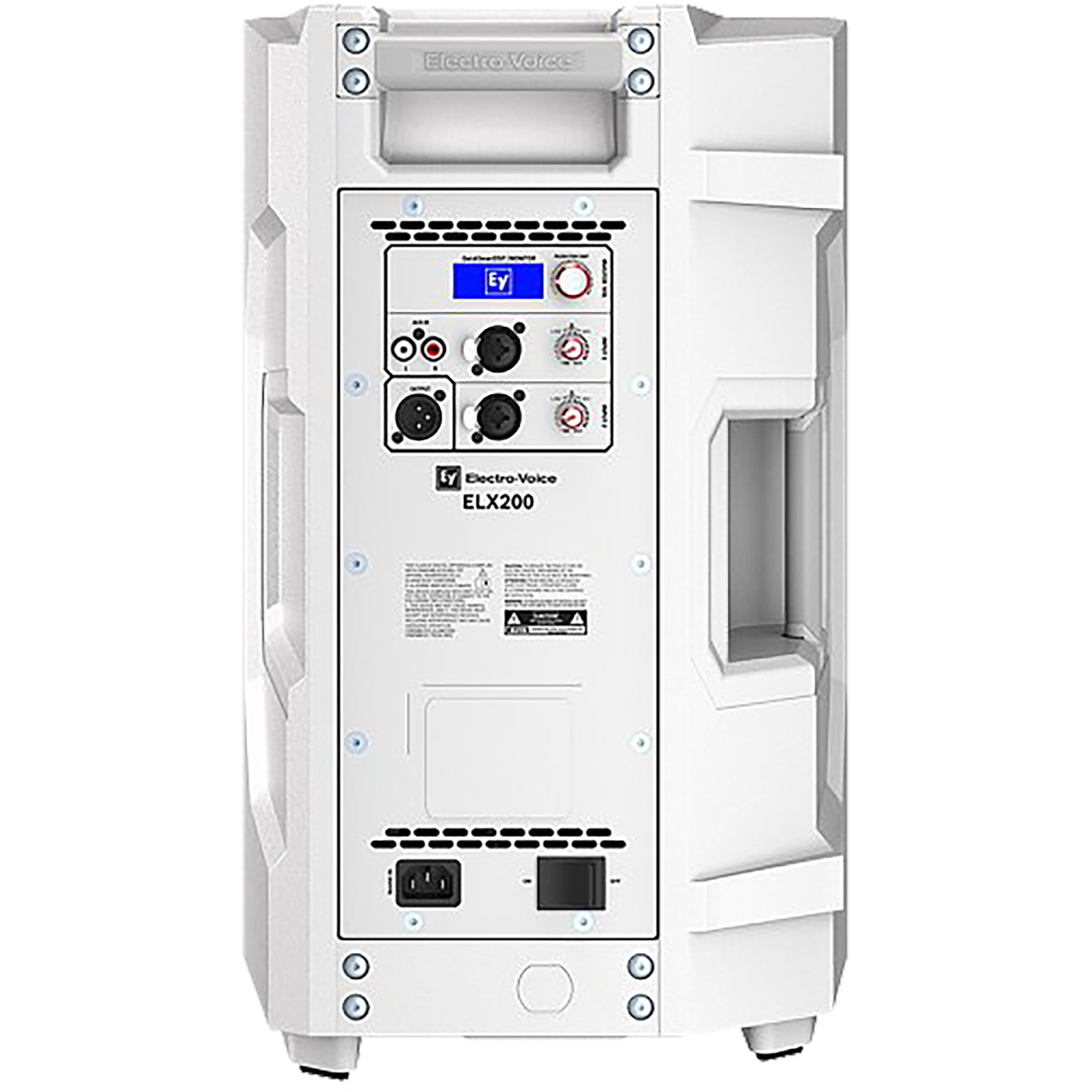

Electro-Voice White ELX200 Passive Loudspeaker
Electro-Voice White ELX200 Passive Loudspeaker
0%, only 8 left
Electro-Voice White ELX200 Passive Loudspeaker
Electro-Voice White ELX200 Passive Loudspeaker

Electro-Voice White ELX200 Passive Loudspeaker

    Product SKU # 33436
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 33436"},{"id":51766632808616,"title":"10\"","option1":"10\"","option2":null,"option3":null,"sku":"33436","requires_shipping":true,"taxable":true,"featured_image":{"id":42071195484328,"product_id":8856247206056,"position":1,"created_at":"2025-03-10T18:07:35-07:00","updated_at":"2025-03-10T18:07:37-07:00","alt":null,"width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257","variant_ids":[51766632808616,51766632841384,51766632874152]},"available":true,"name":"Electro-Voice White ELX200 Passive Loudspeaker - 10\"","public_title":"10\"","options":["10\""],"price":86700,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549939409","featured_media":{"alt":null,"id":33675740512424,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 33437"},{"id":51766632841384,"title":"12\"","option1":"12\"","option2":null,"option3":null,"sku":"33437","requires_shipping":true,"taxable":true,"featured_image":{"id":42071195484328,"product_id":8856247206056,"position":1,"created_at":"2025-03-10T18:07:35-07:00","updated_at":"2025-03-10T18:07:37-07:00","alt":null,"width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257","variant_ids":[51766632808616,51766632841384,51766632874152]},"available":true,"name":"Electro-Voice White ELX200 Passive Loudspeaker - 12\"","public_title":"12\"","options":["12\""],"price":95500,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549939416","featured_media":{"alt":null,"id":33675740512424,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 33438"},{"id":51766632874152,"title":"15\"","option1":"15\"","option2":null,"option3":null,"sku":"33438","requires_shipping":true,"taxable":true,"featured_image":{"id":42071195484328,"product_id":8856247206056,"position":1,"created_at":"2025-03-10T18:07:35-07:00","updated_at":"2025-03-10T18:07:37-07:00","alt":null,"width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257","variant_ids":[51766632808616,51766632841384,51766632874152]},"available":true,"name":"Electro-Voice White ELX200 Passive Loudspeaker - 15\"","public_title":"15\"","options":["15\""],"price":113000,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"800549939423","featured_media":{"alt":null,"id":33675740512424,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/ELX200-10P_White_Front.png?v=1741655257"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$867.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
DESCRIPTION

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

FEATURES
    • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
    • 1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
    • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
    • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
    • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
SPECIFICATIONS
    ELX200-10
    • Suspension: (3) M10 suspension points
    • Minimum Impedance: 7.2Ω
    • HF Transducer: DH-1L 1-inch titanium compression driver
    • Speaker Type: Full-Range
    • Woofer Size: 10inch
    • Powered or Passive: Passive
    • Frequency Response (-3 dB)¹: 65 Hz - 20 kHz
    • Frequency Range (-10 dB)¹: 49 Hz - 22 kHz
    • Max. SPL/1m (calc)²: 127dB
    • Coverage (Nominal -6 dB) H: 90°
    • Coverage (Nominal -6 dB) V: 60°
    • LF Transducer: EVS-10M 254 mm (10 in)
    • Power Rating: 1200W
    • Crossover Frequency: 2 kHz
    • Connector type: Dual NL4
    • Enclosure Material: Polypropylene Composite
    • Grille: 18 AWG steel with powdercoat
    • Available Color: Black or White
    • Height: 20.91" (531mm)
    • Recommended High-Pass Frequency: 55Hz
    • Width: 12.99" (330mm)
    • Depth: 12.56" (319mm)
    • Weight Net: 29.54lbs (13.4kg)
    • Shipping Weight: 33.73lbs (15.3kg)
    • Family: ELX200
    • Power Handling (Continuous / Peak): 300 W/1200W
    • Nominal Impedance: 8Ω
    • Axial Sensitivity (SPL, 1 W @ 1 m): 90dB

    ELX-200-12
    • Suspension: (3) M10 suspension points
    • Minimum Impedance: 7.5Ω
    • HF Transducer: DH-1L 1-inch titanium compression driver
    • Speaker Type: Full-Range
    • Woofer Size: 12inch
    • Powered or Passive: Passive
    • Frequency Response (-3 dB)¹: 77 Hz - 17 kHz
    • Frequency Range (-10 dB)¹: 51 Hz - 20 kHz
    • Max. SPL/1m (calc)²: 128dB
    • Coverage (Nominal -6 dB) H: 90°
    • Coverage (Nominal -6 dB) V: 60°
    • LF Transducer: EVS-12M 300 mm (12 in)
    • Power Rating: 1200W
    • Crossover Frequency: 1.7 kHz
    • Connector type: Dual NL4
    • Enclosure Material: Polypropylene Composite
    • Grille: 18 AWG steel with powdercoat
    • Available Color: Black or White
    • Height: 24.76" (629mm)
    • Recommended High-Pass Frequency: 50 Hz
    • Width: 14.29" (363mm)
    • Depth: 13.54" (344mm)
    • Weight Net: 33.51lbs (15.2kg)
    • Shipping Weight: 37.7lbs (17.1kg)
    • Family: ELX200
    • Axial Sensitivity (SPL, 1 W @ 1 m): 93dB
    • Power Handling (Continuous / Peak): 300W/1200W
    • Axial Sensitivity (SPL, 1 W @ 1 m): 90dB
    • Nominal Impedance: 8Ω

    ELX200-15
    • Suspension: (3) M10 suspension points
    • Minimum Impedance: 7Ω
    • HF Transducer: DH-1L 1-inch titanium compression driver
    • Speaker Type: Full-Range
    • Woofer Size: 15inch
    • Powered or Passive: Passive
    • Frequency Response (-3 dB)¹: 77 Hz - 16 kHz
    • Frequency Range (-10 dB)¹: 52 Hz - 19 kHz
    • Max. SPL/1m (calc)²: 130dB
    • Coverage (Nominal -6 dB) H: 90°
    • Coverage (Nominal -6 dB) V: 60°
    • LF Transducer: EVS-15M 381 mm (15 in)
    • Power Rating: 1200W
    • Crossover Frequency: 1.6 kHz
    • Connector type: Dual NL4
    • Enclosure Material: Polypropylene Composite
    • Grille: 18 AWG steel with powdercoat
    • Available Color: Black or White
    • Height: 27.95" (710mm)
    • Recommended High-Pass Frequency: 42 Hz
    • Width: 16.65" (423mm)
    • Depth: 15.12" (384mm)
    • Weight Net: 41.23lbs (18.7kg)
    • Shipping Weight: 47.18lbs (21.4kg)
    • Family: ELX200
    • Axial Sensitivity (SPL, 1 W @ 1 m): 95dB
    • Power Handling (Continuous / Peak): 300W/1200W
    • Nominal Impedance: 8Ω


CONTENTS
    • (1) Electro-Voice ELX200 2-Way Passive Speaker in White
    • (1) Power Cable
    • (1) Operator's Instructions
