LEA 2 Channel Smart Amplifier with Dante

    Product SKU # 31712
['{"currentVariantId":"44361483419816","currentType":"single_line_text_field","currentKey":"variation_sku","currentProps":{"badgeWidth":28,"badgeHeight":28,"showDate":true,"dateFormat":"%m-%d-%Y","showTime":true,"timeFormat":"%I:%M %p","showTimezone":true,"showUnit":true,"showMaxScale":true,"trueValText":"TRUE","falseValText":"FALSE","linkToUrl":true,"linkText":null}}',[{"variation_sku":"Product SKU # 31712"},{"id":44453264097448,"title":"Connect 352 - 2x 350 Watts","option1":"Connect 352 - 2x 350 Watts","option2":null,"option3":null,"sku":"31712","requires_shipping":true,"taxable":true,"featured_image":{"id":36673010303144,"product_id":7906399453352,"position":3,"created_at":"2023-07-27T20:09:20-07:00","updated_at":"2023-08-03T10:15:52-07:00","alt":"31712","width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/CS352D_1.png?v=1691082952","variant_ids":[44453264097448]},"available":true,"name":"LEA 2 Channel Smart Amplifier with Dante - Connect 352 - 2x 350 Watts","public_title":"Connect 352 - 2x 350 Watts","options":["Connect 352 - 2x 350 Watts"],"price":385800,"weight":7893,"compare_at_price":null,"inventory_management":"shopify","barcode":"850011348482","featured_media":{"alt":"31712","id":29093451530408,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/CS352D_1.png?v=1691082952"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], [{"variation_sku":"Product SKU # 31706"},{"id":44453264130216,"title":"Connect 702 - 2x 700 Watts","option1":"Connect 702 - 2x 700 Watts","option2":null,"option3":null,"sku":"31706","requires_shipping":true,"taxable":true,"featured_image":{"id":36673010139304,"product_id":7906399453352,"position":5,"created_at":"2023-07-27T20:09:20-07:00","updated_at":"2023-08-03T10:15:52-07:00","alt":"31706","width":2500,"height":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/CS702D_1.png?v=1691082952","variant_ids":[44453264130216]},"available":true,"name":"LEA 2 Channel Smart Amplifier with Dante - Connect 702 - 2x 700 Watts","public_title":"Connect 702 - 2x 700 Watts","options":["Connect 702 - 2x 700 Watts"],"price":313600,"weight":7893,"compare_at_price":null,"inventory_management":"shopify","barcode":"850011348499","featured_media":{"alt":"31706","id":29093451628712,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/www.avbyfp.com\/cdn\/shop\/files\/CS702D_1.png?v=1691082952"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},], ]
$3,858.00
1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43
FREE SHIPPING
2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

CHRISTIAN.png__PID:56b62e6c-9b7a-4608-a7da-0056a14b24c8
DESCRIPTION

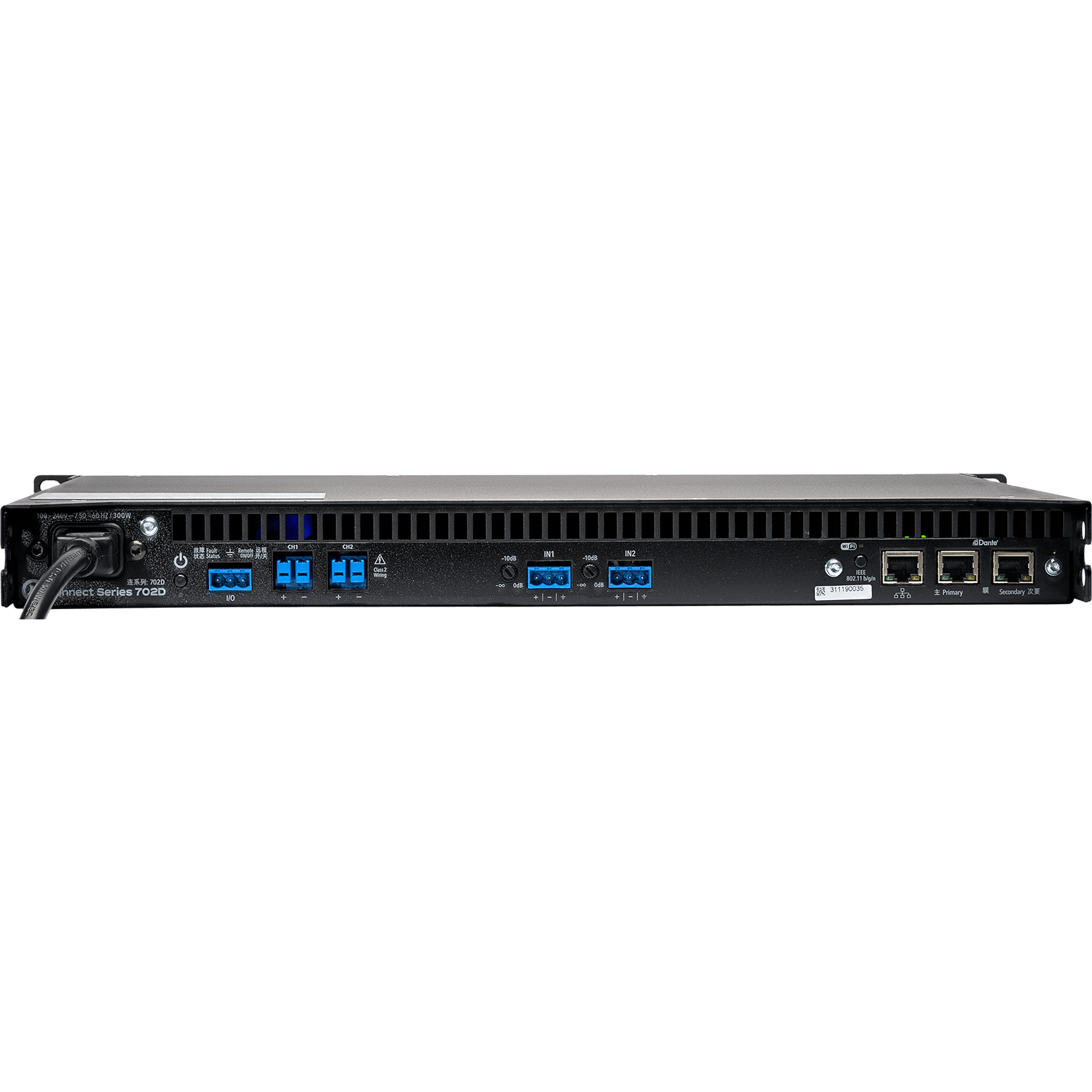

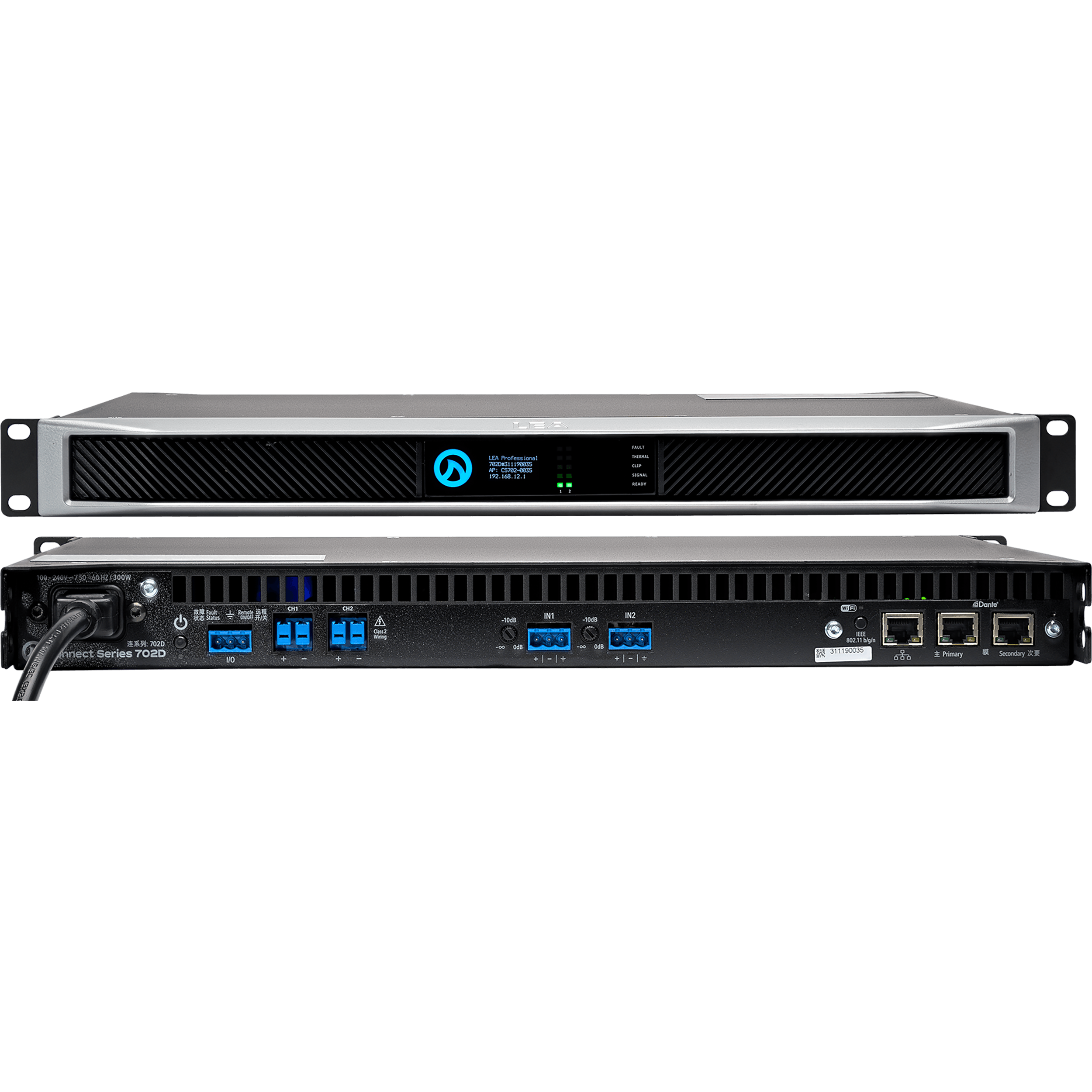

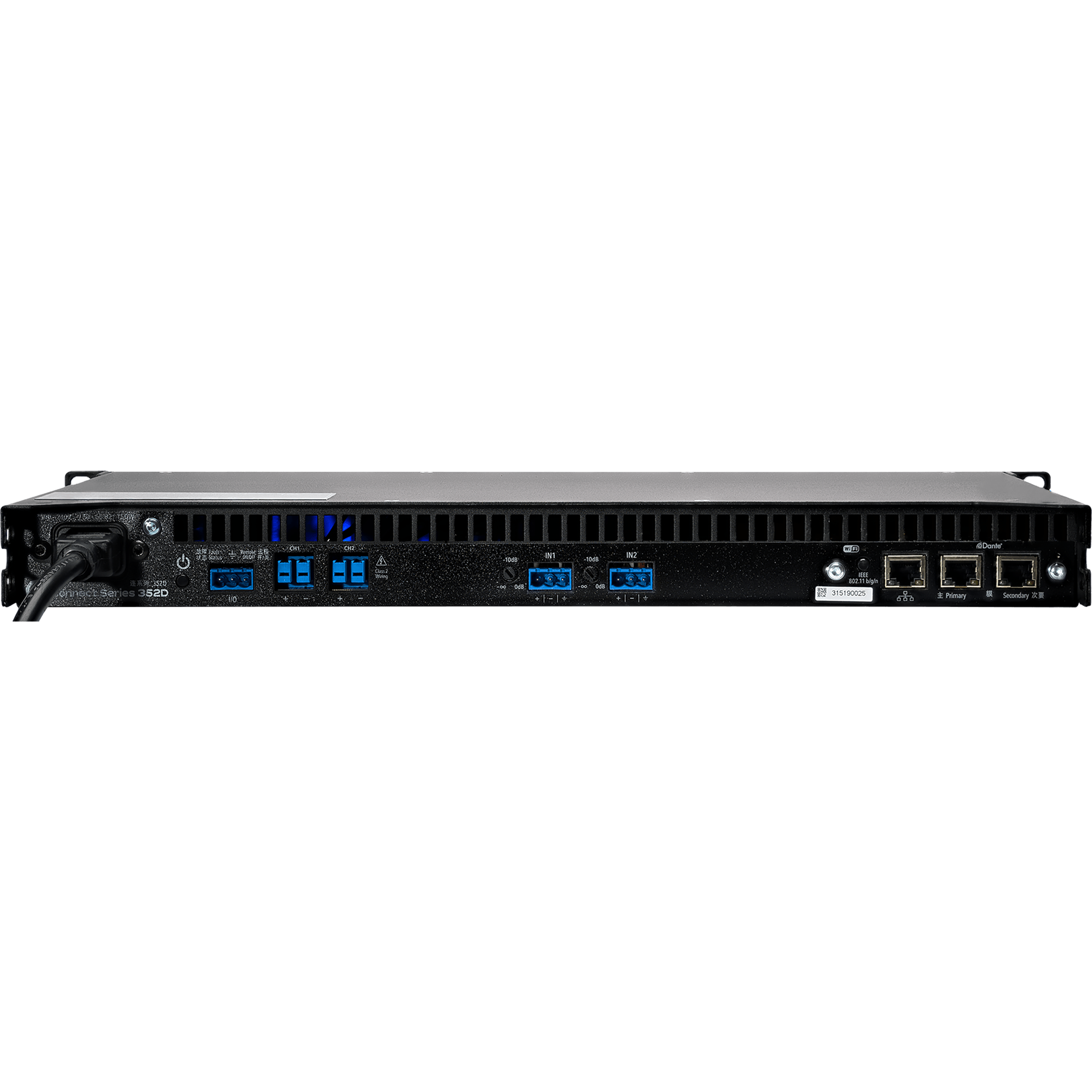

The CONNECTSERIES 352D and 702D are 2-channel amplifiers with 350 to 700 watts per channel. As part of the Dante CONNECTSERIES, the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers, it is perfectly suited for small to medium-scale installations. The connectseries features direct HiZ (70V or 100V) or LoZ selectable by channel. With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.

FEATURES
    • Connect 352D
    • Multiple Ways to Connect
    • Works on any web browser on any device with NO software downloads
    • Remote control and monitoring from anywhere in the world, NO VPN needed
    • 70V or 100V selectable channel
    • Double the power any single channel without sacrificing other amp channels
    • Universal Switch-Mode power supply
    • Fully routable via input matrix in Web UI or Cloud platform
    • 96K Analog devices D SP
    • External I/O Port
    • Has low AC Current draw

    • Connect 702D
    • Multiple Ways to Connect
    • Works on any web browser on any device with NO software downloads
    • Remote control and monitoring from anywhere in the world, NO VPN needed
    • 70V or 100V selectable channel
    • Double the power any single channel without sacrificing other amp channels
    • Universal Switch-Mode power supply
    • Fully routable via input matrix in Web UI or Cloud platform
    • 96K Analog devices D SP
    • External I/O Port
    • Has low AC Current draw


SPECIFICATIONS
    • Connect 352D
    • Product Weight: 10 lb
    • Dimensions (L x W x H): 14.25" x 19" x 1U
    • Channel: 2
    • Watts per Channel: 350 watts
    • Cooling: Front to Rear Variable Fan speed cooling
    • Power Supply: Universal Switch Mode Power Supply with Power Factor Correction
    • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
    • Inputs: Analog: 2 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
    • THD+N: 0.1% (20Hz to 20kHz)
    • Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
    • User Interface: Web Browser User Interface, 3rd Party API control, or CLOUD control
    • External I/O: External I/O In: Toggles Remote On/Off, External I/O Out: Indicates Amplifier Health

    • Connect 702D
    • Product Weight: 10 lb
    • Dimensions (L x W x H): 14.25" x 19" x 1U
    • Channel: 2
    • Watts per Channel: 700 watts
    • Cooling: Front to Rear Variable Fan speed cooling
    • Power Supply: Universal Switch Mode Power Supply with Power Factor Correction
    • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
    • Inputs: Analog: 2 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
    • THD+N: 0.1% (20Hz to 20kHz)
    • Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
    • User Interface: Web Browser User Interface, 3rd Party API control, or CLOUD control
    • External I/O: External I/O In: Toggles Remote On/Off, External I/O Out: Indicates Amplifier Health
CONTENTS
    Connect 352D
    (1) LEA Connect 352D - 2 Channel Smart Amplifier with Dante
    (2) Removable/Washable front panel Foam Filters
    (3) 3-position 5.08mm Amphenol Anytek Input Connector
    (4) 2 position 7.62mm Amphenol Anytek Output Connectors
    (1) IEC Power Cord
    (1) Quick Start Guide
    (1) Record of Excellence
    (1) Welcome Card
    (1) Sticker

    Connect 702D
    (1) LEA Connect 702 2 Channel Smart Amplifier
    (2) Removable/Washable front panel Foam Filters
    (3) 3-position 5.08mm Amphenol Anytek Input Connector
    (4) 2 position 7.62mm Amphenol Anytek Output Connectors
    (1) IEC Power Cord
    (1) Quick Start Guide
    (1) Record of Excellence
    (1) Welcome Card
    (1) Sticker
