MA Lighting grandMA3 Compact Controller
19%, only 0 left
MA Lighting grandMA3 Compact Controller
Product SKU
    33324

MA Lighting grandMA3 Compact Controller

$30,699.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

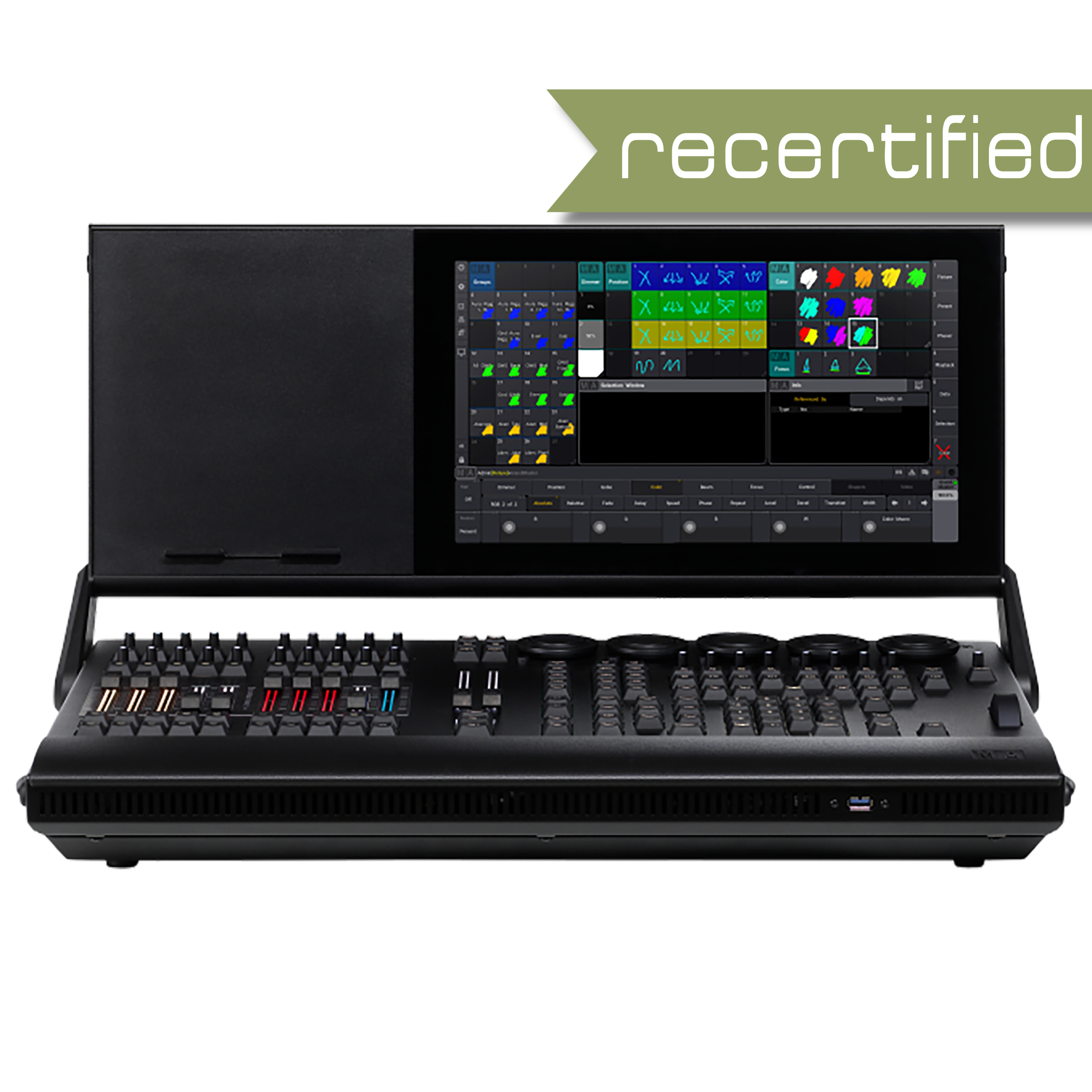

The grandMA3 compact console is the smaller of the two compact models, offering the full system benefits of the grandMA3 system, housed in a compact and lightweight format. Easy to transport, the compact models are ideal for owner/operators and also the console of choice for tech-desk duties.

The compact console features a huge multi-touch monitor, 5 dual encoders and a complete command area almost identical to the larger models.

With 40 physical playbacks, 16 assignable x-keys and a dedicated master area the grandMA3 compact console provides plenty of playback options.

The grandMA3 compact console includes 8 192 control parameters as standard, making it an ideal choice for small and medium sized professional entertainment lighting applications. The system size is scalable to 250 000 parameters with the use of additional grandMA3 processing units.

The grandMA3 compact is compatible with grandMA2 and grandMA3 software.

FEATURES
    • Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
    • 6 DMX outputs, 1 DMX input
    • 1 internal foldable monitor multi-touch screen
    • 1 external multi-touch screen can be connected
    • 29 rotary RGB backlit encoder
    • 5 dual encoders
    • 10 backlit motorized 60 mm faders
    • 40 separate playbacks
    • 16 assignable x-keys
    • 3 etherCON connectors, 5 USB connectors
    • 2 backlit motorized A/B faders 100 mm
    • Individually backlit and dimmable silent (clickless) keys
SPECIFICATIONS
    • Parameters: 8 192 (HTP/LTP)
    • Parameters Mode2: 4 096 (HTP/LTP)
    • Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
    • Power: max. 250 VA
    • Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
    • Dimensions: 661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in WxDxH unfolded
    • Net weight: 16 kg / 36 lbs
    • Connectors: 1 x powerCON TRUE1, 3 x etherCON/RJ45, 6 x DMX512-A Out (5pin XLR female), 1 x DMX512-A In (5pin XLR male), 1 x MIDI In (5pin DIN female), 1 x MIDI Out (5pin DIN female), 1 x Linear Timecode (3pin XLR female), 1 x Audio In (3pin XLR female), 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control, 1 x DisplayPort 1.2 for external screens, 2 x S/PDIF In and Out, 3 x USB 2.0 (type A), 2 x USB 3.0 (type A), 1 x LED desk light (4pin XLR female)
CONTENTS
    (1) MA grandMA3 Compact Console
    (1) MA LED desk light grandMA3 straight plug XLR 4pin, length 27", including cover
    (1) MA Magnetic plate for easy labeling of 10 faders
    (1) Dust cover grandMA3 compact
    (1) MA Quick Manual for grandMA3 consoles, grandMA3 replay unit and grandMA3 extension
