Product SKU
    21958

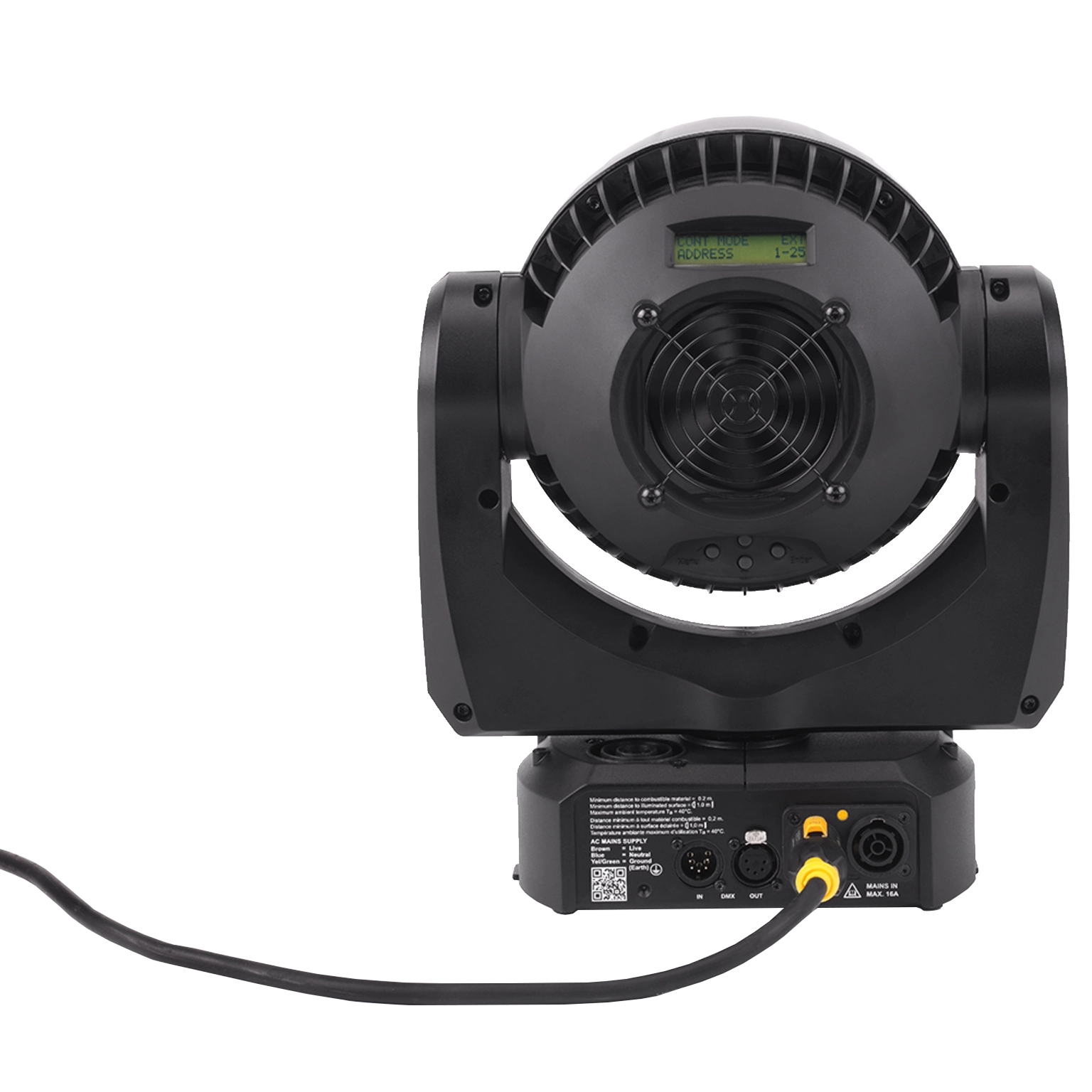

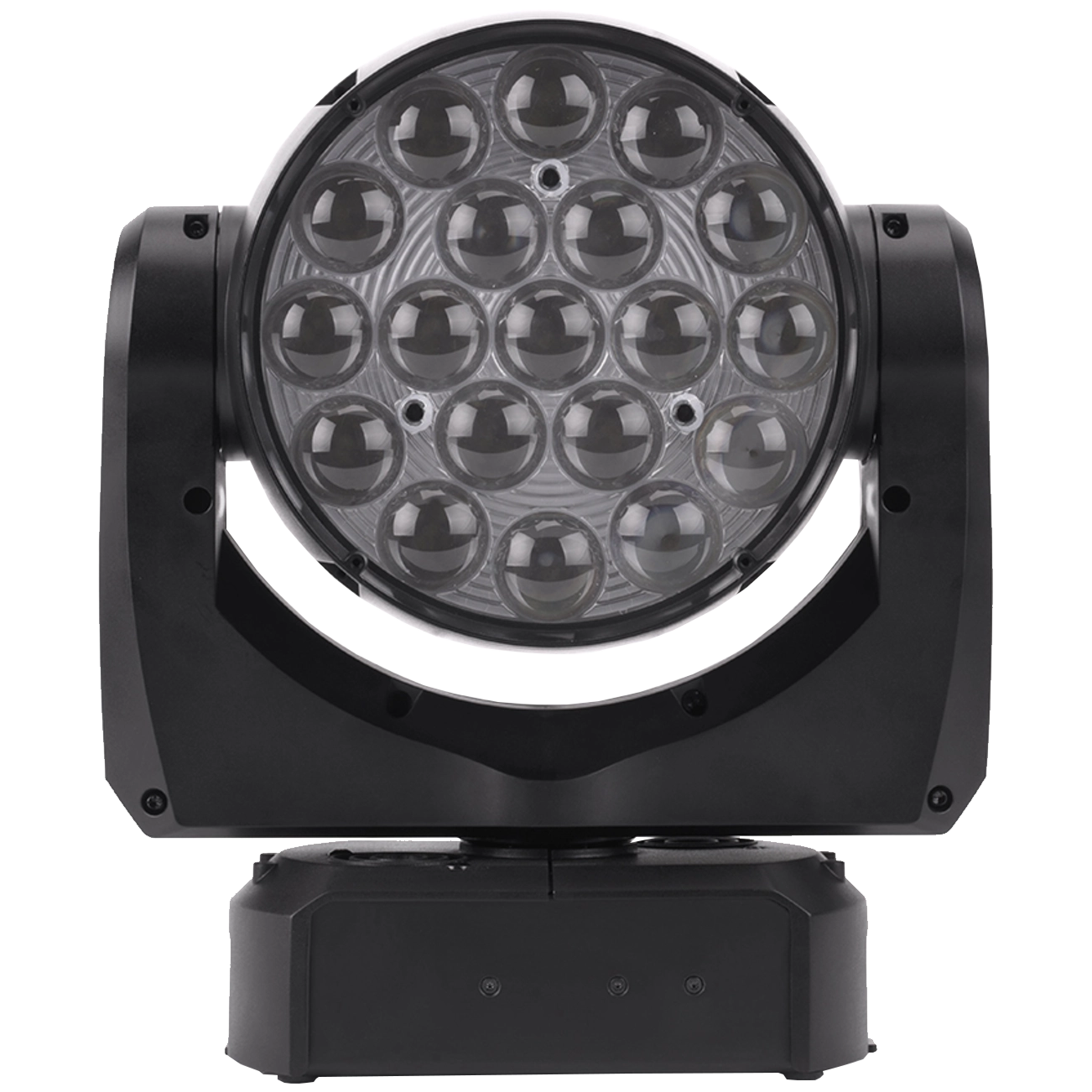

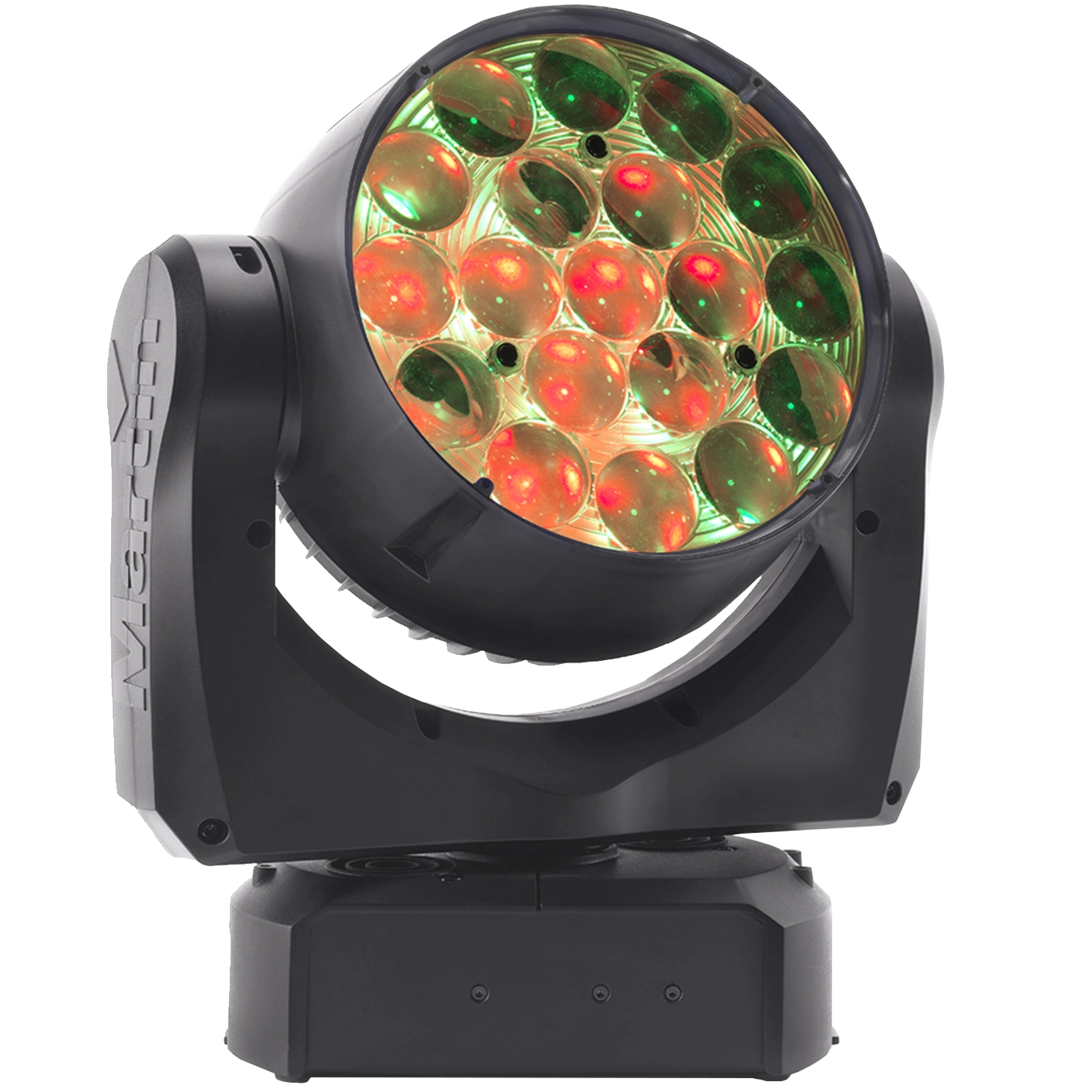

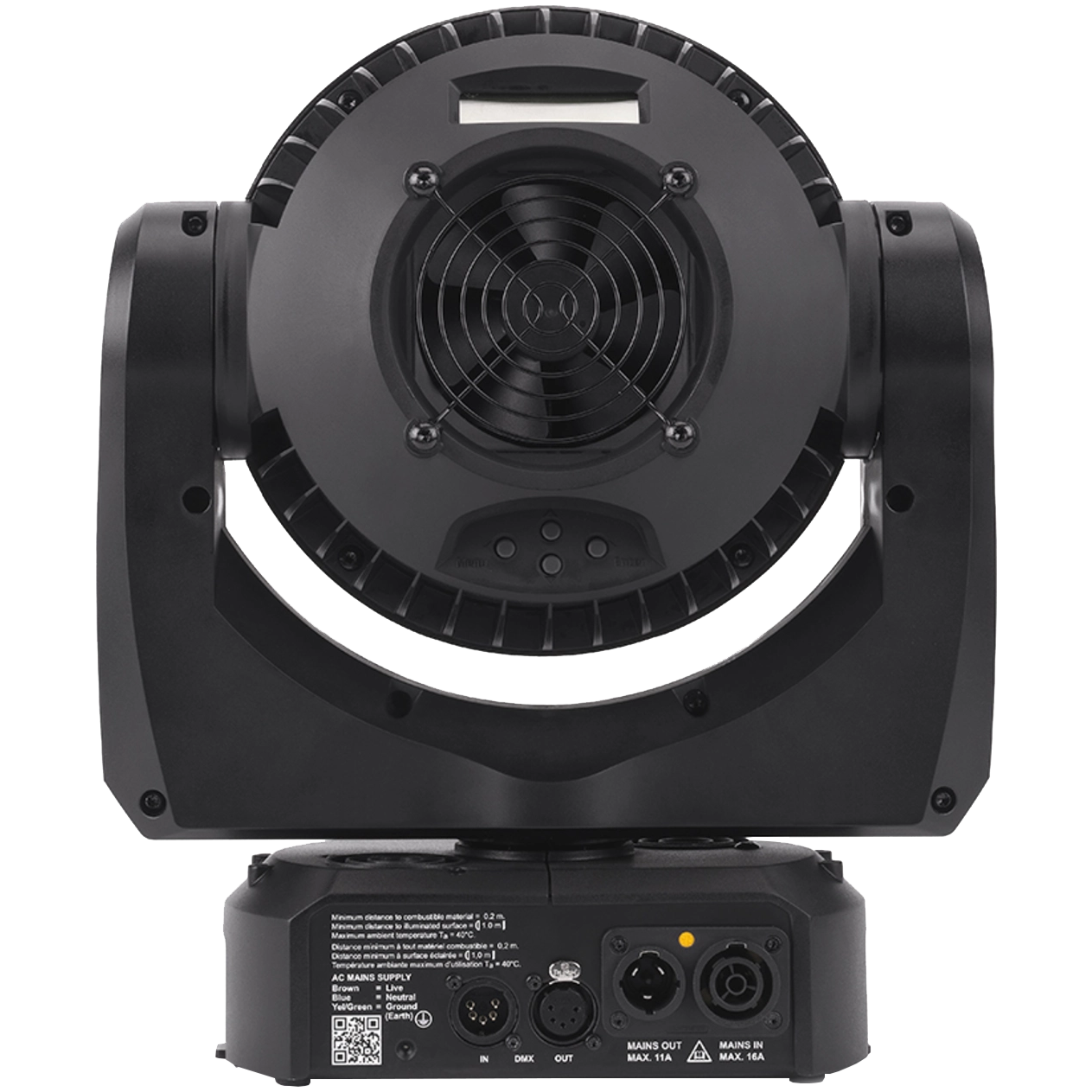

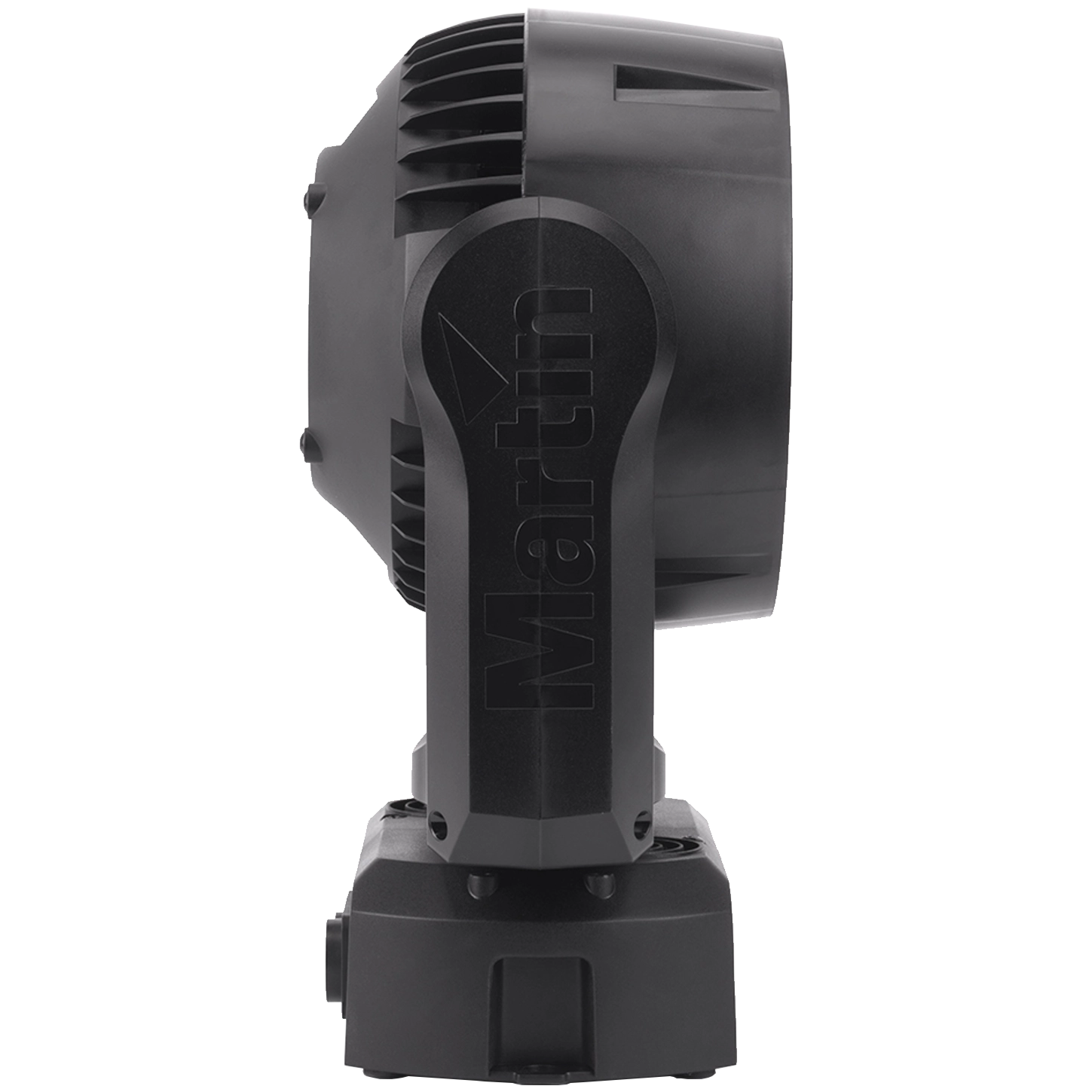

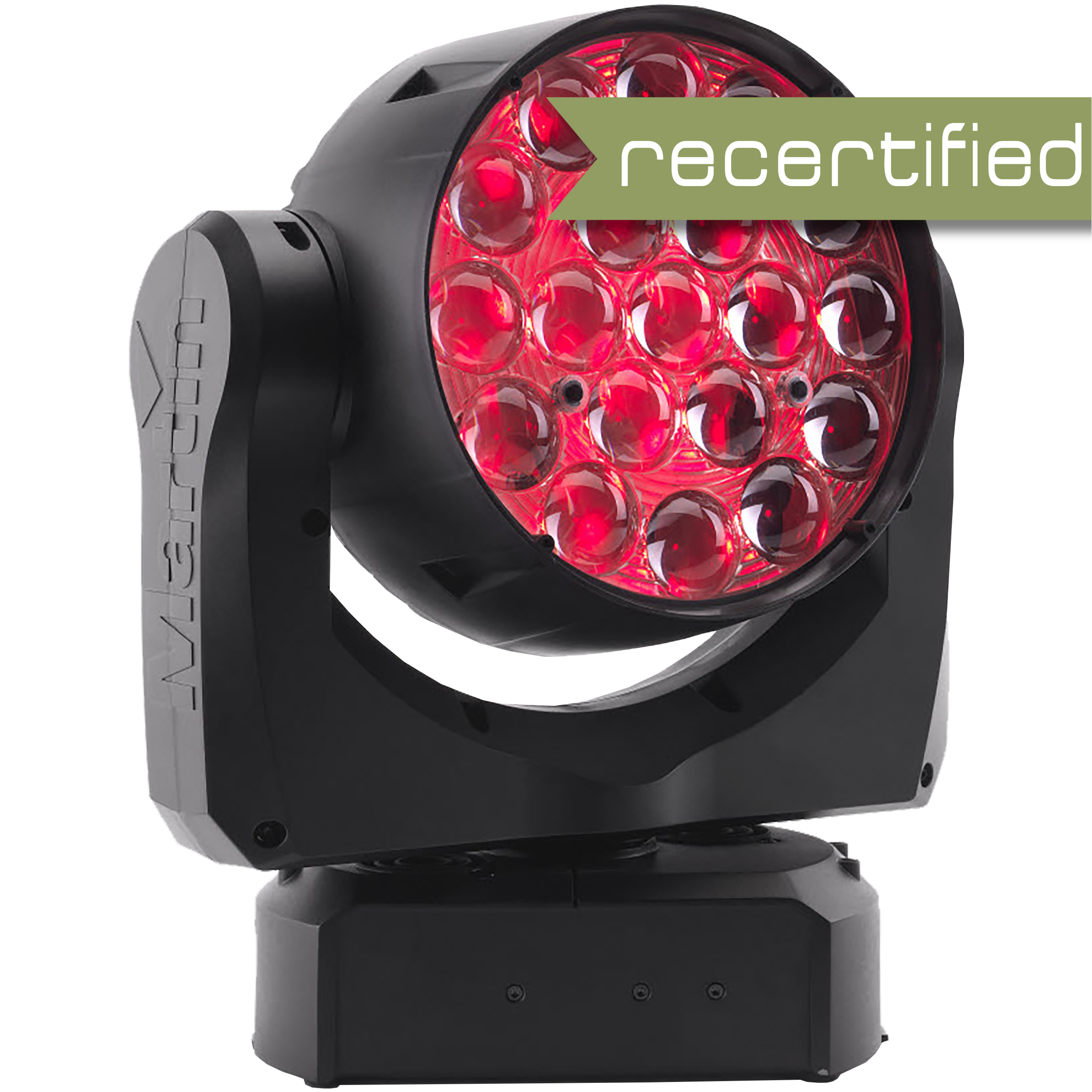

Martin MAC Aura XB Compact LED Wash

$2,899.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The MAC Aura XB takes the award-winning and most compact LED wash light on the market to the next level, incorporating many new features first introduced on the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, but it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-Candy Aura Effect™ is also part of the package.

FEATURES
    • Super-bright single-lens wash with fully premixed color
    • Broad color palette, RGBW color mixing
    • Aura eye-candy effects
    • Uniform shades
    • Built-in FX engine
    • 10° to 60° uniform zoom
    • 6000 Lumens output
    • Rapid movement
    • Compact, low-weight design (6.5 kg)
    • High efficiency, low power consumption, long lifetime
SPECIFICATIONS
    • Light source: 15 W RGBW array system
    • LED refresh rate: Beam 1200 Hz, Aura 4395 Hz
    • Minimum LED lifetime: 50 000 hours (to >70% luminous output)
    • Total luminous output (wide, one-tenth peak): 6.0 Klm
    • Video compatibility: Designed for use with HD/high-speed video cameras
    • Beam color mixing: RGBW
    • Aura (secondary lens array illumination) color mix: RGB
    • Beam color temperature control: CTO, variable 10 000 - 2500 K
    • Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
    • Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
    • Pre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinable
    • Electronic dimming: Independent beam and aura, four dimming curve options
    • Zoom: 10° - 60° (one-tenth peak angle)
    • Pan: 540°
    • Tilt: 232°
    • Pan and tilt speed: Adjustable via onboard control panel and DMX
    • Control options: Independent or synchronized Beam and Aura control
    • Control system: DMX, RDM
    • Control resolution: 8-bit, with 16-bit control of pan & tilt
    • DMX channels: 14/25
    • Setting and addressing: Control panel with backlit graphic display
    • DMX compliance: USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20
    • Transceiver: RS-485
    • Firmware update: Via DMX with MartinTM USB Duo DMX Interface Box
    • Color: Black
    • Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
    • Protection rating: IP20
    • Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket
    • Orientation: Any
    • Minimum distance to combustible materials: 200 mm (8 in.) from fixture
    • Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
    • Location: Indoor use only, must be fastened to surface or structure
    • AC power: Neutrik PowerCON TRUE1 NAC3PX dual socket AC power input socket accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector AC power thru socket accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
    • DMX data in/out: 5-pin locking XLR
    • Maximum power consumption: 400 W
    • Power supply unit: Auto-ranging electronic switch mode
    • AC power: 100-240 V nominal, 50/60 Hz
    • Typical half-cycle RMS inrush current: 10.7 A
    • Power consumption, all effects static, zero light: <25 W
    • Typical Power and Current 120 V, 60 Hz: 355 W, 3.2 A, PF 0.99
    • Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.
    • Length: 302 mm (11.9 in.) across yoke
    • Width: 302 mm (11.9 in.) across yoke
    • Height: 360 mm (14.2 in.), head straight up
    • Weight: 6.5 kg (14.4 lbs.) without accessories
CONTENTS
    (1) Martin MAC Aura XB Wash LED Moving Head
    (1) M12 Bolt Suitable for Use with Martin Rigging Clamps
