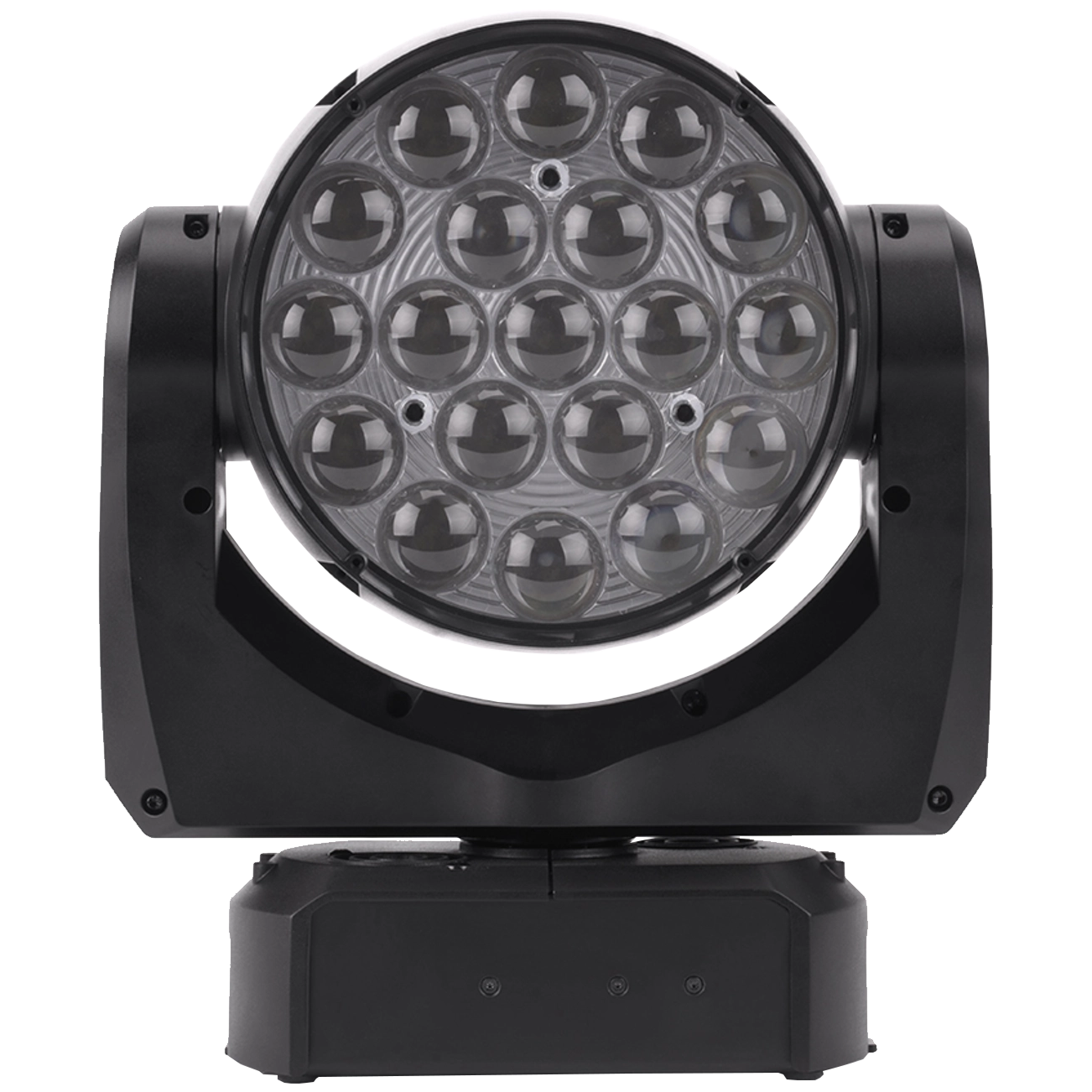

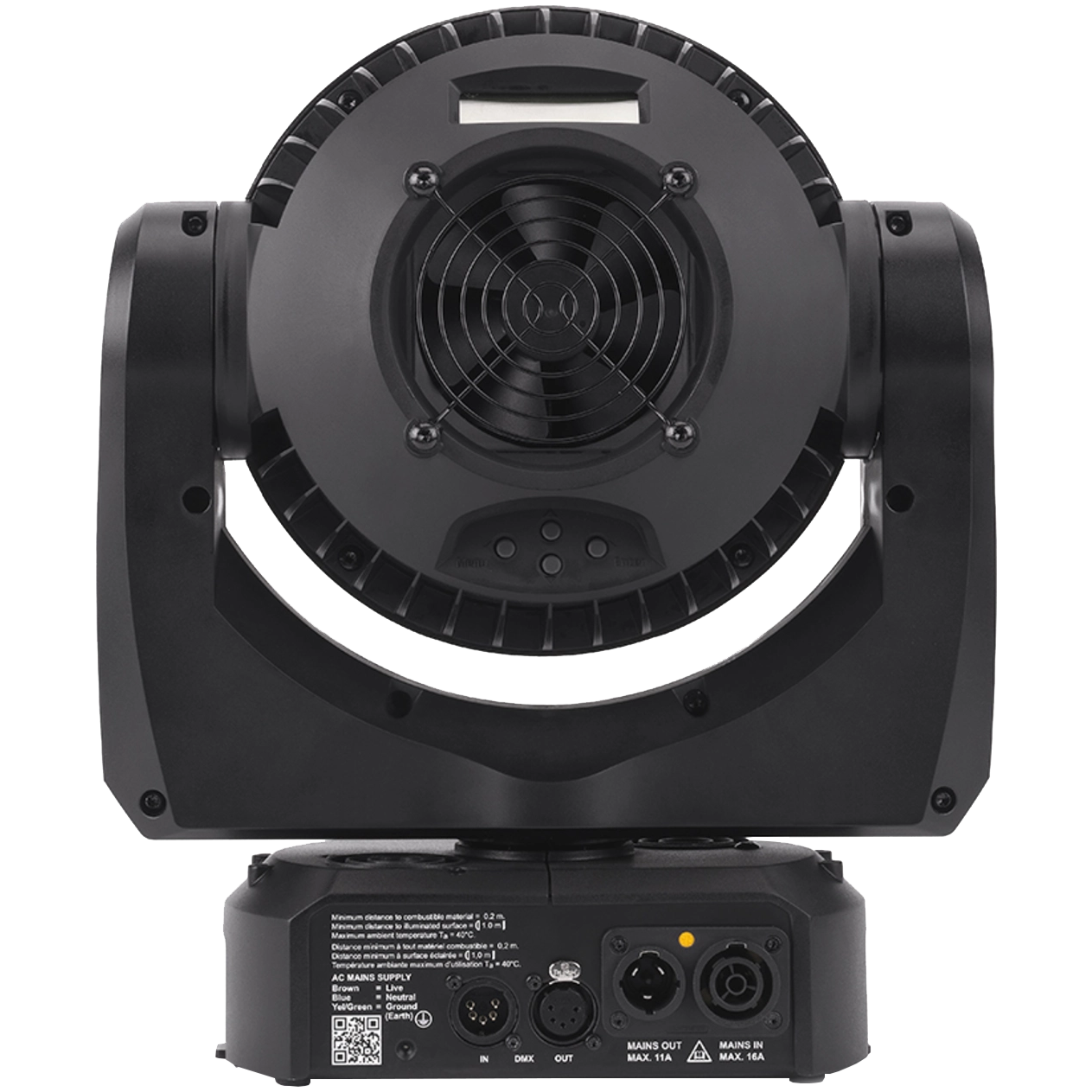

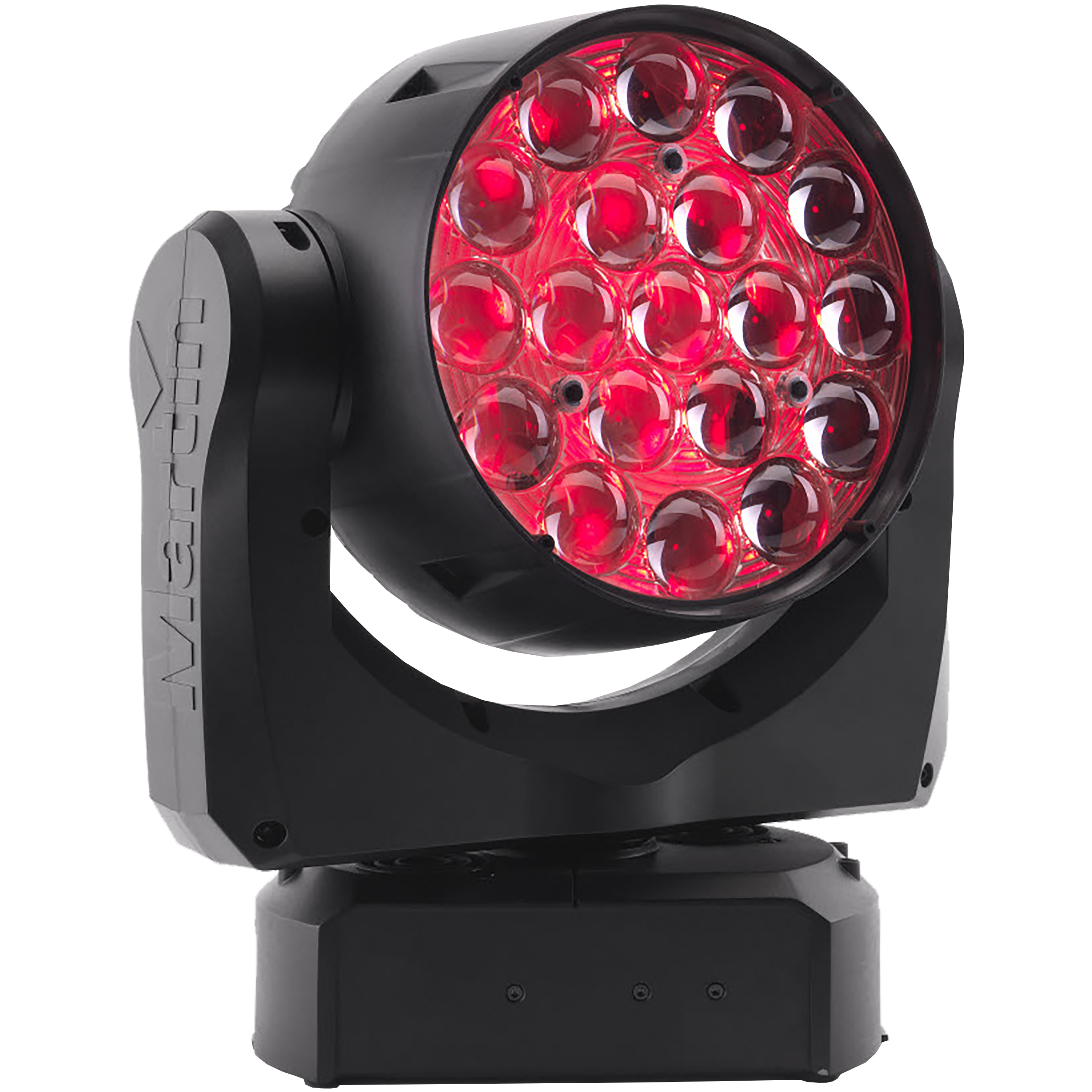

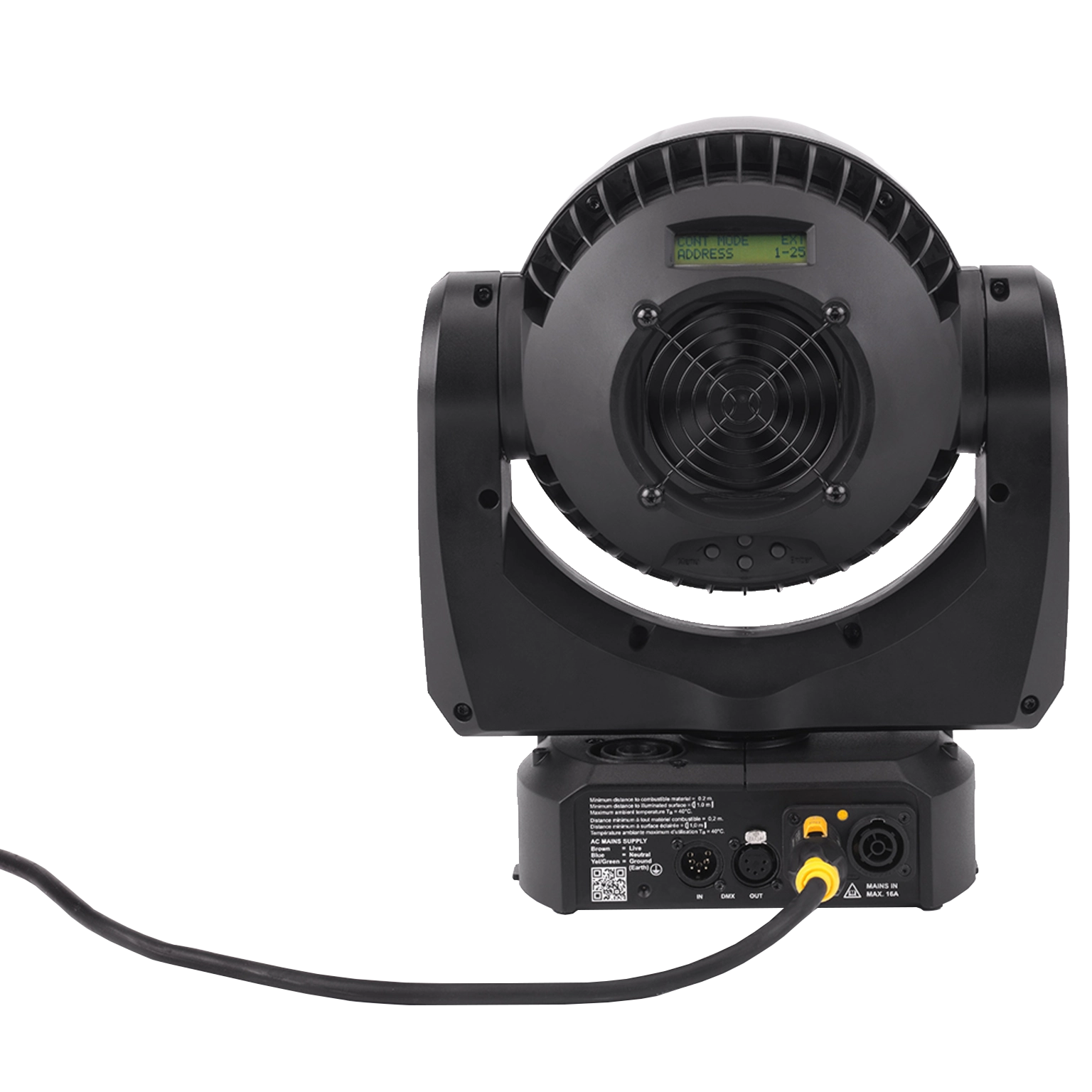

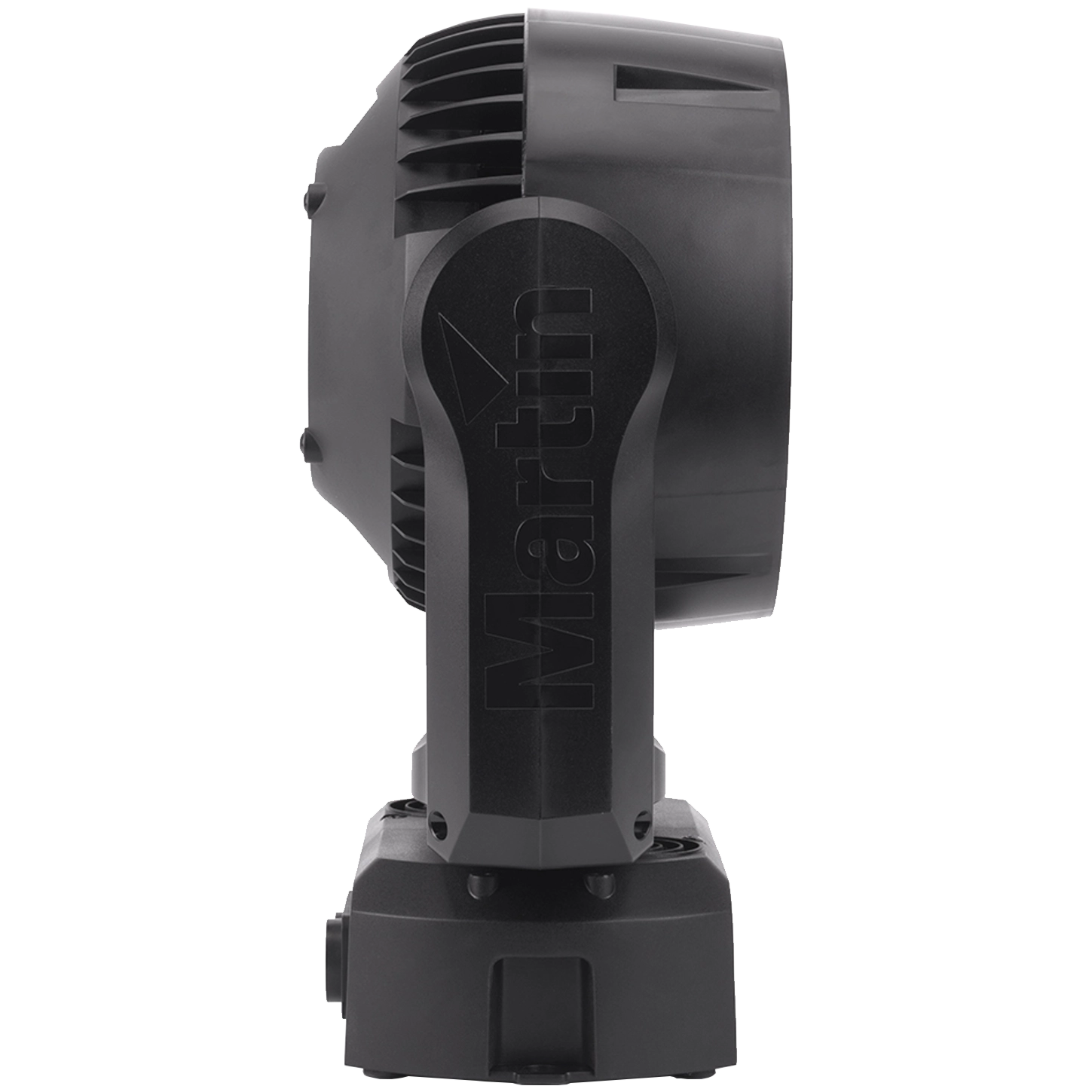

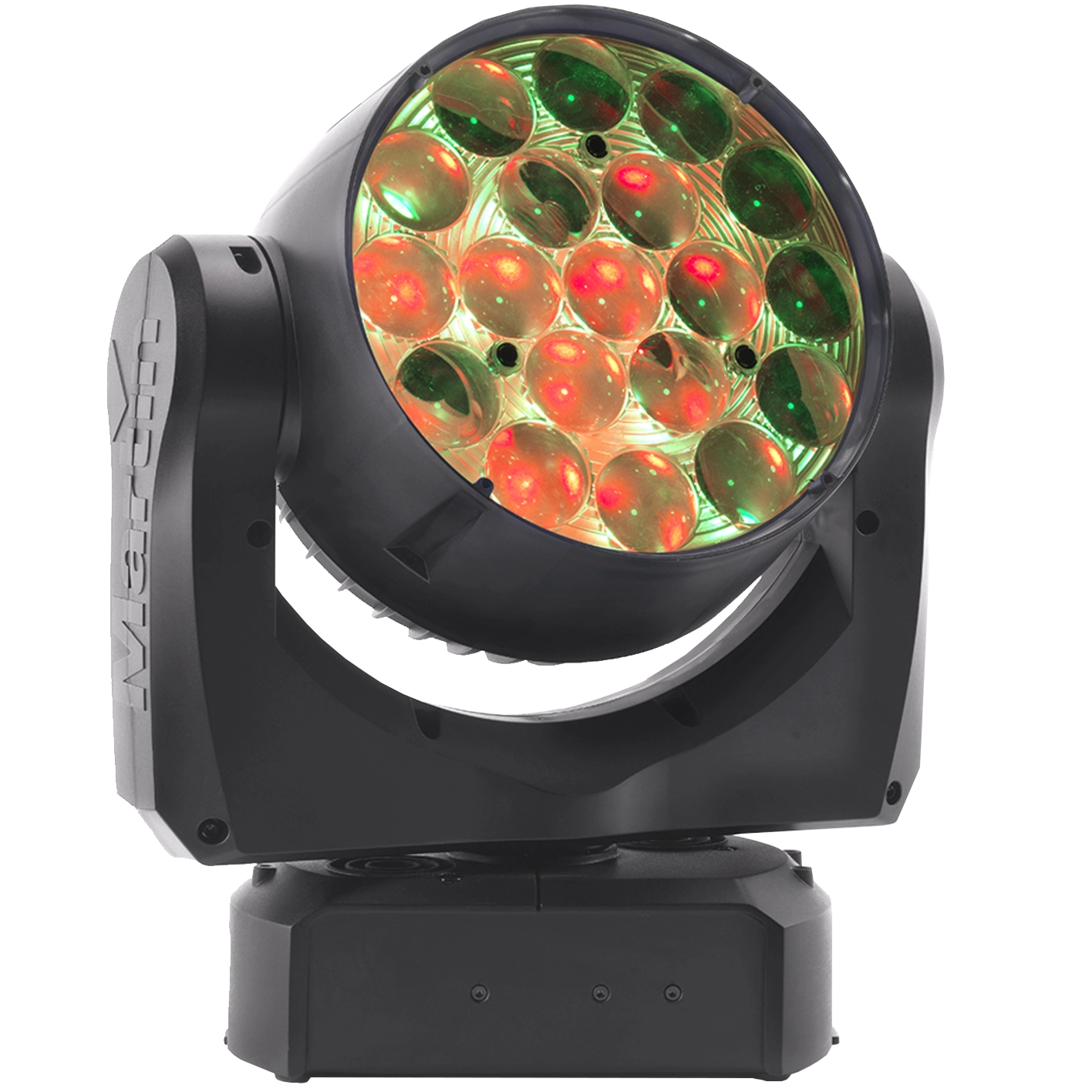

Martin MAC Aura XB Wash LED Moving Head

The MAC Aura XB takes the award-winning and most compact LED wash light in the market to the next level, incorporating many new features first introduced on the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

• Super-bright single-lens wash with fully premixed color
• Broad color palette, RGBW color mixing
• Aura eye-candy effects
• Uniform shades
• Built-in FX engine
• 10° to 60° uniform zoom
• 6000 Lumens output
• Rapid movement
• Compact, low weight design (6.5 kg)
• High efficiency, low power consumption, long lifetime

Light source	15 W RGBW array system
LED refresh rate	Beam 1200 Hz, Aura 4395 Hz
Minimum LED lifetime	50 000 hours (to >70% luminous output)
Total luminous output (wide, one-tenth peak)	6.0 Klm
Video compatibility	Designed for use with HD/high-speed video cameras
Beam color mixing	RGBW
Aura (secondary lens array illumination) color mix	RGB
Beam color temperature control	CTO, variable 10 000 - 2500 K
Beam and aura electronic 'color wheel' effect	33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Beam and aura independent shutter effects	Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects	Range of independent and synchronized Beam and Aura FX, two combinable
Electronic dimming	Independent beam and aura, four dimming curve options
Zoom	10° - 60° (one-tenth peak angle)
Pan	540°
Tilt	232°
Pan and tilt speed	Adjustable via onboard control panel and DMX
Control options	Independent or synchronized Beam and Aura control
Control system	DMX, RDM
Control resolution	8-bit, with 16-bit control of pan & tilt
DMX channels	14/25
DMX channels	14/25
Setting and addressing	Control panel with backlit graphic display
DMX compliance	USITT DMX512-A
RDM compliance	ANSI/ESTA E1.20
Transceiver	RS-485
Firmware update	Via DMX with MartinTM USB Duo DMX Interface Box
Color	Black
Housing	High-impact thermoplastic, flame-retardant to UL 94 5VA
Protection rating	IP20
Mounting points	M12 hole for rigging clamp, attachment points for surface-mounting bracket
Orientation	Any
Minimum distance to combustible materials	200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces	1 m (3 ft. 4 in.) from fixture
Location	Indoor use only, must be fastened to surface or structure
AC power	Neutrik PowerCON TRUE1 NAC3PX dual socket AC power input socket accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector AC power thru socket accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
DMX data in/out	5-pin locking XLR
Maximum power consumption	400 W
Power supply unit	Auto-ranging electronic switch mode
AC power	100-240 V nominal, 50/60 Hz
Typical half-cycle RMS inrush current	10.7 A
Power consumption, all effects static, zero light	<25 W
Typical Power and Current 120 V, 60 Hz	355 W, 3.2 A, PF 0.99
Cooling	Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	5° C (41° F)
Total heat dissipation (calculated, +/- 10%)	1230 BTU/hr.
Length	302 mm (11.9 in.) across yoke
Width	302 mm (11.9 in.) across yoke
Height	360 mm (14.2 in.), head straight up
Weight	6.5 kg (14.4 lbs.) without accessories

(1) Martin MAC Aura XB Compact LED Wash Moving Head
(1) M12 bolt suitable for use with Martin rigging clamps
(0) Power cable is NOT included (standard for MAC Aura XB)
