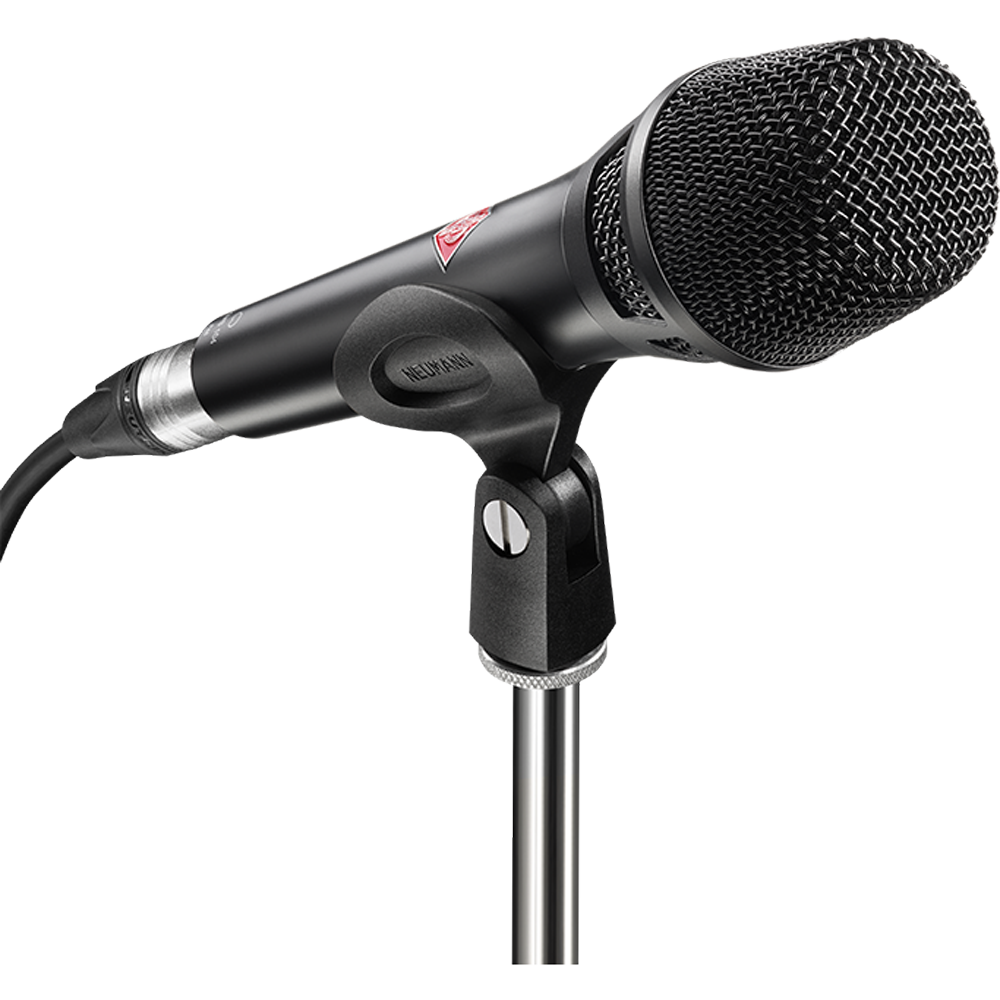

The KMS 104 is a studio grade vocal microphone for stage use. Its precision manufactured condenser capsule offers true Neumann sound quality, combined with all the virtues of a rugged stage microphone: excellent pop protection, low handling noise, enormous SPL capability, and high feedback resistance, thanks to its tight cardioid pattern.
STUDIO QUALITY FOR STAGE VOCALS The KMS 104 brings studio sound quality to the stage. Unlike usual stage microphones, which use dynamic capsules, the KMS 104 is equipped with a true condenser microphone capsule offering the superior clarity that made Neumann studio microphones famous all over the world. At the same time, the KMS 104 possesses the ruggedness required of a stage mic, thus refuting the myth that condenser microphones must be “fragile”. The KMS 104 can stand enormous sound pressure levels of up to 150 dB without clipping, and its tight, frequency-independent cardioid pattern ensures high gain before feedback. The KMS 104 has a much smoother frequency response than dynamic microphones and an airy top-end. Compared to dynamic microphones, the Neumann KMS 104 has a vastly superior transient response resulting in a more immediate and more emotional vocal sound. In practical terms: effortless intelligibility, without the usual EQ boosts – which further improves feedback resistance.
As a stage microphone, the KMS 104 is optimized for close miking; a fixed low cut filter compensates for the proximity effect and ensures clear bass, even if the singer’s lips touch the microphone. The headgrille is made of hardened steel and features a highly effective internal pop screen which also keeps moisture away from the capsule. Thanks to careful Neumann engineering, these acoustic filters do not cause any sibilance problems. The head amplifier is protected by a thick-walled housing. Its transformerless output minimizes electromagnetic interference, such as hum. Because of its low output impedance of only 50 ohms, the KMS 104 can drive very long cable runs of up to 300 m (1000 ft) without transmission losses.
APPLICATIONS The KMS 104 is primarily designed as a handheld vocal microphone but can be used for other stage applications as well, due to its high SPL capability and wide dynamic range. Examples include percussion, saxophone, trumpet, trombone, harmonica, acoustic guitar, and guitar cabinets. Thanks to its superior sound quality, the KMS 104 is also an excellent microphone for home recording and broadcast applications. Because it is optimized for close mic placement, the KMS 104 will pick up a dry sound with very little ambience, which is a big advantage in untreated rooms.
Tight cardioid pattern without off-axis coloration
Unaffected by extreme sound pressure levels
Rugged construction
Feedback resistant, high rejection of rearward sound (180°)
Built-in pop screen
Very low handling noise
Available in Nickel and Black Colors
Acoustical operating principle
Pressure gradient transducer
Directional pattern
Cardioid
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
4.5 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR)
28 dB
Equivalent noise level, A-weighted)
18 dB-A
Signal-to-noise ratio, CCIR) (rel. 94 dB SPL)
66 dB
Signal-to-noise ratio, A-weighted) (rel. 94 dB SPL)
