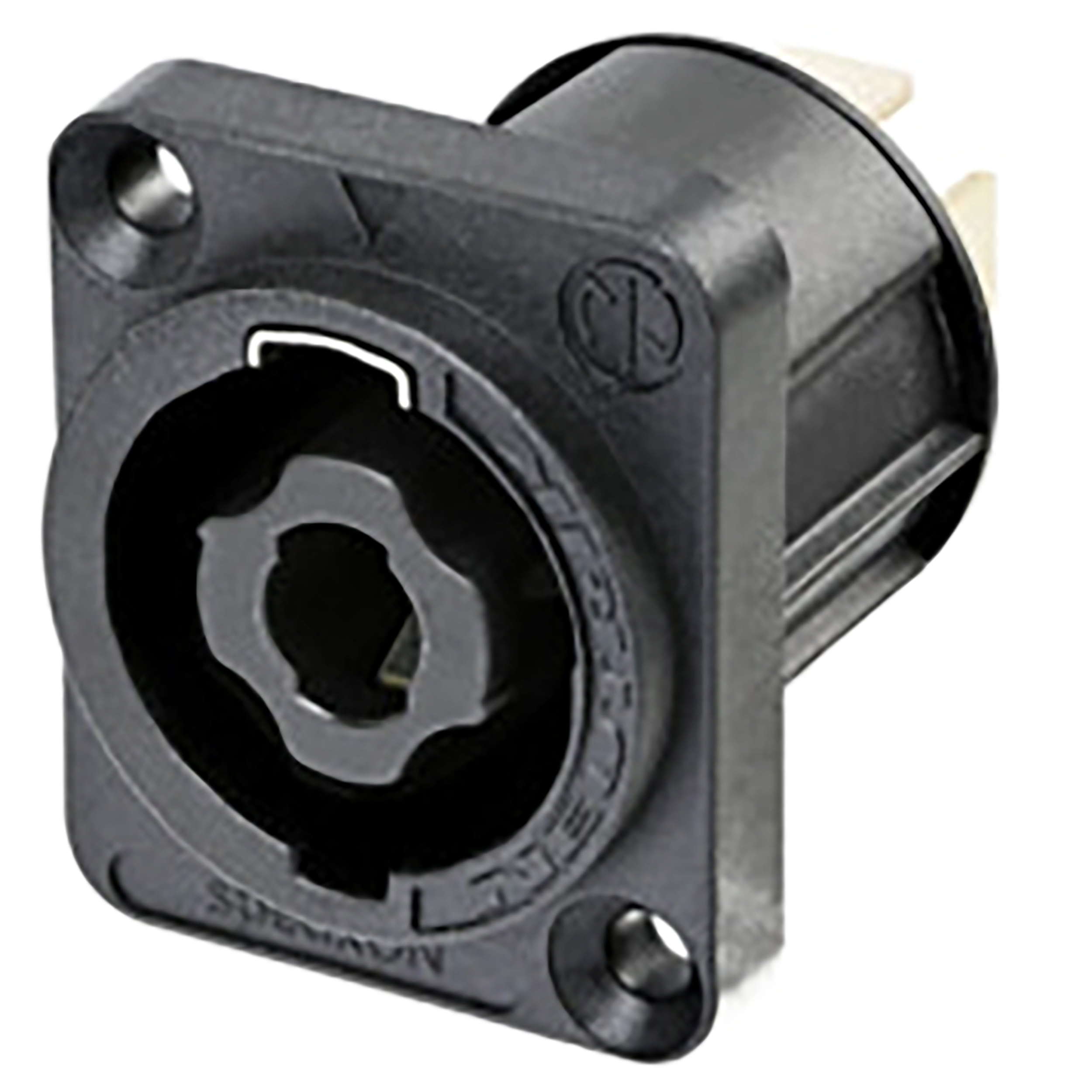

Neutrik 4 Pole Black Chassis Connector

  • $7.99
Zoom image

Neutrik 4 Pole Black Chassis Connector

  • $7.99
Package:

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

The state-of-the-art chassis connector for loudspeaker / amplifier applications. They feature a unique locking system, robust plastic housing and high current silver plated contacts.

  • Standard current rating 30 Amp
  • High current version up to 50 Amp audio current
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
PRODUCT
Connector Type Speakon
Gender male
ELECTRICAL
Contact resistance = 3 mO (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GO (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V (Insulation)
MECHANICAL
Lifetime > 5000 mating cycles
Wiring 3/16'' flat tabs
Locking device Quick Lock
Mounting direction front & rear
Chassis shape D
Layout standard hole position, thru holes
MATERIAL
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Shell Polyamide (PA 6 30 % GR)
ENVIRONMENTAL
Approvals UL,CSA
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Neutrik NL4MP Chassis Connector
