The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
As a four Universe Node the EN4 is ideally suited for the powerful ONYX NOVA Edition.
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum ½ rack housing
Unlocks ONYX NOVA 4-Universe License
Product Dimension (L x W x D)
5.5" x 8.5" x 1.65"
Product Weight
2.2 lb

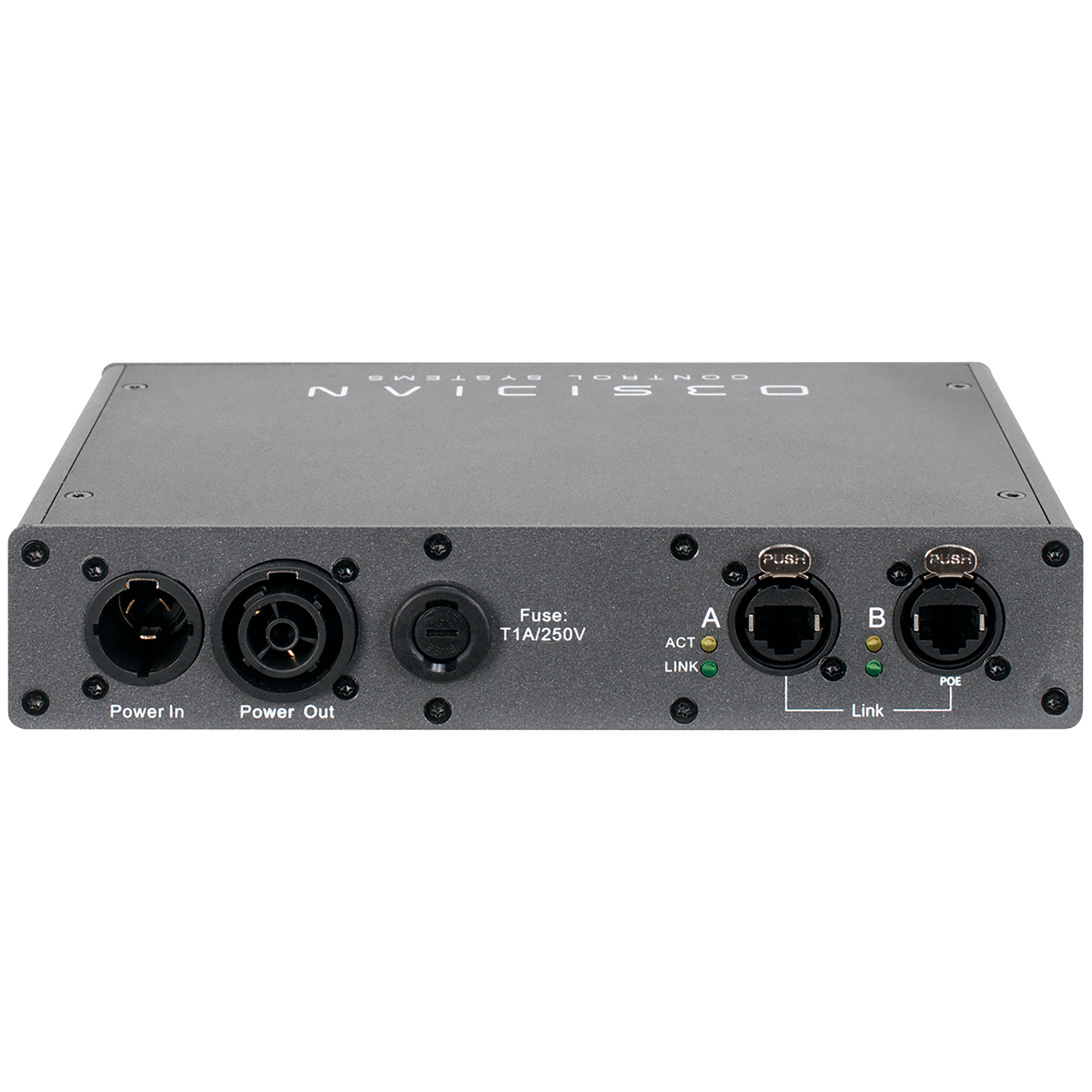

Power input
100-240 V nominal, 50/60 Hz, 10W
Internal fuse
POE 802.3af
Power Consumption
5W
Approval/Ratings
cETLus / CE / IP20
:CONNECTIONS
Front

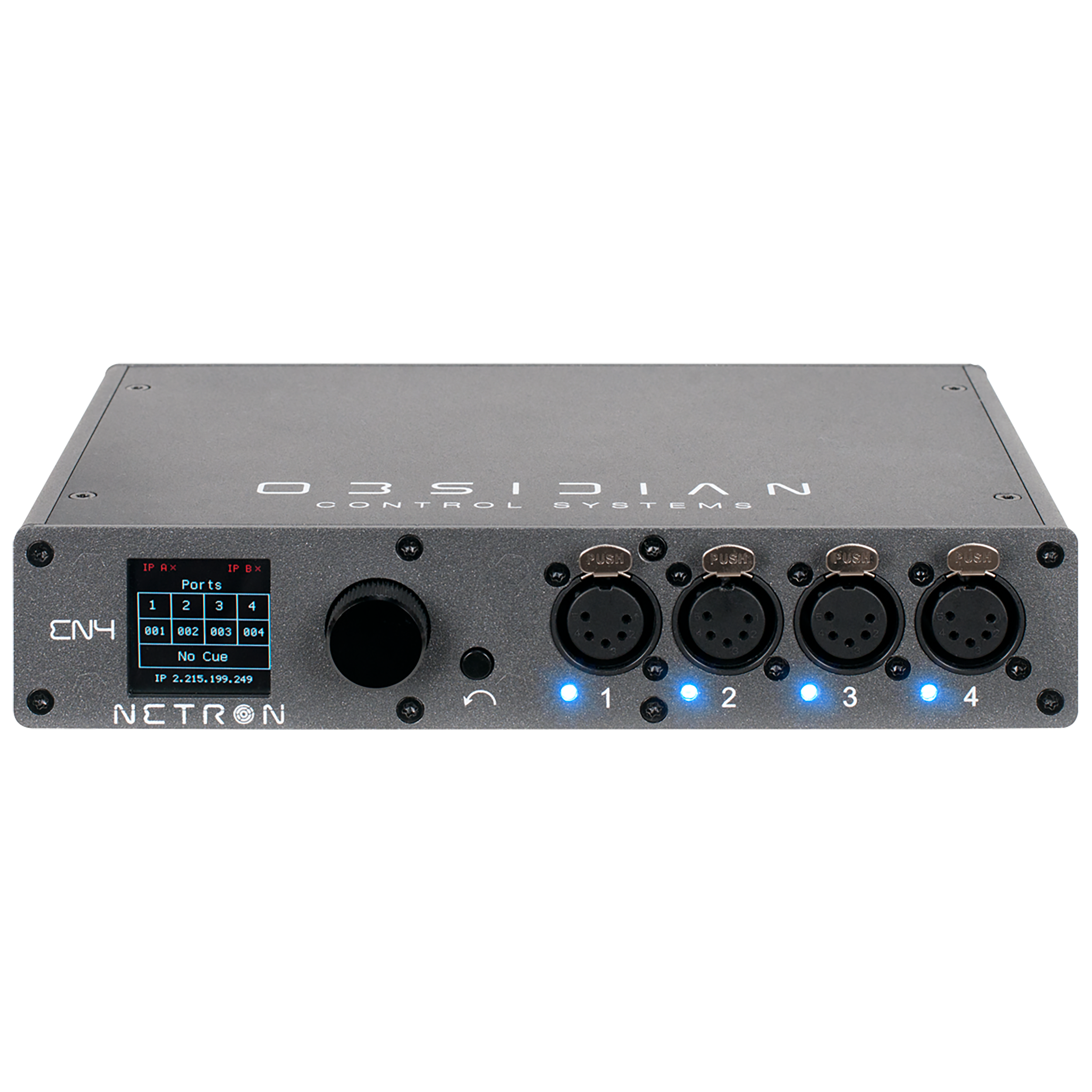

(4) 5pin DMX/RDM optically isolated ports. Ports are bidirectional for DMX In and Output. Full color OLED display. Encoder w. Push to Select / Exit Button.

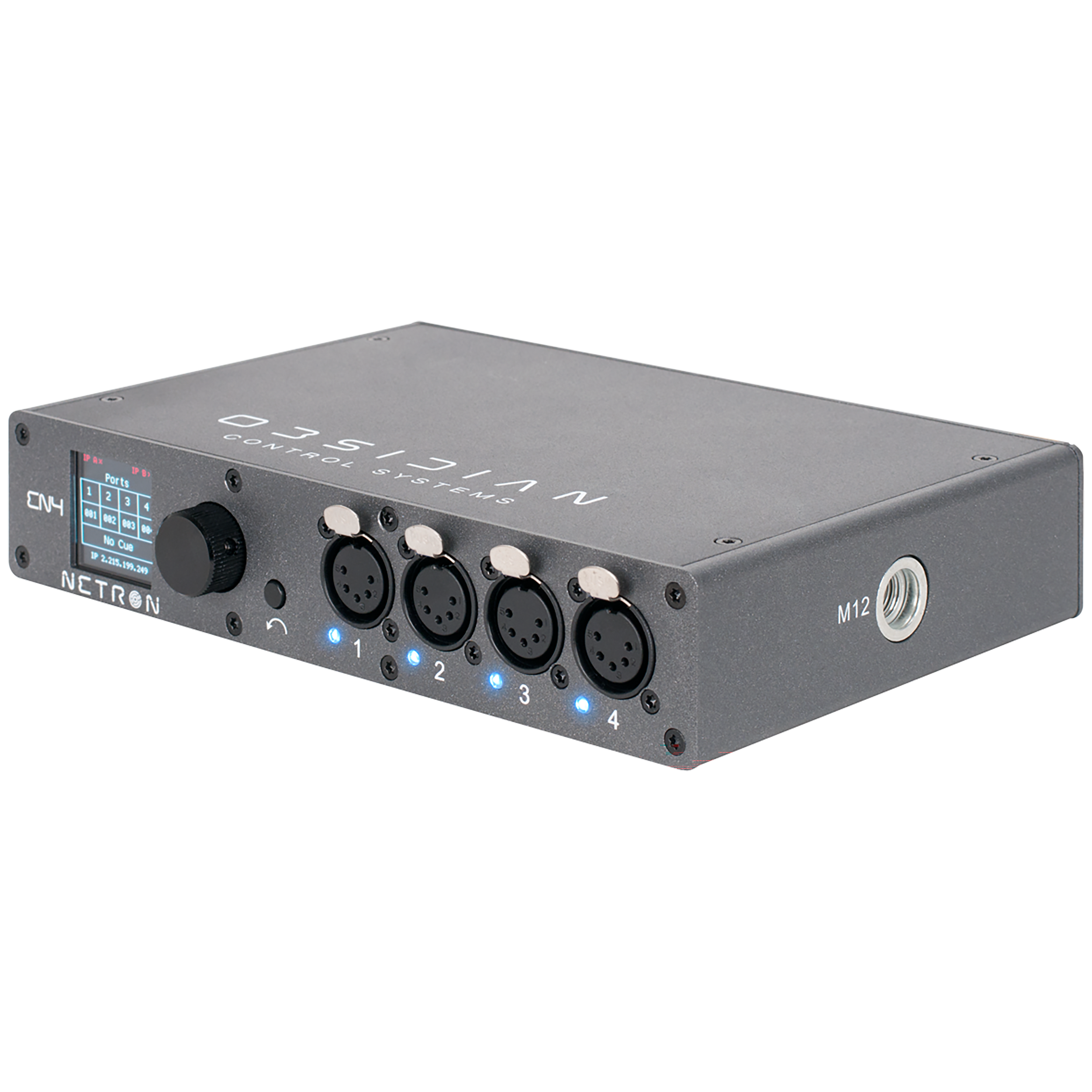

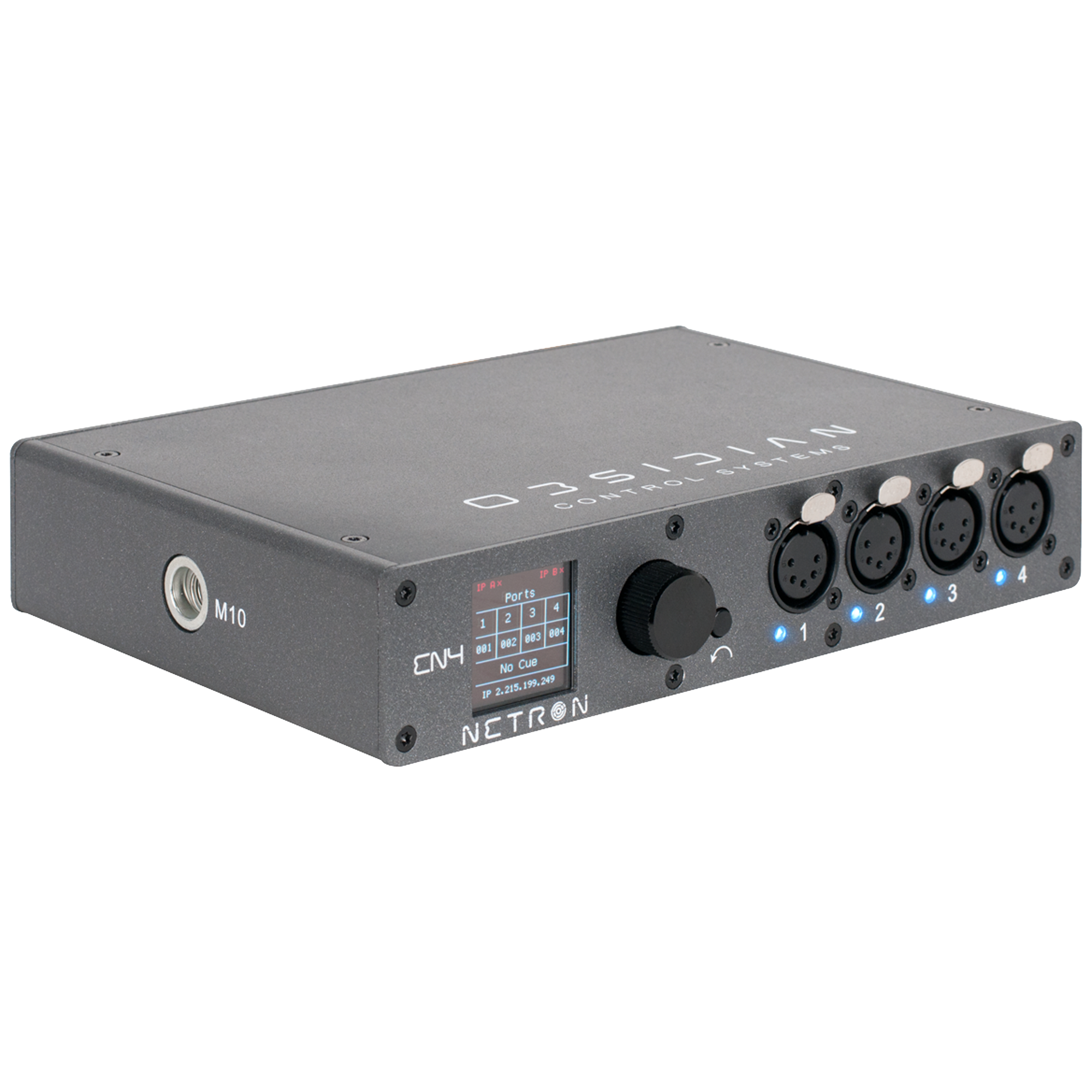

Standalone. Truss-mount (M10 or M12 mounting hole). Wall-mount horizontal or vertical (included). DIN Rail horizontal or vertical (included). Rack-mount option (requires NET Shelf).
(1) Obsidian Netron EN4 Ethernet to DMX Gateway (1) Wall-mount kit (1) DIN Rail Kit
