DESCRIPTION

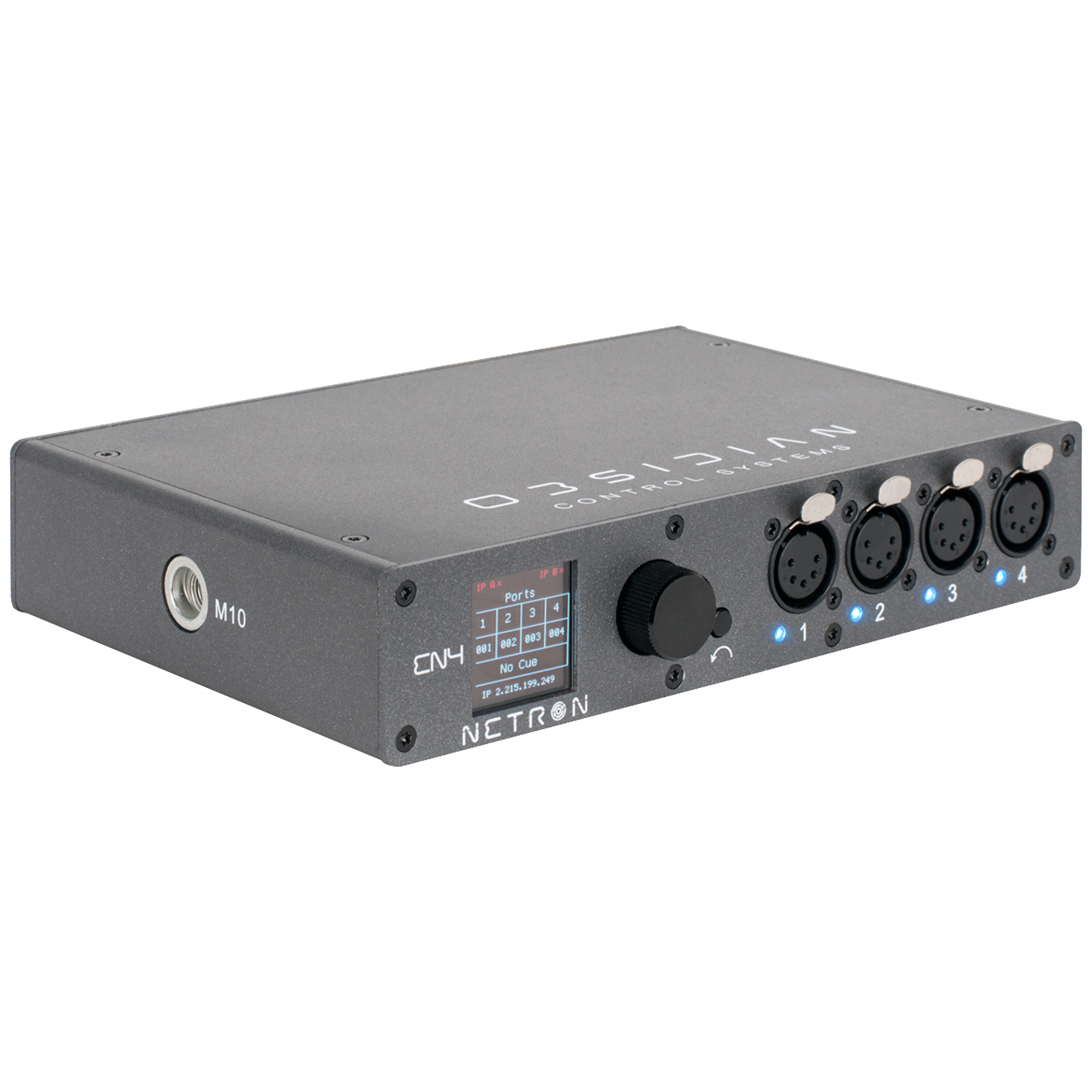

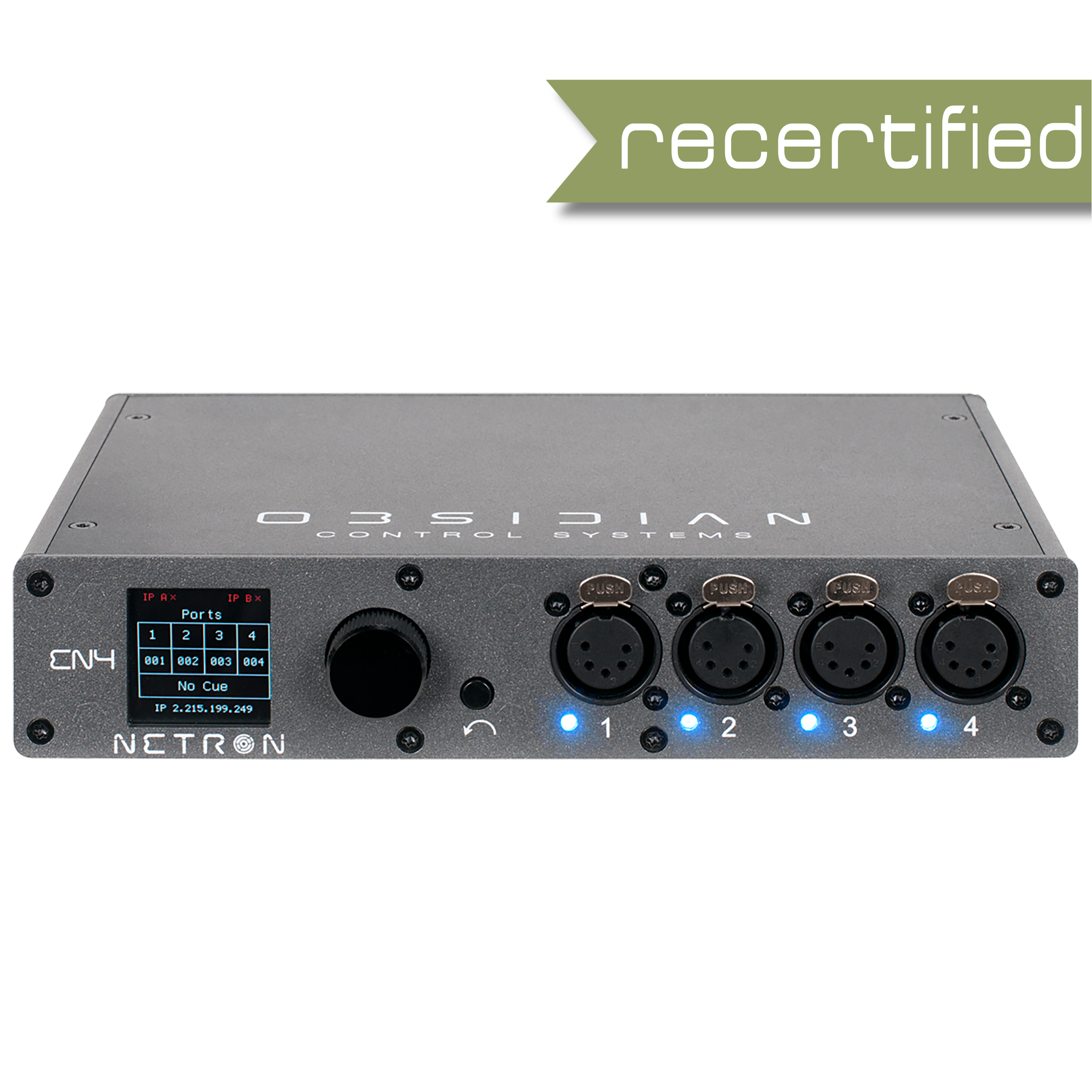

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

FEATURES
    • RDM, Artnet and sACN support
    • Factory and user presets for plug and play setups
    • Line Voltage or POE powered
    • 1.8” OLED Display with rotary knob
    • 99 Internal cues with fade and delay time
    • Remote configuration via internal webpage
    • Powder-coated aluminum ½ rack housing
    • Unlocks ONYX NOVA 4-Universe License
    • NETRON CLU for remote configuration and firmware updates
SPECIFICATIONS
    Mounting:
    • Standalone
    • Truss-mount (M10 or M12 mounting hole)
    • Wall mount horizontal or vertical (included)
    • DIN Rail horizontal or vertical (included)
    • Rack mount option (requires NET Shelf)
    Connections (Front):
    • (4) 5-pin XLR DMX/RDM optically isolated ports
    • Bidirectional for DMX In and Output
    • Full-color OLED display
    • Encoder with Push to Select / Exit Button
    Connections (Back):
    • IP65 Locking Power In/Thru
    • (2) Locking RJ45 Ethernet network (Low Latency Switch)
    Support:
    • sACN E1.31
    • Art-Net
    • DMX512-A E1.11 (In / Out)
    • RDM E1.20
    Ethernet Features:
    • Ethernet Port Speed: 10/100/1000 Mbps
    • VLAN Group Support
    • MDI / MDIX Port Sensing
    • HTTP Remote Commands (Post, Get)
    • HTML Web Remote
    Physical:
    • Length: 215 mm (8.5 in.)
    • Width: 139 mm (5.5 in.)
    • Height: 42 mm (1.65 in.)
    • Weight: 1 kg (2.2 lbs)
    Electrical:
    • AC 100–240V nominal, 50/60 Hz
    • PoE 802.3af
    • Power Consumption: 5W
    Approvals / Ratings:
    • cETLus / CE / FCC / IP20
CONTENTS
    (1) Obsidian Netron EN4 Node
    (1) 1.5m Seetronic Power Cable (EU or US version)
    (2) Wall Mount Plates
    (2) DIN-Rail Clamps
