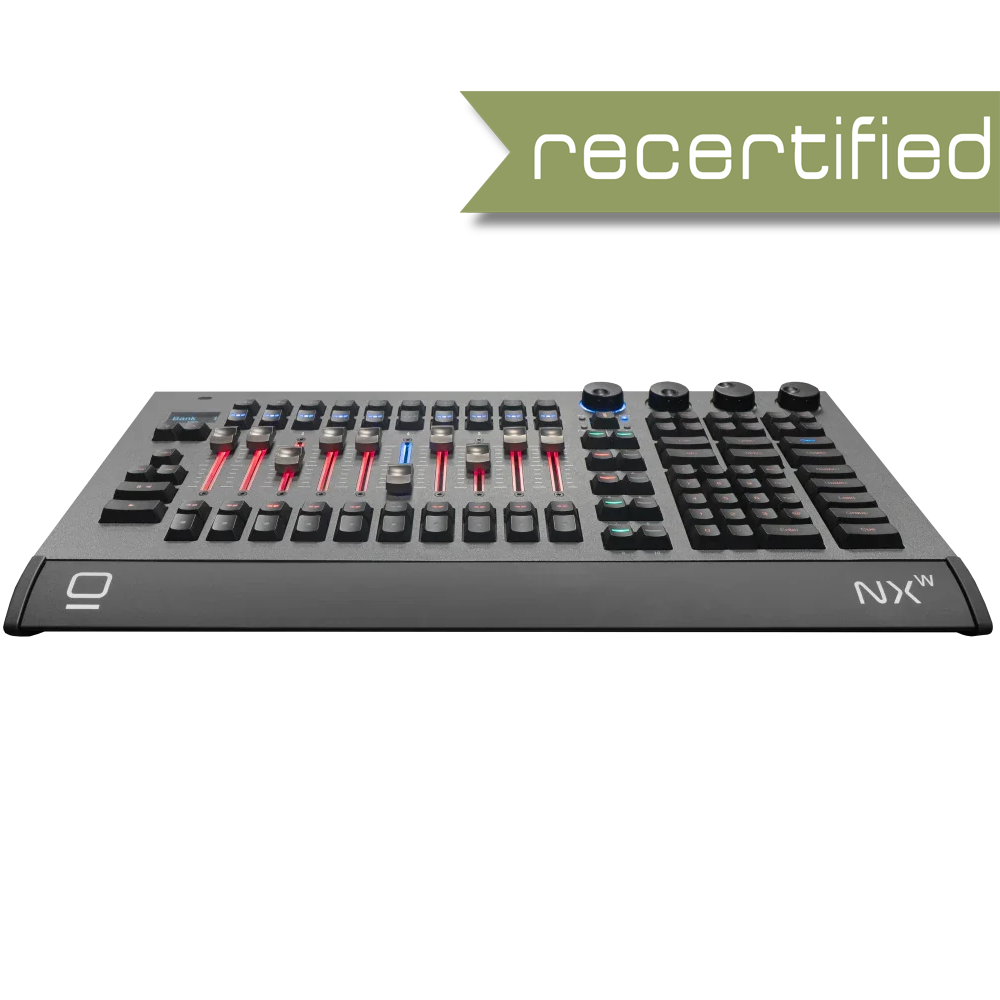

Obsidian NX W Lighting Control Wing
19%, only 0 left
Obsidian NX W Lighting Control Wing
Product SKU
    34269

Obsidian NX W Lighting Control Wing

$3,249.00

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

NX W is the powerful complementary USB control surface to the Obsidian Control Systems ONYX platform. The NX W utilizes a comparable ergonomic layout to the NX K and NX P.

FEATURES
    • Fully featured control surface, portable and lightweight
    • 10 motorized faders with RGB backlight
    • Low Latency optical buttons with RGB backlight
    • DMX, RDM, sACN, Art-Net support
    • 16 Universe ONYX License (5 DyLOS Zones)
    • Plug and Play USB-C device for any PC with ONYX
SPECIFICATIONS
    • Surface:
    : 10x 60mm motorized RGB backlit playback faders, each with 4x function-assignable buttons
    : 10x customizable multi-function keys
    : Master Go section with Go, Pause, Snap and Release
    : 4x digital rotary encoders with push function and RGB status LED for fixture parameter control
    : Blind/HighLight/Last/Next buttons
    : Full numerical keypad and command keys
    : All buttons are high speed optical with RGB backlight

    • Connections:
    : 4x DMX / RDM Universe In/Out: 5pin locking XLR
    : Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
    : Locking Power In / Thru
    : USB-A Expansion slot for ONYX License Keys
    : USB-C Input to PC

    • Requirements:
    : Windows 11 64bit (Home/Pro/Enterprise)
    : 8th generation Intel Core Processor or newer (or comparable AMD processor)*
    : 16 GB RAM
    : SSD storage drive
    : 40GB+ available disk space for software, DYLOS factory content and storage
    : Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
    : USB-C
    : Onyx 4.32.1307 or later

    • Length: 310mm (12.2 in.)
    • Width: 540 mm (21.3 in.)
    • Height: 80 mm (3.15 in.)
    • Weight: 6 kg (13.2 lbs.)
    • Electrical: 100-240 V nominal, 50/60 Hz, 30W
CONTENTS
    (1) Obsidian NX W Lighting Control Wing
    (1) RGB LED Desk Lamp
    (1) Angular XLR Connector Dust Cover
    (1) Obsidian USB-C Cable
    (1) USB A-C Combo Recovery Key with Lanyard
    (1) 1.5 m Locking Power Cable
