DESCRIPTION

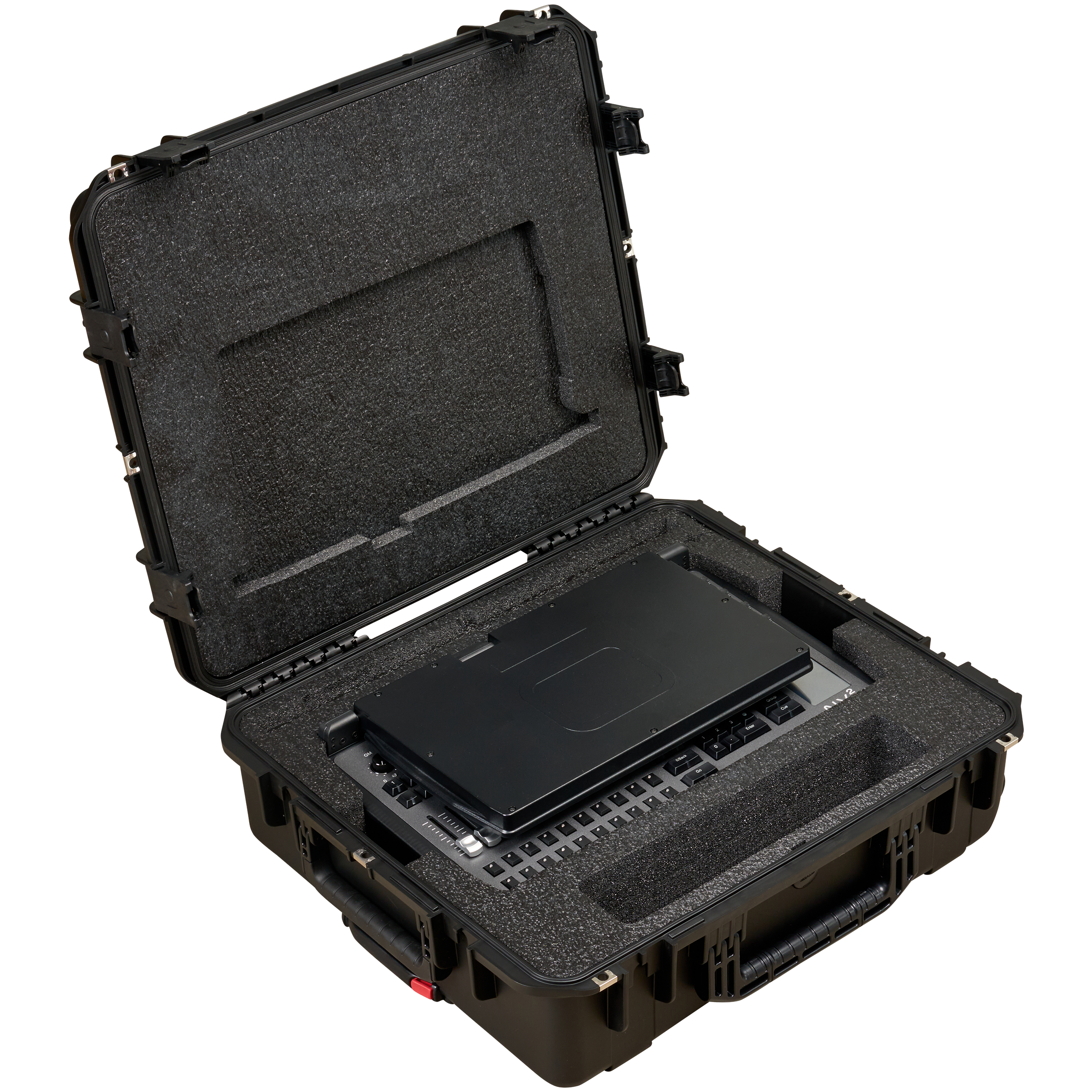

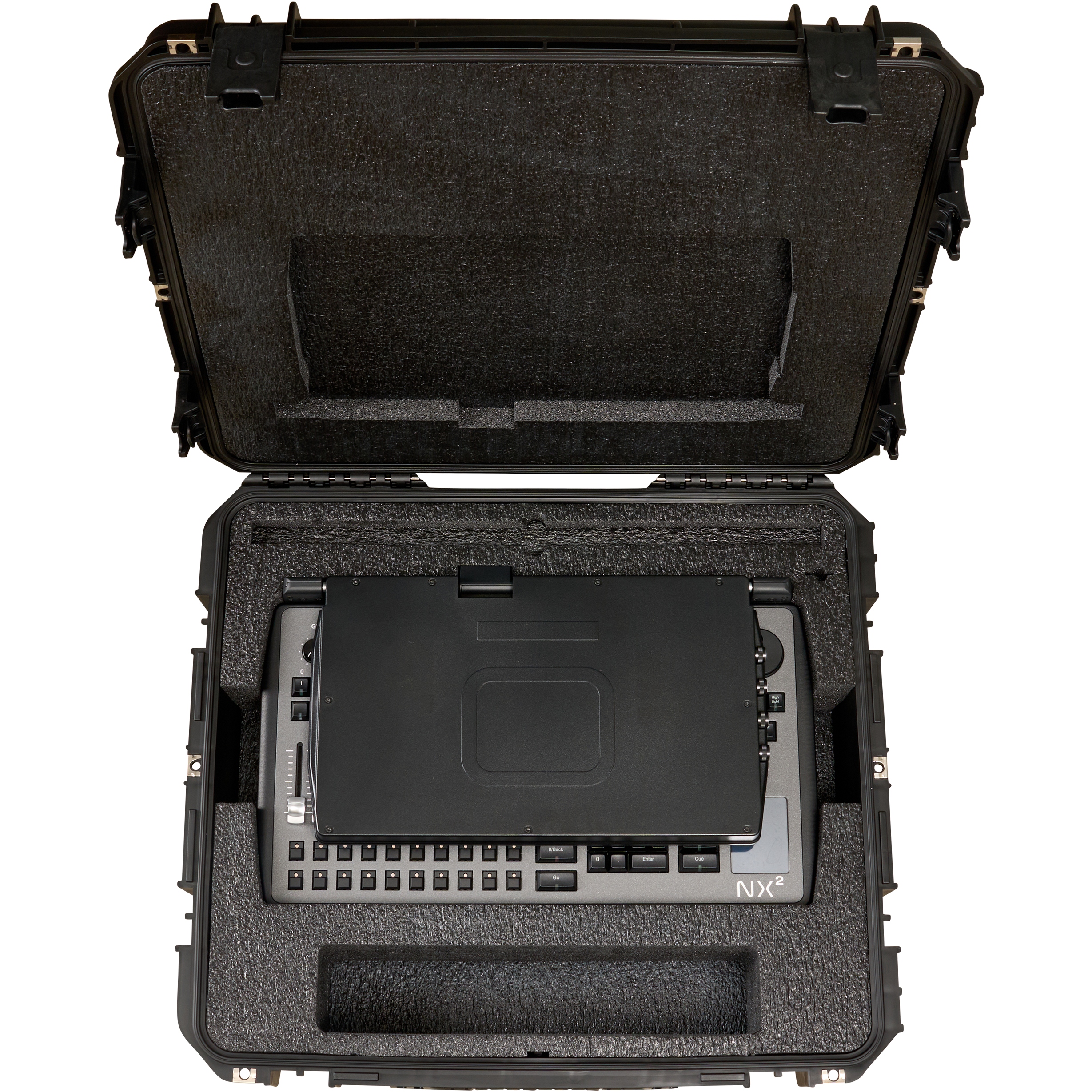

Introducing the ultimate defense for your Obsidian NX2 lighting console, our BYFP custom-made waterproof case. Expertly crafted with a focus on precision and durability, this case is designed to shield your valuable equipment from the harshest elements. The rugged exterior shell is not only waterproof but also impact-resistant, ensuring complete protection against water, dust, and accidental drops. The interior of the case is meticulously tailored to securely fit the controller, with custom foam inserts providing optimal cushioning and a snug fit for the console and its accessories. Additional compartments within the case allow for organized storage and protection of essential components such as power cables and control peripherals. Reinforced handles guarantee comfortable and secure transport, while reliable latches create an airtight seal, providing peace of mind when taking your Obsidian NX2 on the road. With this custom waterproof case, you can confidently navigate any venue or outdoor setting, knowing your lighting console is fully shielded and ready to illuminate your events with precision and style, rain or shine.
The NX2 is the ultimate compact yet powerful fully integrated lighting controller. As a member of the innovative ONYX platform from Obsidian Control Systems the NX2 is feature rich and never restricted in its capabilities. NX2 includes a high-brightness full HD multi-touch screen; 8 assignable parameter encoders, an assistive mini touch-screen; full keypad and command section; a dedicated grandmaster and 10 full playbacks with four freely assignable buttons.
Utilizing the latest in industrial components the NX2 contains a powerful new Intel Hexa-Core processor, high speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation and the ability to process 64 Universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor.
The NX2 is ergonomic with its compact footprint, full ONYX command and keypad section and the bright adjustable HD touch screen. It is always ready to run the largest shows and events at a moments notice.
With four DMX ports, Timecode, Midi and dual Gigabit ports for up to 64 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 2 has all the connectivity and power the ever-increasing sizes of shows demand. Two additional 4K touch monitors are supported for even more direct access at anytime.
FEATURES
-

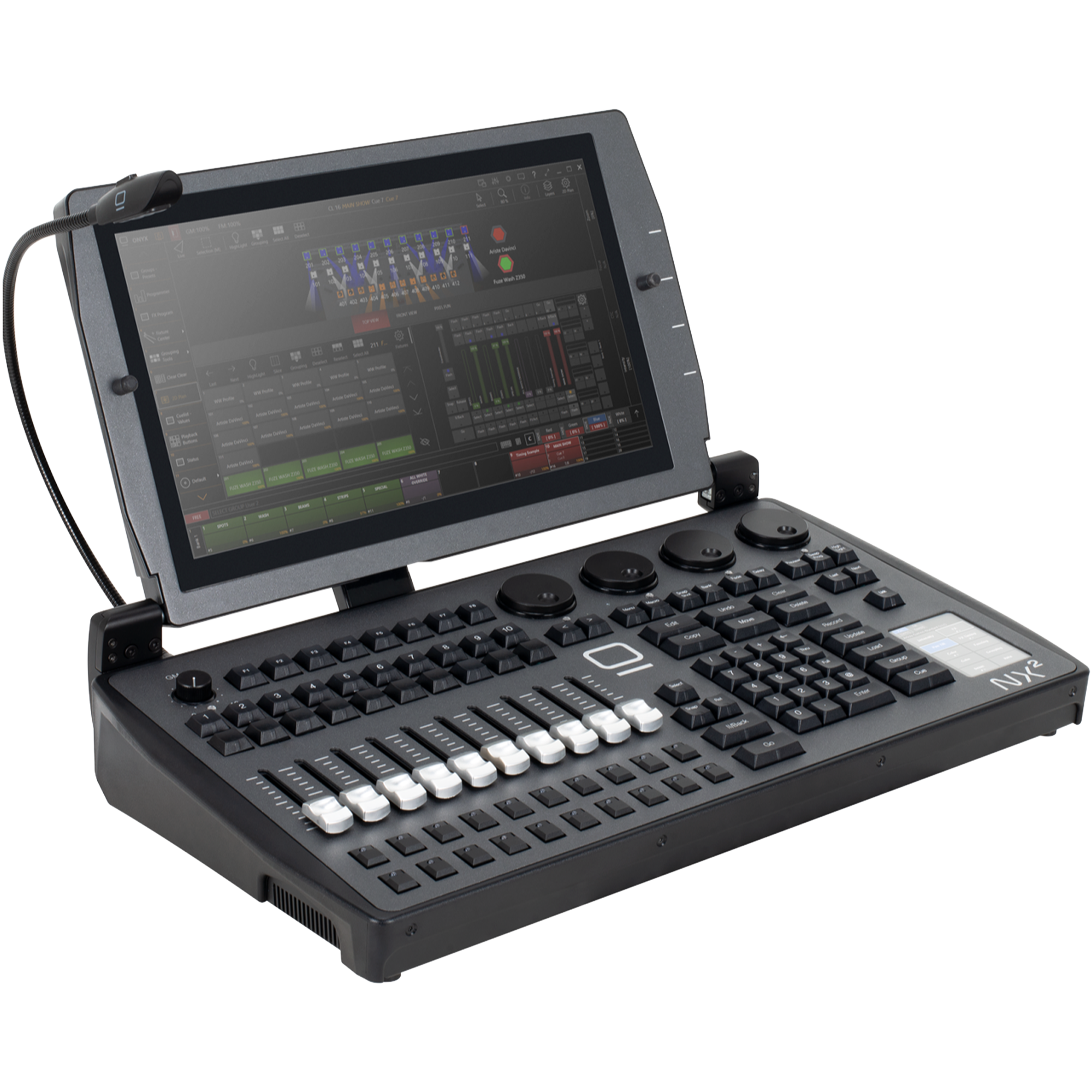

Obsidian ONYX NX2 Console:
• Portable and compact fully featured lighting console
• Adjustable 15.6” Full HD multi touch screen, 2x external 4K Touch Displays
• ONYX Premier License (64 Universes)
• Fully integrated processing
• 10 Playbacks, 8 Encoders, Keypad and internal 3.5" touchscreen
• Network, DMX, Timecode, and Midi Connectivity
• CAPTURE Solo Edition License

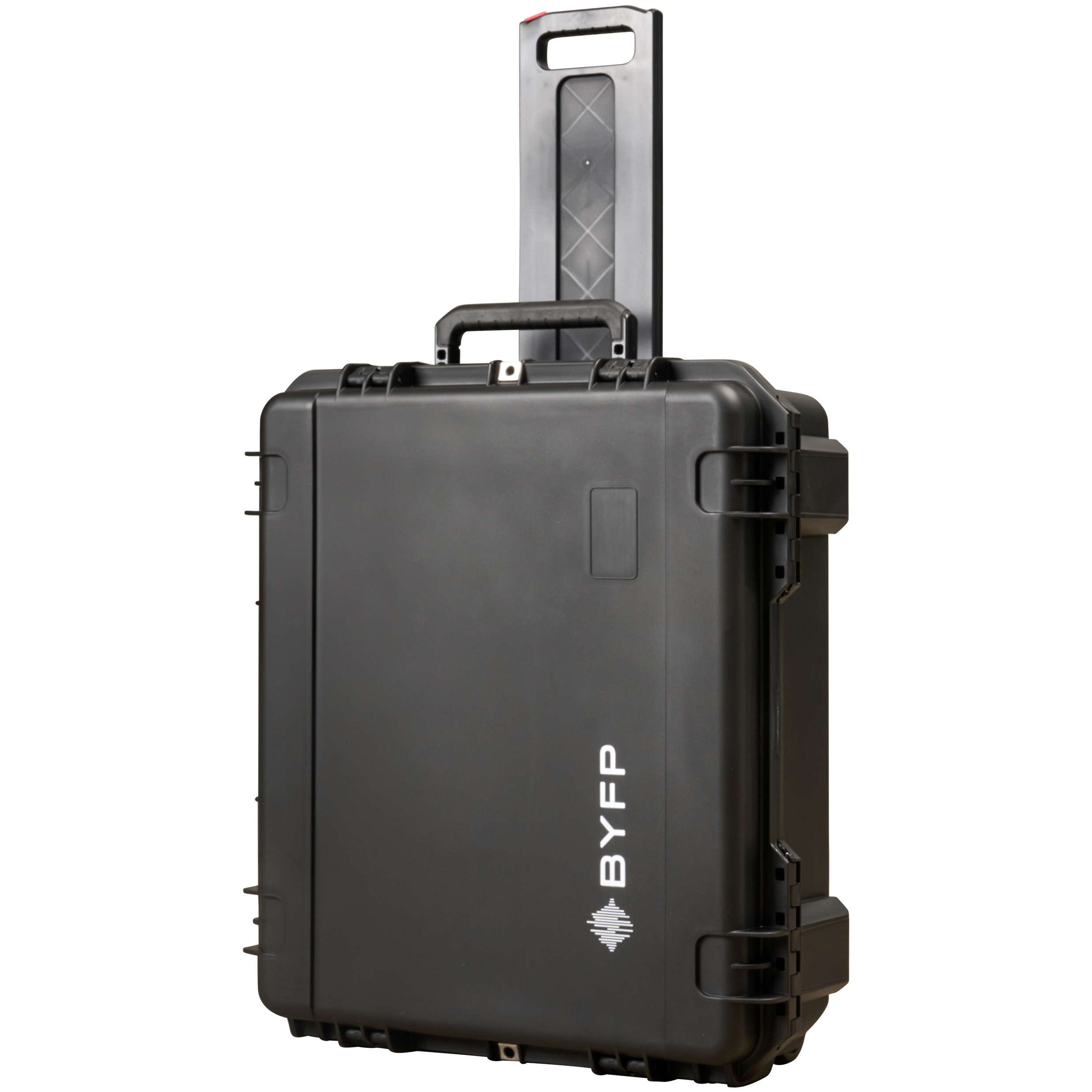

BYFP ipCase for Obsidian ONYX NX2:
• Ultra high-strength polypropylene copolymer resin
• UV, solvent, and corrosion resistant (MIL-STD 810G)
• Complete gasket seal makes these cases absolutely watertight (MIL-STD 810G)
• Automatic ambient pressure equalization value (MIL-STD 810G)
• Resistant to corrosion and impact damage
• Molded-in hinge
• Patented "trigger release" latch system
• Rubber over-molded cushion grip handle
• Stainless steel locking loops to accept a customer supplied lock
• Industrial strength injection molded pull handle with push button release
• In-line skate style wheels for easy transport
• TSA accepted key locking latches are available
SPECIFICATIONS
-
Obsidian ONYX NX2 Console:

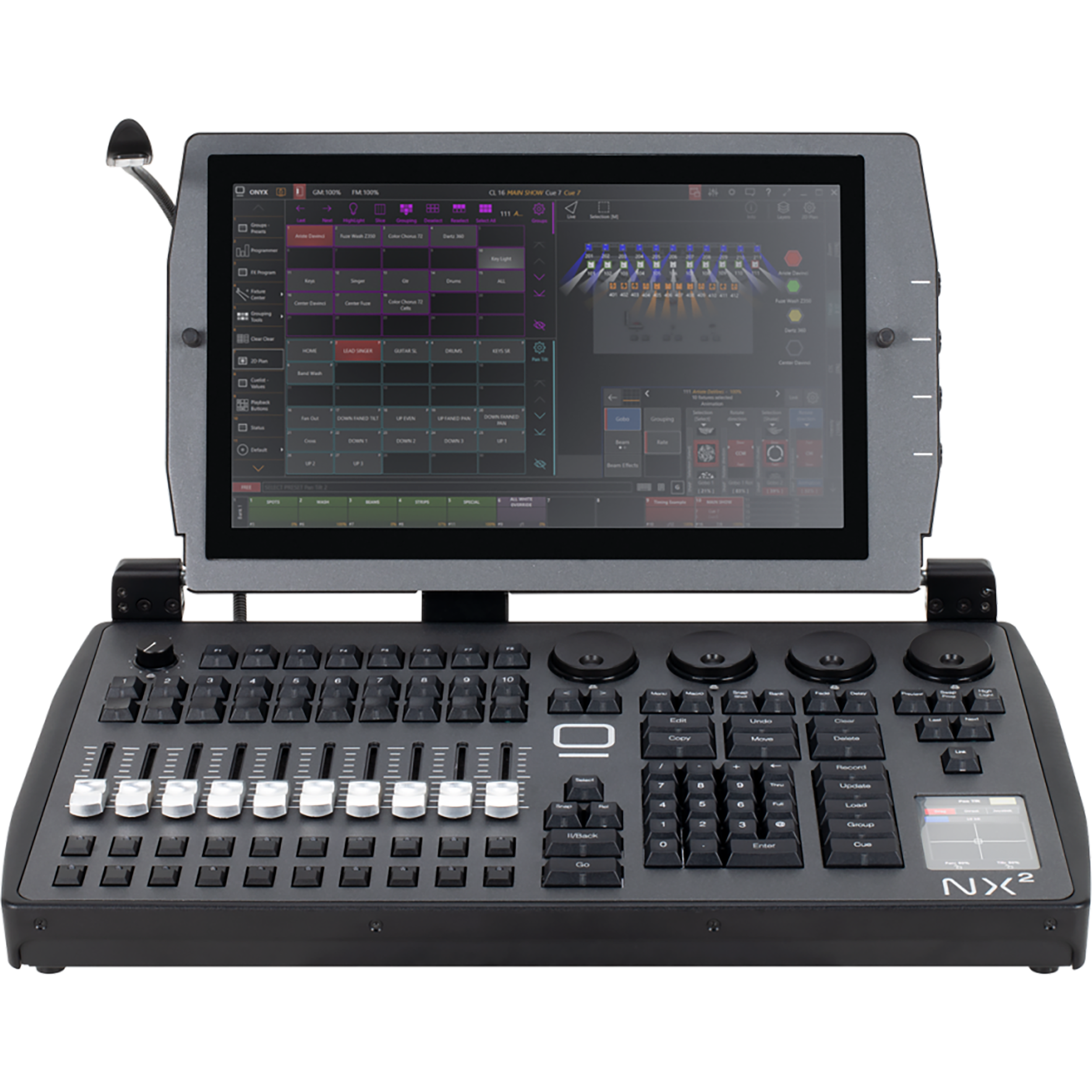

• Control Surface:
- 10x 60 mm playback faders, each with 4 x assignable buttons
- 8x customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap and Release
- 4x digital rotary encoders with push function and status LED for fixture parameter control
- 4x screen mounted digital rotary encoders with push
- 3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
- Grand master rotary fader and button
- Blind/HighLight/Last/Next buttons
- Full numerical keypad and command keys
• Hardware:
- Industrial 15.6” TFT 16:9 touchscreen (1920x1080px)
- 250 GB NVMe M.2 storage drive
- Industrial motherboard with Intel i5 Hexa-Core CPU
- Quiet thermal design using advanced copper heat pipe coolers
- 16 GB DDR4 RAM
- Integrated graphics processor
- Windows 10 IoT Embedded Operating System
- OS installation by USB 3.0 storage device
- Supports Windows USB touchscreens

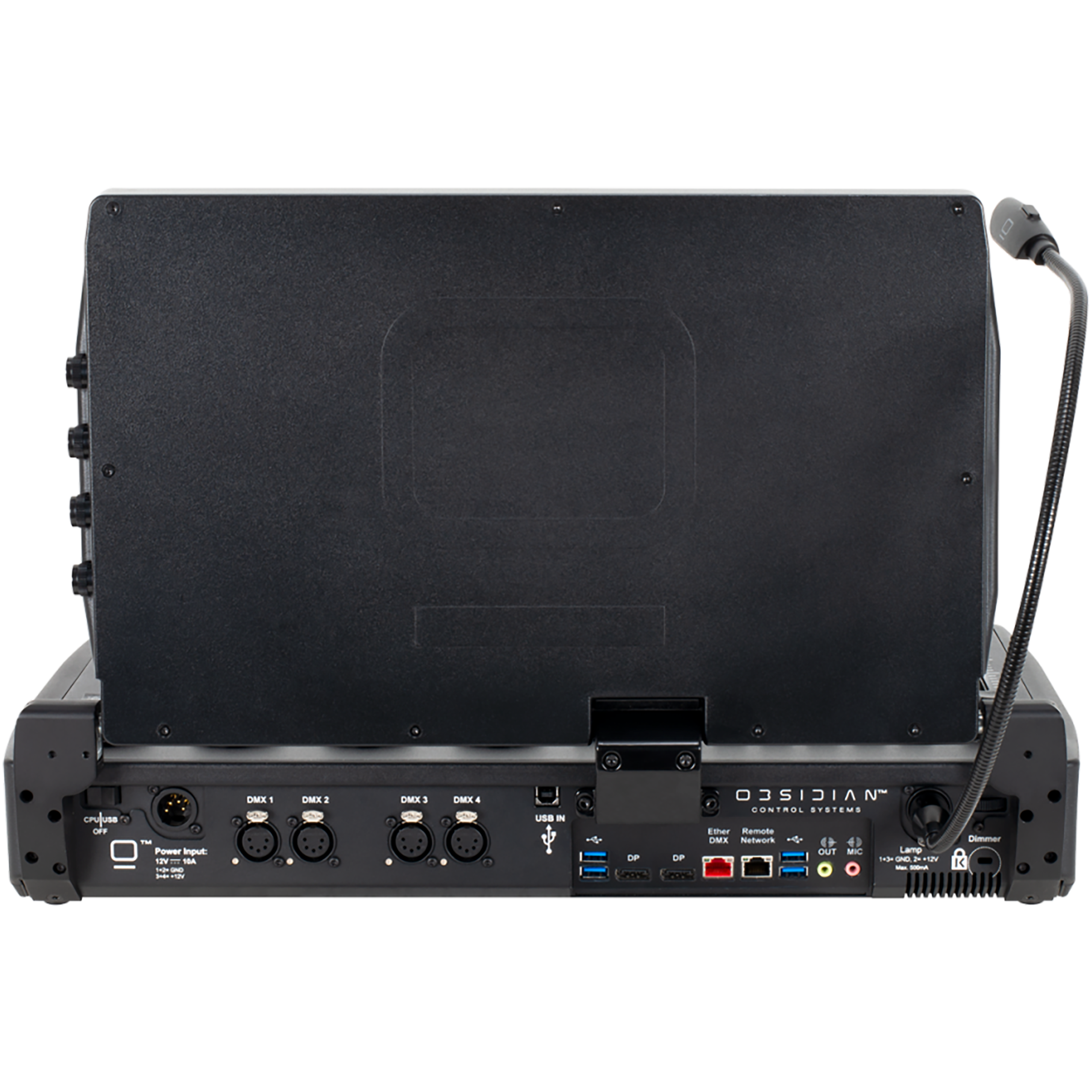

• Connections:
- 4x DMX / RDM Universe In/Out: 5-pin locking XLR
- External Display: 2x DisplayPort (up to 4k)
- Network: 2x Gigabit for Art-Net, sACN and ONYX X-Net
- Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
- Audio Out, Mic In: 2x 3.5mm Jack

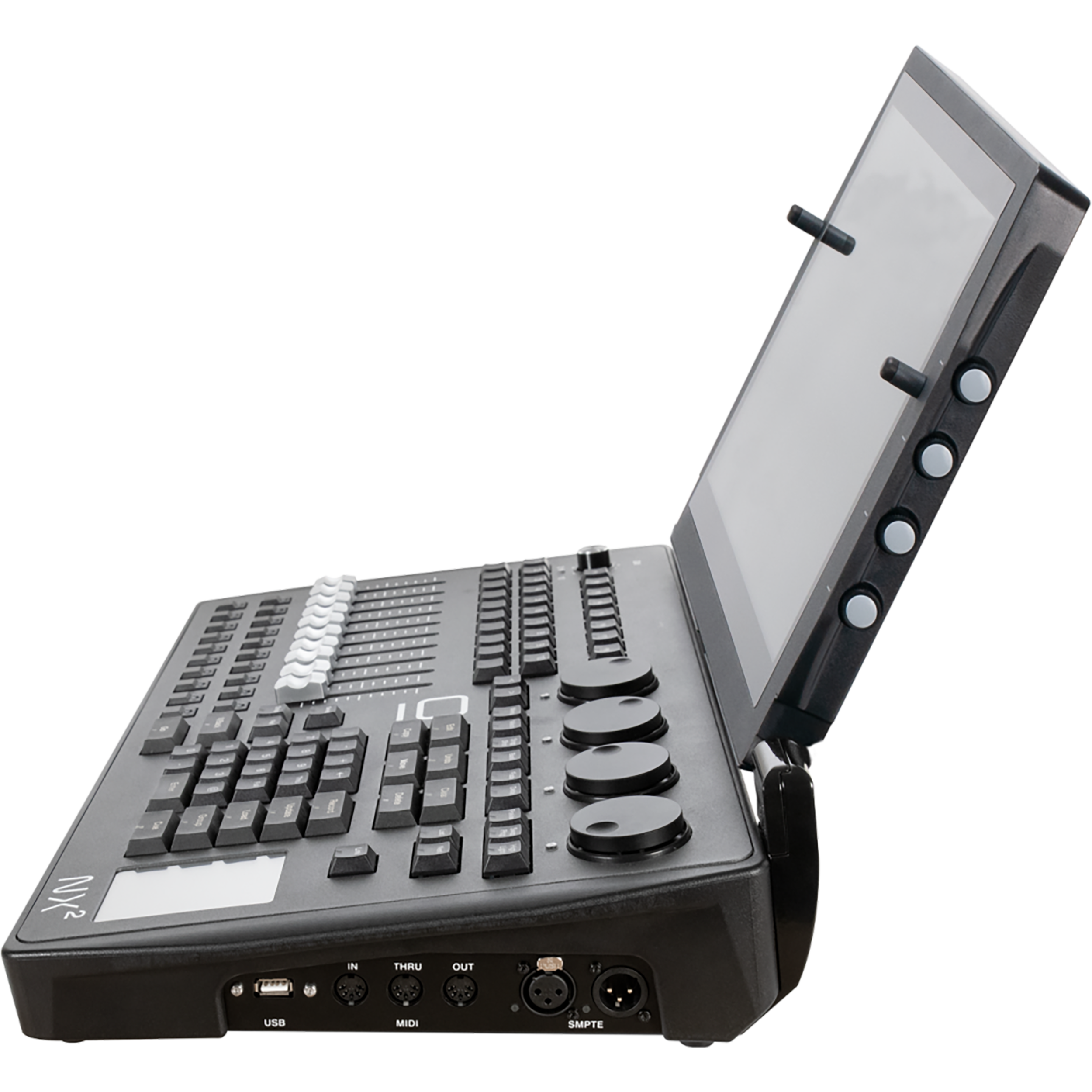

- MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): 5pin DIN
- SMPTE Timecode In/Out: 3-pin XLR
- 12 VDC power supply input: 4-pin XLR
- Desk lamp: XLR 12V
- USB In: USB 2.0 B
• Physical:
- Length: 11.9 in. (300mm)
- Width: 21.3 in. (540mm)
- Height: 4.8 in. (121mm)
- Weight: 10.2 lbs. (4.6 kg)
• Electrical:
- AC mains power to 12VDC external PSU (included)
- 100-240V nominal, 50/60Hz
- Maximum current: 3A
- 12VDC output: 11A, 132W max.

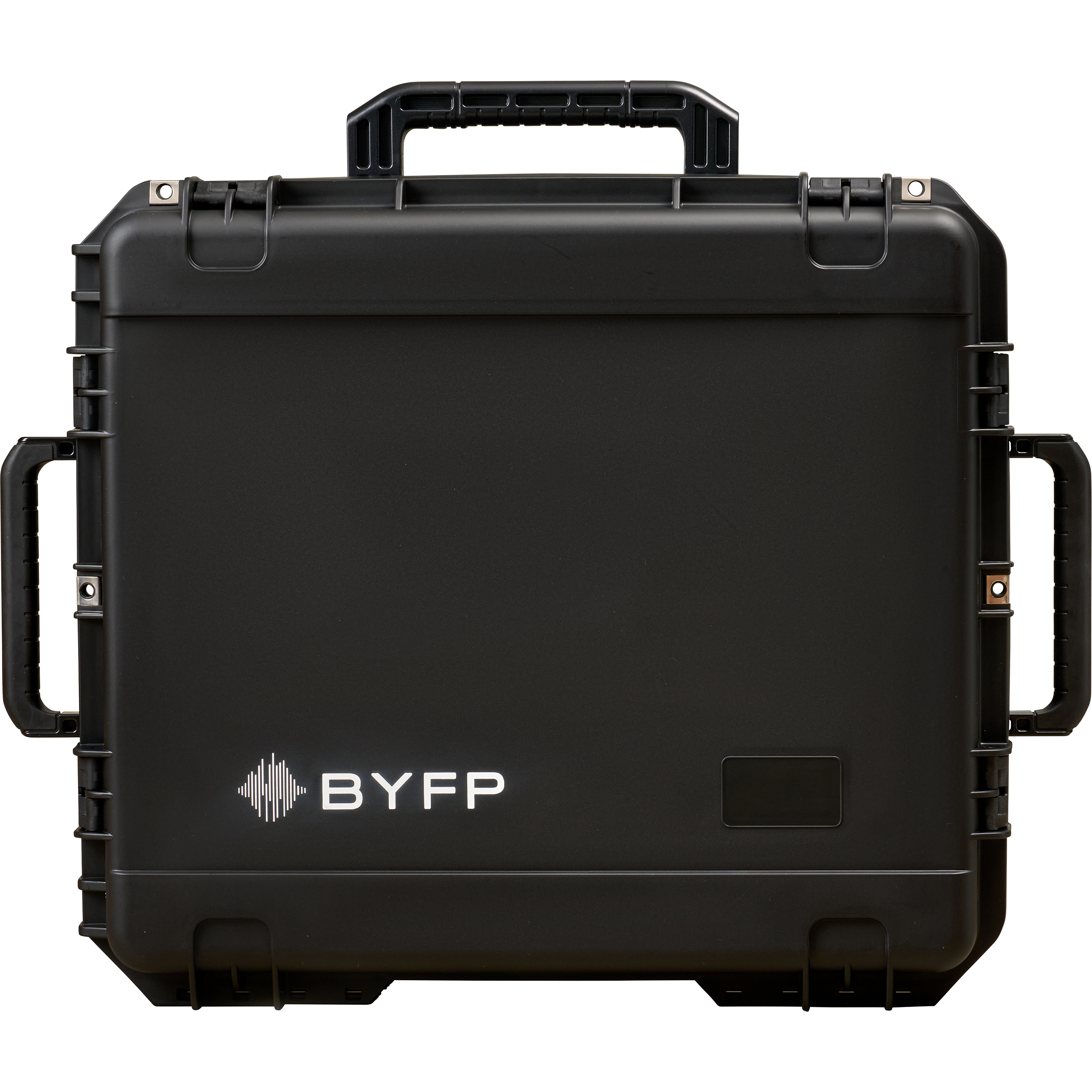

BYFP ipCase for Obsidian ONYX NX2:
• Color: Black
• Exterior: Hard Case
• Built In Wheels or Casters: Yes
• Interior Dimension (L x W x D): 24" x 21" x 5"
• Exterior Dimensions (L x W x H): 26.25" x 23.5" x 8.5"
• Weight: 21.33 lb
CONTENTS
-

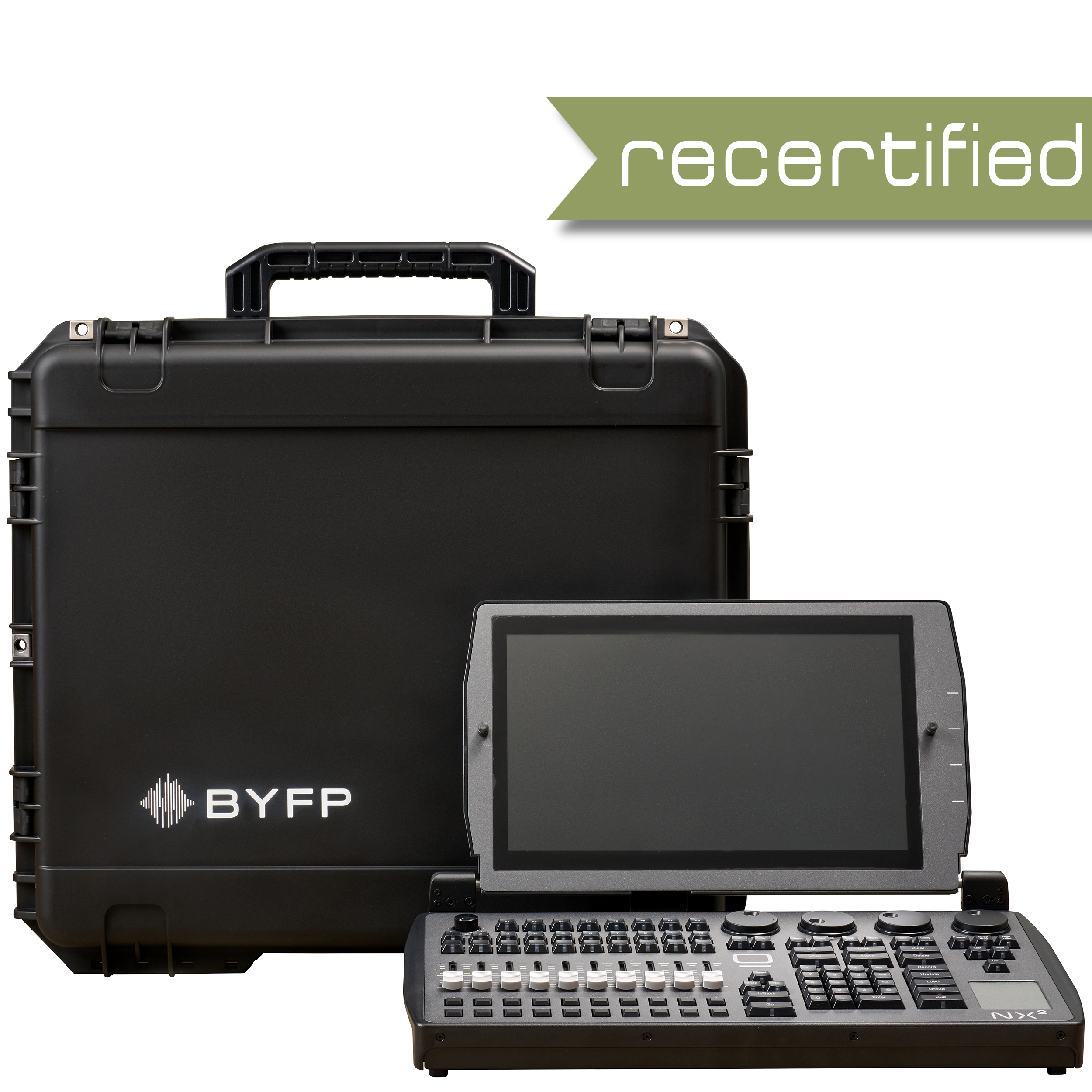

(1) Obsidian ONYX NX2 Console
(1) BYFP ipCase for Obsidian ONYX NX2
(1) RGB LED Desk Lamp, Angular XLR Connector, 13"
(1) Dust Cover
(1) USB Cable
(1) External PSU (12V 11A)
(1) 1.5m Power Cable, 3-Pin IEC
(1) User Guide
