Product SKU
    26360

Obsidian ONYX NX Wing

$2,499.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

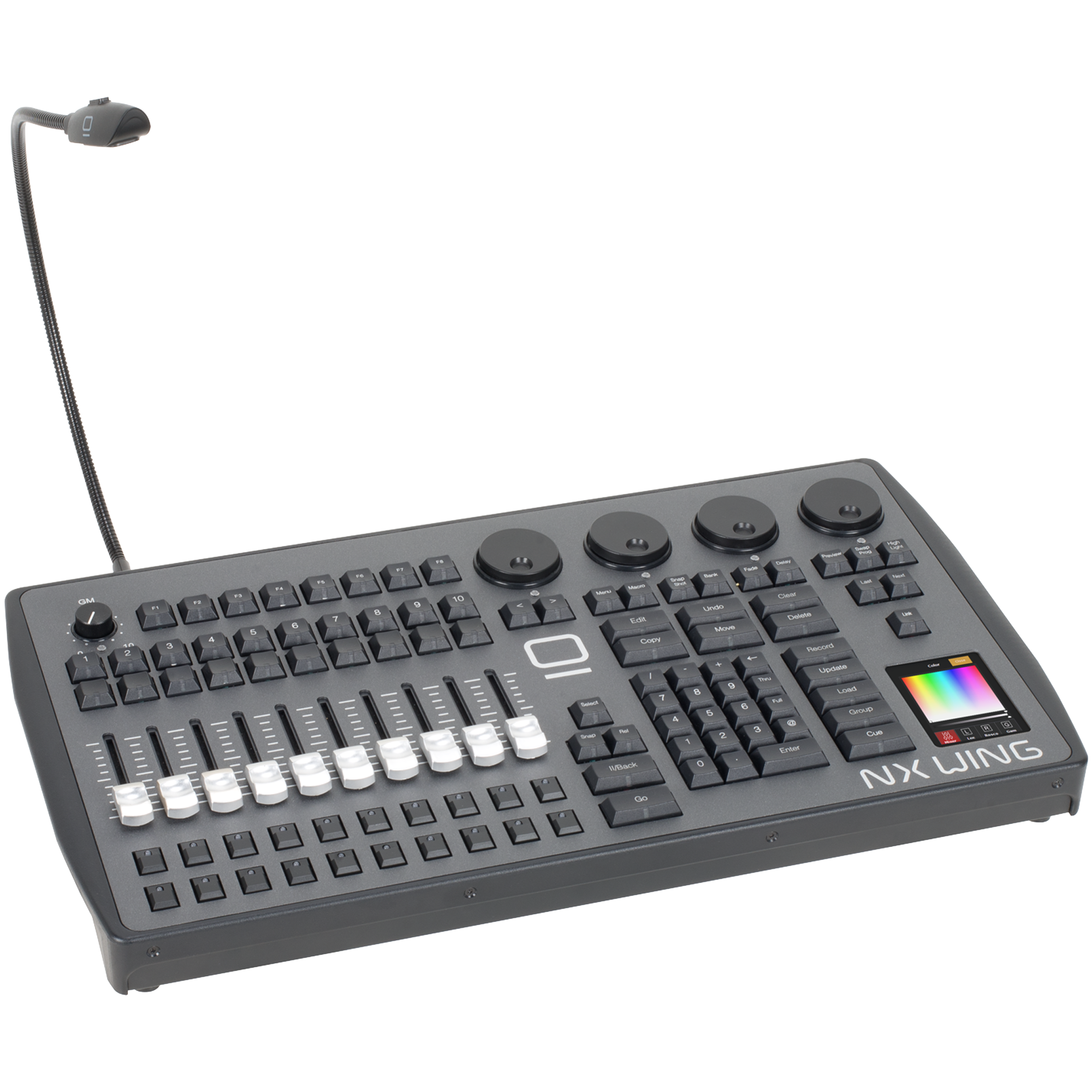

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC.

FEATURES
    • Fully featured control surface, portable and lightweight
    • 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen
    • DMX, Timecode and Midi Connectivity
    • ONYX Premier 64 Universe License
    • Plug and Play USB device for any PC with ONYX
SPECIFICATIONS
    Control Surface:
    - 10 x 60 mm playback faders, each with 4 x assignable buttons
    - 8 x customizable multi-function keys
    - Playback Select button
    - Master Go section with Go, Pause, Snap and Release
    - 4x digital rotary encoders with push function and status LED for fixture parameter control
    - 3.5” RGB touchscreen for parameter groups, effect parameters, fanning and global timings
    - Grand master rotary fader and button
    - Blind/HighLight/Last/Next buttons
    - Full numerical keypad and command keys

    Connections:
    - 4x DMX / RDM Universe In/Out: 5-pin locking XLR
    - MIDI in/out/thru (MIDI Showcontrol, MIDI notes, MIDI timecode): 5-pin DIN
    - SMPTE Timecode In/Out: 3-pin XLR
    - 12VDC power supply input: 4-pin XLR
    - Desk Lamp: XLR 12V
    - USB In: USB 2.0 B

    Physical:
    - Length: 11.9 in. (300mm)
    - Width: 21.3 in. (540mm)
    - Height: 3.9 in. (99mm)
    - Weight: 10.2 lbs. (4.6 kg)

    Electrical:
    - AC mains power to 12VDC external PSU (included)
    - 100-240V nominal, 50/60Hz
    - Maximum current: 3A
    - 12VDC output: 11A, 132W max.
CONTENTS
    (1) Obsidian ONYX NX Wing
    (1) RGB LED Desk Lamp, Angular XLR Connector, 13"
    (1) Dust Cover
    (1) USB Cable
    (1) External PSU (12V 11A)
    (1) 1.5m Power Cable, 3-Pin IEC
