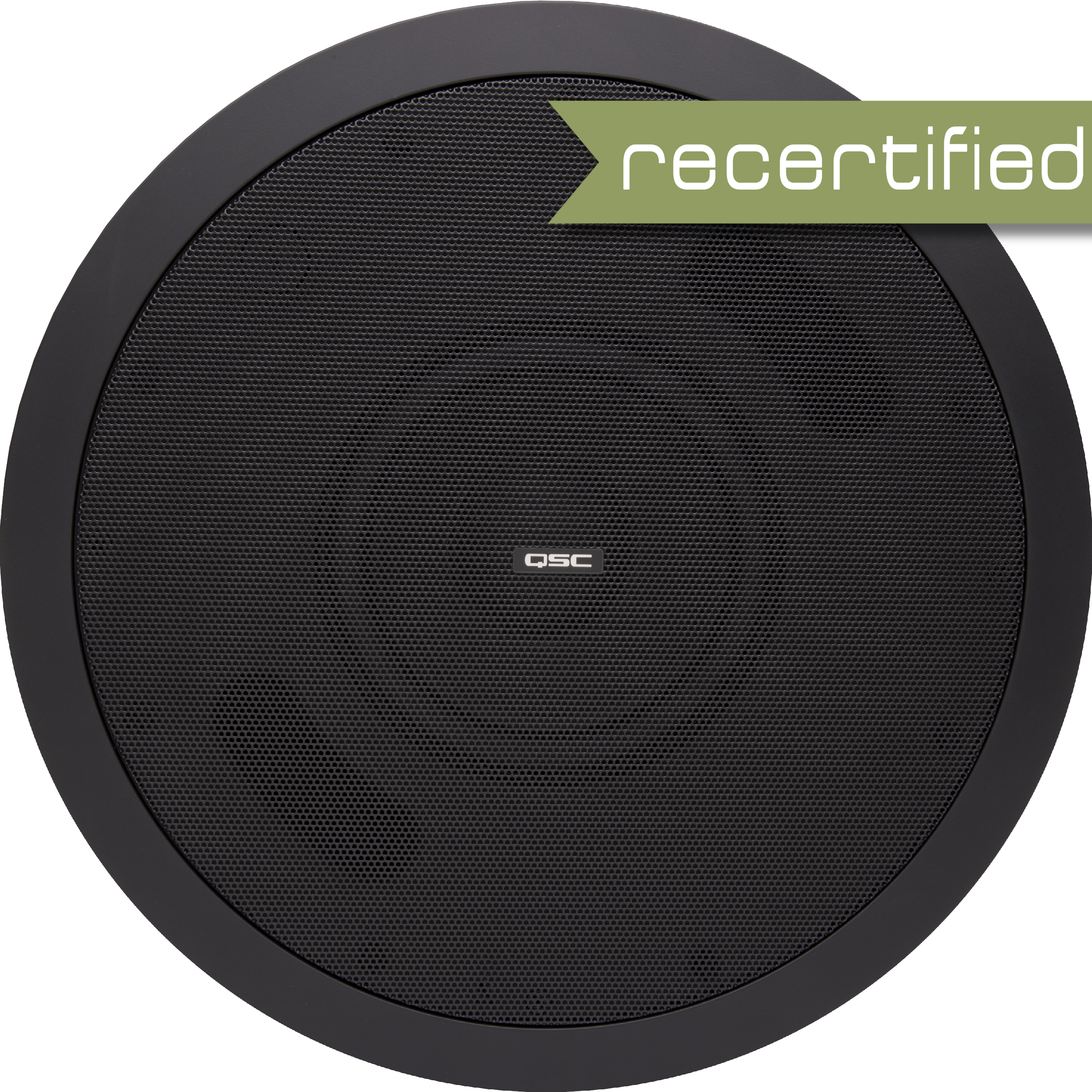

QSC AD-C.SUB Ceiling Subwoofer
29%, only 0 left
QSC AD-C.SUB Ceiling Subwoofer
Product SKU
    35087

QSC AD-C.SUB Ceiling Subwoofer

$299.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The AcousticDesign Series offers integrators a premium-quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

For your system integration needs, complete EASE, CF2, CAD, and BIM files will be available for download at QSC.com.

FEATURES
    • Dual voice-coil for improved thermal dissipation and higher output
    • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
    • 4x built-in high-pass filtered outputs
    • Snap-fit magnetic grills
    • Locking 4-pole Euroblock connectors
    • Removable conduit cover plate
    • 4x double stepped, long travel dog-ear blind mount system
    • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform
    • UL1480 and UL2043 certified
SPECIFICATIONS
    • LF transducer: 6.5-inch (165 mm) dual voice-coil weather-treated paper cone woofer
    • HF transducer: N/A
    • Effective frequency range: 45 Hz – 150 Hz
    • Rated noise power / voltage: 100 W / 20 V (rms)
    • Sensitivity [dB] (rated @ 1 W, 1 m): 86
    • Coverage (-6 dB): Omni
    • Directivity factor: TBD
    • Directivity index [dB]: TBD
    • Maximum SPL [dB] (continuous / peak): 100 / 106
    • Recommended amplifier: 100 W
    • Transformer taps / impedance: Bypass: 4 Ohm; 100 W (70 V); NA (100 V) Tap: 50 Ohm; 50 W (70 V); 100 W (100 V) Tap: 100 Ohm; 25 W (70 V); 50 W (100 V) Tap: 200 Ohm; 12.5 W (70 V); 25 W (100 V) Tap: 400 Ohm
    • Connectors: Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4 satellites
    • Enclosure material: ABS baffle on powder-coated steel back can
    • Grill material: Powder-coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating temperature range: -4 to 122° F (-20 to 50° C)
    • Net weight: 19.2 lb (8.7 kg)
    • Product dimensions (Ø x H): Ø 13.4 x 10 inches (Ø 340 x 254 mm)
    • Safety agency: UL1480, UL2043, NFPA90, and NFPA70 are suitable for use in air-handling spaces. The transformer is UL registered per UL1876, RoHS, and CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability ratings in accordance with IEC60849 / EN60849 systems.
CONTENTS
    (1) QSC AD-C.SUB Ceiling Subwoofer
    (1) C-Ring and Tile Rails
    (1) Set of Rail Screws
    (3) Euroblock Connectors
    (1) Cutout Template
    (1) Grille
