Product SKU
    35677

QSC AD-C4T-LPZB-WH

Product Short Title
    4.5" 2-Way Ceiling Speaker
$265.00

PICK UP TODAY

Quick & Complimentary Shipping

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP8997_SQ_1.png__PID:e7077992-36de-44a6-a734-ae2d97143238

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones
BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

BYFP ipCase for Beta 52A and Beta 91A Drum Microphones

$199.99
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones
BYFP ipCase for 2x Shure SM81 Instrument Microphones

BYFP ipCase for 2x Shure SM81 Instrument Microphones

$169.99

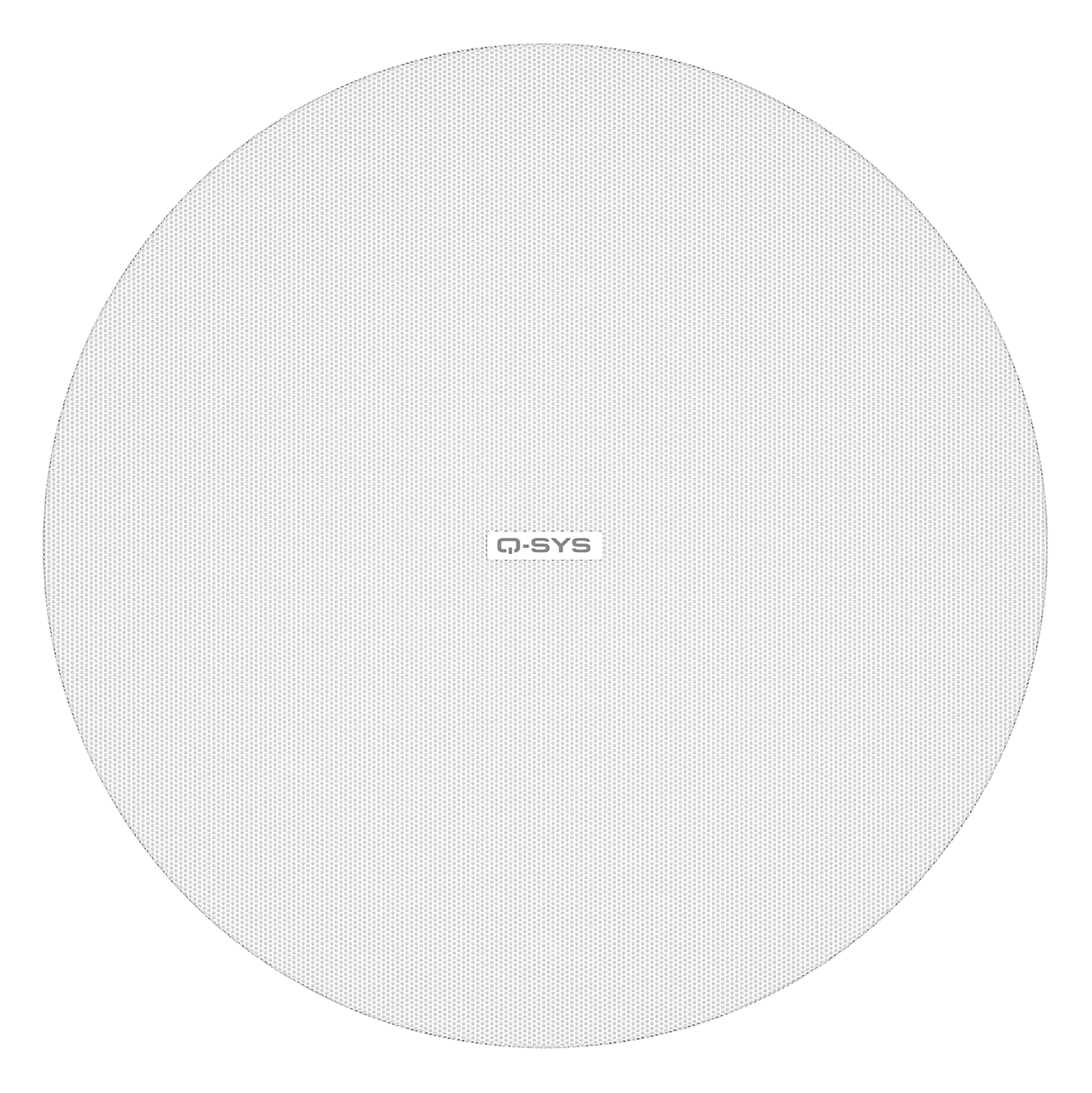

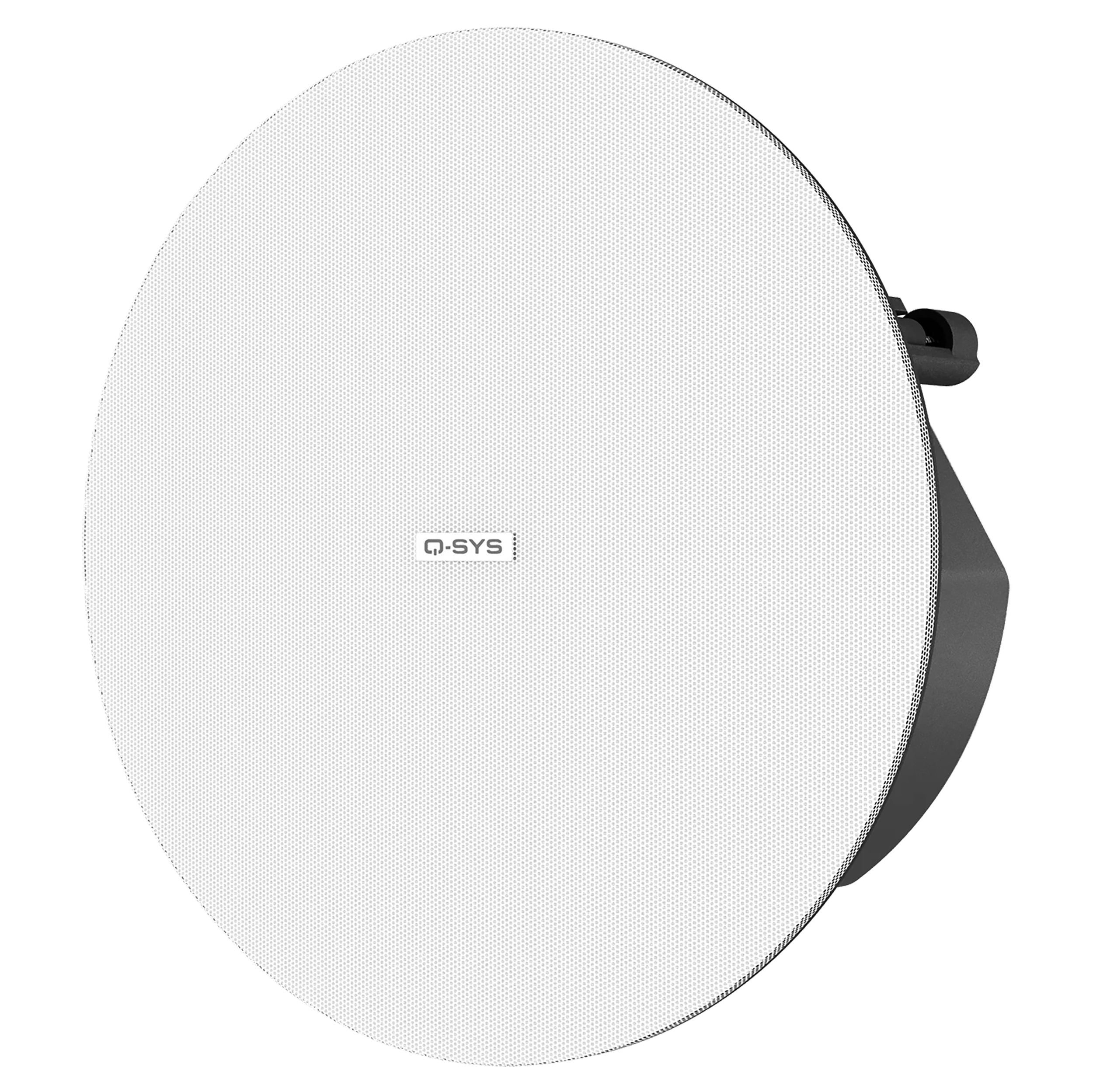

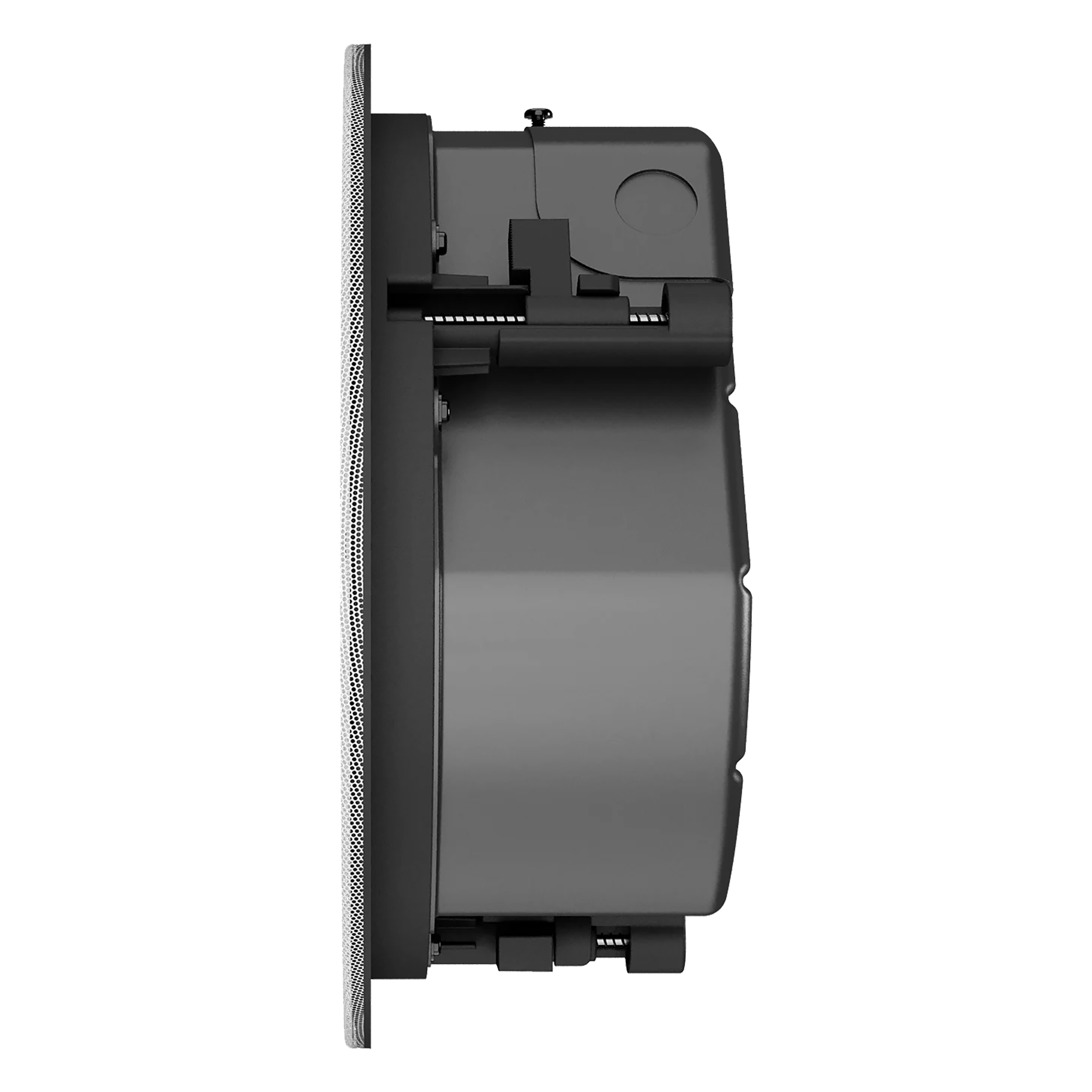

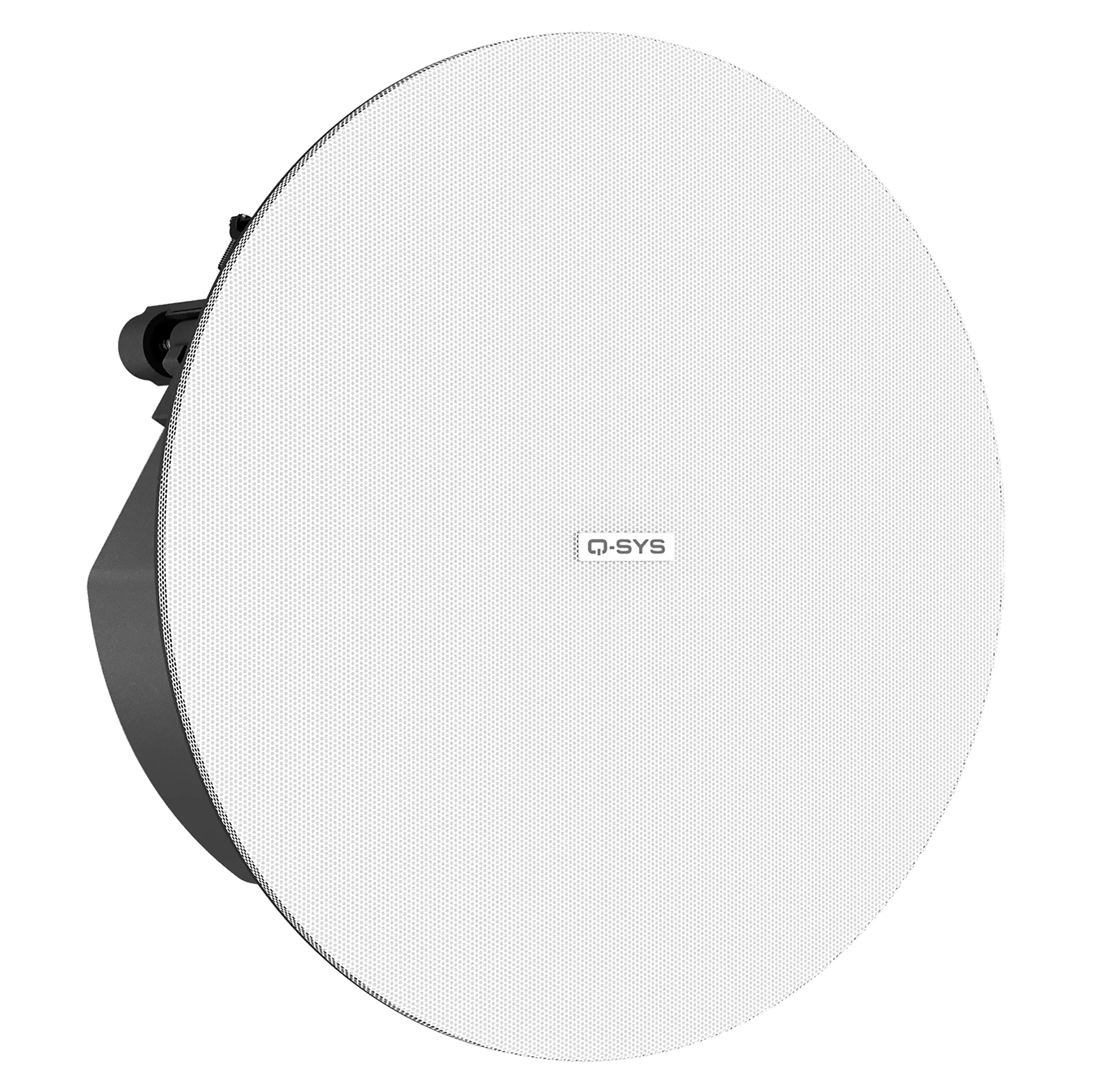

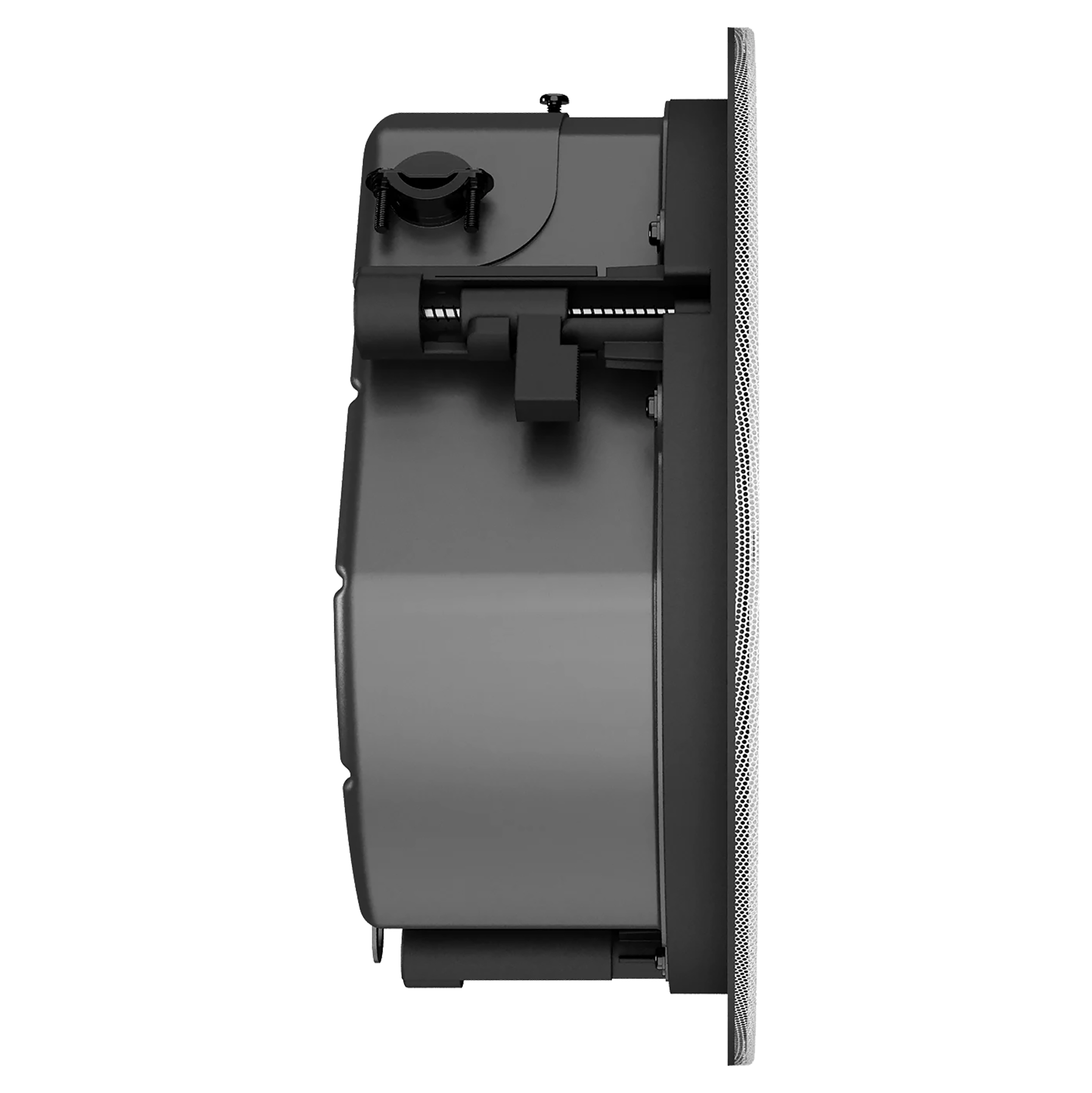

he QSC AD-C4T-LPZB is a premium 4.5-inch two-way low-profile, zero-bezel ceiling loudspeaker designed to deliver clear, consistent audio while maintaining a sleek, modern architectural appearance. It features a weather-resistant 4.5-inch paper-cone woofer and 0.75-inch aluminum dome tweeter integrated with QSC’s Directivity Matched Transition™ (DMT) waveguide for smooth frequency response and wide, uniform 150° conical coverage. With a 70 Hz–20 kHz frequency range, 30W rated power, 102 dB maximum continuous SPL, and selectable 70V/100V transformer taps with 16O bypass, the AD-C4T-LPZB provides flexible integration for foreground and background audio applications. Its snap-fit magnetic grille, blind-mount system, removable logo, and low-profile 3.93-inch depth simplify installation while the zero-bezel design blends discreetly into contemporary ceilings. The speaker also supports Q-SYS Advanced Intrinsic Correction™ voicings and includes a Euroblock connector with parallel output, making it well suited for commercial spaces, retail environments, hospitality venues, education facilities, corporate AV systems, worship spaces, and other professionally installed audio applications.

FEATURES
    • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
    • Sleek zero bezel design for modern architectural needs
    • Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille
    • 3x double stepped, long travel dog-ear blind mount system
    • Advanced Intrinsic Correction™ voicings available via Q-SYS™
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Blemish-free removable logo
    • Removable conduit cover plate, also available as accessory for pre install wiring
    • UL1480 and UL2043 certified
SPECIFICATIONS
    • Effective frequency range: 70 Hz – 20 kHz
    • Rated noise power / voltage: 30 watts / 22 volts (rms)
    • Sensitivity: 87 dB
    • Rated coverage (-6 dB): 150° conical DMT™
    • Directivity factor (Q): 4.5
    • Directivity index (DI) [dB]: 6.5
    • Maximum continuous SPL [dB]: 102
    • Maximum peak SPL [dB]: 108
    • Nominal impedance [ohms]: 16
    • Recommended Amplifiers: 60 watts
    • Transformer taps / impedance: 16O (in bypass setting) 3.75W (70V); 7.5W (100V) Tap: 1333O 7.5W (70V); 15W (100V) Tap: 667O 15W (70V); 30W (100V) Tap: 333O 30W (70V); N/A (100V) Tap: 167O
    • LF Transducer: 114 mm [4.5-inch] weather resistant paper cone woofer
    • HF Transducer: 19 mm [0.75-inch] aluminum dome tweeter
    • Input connector type: Euroblock connector with parallel output
    • Enclosure material: ABS baffle on powder coated steel back can
    • Grille material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating Temperature Range: -20 to 50° C [-4 to 122° F]
    • Cutout dimension: Ø 245 mm [Ø 9.65-inch]
    • Net Weight: 3 kg [6.6 lb]
    • Product dimensions (Diameter x Height): Ø 280 x 100 mm [Ø 11.02 x 3.93-inch]
    • Shipping Weight: 10.2 kg [22.5 lb] (pair packed)
    • Shipping dimensions (H x W x D): 183 x 699 x 394mm [7.2 x 27.5 x 15.5-inch](pair packed)
CONTENTS
    (1) QSC AD-C4T-LPZB-WH
    (1) C-ring and tile rails
    (1) Set Rail screws
    (2) Euroblock connector
    (2) Cut-out Template
    (2) Tether Grille
