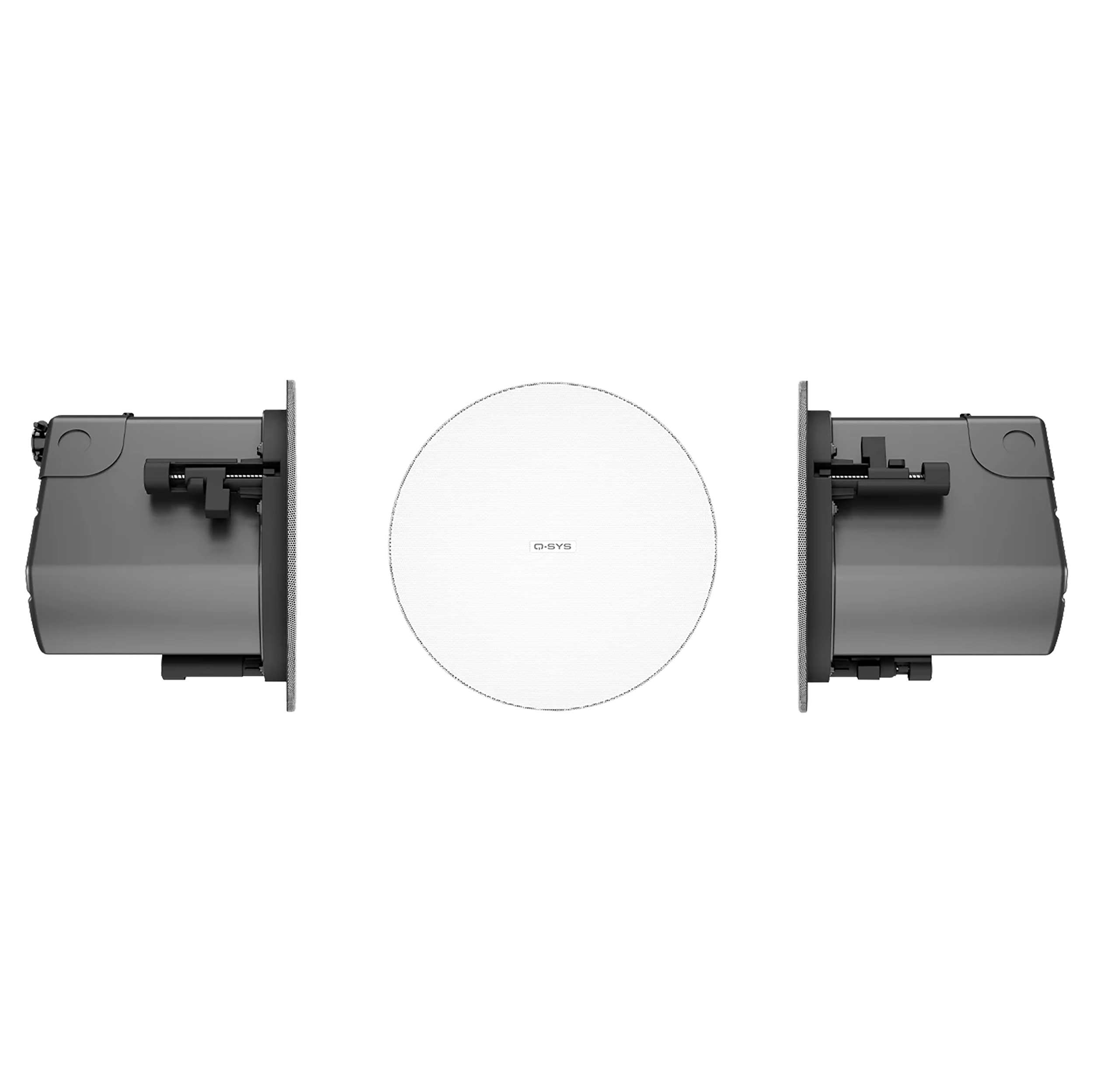

The QSC AD-C4T-ZB-WH is a 4.5-inch, 2-way zero-bezel ceiling loudspeaker designed for high-quality foreground and background sound reinforcement in commercial and architectural installations. Featuring a weather-treated 4.5-inch paper-cone woofer and 0.75-inch aluminum-dome tweeter, it delivers a 70 Hz–20 kHz frequency range with smooth, consistent 150° conical coverage through QSC’s Directivity Matched Transition™ (DMT) waveguide. Its low-loss 30W transformer supports flexible 70V/100V distributed-audio applications with selectable power taps, while a 16O bypass setting provides additional system-design flexibility. The sleek zero-bezel design, snap-fit magnetic grille, blemish-free removable logo, and three-point blind-mount system allow for a clean, discreet installation, while Q-SYS Intrinsic Correction™ voicings can optimize performance when used with compatible Q-SYS systems. Finished in white (RAL 9003), the AD-C4T-ZB-WH combines architectural aesthetics, reliable performance, and installation flexibility for offices, hospitality spaces, retail environments, corporate facilities, and other professional audio applications.

FEATURES
    • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
    • Sleek zero bezel design for modern architectural needs
    • Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille
    • 3x double stepped, long travel dog-ear blind mount system
    • Advanced Intrinsic Correction™ voicings available via Q-SYS™
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Blemish-free removable logo
    • Removable conduit cover plate, also available as accessory for pre install wiring
SPECIFICATIONS
    • Effective frequency range: 70 Hz – 20 kHz
    • Rated noise power / voltage: 30 watts / 22 volts (rms)
    • Sensitivity: 87.5 dB
    • Rated coverage (-6 dB): 150° conical DMT™
    • Directivity factor (Q): 4.5
    • Directivity index (DI) [dB]: 6.5
    • Maximum continuous SPL [dB]: 102
    • Maximum peak SPL [dB]: 108
    • Nominal impedance [ohms]: 16
    • Recommended Amplifiers: 60 watts
    • Transformer taps / impedance: 16O (in bypass setting) 3.75W (70V); 7.5W (100V) Tap: 1333O 7.5W (70V); 15W (100V) Tap: 667O 15W (70V); 30W (100V) Tap: 333O 30W (70V); N/A (100V) Tap: 167O
    • LF Transducer: 114 mm [4.5-inch] weather resistant paper cone woofer
    • HF Transducer: 19 mm [0.75-inch] aluminum dome tweeter
    • Input connector type: Euroblock connector with parallel output
    • Enclosure material: ABS baffle on powder coated steel back can
    • Grille material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating Temperature Range: -20 to 50° C [-4 to 122° F]
    • Cutout dimension: Ø 195 mm [Ø 7.7-inch]
    • Net Weight: 2.9 kg [6.4 lb]
    • Product dimensions (Diameter x Height): Ø 230 x 176 mm [Ø 9.06 x 6.93-inch]
    • Shipping Weight: 9.3 kg [20.5 lb] (pair packed)
    • Shipping dimensions (H x W x D): 279 x 711 x 318 mm [11 x 28 x 12.5-inch] (pair packed)
CONTENTS
    (1) QSC AD-C4T-ZB-WH
    (1) C-ring and tile rails
    (1) Set Rail screws
    (2) Euroblock connector
    (2) Cut-out Template
    (2) Grille
