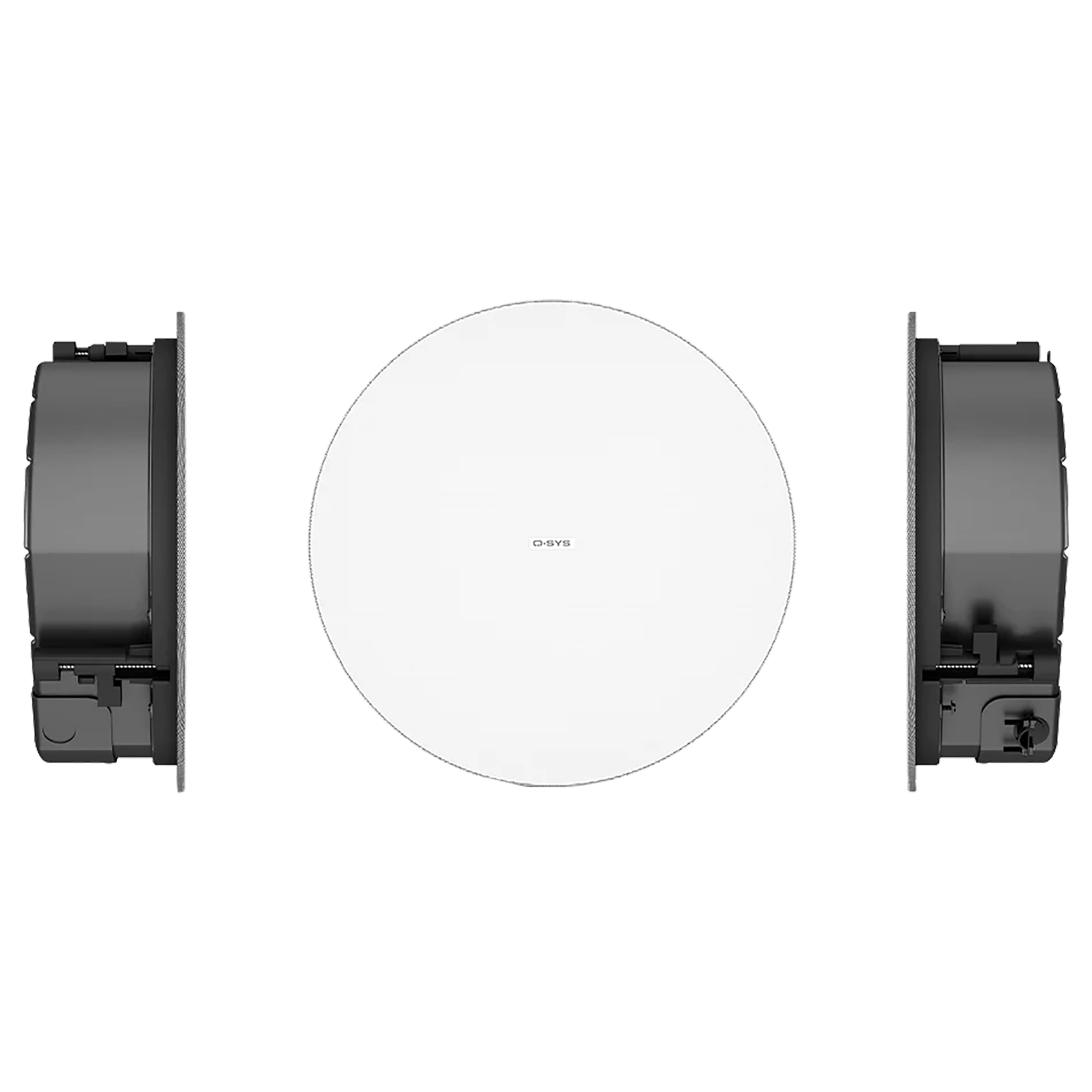

The QSC AD-C6T-LPZB-WH is a premium 6.5-inch, two-way low-profile ceiling loudspeaker designed to deliver clear, consistent sound while maintaining a sleek, virtually bezel-free appearance in modern commercial and architectural installations. Part of QSC’s AcousticDesign Series, it features a weather-resistant 6.5-inch paper-cone woofer and 0.75-inch aluminum-dome tweeter integrated with QSC’s Directivity Matched Transition™ (DMT) waveguide for smooth frequency response and 135° conical coverage. Its shallow 3.95-inch profile makes it well suited for installations with limited ceiling space, while the 70/100V transformer provides selectable power taps for distributed audio systems, with a 16O bypass option for low-impedance applications. The speaker delivers a 65 Hz–20 kHz frequency range, 88 dB sensitivity, and up to 112 dB peak SPL, while its magnetic snap-fit grille, removable logo, and white RAL 9003 finish provide a clean, discreet appearance. A three-point blind-mount system and removable conduit cover simplify installation, while Q-SYS Intrinsic Correction™ voicings enable optimized system performance when integrated with compatible Q-SYS equipment.

FEATURES
    • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
    • Sleek zero bezel design for modern architectural needs
    • Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille
    • 3x double stepped, long travel dog-ear blind mount system
    • Advanced Intrinsic Correction™ voicings available via Q-SYS™
    • Low-saturation and low-loss 70/100V transformers with 16O bypass
    • Blemish-free removable logo
    • Removable conduit cover plate, also available as accessory for pre install wiring
    • UL1480 and UL2043 certified
SPECIFICATIONS
    • Effective frequency range: 65 Hz – 20 kHz
    • Rated noise power / voltage: 60 watts / 31 volts (rms)
    • Sensitivity: 88 dB
    • Rated coverage (-6 dB): 135° conical DMT™
    • Directivity factor (Q): 6.5
    • Directivity index (DI) [dB]: 8
    • Maximum continuous SPL [dB]: 106
    • Maximum peak SPL [dB]: 112
    • Nominal impedance [ohms]: 16
    • Transformer taps / impedance: 16O (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667O 15W (70V); 30W (100V) Tap: 333O 30W (70V); 60W (100V) Tap: 167O 60W (70V); N/A (100V) Tap: 83O
    • LF Transducer: 165 mm [6.5-inch] weather resistant paper cone woofer
    • HF Transducer: 19 mm [0.75-inch] aluminum dome tweeter
    • Input connector type: Euroblock connector with parallel output
    • Enclosure material: ABS baffle on powder coated steel back can
    • Grille material: Powder coated steel
    • Ingress protection: IP-34
    • Operating environment: Designed for indoor use
    • Operating Temperature Range: -20 to 50° C [-4 to 122° F]
    • Cutout dimension: Ø 305 mm (Ø 12 in)
    • Net Weight: 4.3 kg [9.5 lb]
    • Product dimensions (Diameter x Height): Ø 340 x 100 mm [Ø 13.37 x 3.95-inch.]
    • Shipping Weight: 12.6 kg [27.8 lb] (pair packed)
    • Shipping dimensions (H x W x D): 178 x 864 x 470 mm (7 x 34 x 18.5 in), pair packed
CONTENTS
    (1) QSC AD-C6T-LPZB
    (1) C-ring and tile rails
    (1) Set Rail screws
    (2) Euroblock connector
    (2) Cut-out Template
    (2) Tether Grille
