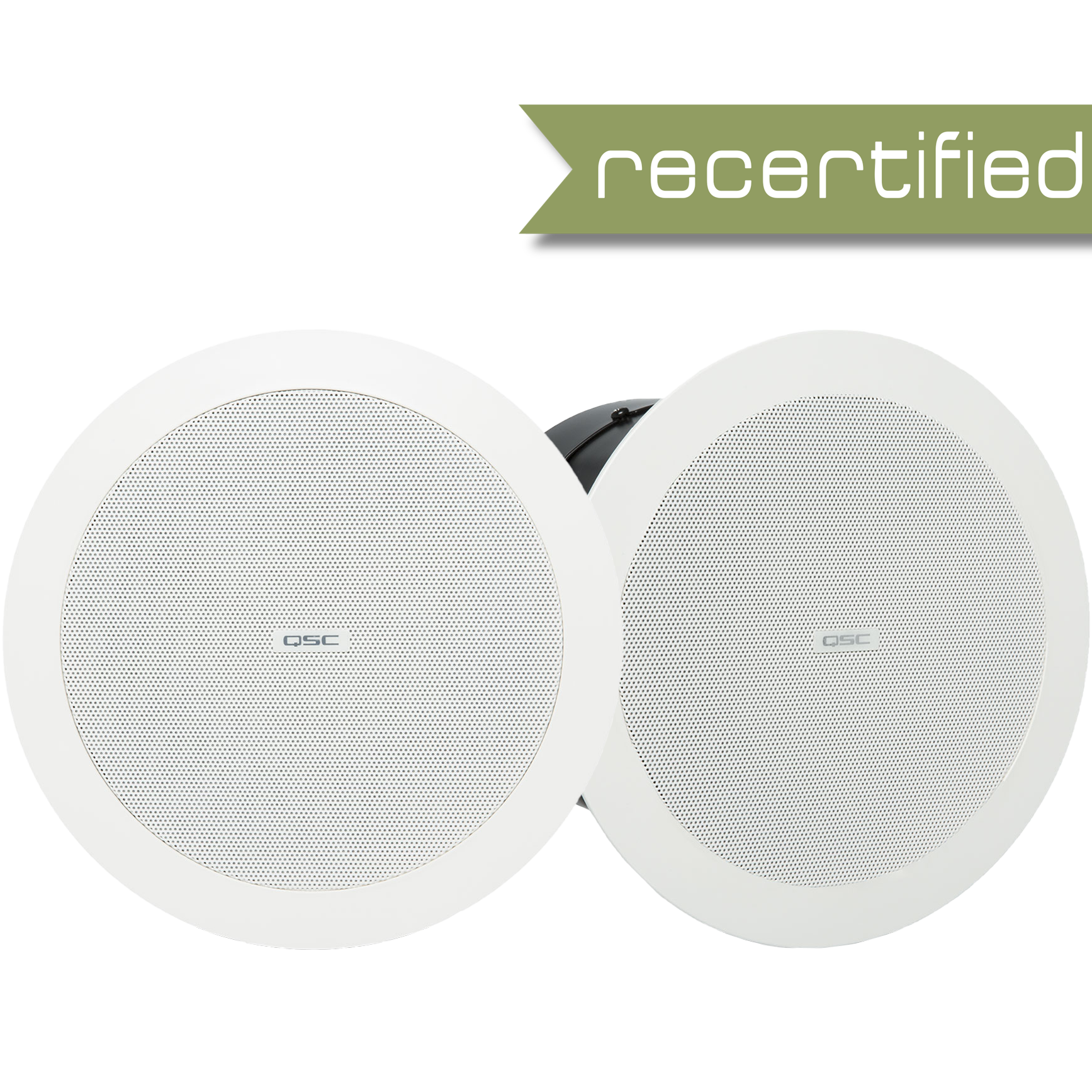

The QSC AcousticDesign™ AD-C6T is a 6.5" two-way ceiling loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications that utilize 70/100V or 16Ω bypass configurations.

The AcousticDesign™ series offers integrators a premium-quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign series allows integrators seamless transitions within blended installations.

The AD-C6T features a high-quality 6.5" weather-treated paper cone woofer with a 1" voice coil and a .75" aluminum dome tweeter, which is positioned on a DMT waveguide.

DMT (Directivity Matched Transition™) is QSC’s design philosophy where the high-frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. The result is a coherent transition between transducers with improved off-axis power response for consistent 135° conical DMT coverage.

The accurate frequency response of the AD-C6T is maintained even in 70/100V applications by use of a low-loss, low-saturation 60-watt transformer with selectable taps, including a 16Ω bypass, using a rotary selector located under the snap-fit magnetically attached powder-coat steel grille.

To retain lasting good looks, the rugged ABS baffle is further protected by using UV inhibitors that prevent discoloration and by a powder-coated steel back can. The magnetic grille features a stick-on logo that can be removed blemish-free for installations where branding is not permitted.

Installers will appreciate the 3x double-stepped, long-travel dog-ear blind mounting system, which captures from 0" to 2.25" of ceiling thickness. The conduit cover plate can be easily removed by loosening the single captive Phillips screw, allowing access to the locking 4-pole Euro-block connector, which can accept up to four 18AWG pairs, eliminating the hassles of star topology wiring designs. A locking 4-pole Euro-block connector that can accept four 18AWG pairs eliminates the termination hassles of star topology wiring designs.

Intrinsic Correction™ voicings that optimize performance and speed the install process are easily deployed via the Q-SYS Platforms, including CXD-Q Series amplifiers, as part of a complete QSC systems solution.
