DESCRIPTION

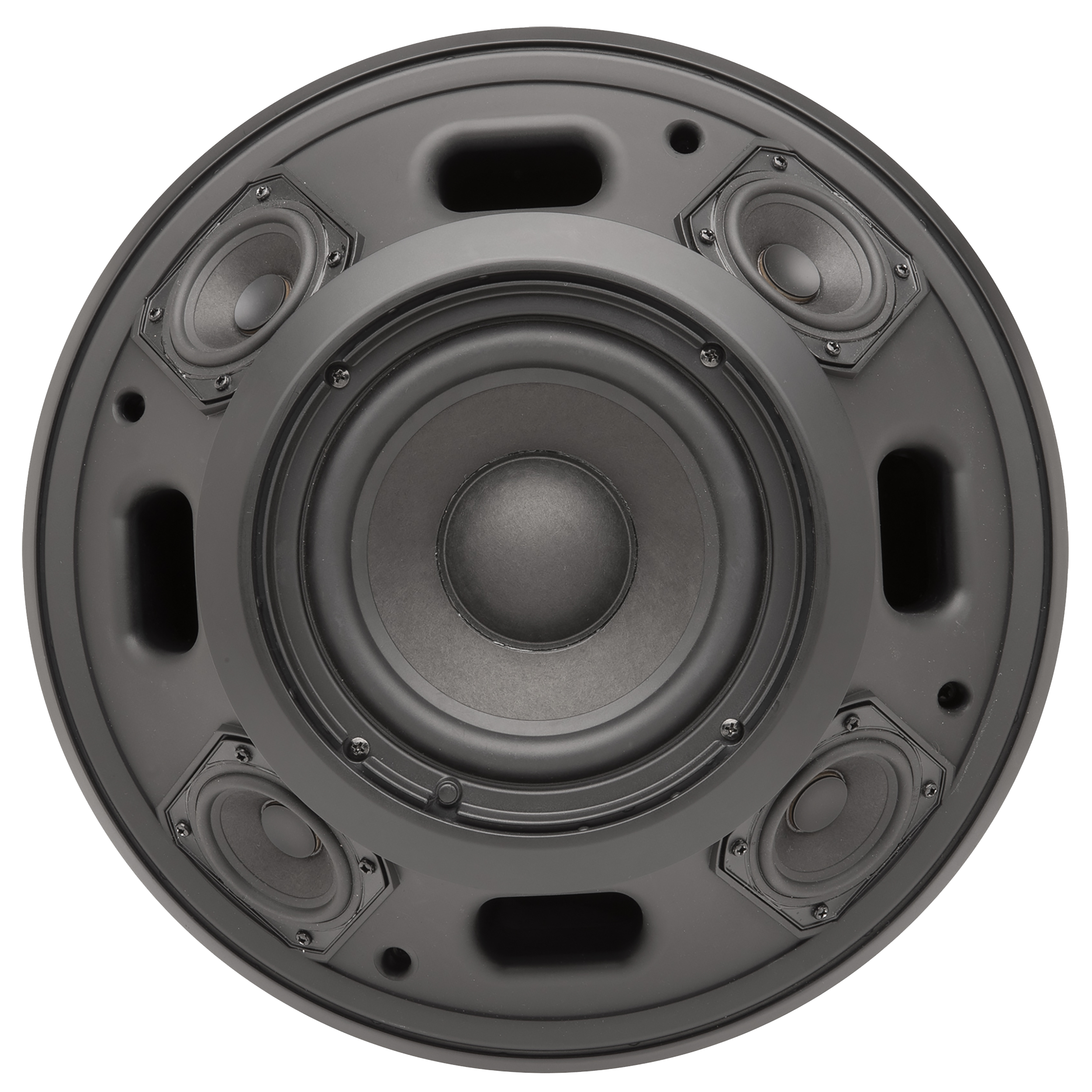

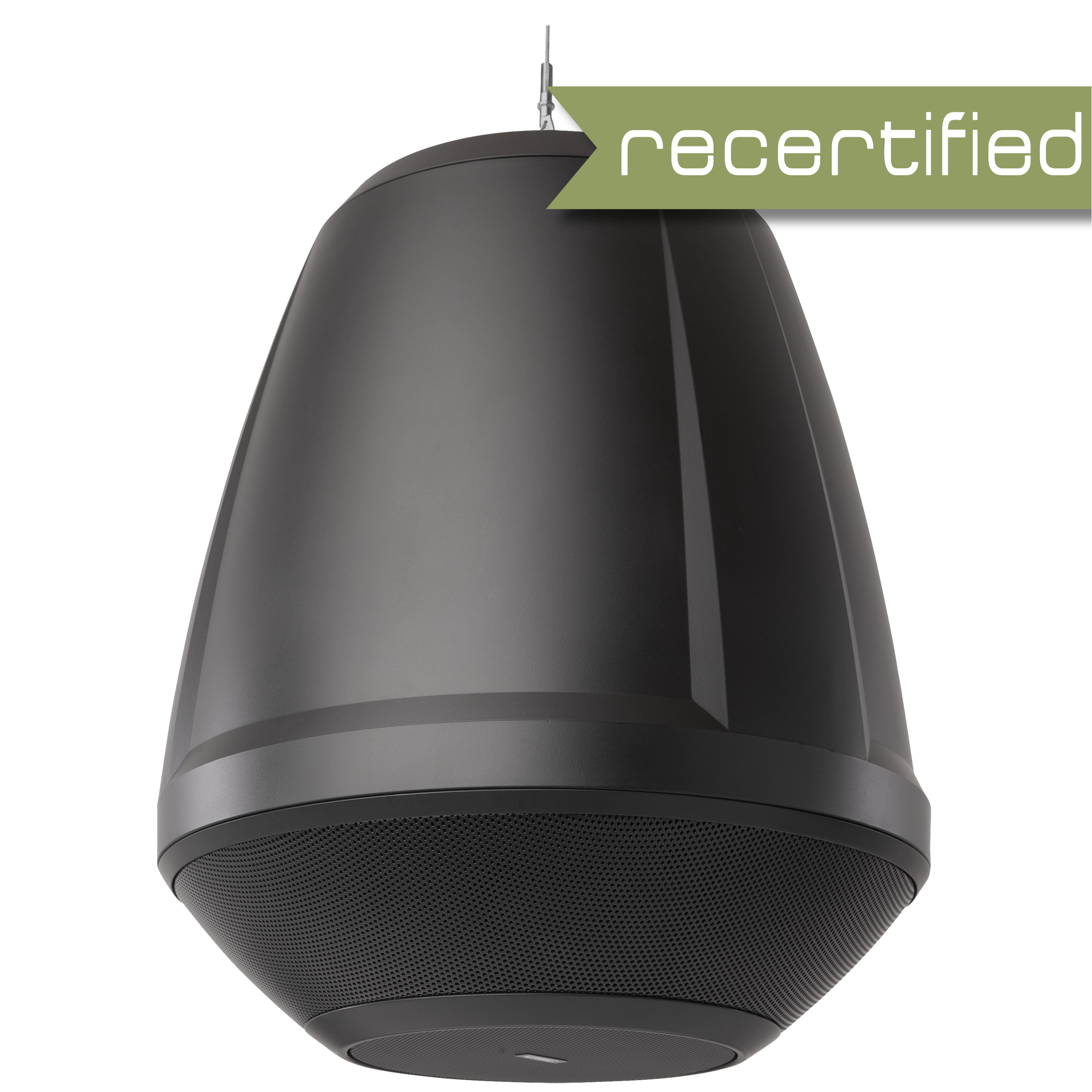

The QSC AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring one 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere.

All-in-One Solution, No Assembly Required

Contrary to their name, some “all-in-one” solutions often require time-consuming assembly of multiple components. Instead, the AD-P.HALO is purpose-designed and fully integrated within a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowers the overall project costs, and allows the integrator to focus on the sound.

Designed for Performance and Musicality

The AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that enables the AD-P.HALO to far surpass the background music performance of traditional two-way pendant-mount loudspeakers.

Perfect AcousticDesign™ Series Companion

AD-P.HALO is part of the AcousticDesign Series portfolio of loudspeakers, which offers sleek aesthetic design and high-quality sound across multiple form factors (ceiling mount, pendant mount, and surface mount).

Installers will appreciate the two quick-link cable assemblies and slip-lock fasteners to speed the installation. Located under a sealable input cover to prevent moisture at the terminals, a locking 4-pole Euro-block connector that can accept four 18AWG pairs eliminates the termination hassles of star topology wiring designs.

To further speed the install process while obtaining optimal results, Intrinsic Correction™ voicings are easily deployed via Q-SYS Ecosystem and QSC processing amplifiers.

FEATURES
    • Integrated 6.5" subwoofer and four 2.75" satellite transducers in a single pendant-mount enclosure
    • All-in-one solution with no assembly required
    • 200 W RMS power rating
    • Consistent tonal characteristics across the entire AcousticDesign Series family for surface, ceiling, and pendant applications
    • Intrinsic Correction™ voicings available via Q-SYS Ecosystem and QSC processing amplifiers
    • Rugged ABS enclosure
    • Low-saturation 70 / 100 V transformers with 6 Ω bypass
    • Transformer taps: 100 W, 50 W, 25 W, 12.5 W
    • IP54-Rated for Dust and Water Resistance
    • UL 1480A Listed and CE Compliant
    • Included Suspension Hardware and Fasteners
    • Complete EASE, CAD, and BIM Files Available Online
SPECIFICATIONS
    • Systems type: Integrated SUB/SAT
    • LF Transducer: 6.5 in (165.1 mm)
    • HF Transducer: 4x 2.75 in (69.85 mm)
    • Frequency range: 40 Hz - 20 kHz
    • Sensitivity: 86 dB
    • Rated noise power: 100 W
    • Max noise voltage: 24.5 V RMS
    • Coverage: 110° conical
    • Directivity index: 8 dB
    • Directivity Factor: 6
    • Maximum SPL (continuous/peak): 105 / 111 dB
    • Nominal impedance: 6 Ω
    • Crossover frequency: 250 Hz (2nd-order low-pass + 3rd-order high-pass filters)
    • Transformer Taps: 70 V: 12.5, 25, 50, 100; 100 V: 25, 50, 100
    • Port Tuning: 50 Hz
    • Input connectors: 4-pin male/female Euroblock with pass-thru and locking screws
    • Enclosure material: Injection-molded ABS baffle and enclosure
    • Grille material: Stamped steel, perforated and powder-coated
    • Product Dimension (D x H): 13.37" x 17.04"
    • Product Weight: 22.5 lbs
    • Product Dimension (D x H): 13.37" x 17.04"
CONTENTS
    (1) QSC AD-P.Halo Pendant Speaker
    (1) Suspension Hardware and Fastener Kit
    (1) User's Manual
