QSC AD-S282H Dual 8" Speaker with LEA Connect 704 Amplifier

$5,299.99

PICK UP TODAY

Quick & Complimentary Shipping

1.png__PID:7af1a3fd-a98e-4384-a357-aae772061f43

FREE SHIPPING

2.png__PID:f1a3fda9-8e83-44e3-97aa-e772061f434b

EXPERT SUPPORT

Copy of Untitled Design.png__PID:a98e8384-e357-4ae7-b206-1f434b4f7c25

HASSLE FREE RETURNS

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP8997_SQ_1.png__PID:e7077992-36de-44a6-a734-ae2d97143238

Related Products

BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones
BYFP ipCase for 12x PGA57/58 Wired Microphones

BYFP ipCase for 12x PGA57/58 Wired Microphones

$149.99
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack
BYFP ipCase for Shure SM7B Broadcast Pack

BYFP ipCase for Shure SM7B Broadcast Pack

$349.99
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone
BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

BYFP ipCase for Beta 52A and Beta 91A Drum Microphone

$179.99
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack
BYFP ipCase for Shure BETA 98AMP/C 3-Pack

BYFP ipCase for Shure BETA 98AMP/C 3-Pack

$169.99

Experience audio excellence like never before with our custom sound system bundle, carefully curated to elevate your audio-visual experience to new heights. This exclusive package combines two powerful QSC AD-S282H loudspeakers with one cutting-edge LEA Connect 702 amplifier, providing you with unmatched clarity, depth, and precision in every note and sound.

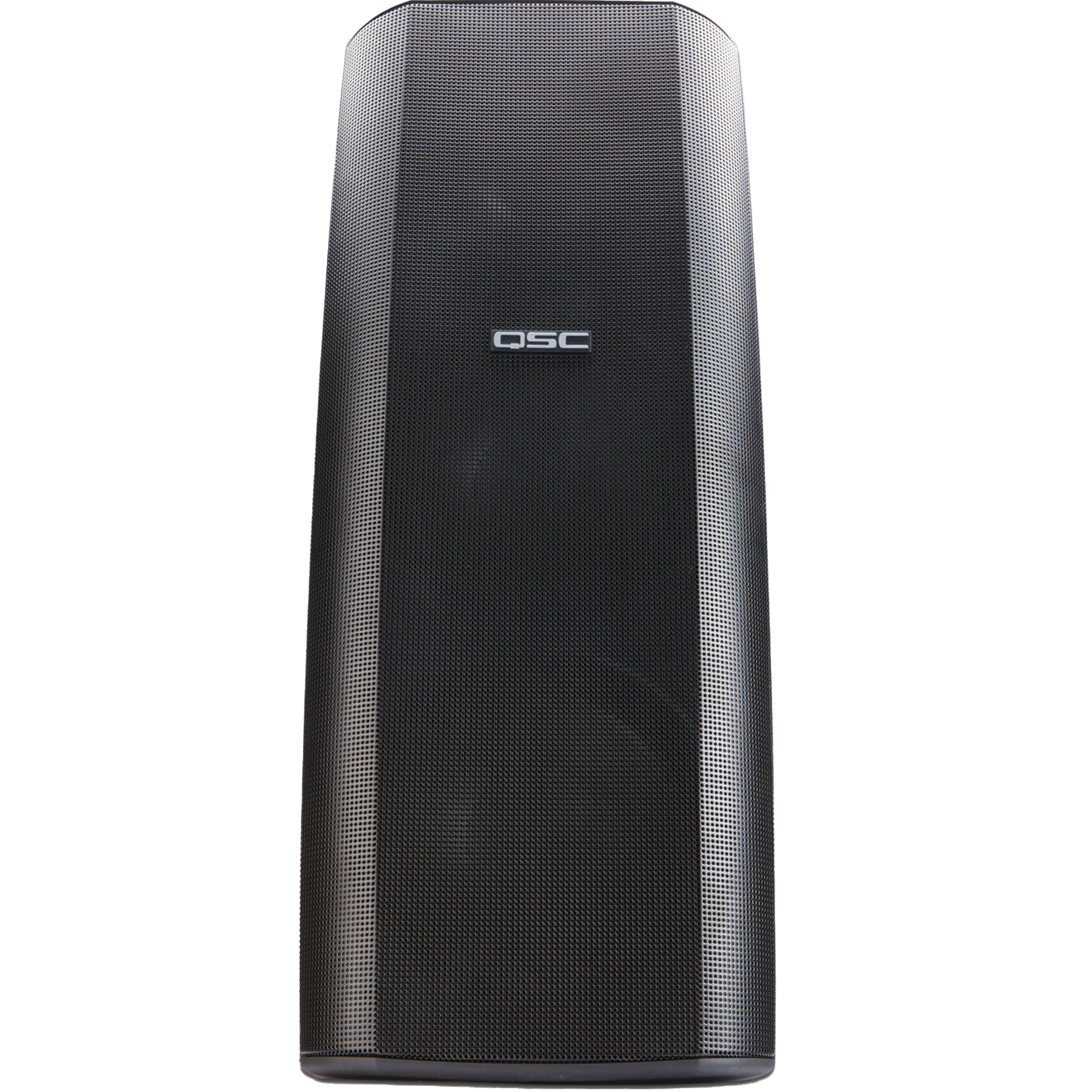

QSC AD-S282H Loudspeakers:
Step into a world of immersive sound with the QSC AD-S282H loudspeakers. These high-performance speakers are engineered to deliver remarkable sound quality and consistent coverage, making them perfect for a wide range of applications. The AD-S282H boasts a dual 8-inch woofer configuration, ensuring robust bass response and enhanced midrange performance. With its sophisticated design, these speakers blend seamlessly into any environment while producing breathtaking audio.

LEA Connect 702 Amplifier:
Powering this extraordinary sound setup is the LEA Connect 702 amplifier, a true marvel of modern technology. Engineered for maximum efficiency and reliability, this amplifier delivers 700 watts per channel at 4 ohms, providing more than enough power to drive the QSC AD-S282H speakers to their full potential. The LEA Connect 702 features advanced DSP (Digital Signal Processing) capabilities, allowing you to fine-tune and optimize your sound with precision and ease.

FEATURES
    • QSC AD-S282H
    • Contemporary style, weather-resistant enclosure and components - ideal for a wide range of applications
    • Dual 8-inch, 2-way system - in a lightweight, multi-purpose enclosure featuring heavy duty, powder coated aluminum grill
    • Versatile mounting options - The included yoke mount bracket can be used for mounting and aiming the system in vertical and horizontal orientations. Provisions for optional Omni-mount bracket is built in
    • Advanced Directivity rotatable waveguide - (90° × 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosures mounted orientation
    • Low impedance and transformer versions - standard 8 ohms system is selectable for passive or bi-amp operation while the AD-S282HT transformer version provides taps for both 70V and 100V distributed system use

    • LEA Amplifier
    • Web Browser-based UI works on any device with no software to download
    • Direct LoZ and HiZ (70V or 100V) selectable per channe
    • Proprietary Smart Power Bridge double the output power of any single channel without sacrificing other channels on the amplifier
    • 3 Ways to Connect to the amplifier 1.) Built in WiFi Access Point t 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection
    • 3rd Party API support for most of the industry leading system processors on the market
    • 96kHz Analog Devices DSP with Input Routing, multiple 48dB/Oct crossover filters, 8 Parametric EQ filters, user configurable speaker limiters, and real time load monitoring
    • Universal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-10%
    • Analog fully routable inputs with backup capabilities
    • External I/O Port for Remote On/Off and fault monitoring
    • Highly Efficient Class D Output Stage for low AC Current draw

SPECIFICATIONS
    • QSC AD-S282H
    • Configuration: Compact two-way, ported enclosure
    • Transducers: Dual 8-inch high power, treated paper cone, 2-inch voice coil, neodymium magnet
    • High Frequency Transducer: 1-inch high output compression driver
    • Frequency response (-6 dB): 80 Hz - 27.7 kHz
    • Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz
    • Maximum Output (SPL at 1m): Continuous
    • Fullrange (passive mode): 120 dB
    • LF (blamp mode): 124 dB
    • HF (blamp mode): 121 dB
    • Nominal Impedance:
    • Passive: 8 Ohms
    • LF/HF: 8 Ohms
    • Recommended Max Amp Power (Passive): 900 W RMS
    • Sensitivity (SPL, 1 W at 1m):
    • Passive: 93 dB (100 Hz - 10 kHz)
    • LF: 97 dB (200 Hz - 2 kHz)
    • HF: 104 dB (2kHz - 10 kHz)
    • Nominal Coverage: 90° H x 60° V (-6 dB) (rotatable to 60° H x 90° V)
    • Bass Loading: Ported tuned to 60 Hz
    • Type: Custom low distortion laminated core, wide bandwidth design
    • Taps: 70V 200, 100, 50, 25 W; 8O bypass / 100V 200, 100, 50 W; 8O bypass
    • Material: Injection molded, weather resistant, high impact polystyrene
    • Finish: White
    • Weather Resistant: Yes
    • Grille: Heavy duty powder coated aluminum
    • Connectors: Barrier strip, (switchable; passive/active on AD-S282H

    • LEA Amplifier
    • Output Power: 4 x 160 WRMS @ 4?, 8?, 70V, 100V (40W at 2?, 80W at 25V)
    • Inputs: Analog: 4 Balanced Inputs with user selectable 26 dB and 34 dB input sensitivity
    • Product Weight: 14 lb
    • Dimensions: 14.25" x 19" x 1.75"
    • Cooling: Front to Rear Variable Fan Speed Cooling
    • Power Supply: Universal Switch Mode Power Supply
    • AC Mains: 100VAC - 240VAC +/- 15% 50Hz or 60Hz
    • External I/O: External I/O In: Toggles Remote On/Off External I/O Out: Indicates Amplifier Health
    • User Interface: Web Browser User Interface, 3rd Party API control, or CLOUD control
    • DSP Architecture: Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
    • THD+N: 0.1% (20Hz to 20kHz)
    • Frequency Response: 20Hz to 20kHz, +/- 0.5 dB @ 4?, 8?, 70V, 100V, -2.5dB @ 20kHz at 2?
    • Signal-to-Noise Ratio: 105dB (20Hz to 20kHz referenced to 8?)
    • Crossover Frequency: 70dB (20Hz to 20kHz)
    • Amplifier Output Classification: Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel

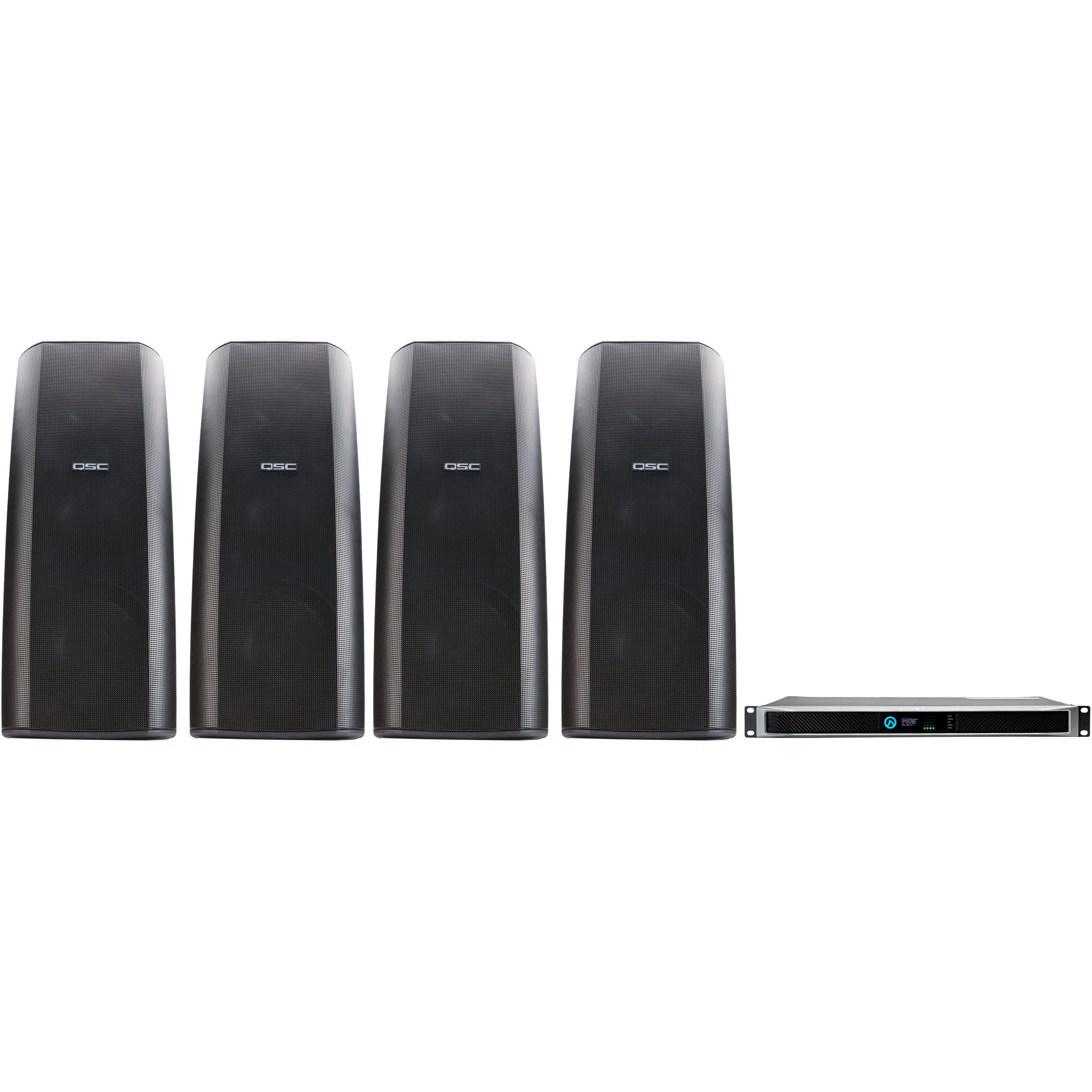

CONTENTS
    • (4) QSC AD-S282H-WH Surface Mount Speaker
    • (4) Yoke Mount and Hardware
    • (4) Connector Protection Cap

    • (1) LEA Connect 164 - 4 Channel Smart Amplifier
    • (2) (2) Removable/Washable front panel Foam Filters
    • (5) 3 position 5.08mm Amphenol Anytek Input Connector / (4) for analog input, (1) for External I/O Port
    • (4) 2 position 5.08mm Amphenol Anytek Output Connectors
    • (1) IEC Power Cord
    • (1) Quick Start Guide
    • (1) Record of Excellence
    • (1) Welcome Card
    • (1) Sticker
